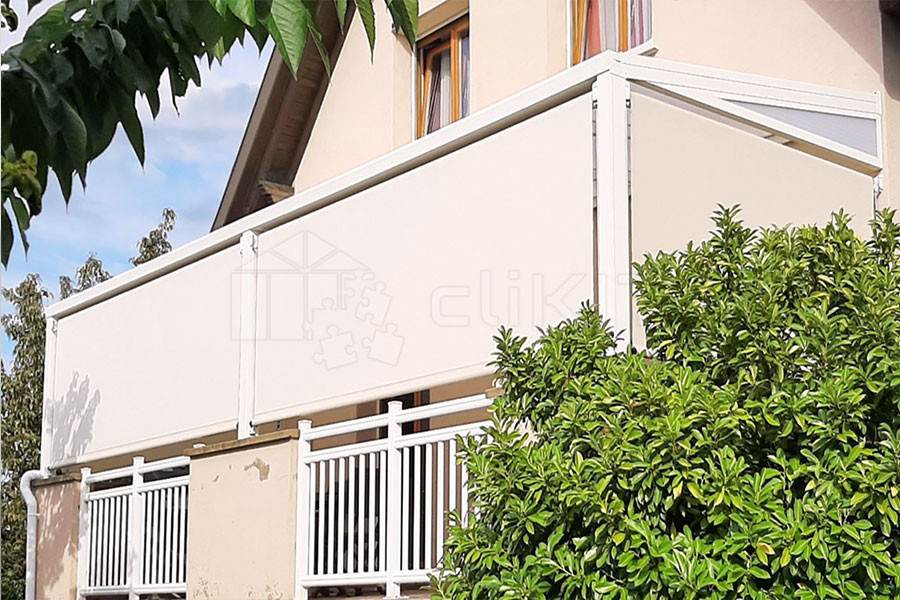

Photo n°1 of the Vertical Guide Screen Blind
They talk about us onChannel logo See> Discover> Watch the video>
Product description picto Product
description Installation guide picto Installation
guide Customer reviews picto Customer
reviews Delivery terms picto Delivery
terms

Configure your Vertical Guide Screen Blind

  • Made in France
  • Width: up to 9460mm*
  • Height: up to 5000mm*
  • Support: rolling tube
  • Fabric: open weave, semi-open weave, opaque
  • Operation: by crank handle
  • Thermal and light protection
  • Made to your measurements
*Required step
Your configuration

Factory direct price (incl. tax)

557.26
Instead of 796.08
Final price (tax incl.)
557.26

Summary

My online quote Delivery time pictoLead time: 8 to 10 weeks*
  • Delivery picto Delivery
    free*
  • Manufacturing picto Custom-
    Made
  • Warranty picto Warranty
    5 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
Vertical Guide Screen Blind for Pergola

Treat yourself to a shaded corner!

The Franciaflex Vertical Guide Screen Blind is the ideal solution to define a private space while protecting you from sunlight, wind or bad weather.

Made in France, the Guide Blind fits perfectly on all types of pergolas (aluminium pergolas, bioclimatic, etc.). Discreet and economical, this blind guarantees optimal protection of the mechanism and the fabric.

Thanks to its monobloc structure, the installation of this blind is simplified. The Guide Blind is a pergola blind made to your measurements and ready to install. Its installation and use are very straightforward and accessible to everyone.

This blind features a manual winch guidance system. Opening and closing the blind is performed smoothly using a foldable crank handle.

Diagram of the Vertical Guide Screen Blind for Pergola

Powder-coated aluminium

Pictogram for Standard Color CliKIT White 9016 Gloss CliKIT White 9016 Gloss
Pictogram for Standard Color Anthracite Grey 7016 Structured Anthracite Grey 7016 Structured
Link to other colorsView all>
Colors of the IMPERIAL ZIP Manual Screen Blind ×

Solar protection fabrics

Pictogram for Fabric 0202 White 0202 White
Pictogram for Fabric 2020 Linen 2020 Linen
Pictogram for Fabric 0101 Grey 0101 Grey
Pictogram for Fabric 3030 Charcoal 3030 Charcoal
Pictogram for Fabric 0606 Bronze 0606 Bronze
Link to other colorsView all>
Colors of the Vertical Guide Screen Blind ×

Fabric characteristics

UV resistance pictogram UV resistance
Wind resistance pictogram Wind resistance <49km/h**
Dimensional stability pictogram Dimensional stability
Easy cleaning pictogram Easy to clean

An extruded aluminium structure

  • Frame composed of cast and lacquered aluminium support profiles, supporting the winding mechanism
  • Support profile for tunnel, wall or ceiling installation, with internal fixings and stainless steel screws
  • Blind width available from 500 to 10640mm (XL Version with 3 guides from 4741mm for standard fabric and 5851mm for optional fabrics)
  • Blind height up to 5000mm for standard and optional fabrics
  • Galvanised steel winding tube and load bar
  • Fabric guidance system using a rigid aluminium guide rail 10mm thick
  • Opening and closing operation by winch
  • MERMET Satiné 5500 solar protection fabric with a weight of 520 g/m², blocking up to 96% of solar energy and UV rays (excluding 70mm lateral daylight gap from the guides)
  • Aluminium trapeze kit with support beam for installing a side blind on a sloped pergola (optional)
Photo of the Installation Principle of the Vertical Guide Screen Blind
Photo of the Winding Tube and Load Bar with stop Winding Tube & Load Bar with stop
Photo of the Manual winch operation block (removable) Manual winch operation block (removable)
Photo of the upper guide support profile and its set screws Upper guide support profile & set screw
Photo of the lower guide fixing brackets and the bolt and nut tensioners Lower guide fixing brackets & bolt and nut tensioners
My online quote

Custom-designed profiles

  • Lacquered aluminium winding tube support with multiple installation options: ceiling, tunnel or wall-mounted
  • Manual winch operation system R1/7 with removable crank handle
  • Adjustable 13mm square axle with its winding tube end cap positioned on the operating side
  • Grooved galvanised steel winding tube with a diameter of 78mm, fitted with a groove for fabric attachment
  • Galvanised steel load bar tube with a diameter of 40mm
  • Support profile for the upper part of the fabric guide rail, fixed using a barrel and a set screw
  • End cap and load bar stopper
  • Rigid aluminium guide rail 10mm in diameter
  • Guide fixing bracket and load bar stopper, held in place with a tension bolt and nut
Numbered exploded-view diagram of the Vertical Guide Screen Blind
Close-up on the Vertical Guide Screen Blind

Product +

  • Available in large dimensions (XL Version)
  • Adaptable fixing in tunnel, wall or ceiling mount
  • Guidance system using a rigid guide rail to hold the fabric against the elements
  • High wind resistance up to 49km/h** in open bay: class 3 (Standard EN13561)
  • Wide choice of micro-ventilated or opaque fabrics for perfect blackout
  • Optimal thermal and light protection that contributes to improving energy performance
  • Made in France to your measurements and ready to install, 5-year warranty

A smart fabric for optimal solar protection!

The MERMET Satiné 5500 fabric offers excellent protection against heat — up to 96% of solar energy is rejected! Thanks to its diagonal satin weave, this fabric provides very good glare control while optimising natural light input with a clear view to the outside.

Composed of 42% fibreglass and 58% PVC, the Satiné 5500 range guarantees very high resistance to bad weather as well as to discolouration caused by UV rays.

Its dimensional stability ensures optimal tension, in perfect compatibility with blinds fitted with lateral zip side channels. Learn more>

Regarding colors, it should be noted that, in general, dark fabrics absorb more heat but reduce glare.

On the other hand, light-coloured fabrics have the ability to reflect light while maintaining good light transmission.

Sample image of MERMET Satiné 5500 solar protection fabrics

Other fabric models available
on request

Not sure which fabric model to choose?

To help guide your selection, we offer different opacity levels adapted to your needs and situation.

Made in France, all our fabric ranges are available in numerous colors and allow you to customise the light input according to their weave: open weave, semi-open weave, or opaque.

Learn more
My online quote

Panels and accessories for all seasons!

Would you like to shelter from the sun, wind, rain or define a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to take a look at our essentials to upgrade your pergola!

Photo of Glass Curtains for Pergola Glass Curtains
Photo of Blinds and Sails for Pergola Blinds & Sails
Photo of Side Panels for Pergola Side Panels

Resources to assist you

Our technical team remains available and attentive to your needs throughout the entire installation phase of your blind. You will quickly notice how simple the system is to install. It is possible to complete the assembly in just a few hours. Your CliKIT Manual Screen Blind will arrive as a kit with its installation guide.

Link to an online quote

To successfully complete the installation of your blind, you will need the following tools:

  • Tape measure
  • Phillips screwdriver
  • Spirit level
  • Drill
  • Cordless screwdriver
  • Metal drill bits
  • Hammer

For more information on installation, feel free to view all our documents available to you:

Installation guide pictogramInstallation Guide>
Assembly video pictogramAssembly Video>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you throughout your entire project.

A dedicated technical advisor is assigned to you to refine your project together and best meet your requirements before and after your order, as well as throughout the entire installation phase.

For any enquiries, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time pictogram

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

French flag pictogram

Made in France

Free delivery pictogram

Free delivery

Our kit blinds are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Warranties pictogram

Warranties

Guide Screen Blinds are guaranteed for 5 years and comply with the strictest European standards. These blinds are part of the Store d'Origine Contrôlée (SOC) quality charter guaranteeing compliance with standards in force in France (NF), a sign of reduced environmental impact and production from French territory.

The Vertical Guide Screen Blind benefits from Standard EN13561 and is certified Class 3 for wind resistance (depending on dimensions).

**The maximum wind speed supported by this guide blind is subject to the following conditions:
- The blind must be installed in the reveal or directly on the façade, with a gap between the apron (or fabric) and the façade of less than 100 mm.
- When the gap from the façade is between 101 and 300 mm, reduce the maximum speed communicated above by 10 km/h, above which the exterior blind must be retracted.
- When the gap from the façade is between 301 and 500 mm, reduce the maximum speed communicated above by 20 km/h, above which the exterior blind must be retracted.
- Do not install the blind with a gap of more than 500mm from the façade.
