A complete tension system for an optimal result

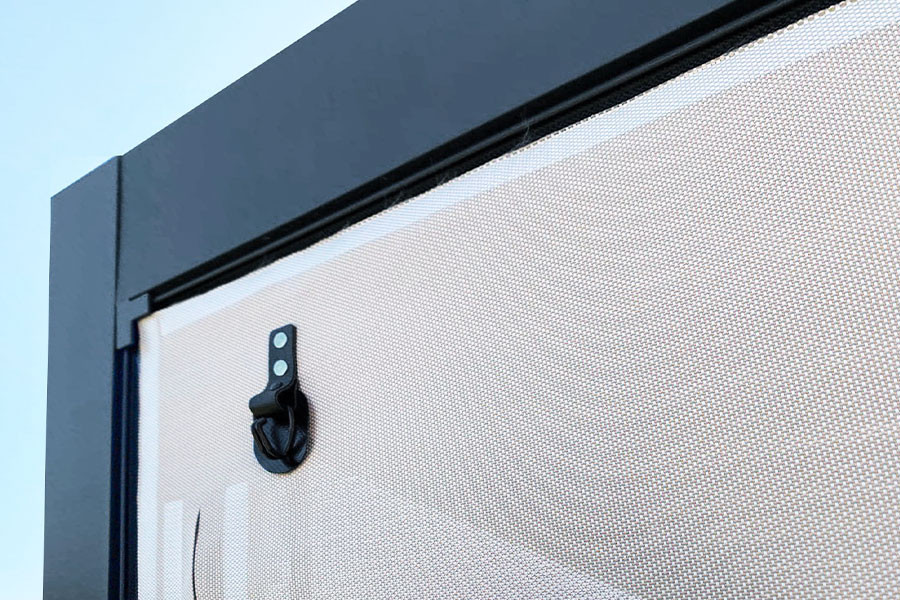

Its tensioning system is secured at floor level using a hook connected by a strap, which is itself attached to a tension bar. The tension is established across the three upper sides with aluminium profiles and a bead welded onto the fabric. The whole assembly is screwed onto the structure.

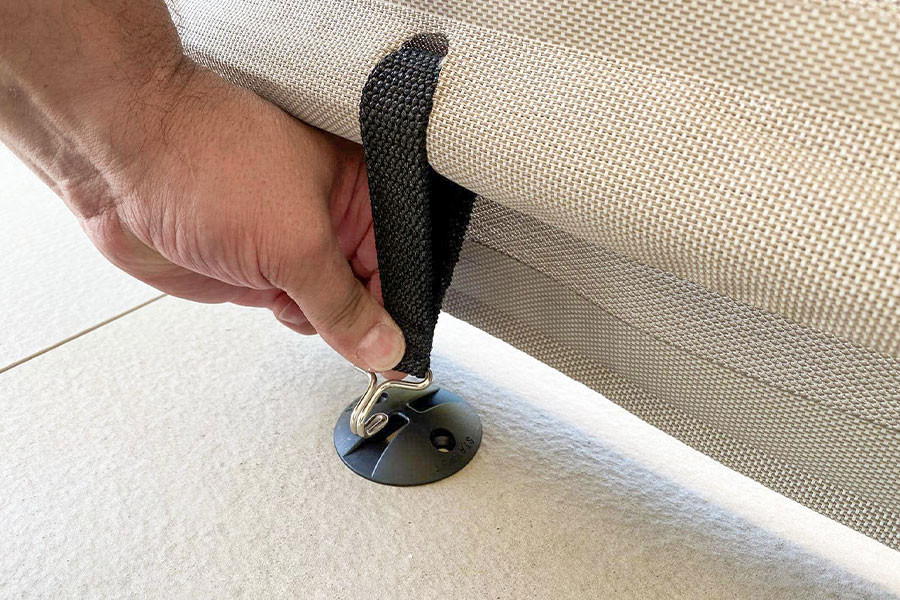

The lower tension of the fabric is achieved using an aluminium tube inserted into a pre-cut sleeve, then secured by an elastic strap system and a floor-mounted bracket. The fabric is thus tensioned on 4 sides, providing significant rigidity.

Open and close your space as you wish

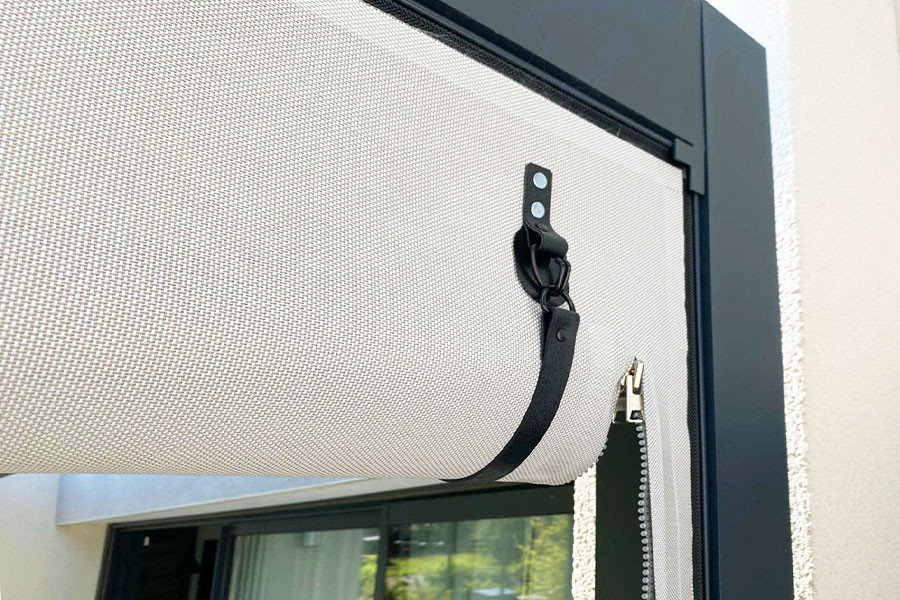

To regain access to your outdoor space, nothing could be simpler: just open the panel using the zip closures and gradually roll the fabric around the tube. A strap and counter-strap solution is riveted to the panel to keep the fabric rolled up.

An intermediate post for large dimensions

From 4000mm onwards, the use of an intermediate post is automatically integrated. This option includes an 80x80mm aluminium post, a floor-mounting bracket, and removable brackets to allow for upper fixing.

The post option automatically integrates into the manufacturing a support assembled on the fabric allowing the fabric/post fixing. This kit also includes a double opening (double door) with its 4 zip closures.

Resources to assist you

Our technical team remains available and attentive to your needs throughout the entire installation phase of your awning. You will quickly notice how simple the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT Store Screen will arrive as a kit.

The panels are systematically packaged and protected in a reinforced cardboard box, the size of which varies according to the panel dimensions (Dimensions 2600, 3200 or 4000). The aluminium profiles are wrapped in foam paper and the accessories placed in bags, all inside a box which will also contain the assembly and maintenance instructions.
