Configure your CLIMALUX Winter Garden

  • Made in Belgium*
  • Width: unlimited & custom-made
  • Depth: up to 5800mm
  • Gutter fascia: straight
  • Roof: polycarbonate, glass, opaque
  • Posts: 110 x 141mm
  • Protection against bad weather
  • Our best-seller model
*Required step
Your configuration

Factory direct price (incl. tax)

7,813.27
Instead of 9,192.08

Final price (tax incl.)
7,813.27

Summary

My online quote Delivery time pictoLead time: 8 to 10 weeks* Premium colors: 16 weeks
  • Delivery picto Free
    delivery*
  • Manufacturing picto Custom-
    made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
CLIMALUX Winter Garden Pergola & Glass Curtains

Finally enjoy your outdoor space!

The CLIMALUX Winter Garden takes the form of a Pergola enclosed by a Sliding Glass Curtain. A guarantee for a life in the open!

The 10mm tempered glass panels slide on a very discreet aluminium frame. Without vertical profiles, they allow you to create a pleasant living space and enjoy your winter garden all year round!

The simplicity of the system allows for the construction of various structures. The CLIMALUX is a winter garden that respects your budget and excels in its simplicity, professionalism and aesthetics.

Warning PictoGiven current standards regarding home insulation, this product is not suitable for the creation of heated rooms.

Diagram of the CLIMALUX Winter Garden

Thermally coated aluminium

Picto of Standard Color CliKIT Brilliant White CliKIT Brilliant White
Picto of Standard Color Anthracite Grey 7016 Structured Anthracite Grey 7016 Structured
Picto of Standard Color Aluminium Grey 9007 Aluminium Grey 9007
Picto of Standard Color Black 9005 Black 9005

16mm polycarbonate roofing

Diagram of the Clear Tint Clear Tint
Diagram of the Opal Tint Opal Tint
Diagram of the Anti-heat Opal Tint Opal Anti-heat

Adapted lower rails

Picto of the AL23 Raised Rail 3 Channels AL23 Raised
3 Channels
Picto of the AL22 Flat 3-Track Rail AL22 Flat
3 Channels
Picto of the AL24 Mixed Rail 3 Channels AL24 Mixed Rail
3 Channels
Picto of the AL23 Raised Rail 5 Channels AL23 Raised
5 Channels
Picto of the AL22 Flat Rail 5 Channels AL22 Flat
5 Channels
Picto of the AL24 Mixed 5-Track Rail AL24 Mixed Rail
5 Channels
View our customers' photos>

3 Gutter Fascia models to choose from

Customize the style of your Winter Garden by choosing from these 3 profile models we offer:

A reinforced aluminium structure

  • Thermally coated aluminium structure with LABEL QUALICOAT certification, cut to your measurements on request
  • PX support posts in aluminium, 110 x 141mm with a length of 2500mm, cuttable on request, fixed with provided floor sockets (Maximum width between posts: 4 m)
  • Rainwater drainage with an 80mm diameter integrated into one of the posts of your choice
  • GX gutter profile in powder-coated aluminium, alone or with your choice of decorative profiles SOFTLINE GLX / TRADITION GR
  • CL16 clamping clips for 16mm aluminium panels
  • Roof pitch: customizable between 5° and 10°
  • Torx stainless steel screws included, lacquered in the color of your winter garden
My online quote

Custom-designed profiles

  • 110 x 141mm post with integrated and invisible downpipe
  • Strainer for rainwater drainage
  • GX gutter fascia, alone or with your choice of decorative profiles SOFTLINE GLX / TRADITION GR
  • MX wall profile with a height of 144mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminium clamping clips with sealing gasket for 16mm thick panels
  • LED lighting strip integrated into the gutter fascia (Optional)
  • Power supply for the LED lighting strip (Optional)

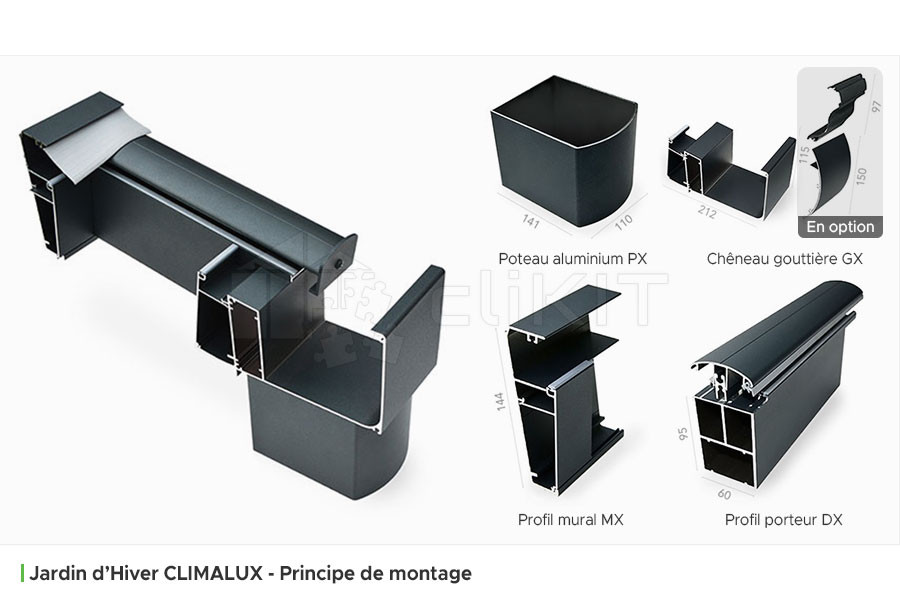

Numbered diagram of the Assembly Principle of the CLIMALUX Model

Customize your project as you wish

CliKIT gives you the possibility to carry out your project 100% custom-made, adapting to your needs and desires. Standard configurations are available at no extra cost.

With a standard configuration

Diagram No. 1 showing an example of the standard configuration of the CLIMALUX Pergola Diagram no. 2 example of the standard configuration of the CLIMALUX Pergola Diagram no. 3 example of the standard configuration of the CLIMALUX Pergola Diagram no. 4 example of the standard configuration of the CLIMALUX Pergola Diagram no. 5 example of the standard configuration of the CLIMALUX Pergola

If you are in one of the custom configurations below, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a custom configuration

Diagram no. 1 example of the custom configuration of the CLIMALUX Pergola Diagram no. 2 example of the custom configuration of the CLIMALUX Pergola Diagram no. 3 example of the custom configuration of the CLIMALUX Pergola Diagram no. 4 example of the custom configuration of the CLIMALUX Pergola Diagram no. 5 example of the custom configuration of the CLIMALUX Pergola
Legend diagram of support wallsFixed support wallLegend diagram of support walls of your choiceSupport walls of your choice (depending on your layout)

A few installation examples — anything is possible!

Depending on your layout, you can choose the number of glass panels, their opening direction, and even opt for installation on a low wall!

A choice of rails suited to your needs

Define your preferred access type by choosing from the 3 rail models we offer:

Custom-designed profiles

  • Upper rail with a width of 70/110mm and 60mm height
  • 10mm tempered glass with a thickness of 10mm (density of 25 kg/m²)
  • Glass panel drive carriages
  • AL23 Raised Rail providing better weatherproofing
  • AL22 Flat Rail, characterized by its ease of access
  • AL24 Mixed Rail offering the perfect compromise

The AL23 Raised Rail has a slightly elevated profile that ensures better air and water tightness.

The AL22 Flat Rail has been specially designed to allow optimal ease of access at floor level, but it is not watertight in heavy rain.

The AL24 Mixed Rail offers the perfect compromise between the AL22 Rail and the AL23 Rail.

Diagram of the 3 or 5-Track Rails

A trapeze in the color of your roof

  • 10mm thick Polycarbonate in Opal or Clear tint
  • Powder-coated aluminium profiles, cuttable on-site
  • Support beam in powder-coated aluminium 50 x 100mm

The aluminium trapeze kit consists of powder-coated aluminium profiles, a polycarbonate infill panel, and a support beam. The aluminium profiles and polycarbonate panel can be cut on-site to perfectly fit the angle of your winter garden.

Diagram of the 3 or 5-Track Rails

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

Photo of 16mm Polycarbonate Panel models for Pergola

The 16mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 16mm cellular panels make them one of the most popular panels on the conservatory and pergola market. The TOP X7 16mm Opal or Clear panel has a U-value of 2.1 W/m2.K.

The 16mm REFLEX PEARL Polycarbonate - Opal Anti-heat

Thanks to its co-extruded, reflective outer layer, the REFLEX PEARL panel reflects up to 81% of heat and offers a light transmission of 28%! In winter, you enjoy very good insulation, and in summer, the temperature under your winter garden is pleasant thanks to its reflective properties.

 TOP X7 Polycarbonate
16mm Clear
TOP X7 Polycarbonate
16mm Opal
REFLEX P. Polycarbonate
16mm Opal Anti-heat
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of 16mm Opal Polycarbonate Diagram of 16mm Opal Anti-heat Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200
Panel Tint Clear Tint Opal Tint Opal Anti-heat Tint
Weight per m² 2.4 kg 2.4 kg 2.5 kg
Light transmission 64% 55% 28%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB

Other covering solutions available on request

The PERGOTOP 16mm Sandwich Panel

The PERGOTOP 16mm Soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminium sheets. In addition to its excellent insulation coefficient, it offers high resistance to UV rays. View our photos>

The scratch-resistant coating ensures you can enjoy your winter garden without worry. The sandwich panels are installed in exactly the same way as the other panels.

Photo of PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 16mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its honeycomb structure offers numerous advantages. It features extremely high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV layer, there is no discolouration or loss of clarity, and light diffusion is durably guaranteed. In addition, its protective coating and the large size of its cells effectively limit condensation effects.

32mm thick Polycarbonate available on request

If you live in a mountainous area, it may be worth considering a 32mm thick roof covering. This will be more resistant to snow loads. However, you will benefit from less natural light under your winter garden. To help guide your choice, you can consult our guide Comparison of 16/32mm Polycarbonate>

My online quote

Light up your evenings!

An LED Light Strip can be integrated directly under the gutter fascia. This LED lighting diffuses an indirect and pleasant light that will allow you to extend your evenings under your terrace! View our photos>

With the LED Spot Kit, you have the option to customize the area you wish to illuminate under your winter garden — one side lit for reading, another dimmed for relaxing, anything is possible!

Photo of the LED Light Strip and LED Spot Kit for Pergola

An adaptable and customizable winter garden with the seasons!

Do you want to shelter from the sun, wind, rain or create a private space? No problem, we offer a wide range specially designed to meet all your expectations: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Walls... and much more!

Don't forget to take a look at our must-haves to upgrade your winter garden!

Resources to assist you

Our technical team remains available and attentive to you throughout the entire assembly phase of your winter garden. You will quickly notice the simplicity of the installation system. It is possible to complete the assembly in just a few hours. Your CliKIT Winter Garden will arrive as a kit containing the aluminium roof structure, roofing elements, guide elements, glass panels already fitted with guide wheels, accessories, and installation guides.

Link to an online quote

To successfully complete the assembly of your winter garden, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Easel or trestles
  • Rubber mallet
    It is important not to use a suction cup to move the glass.

For more information on installation, feel free to view all the documents available to you:

Picto of the Installation GuideInstallation Guide
CLIMALUX Pergola>
Picto of the Installation VideoInstallation Video
CLIMALUX Pergola>
Picto of the Installation GuideInstallation Guide
Glass Curtains>
Picto of the Installation VideoInstallation Video
Glass Curtains>

More than just a customer service

You can count on the support of our experts and building enthusiasts to accompany you throughout all stages of your project.

A dedicated technical advisor is assigned to help you refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire installation phase.

For any inquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor (male)

Jérôme Menu Technical Advisor

Photo of the Technical Advisor (female)

Fiona Rossignol Technical Advisor

My online quote
Picto of Manufacturing lead time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed upon production launch, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to inform us in advance.

Picto of Free Delivery

Free delivery

Our kit winter gardens are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranty picto

Warranties

Our aluminium winter gardens are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL.

Snow overload: unless otherwise specified by you, load calculations are performed with a snow load in accordance with current standards. Please notify us of altitudes above 800 metres.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.
