Configure your PANORAMA Winter Garden

  • Made in Belgium*
  • Width: unlimited & custom-made
  • Depth: up to 6000mm
  • Panel: 10mm tempered glass
  • Roof: polycarbonate, glass, opaque
  • Posts: 110 x 181mm
  • Protection against bad weather
  • Up to 7m between posts
*Required step
Your configuration

Factory direct price (incl. tax)

9,696.57
Instead of 11,407.73

Final price (tax incl.)
9,696.57

Summary

My online quote Delivery time pictoLead time: 8 to 10 weeks* Premium color: 16 weeks
  • Delivery picto Free
    delivery*
  • Manufacturing picto Custom-
    Made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
PANORAMA Winter Garden Pergola & Glass Curtains

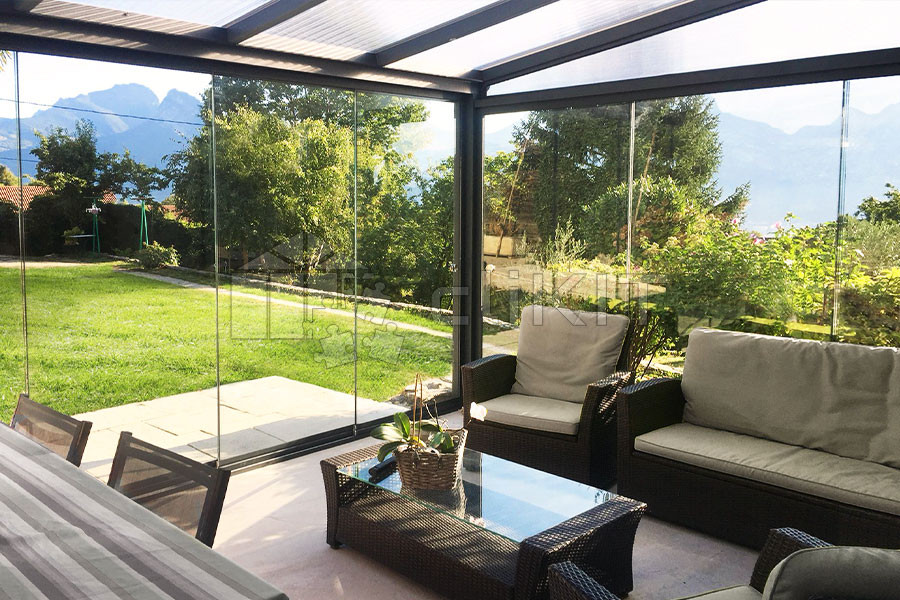

Photo of the PANORAMA Winter Garden

Finally enjoy your outdoor space!

The PANORAMA Winter Garden is a Pergola enclosed by a Sliding Glass Curtain. A guarantee for living in the open!

The 10mm tempered glass panels slide on a very discreet aluminium frame. Free of vertical profiles, they allow you to create a pleasant living space and enjoy your winter garden all year round!

The simplicity of the system allows for a variety of constructions. The PANORAMA is a winter garden that respects your budget and excels in its simplicity, professionalism, and aesthetics.

Warning PictogramGiven current standards for home insulation, this product is not suitable for the creation of heated rooms.

Diagram of the HORIZON Winter Garden

Powder-coated aluminium

Picto of the Standard Color White CliKIT Gloss White CliKIT Gloss
Picto of the Standard Color Anthracite Grey 7016 Structured Anthracite Grey 7016 Structured
Picto of the Standard Color Aluminium Grey 9007 Aluminium Grey 9007
Picto of the Standard Color Black 9005 Black 9005

16mm polycarbonate roofing

Diagram of the Light Shade Clear Shade
Diagram of the Opal Shade Opal Shade
Diagram of the Opal Anti-Heat Shade Anti-heat Opal

Suitable lower rails

Picto of the AL23 Raised 3-Track Rail AL23 Raised
3 Tracks
Picto of the AL22 Flat 3-Track Rail AL22 Flat
3 Tracks
Pictogram of the AL24 Mixed 3-Track Rail AL24 Mixed Rail
3 Tracks
Picto of the AL23 Raised 5-Track Rail AL23 Raised
5 Tracks
Picto of the AL22 Flat 5-Track Rail AL22 Flat
5-Track
Picto of the AL24 Mixed 5-Track Rail AL24 Mixed Rail
5 Tracks
View our customers' photos>

A reinforced aluminium structure

  • Powder-coated aluminium structure with QUALICOAT LABEL certification, cut to your measurements on request
  • PX support posts in aluminum 110 x 141mm with a length of 2500mm, cuttable on request, fixed by provided floor sockets (Maximum width between posts: 4 m)
  • Rainwater drainage with an 80mm diameter integrated into one post of your choice
  • GDG gutter profile in powder-coated aluminium with a height of 162mm and a depth of 222mm
  • CL32 clamping clips for 32mm panels
  • Roof pitch: customizable between 5° and 20°
  • Stainless steel Torx screws included, lacquered in the color of your winter garden

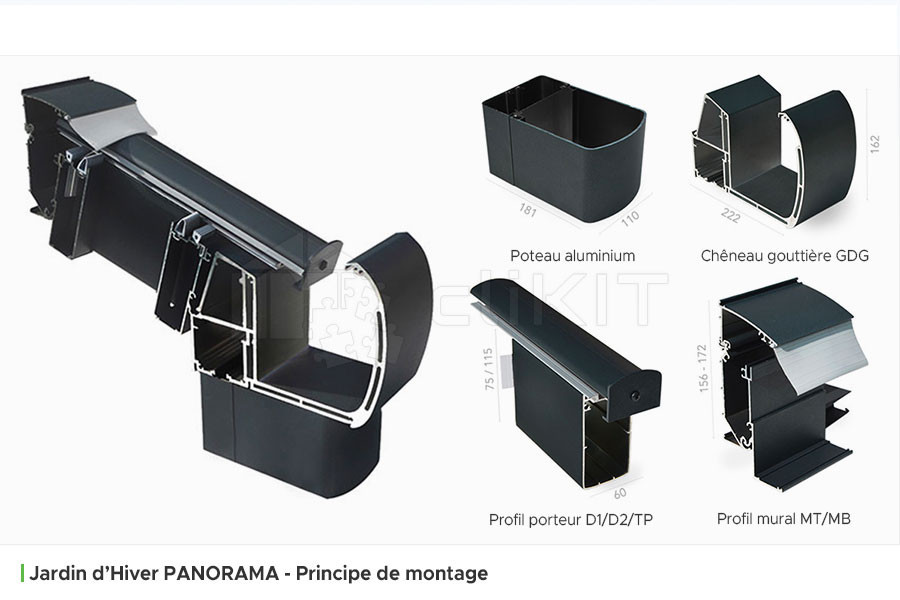

Photo of the Assembly Principle of the PANORAMA Model
My online quote

Custom-designed profiles

  • 110 x 181mm post with integrated and concealed downpipe
  • Strainer for rainwater drainage
  • GDG gutter rail with a height of 162mm
  • MT/MB wall profile with a height between 156 and 172mm
  • D1/TP load-bearing profile with a height and width of 75 x 60mm
  • Aluminium clamping clips with sealing gasket for panels 32mm thick
  • LED light strip integrated into the gutter rail (Optional)
  • Power supply for the LED light strip (Optional)
Numbered diagram of the Assembly Principle of the PANORAMA Model

Customize your project as you wish

CliKIT gives you the possibility to create your 100% custom-made project, tailored to your needs and desires. Standard configurations are available at no extra cost.

With a standard configuration

Diagram no. 1 example of the standard configuration of the PANORAMA Pergola Diagram no. 2 example of the standard configuration of the PANORAMA Pergola Diagram no. 3 example of the standard configuration of the PANORAMA Pergola Diagram no. 4 example of the standard configuration of the PANORAMA Pergola Diagram no. 5 example of the standard configuration of the PANORAMA Pergola

If you are in one of the custom configurations below, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a custom configuration

Diagram no. 1 example of the custom configuration of the PANORAMA Pergola Diagram no. 2 example of the custom configuration of the PANORAMA Pergola Diagram no. 3 example of the custom configuration of the PANORAMA Pergola Diagram no. 4 example of the custom configuration of the PANORAMA Pergola Diagram no. 5 example of the custom configuration of the PANORAMA Pergola
Legend diagram of support wallsFixed support wallLegend diagram of the optional support wallsOptional support walls (depending on your layout)

A few installation examples — anything is possible!

Depending on your layout, you can choose the number of glass panels, their opening direction, and even opt for installation on a low wall!

A choice of rails adapted to your needs

Define your preferred access type by choosing from the 3 rail models we offer:

Custom-designed profiles

  • Upper rail with a width of 70/110mm and 60mm height
  • Tempered glass with a thickness of 10mm (density of 25kg/m²)
  • Glass panel drive carriages
  • Raised Rail AL23, which ensures better watertightness
  • Flat Rail AL22, characterized by its ease of access
  • Mixed Rail AL24, which offers the perfect compromise

The Raised Rail AL23 has a slightly elevated profile that ensures better airtightness and watertightness.

The Flat Rail AL22 has been specially designed to allow optimal ease of access at ground level, but it is not watertight in the event of heavy rain.

The Mixed Rail AL24 offers the perfect compromise between the AL22 Rail and the AL23 Rail.

Diagram of the 3 or 5-Track Rails

A trapezoid panel in the color of your roof

  • 10mm thick polycarbonate in Opal or Clear shade
  • Powder-coated aluminium profiles that can be cut on site
  • Powder-coated aluminium support beam 50 x 100mm

The aluminium trapezoid kit is composed of powder-coated aluminium profiles, a polycarbonate infill panel, and a support beam. The aluminium profiles and the polycarbonate panel can be cut on site to perfectly fit the angle of your winter garden.

Diagram of the 3 or 5-Track Rails

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

Photo of the 32mm Polycarbonate Panel models for Pergola

The 32mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 32mm cellular panels make them one of the most popular panels on the veranda and pergola market. The TOP X7 32mm Opal or Clear panel has a U-value of 1.2 W/m².K.

The 32mm REFLEX PEARL Polycarbonate - Opal Anti-Heat

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 82% of heat and offers a light transmission of 12%! In winter, you benefit from excellent insulation, and in summer, the temperature under your pergola is pleasant thanks to its reflective properties.

 TOP X7 Polycarbonate
32mm Clear
TOP X7 Polycarbonate
32mm Opal
REFLEX P. Polycarbonate
32mm Opal Anti-Heat
Polyclear brand logo Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Opal Anti-Heat Polycarbonate
Panel Width (mm) 980/1230 980/1230 980/1230
Panel Shade Clear Shade Opal Shade Opal Anti-Heat Shade
Weight per m² 3.7 kg 3.7 kg 3.8 kg
Light transmission 57% 32% 12%
U insulation value 1.2 W/m² K 1.2 W/m² K 1.0 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 23 dB

Other covering solutions available on request

The PERGOTOP 32mm Sandwich Panel

The soundproofing PERGOTOP 32mm Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminium sheets. Its excellent insulation coefficient is complemented by high UV resistance. View our photos>

Composed of a soft membrane on the exterior side and an anti-scratch coating or an identical membrane on its inner face, the PERGOTOP Soft Sandwich Panel effectively dampens contact noise such as rain or hail. Its Soft soundproofing layer absorbs acoustic energy optimally, available in 1 or 2-layer versions depending on your needs.

Photo of the PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 32mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its cellular structure offers many advantages. It has very high impact resistance, up to 250 times stronger than glass! Equipped with a UV-resistant layer, there is no discoloration or loss of clarity, and light diffusion is durably guaranteed. Furthermore, its protective coating and the large size of its cells effectively limit condensation effects.

My online quote

Light up your evenings!

An LED light strip can be integrated directly under the gutter rail. This LED lighting diffuses an indirect and pleasant light that will allow you to extend your evenings on your terrace! View our photos>

With the LED Spot Kit, you can customize the area you want to illuminate under your winter garden — one side lit for reading, another dimmed for relaxing, anything is possible!

Photo of the LED Light Strip and LED Spot Kit for Pergola

An adaptable and customizable winter garden with the seasons!

Do you want to shelter from the sun, wind, rain, or create a private space? No problem — we offer a wide range specially designed to meet all your expectations: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Walls... and much more!

Remember to take a look at our essentials to upgrade your winter garden!

Resources to assist you

Our technical team remains available and attentive to your needs throughout the entire assembly phase of your winter garden. You will quickly notice the simplicity of the installation system. It is possible to complete the assembly in just a few hours. Your CliKIT Winter Garden will arrive as a kit containing the aluminum roof structure, the roofing elements, the guiding elements, the glass panels already fitted with guide wheels, the accessories, as well as the installation instructions.

Link to an online quote

To successfully complete the assembly of your winter garden, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone applicator gun
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet
    It is important not to use a suction cup to move the glass.

For more information on installation, feel free to view all our documents available to you:

Picto of the Installation GuideInstallation Guide
PANORAMA Pergola>
Picto of the Assembly VideoPhoto Book
Winter Gardens>
Picto of the Installation GuideInstallation Guide
Glass Curtains>
Picto of the Assembly VideoAssembly Video
Glass Curtains>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you through every step of your project.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout your entire assembly phase.

For any enquiry, feel free to contact our team who will be happy to respond:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp), or email.

The CliKIT team
here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the technical advisor

Jérôme Menu Technical Advisor

Photo of the female technical advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known at the time of production launch, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of Free Delivery

Free delivery

Our kit winter gardens are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Picto of the Warranties

Warranties

Our aluminium winter gardens come with a 10-year warranty and comply with the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL certification.

Snow load: unless otherwise specified, load calculations are performed with a snow load according to current standards. Please notify us for altitudes above 800 metres.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.
