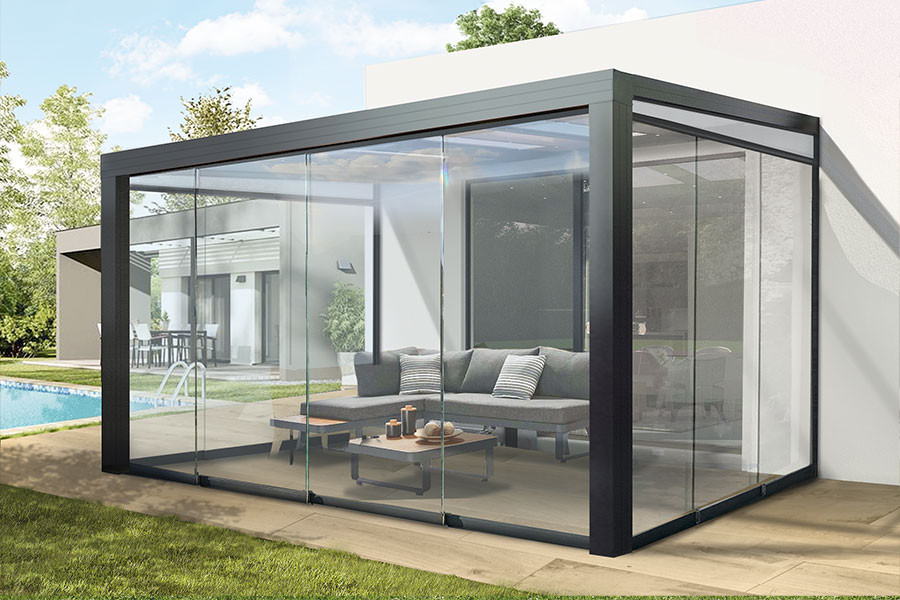

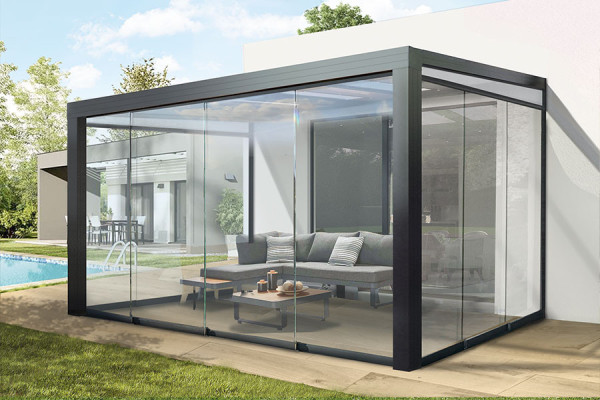

Photo n°1 of the HORIZON Aluminium Winter Garden
They talk about us onChannel logo See> Discover> Watch the video>
Product Description pictogram Product
description Assembly Video pictogram Assembly
video Installation Guide pictogram Installation
guide Customer Reviews pictogram Customer
reviews Delivery Terms pictogram Delivery
terms

Configure your HORIZON Winter Garden

  • Made in Belgium*
  • Width: unlimited & custom-made
  • Depth: up to 5800mm
  • Panel: 10mm tempered glass
  • Roof: polycarbonate, glass, opaque
  • Posts: 150 x 177mm
  • Protection against bad weather
  • Up to 7m between posts
*Required step
Your configuration

Factory direct price (incl. tax)

8,425.17
Instead of 9,911.96
Final price (tax incl.)
8,425.17

Summary

My online quote Delivery time pictogramLead time: 8 to 10 weeks* Premium color option: 16 weeks
  • Delivery pictogram Free
    delivery*
  • Manufacturing pictogram Custom-
    Made
  • Warranty pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*

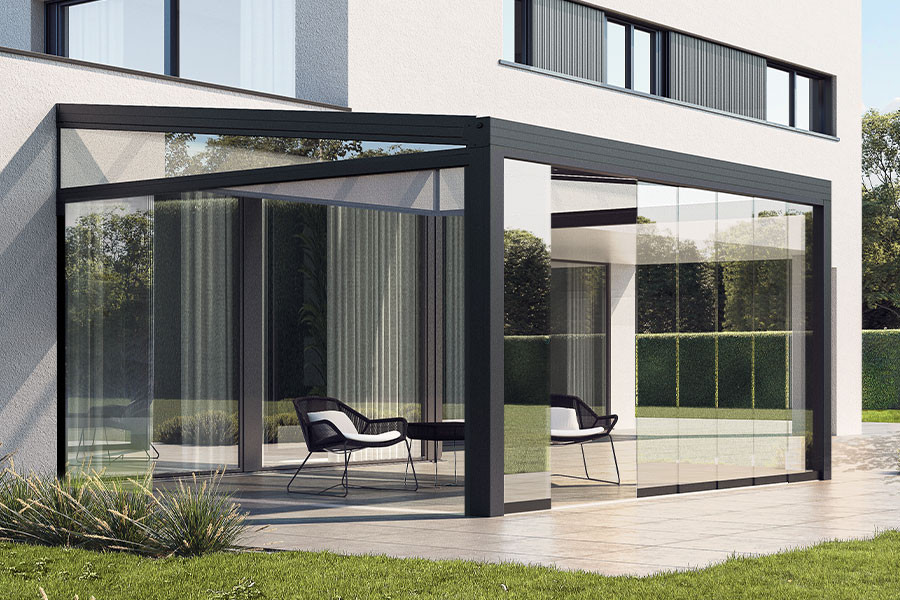

HORIZON Winter Garden Pergola & Glass Curtains

Finally enjoy your outdoor space!

The HORIZON Winter Garden consists of an aluminum pergola enclosed by sliding glass curtains. The guarantee of a life in the open!

With 10mm tempered glass panels mounted on a discreet aluminum frame, it creates a bright and protected living space, without vertical profiles for an unobstructed and enjoyable view in every season!

The simplicity of the system allows the construction of several configurations. The HORIZON model combines simplicity, professionalism and aesthetics to meet your winter garden needs, while respecting your budget.

Warning PictogramGiven current standards regarding home insulation, this product is not suitable for the creation of heated rooms.

Diagram of the HORIZON Winter Garden

Powder-coated aluminum

Pictogram of the Standard Color CliKIT Gloss White CliKIT Gloss White
Picto of the Standard Color Anthracite Grey 7016 Structured Structured Anthracite Grey 7016
Pictogram of the Standard Color Aluminum Grey 9007 Aluminum Grey 9007
Pictogram of the Standard Color Black 9005 Black 9005

16mm polycarbonate roofing

Diagram of the Clear Shade Light Shade
Diagram of the Opal Shade Opal Shade
Diagram of the Opal Anti-heat Tint Opal Anti-heat

Adapted lower rails

Pictogram of the AL23 Raised Rail 3 Tracks AL23 Raised
3 Tracks
Pictogram of the AL22 Flat Rail 3 Tracks AL22 Flat
3 Tracks
Pictogram of the AL24 Mixed Rail 3 Tracks AL24 Mixed Rail
3 Tracks
Pictogram of the AL23 Raised Rail 5 Tracks AL23 Raised
5 Tracks
Pictogram of the AL22 Flat Rail 5 Tracks AL22 Flat
5 Tracks
Picto of the AL24 Mixed 5-Track Rail AL24 Mixed Rail
5 Tracks

A reinforced aluminum structure

  • Thermally lacquered aluminum structure with the QUALICOAT LABEL, cut to your measurements upon simple request
  • PXLX aluminum support posts and their PCLXLX clip, 2500mm long, cuttable on request, fixed with provided sill anchors (Maximum width between posts: 7 m)
  • Rainwater drainage with an 80mm diameter integrated into one of the posts of your choice
  • GXLX gutter profile in powder-coated aluminum with a height of 115mm and a depth of 212mm
  • CL16 clamping clips for 16mm panels in aluminum
  • Roof pitch: customizable between 5° and 10°
  • Torx stainless steel screws included, lacquered in the color of your pergola

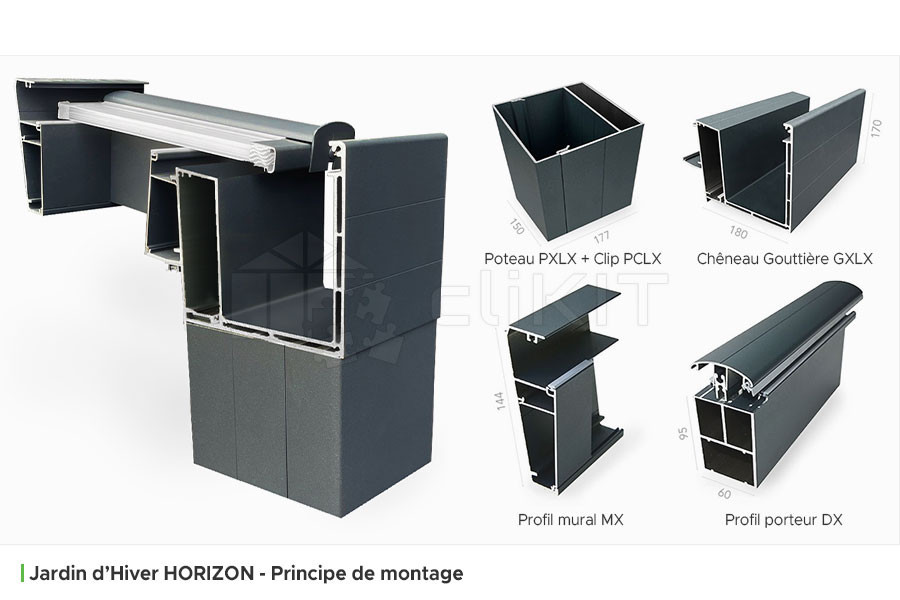

Photo of the Assembly Principle of the HORIZON Model
Photo of the PXLX Post Post PXLX and Clip PCLXLX
Photo of the GXLX Gutter Channel Gutter Channel GXLX
Photo of the MX Wall Profile MX Wall Profile
Photo of the DX Load-bearing Profile DX Load-bearing Profile
My online quote

Custom-designed profiles

  • 150 x 177mm post with integrated and concealed downpipe
  • Strainer for rainwater drainage
  • GXLX gutter channel with a height of 170mm
  • Gutter reinforcement V1243 (Optional)
  • MX wall profile with a height of 144mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminum clamping clips with their sealing gasket for 16mm thick polycarbonate panels
  • LED light strip integrated into the gutter channel (Optional)
  • Power supply for the LED Light Strip (Optional)
Numbered diagram of the Assembly Principle of the HORIZON Model

Customize your project as you wish

CliKIT gives you the possibility to carry out your project 100% custom-made, adapting to your needs and desires. Standard configurations come with no added costs.

With a standard configuration

Diagram no. 1 example of the standard configuration of the HORIZON Pergola Diagram no. 2 example of the standard configuration of the HORIZON Pergola Diagram no. 3 example of the standard configuration of the HORIZON Pergola Diagram no. 4 example of the standard configuration of the HORIZON Pergola Diagram no. 5 example of the standard configuration of the HORIZON Pergola

If you are in one of the custom configurations below, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a custom configuration

Diagram no. 1 example of the custom configuration of the HORIZON Pergola Diagram no. 2 example of the custom configuration of the HORIZON Pergola Diagram no. 3 example of the custom configuration of the HORIZON Pergola Diagram no. 4 example of the custom configuration of the HORIZON Pergola Diagram no. 5 example of the custom configuration of the HORIZON Pergola
Legend diagram of support wallsFixed support wallLegend diagram of the optional support wallsChoice of support walls (depending on your installation)

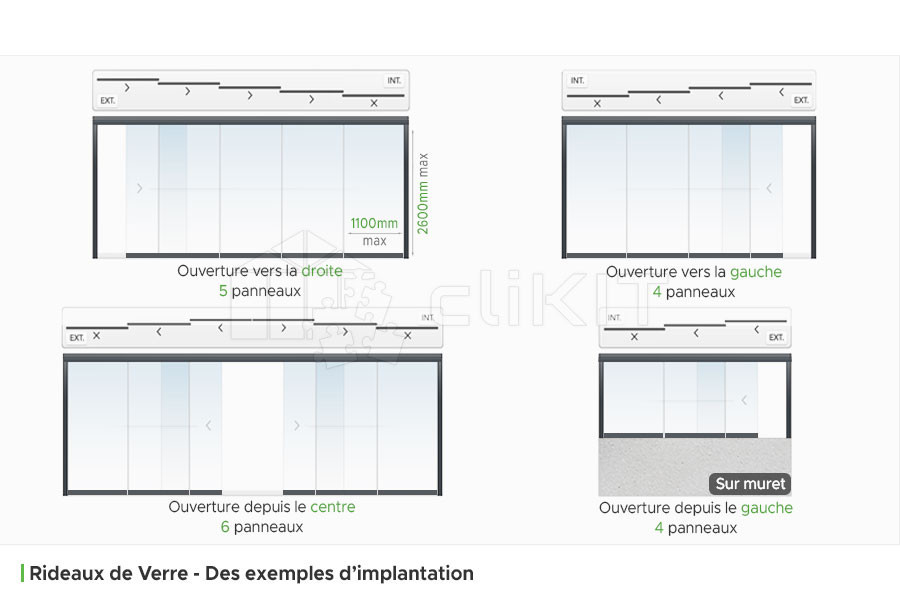

Some installation examples — anything is possible!

Depending on your installation, you have the option to choose the number of glass panels, their opening direction, and even opt for installation on a low wall!

Installation example of Glass Curtain no. 1 Opening to the right
5 Panels
Installation example of Glass Curtain no. 2 Opening to the left
4 Panels
Installation example of Glass Curtain no. 3 Opening from the center
6 Panels
Installation example of Glass Curtain no. 4 Opening to the left
3 Panels

A choice of rails suited to your needs

Define your preferred access type by choosing from the 3 rail models we offer:

Raised AL23 floor rail with 3 or 5 Tracks

Raised AL23 floor rail
with 3 or 5 Tracks

Raised AL23 floor rail with 3 or 5 Tracks

Flat AL22 floor rail
with 3 or 5 Tracks

Raised AL23 floor rail with 3 or 5 Tracks

Mixed AL24 floor rail
with 3 or 5 Tracks

Custom-designed profiles

  • Upper rail with a width of 70/110mm and 60mm in height
  • Tempered glass with a thickness of 10mm (density of 25 kg/m²)
  • Glass panel drive carriages
  • Raised AL23 Rail that ensures better watertightness
  • Flat AL22 Rail characterized by its ease of access
  • Mixed AL24 Rail offering the perfect compromise

The Raised AL23 Rail has a slightly elevated profile that ensures better air and water tightness.

The AL22 Flat Rail has been specially designed to allow optimal ease of access at ground level, but it is not watertight in the event of heavy rain.

The Mixed AL24 Rail offers the perfect compromise between the AL22 Rail and the AL23 Rail.

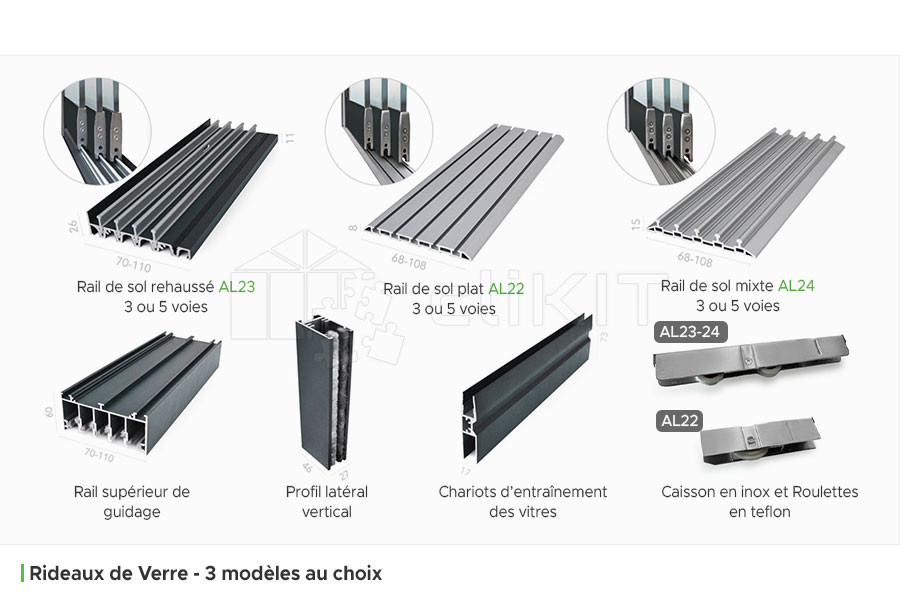

Diagram of 3 or 5 Track Rails
Photo of the upper guide rail Upper guide rail
Photo of the vertical side profile Vertical side profile
Photo of the Glass Panel Drive CarriageX Glass panel drive carriage
Photo of the stainless steel housing and teflon wheels Stainless steel housing and teflon rollers

A trapeze panel in the color of your roofing

  • 10mm thick polycarbonate in Opal or Clear tint
  • Powder-coated aluminum profiles that can be cut on site
  • Support beam in powder-coated aluminum 50 x 100mm

The aluminum trapeze kit consists of powder-coated aluminum profiles, a polycarbonate infill panel, and a support beam. The aluminum profiles and the polycarbonate panel can be cut on site to perfectly fit the angle of your winter garden.

Diagram of 3 or 5 Track Rails

A polycarbonate roofing more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

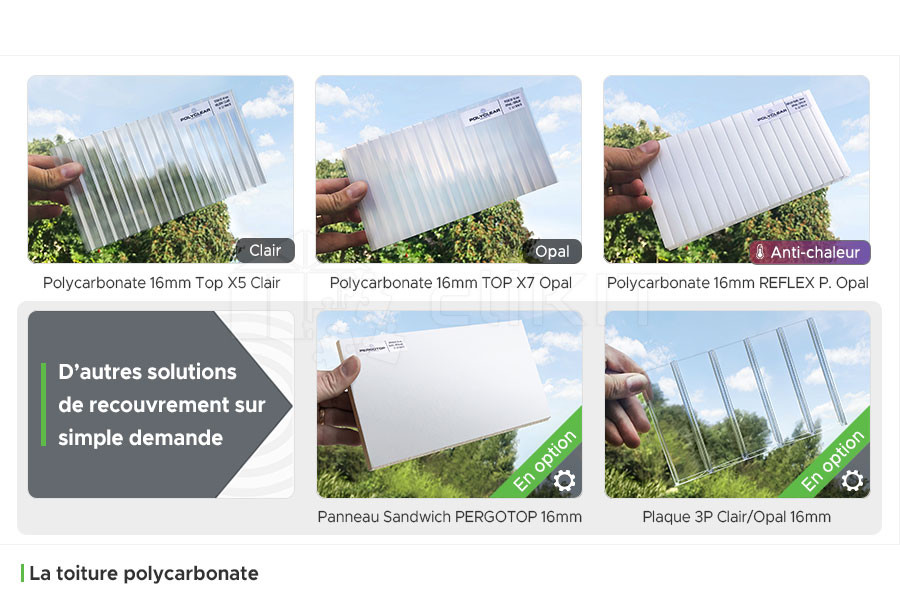

Photo of the 16mm Polycarbonate Panel models for Pergola

The 16mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 16mm hollow-cell panels make them one of the most popular panels on the veranda and pergola market. The TOP X7 16mm Opal or Clear panel has a U-value of 2.1 W/m².K.

The 16mm REFLEX PEARL Polycarbonate - Opal Anti-heat

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 81% of heat and offers a light transmission of 28%! In winter, you benefit from very good insulation, and in summer, the temperature under your pergola is pleasant thanks to its reflective properties.

 Polycarbonate TOP X7
16mm Clear		Polycarbonate TOP X7
16mm Opal		Polycarbonate REFLEX P.
16mm Opal Anti-heat
Polyclear brand logo Diagram of 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-heat Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200
Panel Shade Clear Tint Opal Shade Opal Anti-heat Shade
Weight per m² 2.4 kg 2.4 kg 2.5 kg
Light transmission 64% 55% 28%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB
Photo of the 16mm Clear Polycarbonate
Photo of the 16mm Opal Polycarbonate
Photo of the 16mm Opal Anti-heat Polycarbonate

Other covering solutions available on request

The PERGOTOP 16mm Sandwich Panel

The soundproofing PERGOTOP 16mm Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminum sheets. In addition to its good insulation coefficient, it offers great resistance to UV rays. View our photos>

The scratch-resistant coating ensures you can enjoy your pergola without worry. The sandwich panels are mounted in exactly the same way as the other panels.

Photo of the PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 16mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its honeycomb structure offers many advantages. It provides very high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV layer, there is no discoloration or loss of clarity, and light diffusion is durably guaranteed. In addition, its protective coating and the large size of its cells effectively limit condensation effects.

32mm thickness polycarbonate available on request

If you live in a mountainous area, it may be worth considering a 32mm thick roofing cover. This will be more resistant to snow loads. However, you will benefit from less light under your pergola. To help guide your choice, you can consult our guide Polycarbonate 16/32mm Comparison>

My online quote

Light up your evenings!

An LED light strip can be integrated directly under the gutter channel. This LED lighting diffuses indirect and pleasant light that will allow you to extend your evenings under your terrace! View our photos>

With the LED Spot Kit, you can customize the area you wish to illuminate under your pergola — one side lit for reading, another dimmed for relaxing, anything goes!

Photo of the LED Light Strip and the LED Spot Kit for Pergola

A winter garden that evolves and can be personalized with the seasons!

Would you like to shelter from the sun, wind, rain, or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Awnings, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to take a look at our essentials to upgrade your winter garden!

Photo of Awnings and Sails for Winter Garden Awnings & Sails
Photo of Side Panels for Winter Garden Side Panels
Photo of Infrared Heaters for Bioclimatic Pergola Infrared Heaters

Resources to assist you

Our technical team remains available and at your service throughout the entire assembly phase of your winter garden. You will quickly notice the simplicity of the installation system. It is possible to complete the assembly in just a few hours. Your CliKIT Winter Garden will arrive as a kit containing the aluminum roof structure, the roofing elements, the guiding elements, the glass panels already fitted with guide wheels, the accessories, as well as the installation guides.

Link to an online quote

To successfully complete the assembly of your winter garden, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole Saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Easel or trestles
  • Rubber mallet
    It is important not to use a suction cup to move the glass.
