CLIMALUX Aluminium Carport

Besoin d'un conseil ?
03 66 72 15 14
  • -15%

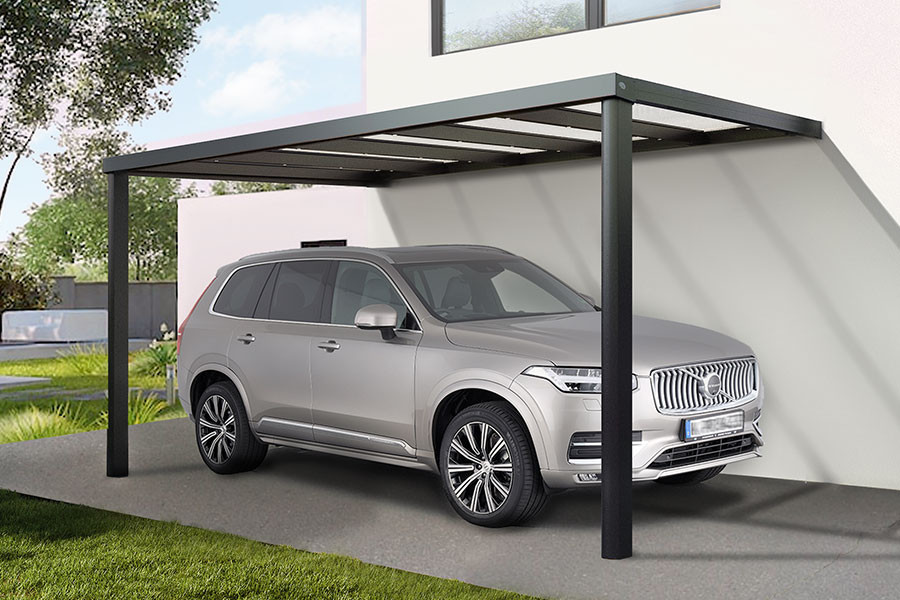

Photo n°1 of the CLIMALUX Aluminium Carport
They talk about usChannel logo View> Discover> Watch the video>
Product description pictogram Product
description Installation guide pictogram Installation
guide Customer reviews pictogram Customer
reviews Delivery terms pictogram Delivery
terms

Configure your CLIMALUX Aluminium Carport

  • Made in Belgium
  • Width: unlimited & custom-made
  • Depth: up to 5800mm
  • Gutter rail: straight
  • Roof: polycarbonate, glass, opaque
  • Posts: 110 x 141mm
  • Expandable and customizable carport
  • Our best-seller model
*Required step
Your configuration

Factory direct price (incl. tax)

2,430.57
Instead of 2,859.49
Final price (tax incl.)
2,430.57

Summary

My online quote Delivery time pictoLead time: 6 to 8 weeks* Premium colors: 8 to 10 weeks
  • Delivery picto Delivery
    free*
  • Manufacturing picto Custom-
    Made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
Aluminum Carport CLIMALUX NEOLINE Climacrown Fascia Version

Your vehicle deserves the best!

The CLIMALUX NEOLINE Carport offers the ideal solution to protect your vehicle (car, van, motorhome, motorbike, scooter, etc.) from the elements such as rain, hail or snow. It also allows you to protect it from heat and sun exposure.

The CLIMALUX NEOLINE is an aluminum carport featuring a cold-series self-supporting custom-made profile system designed for easy and fast assembly. Its peripheral decorative fascia creates a modern design and the whole structure takes on the appearance of a flat roof with a clean look.

The simplicity of the system allows the construction of several configurations. The CLIMALUX NEOLINE Car Shelter respects your budget and excels in its simplicity, professionalism and aesthetics.

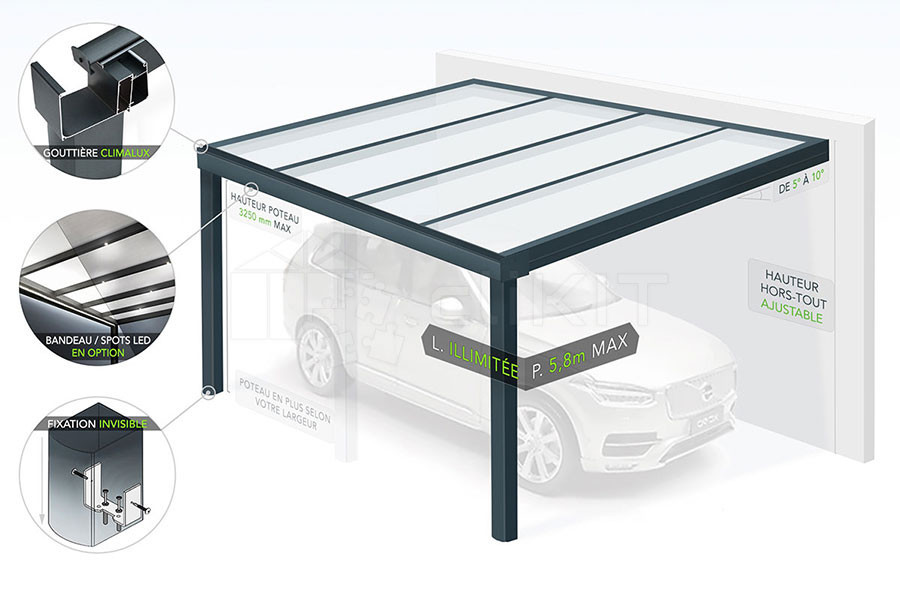

Diagram of the CLIMALUX NEOLINE Aluminum Carport

Thermolacquered aluminum

Picto of Standard Color CliKIT Brilliant White CliKIT Brilliant White
Picto of Standard Color Anthracite Grey 7016 Structured Anthracite Grey 7016 Structured
Picto of Non-Standard Color Non-Standard (surcharge on quote)

Color Selection (Package €275 incl. VAT)

Picto of Color Black 9005 Structured Black 9005 Structured
Picto of Standard Color Pure White 9010 Structured Pure White 9010 Structured
Picto of Color Cream 9001 Brilliant Cream 9001 Brilliant
Picto of Color Alu Grey 9007 Structured Alu Grey 9007 Structured
Pictogram of the Structured White Alu 9006 Color Alu White 9006 Structured
Picto of Color Metal Grey 9009 Structured Metal Grey 9009 Structured
Picto of Color Quartz Grey 7039 Structured Quartz Grey 7039 Structured
Picto of Color Sepia Brown 8014 Structured Sepia Brown 8014 Structured
Picto of Color Purplish Red 3004 Structured Purplish Red 3004 Structured

16mm polycarbonate roofing

Diagram of Clear Tint Clear Tint
Diagram of Opal Tint Opal Tint
Diagram of Opal Anti-heat Tint Opal Anti-heat

Invisible fixings

Picto of the 110 x 141mm Post Post 110 x 141mm
Picto of Integrated Downpipe in Post Integrated downpipe in post
Picto of Invisible Fixing with Floor Socket Invisible fixing with floor socket

A reinforced aluminum structure

  • Thermolacquered aluminum structure with the QUALICOAT LABEL, cut to your measurements on simple request
  • PX aluminum support posts 110 x 141mm with a length of 2500mm, cuttable on request, fixing by supplied floor sockets (Maximum width between posts: 4 m)
  • Rainwater drainage with an 80mm diameter integrated on one of the posts of your choice
  • GX gutter profile with its NEOLINE GR Ornament Profile in thermolacquered aluminum
  • Modular Climacrown fascia in thermolacquered aluminum made up of one or more profiles with a height of 150 or 225mm (maximum length of 7 m)
  • CL16 clamping clips for 16mm aluminum panels
  • Roof pitch: customizable from 5° inclination
  • Included stainless steel Torx screws, lacquered in the color of your carport

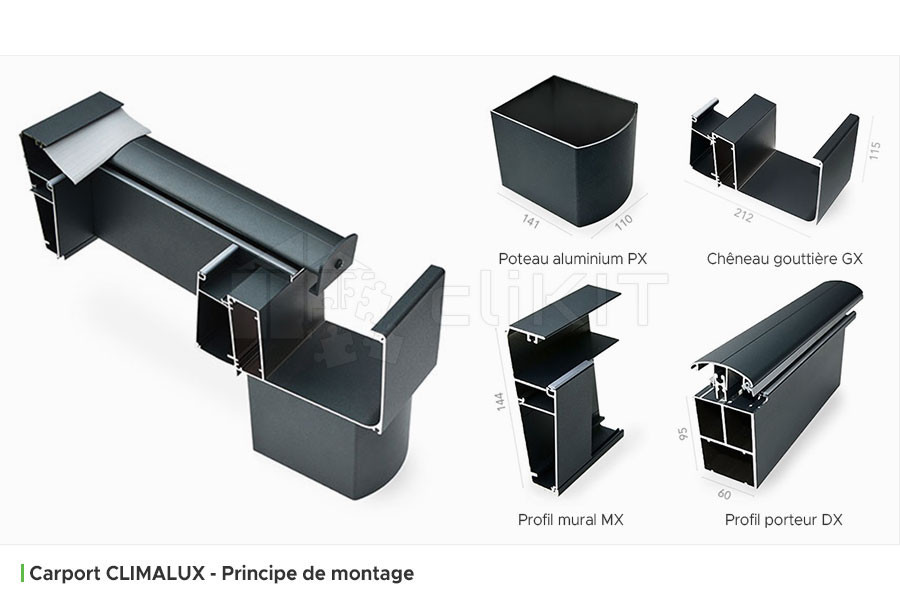

Photo of the Assembly Principle of the CLIMALUX NEOLINE Model
Photo of the PX Aluminum Post PX Aluminum Post
Photo of the GR Gutter Channel GR Gutter Channel
Photo of the MX Wall Profile MX Wall Profile
Photo of the DX Load-Bearing Profile DX Bearer Profile
Photo of the CCL Angle Profile and its CCLAS Cover CCL Angle Profile and its CCLAS Cover
Photo of the Stiffener and its SupportX Hook Stiffener and its Support Hook
Photo of the CC150/CC225 Fascia Profile CC150/CC225 Fascia Profile
Photo of the U Profile of the NEOLINE Fascia U Profile of the NEOLINE Fascia
My online quote

Custom-made profiles

  • Post 110 x 141mm with integrated and invisible downpipe
  • Strainer for rainwater drainage
  • GX thermolacquered aluminum gutter channel with its NEOLINE Fascia made up of one or more profiles with a height of 75mm
  • MX wall profile with a height of 144mm
  • DX bearer profile with a height and width of 95 x 60mm
  • Aluminum clamping clips with sealing gasket for panels with a thickness of 16mm
  • LED lighting strip integrated into the gutter channel (Optional)
  • Power supply for the LED lighting strip (Optional)
Numbered diagram of the Assembly Principle of the CLIMALUX NEOLINE Model

Customize your project as you wish

CliKIT gives you the option to carry out your project 100% custom-made, adapting to your needs and desires. Standard configurations come with no surcharge.

With a standard configuration

Diagram no. 1 example of the standard configuration of the CLIMALUX NEOLINE Carport Diagram no. 2 example of the standard configuration of the CLIMALUX NEOLINE Carport Diagram no. 3 example of the standard configuration of the CLIMALUX NEOLINE Carport Diagram no. 4 example of the standard configuration of the CLIMALUX NEOLINE Carport Diagram no. 5 example of the standard configuration of the CLIMALUX NEOLINE Carport

If you are in one of the custom configurations below, we invite you to attach a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a custom configuration

Diagram no. 1 example of the custom configuration of the CLIMALUX NEOLINE Carport Diagram no. 2 example of the custom configuration of the CLIMALUX NEOLINE Carport Diagram no. 3 example of the custom configuration of the Carport CLIMALUX NEOLINE Diagram no. 4 example of the custom configuration of the CLIMALUX NEOLINE Carport Diagram no. 5 example of the custom configuration of the CLIMALUX NEOLINE Carport
Legend diagram of support wallsFixed support wallLegend diagram of the choice of support wallsChoice of support walls (depending on your installation)

A polycarbonate roofing more resistant than glass

Polyclear" polycarbonate panels are ultra strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing characteristic of the raw material of polycarbonate and its resistance to high temperatures. See our photos>

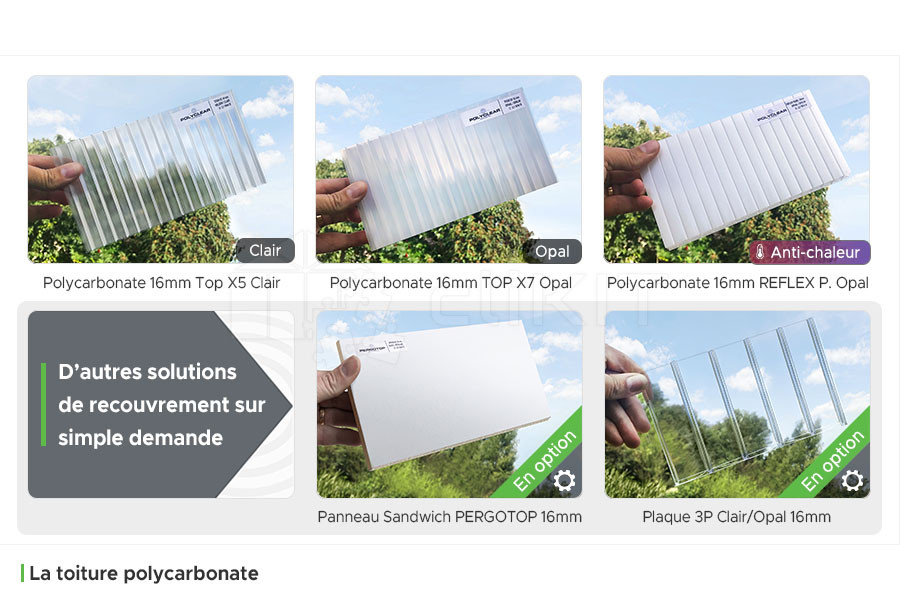

Photo of 16mm Polycarbonate Panel models for Carport

The 16mm Polycarbonate TOP X7 - Clear / Opal

The insulating properties of the Structure X TOP X7 16mm cellular panels make them one of the most popular panels on the veranda and carport market. The TOP X7 16mm Opal or Clear panel has a U value of 2.1 W/m2.K.

Le Polycarbonate 16mm REFLEX PEARL - Opal Anti-heat

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 81% of heat and offers a light transmission of 28%! In winter, you benefit from very good insulation, and in summer, the temperature under your carport is pleasant thanks to its reflective properties.

 Polycarbonate TOP X7
16mm Clear		Polycarbonate TOP X7
16mm Opal		Polycarbonate REFLEX P.
16mm Opal Anti-heat
Polyclear brand logo Diagram of 16mm Clear Polycarbonate Diagram of 16mm Opal Polycarbonate Diagram of 16mm Opal Anti-heat Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200
Panel Tint Clear Tint Opal Tint Opal Anti-heat Tint
Weight per m² 2.4 kg 2.4 kg 2.5 kg
Light transmission 64% 55% 28%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB
Photo of 16mm Clear Polycarbonate
Photo of 16mm Opal Polycarbonate
Photo of 16mm Opal Anti-heat Polycarbonate

Other covering solutions on simple request

The PERGOTOP 16mm Sandwich Panel

The PERGOTOP 16mm soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminum panels. In addition to its excellent insulation coefficient, it offers great resistance to UV rays. See our photos>

The scratch-resistant coating ensures that you can enjoy your carport without any worries. The sandwich panels are fitted in exactly the same way as the other panels.

Photo of PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 16mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its cellular structure offers many advantages. It has extremely high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV coating, there is no discoloration or loss of clarity and light diffusion is durably guaranteed. Moreover, its protective coating and the large size of its cells effectively limit the effects of condensation.

32mm thick Polycarbonate on request

If you live in a mountainous area, it may be worth considering a 32mm thick roofing cover. This will be more resistant to the load caused by snow. However, you will benefit from less light under your carport. To guide you in your choice, you can consult our guide Comparison of 16/32mm Polycarbonate>

My online quote

Day and night!

An LED light strip can be integrated directly under the gutter channel. This LED lighting diffuses an indirect and pleasant light that will allow you to see your vehicle at any time of day! See our photos>

With the LED Spot Kit, you have the option to customize the area you wish to illuminate under your carport — one side lit and the other dimmed, anything is possible!

Photo of the LED Light Strip and LED Spot Kit for Carport

An expandable and customizable carport throughout the seasons!

CliKIT develops the concept of an Expandable Carport to adapt as closely as possible to your desires or your current budget. Rest assured that in the near or distant future, your carport remains in perpetual evolution!

Do you want to shelter your vehicle from the sun, wind, rain or delimit an enclosed space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to take a look at our essential accessories to upgrade your carport!

Photo of Glass Curtains for Carport Glass Curtains
Photo of Blinds and Sails for Carport Blinds & Sails
Photo of Side Panels for Carport Side Panels

Support resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will notice quite quickly the simplicity of the system's installation. It is possible to complete the assembly in just a few hours. Your CliKIT carport will arrive as a kit containing the aluminum roof structure, roofing elements, accessories, as well as the installation guide.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Ø 8mm masonry drill bit
  • Ø 4 and 8mm metal drill bits
  • Ø 80mm hole saw
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents available to you:

Picto of Installation GuideInstallation Guide>
Picto of Assembly VideoAssembly Video>
Picto of Photo BookPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you through every step of the process.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, please do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Director

Olivier Regnier Sales Manager

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known upon entering production, and may vary depending on the seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of the Belgian flag

Made in Belgium

Picto of Free Delivery

Free delivery

Our kit carports are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Picto of Warranties

Warranties

Our aluminum carports are guaranteed for 10 years and comply with the strictest European standards. The aluminum profiles are thermolacquered and have the QUALICOAT LABEL.

Snow load: unless otherwise indicated by you, load calculations are made with a snow load according to current standards. Please inform us of altitudes above 800 metres.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.

Picto of quality label warranties
