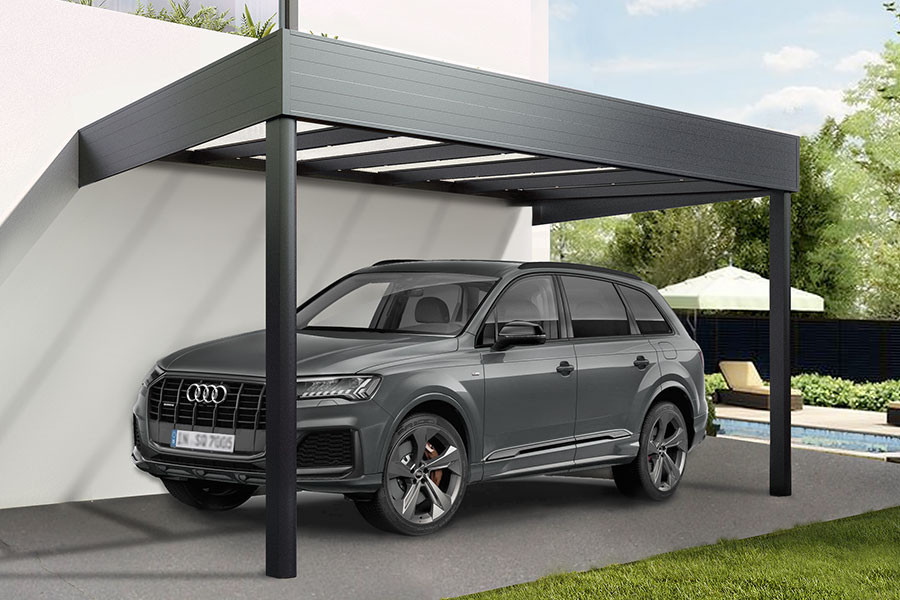

Photo n°1 of the CLIMALUX NEOLINE Aluminium Carport
They talk about usChannel logo See> Discover> Watch the video>
Product Description Pictogram Product
description Installation Guide Pictogram Installation
guide Customer Testimonials Pictogram Customer
testimonials Delivery Terms Pictogram Delivery
terms

Configure your NEOLINE Aluminum Carport

  • Made in Belgium
  • Width: unlimited & custom-made
  • Depth: up to 5800mm
  • Gutter fascia: straight fascia board
  • Roof: polycarbonate, glass, opaque
  • Posts: 110 x 141mm
  • Expandable and customizable Carport
  • Flat roof effect fascia
*Required step
Your configuration

Factory direct price (incl. tax)

3,560.21
Instead of 4,188.48
Final price (tax incl.)
3,560.21

Summary

My online quote Delivery time PictogramLead time: 6 to 8 weeks* Premium color: 8 to 10 weeks
  • Delivery Pictogram Free
    delivery*
  • Manufacturing Pictogram Custom-
    Made
  • Warranty Pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
CLIMALUX NEOLINE Aluminum Carport Climacrown Fascia Version

Your vehicle deserves the best!

The CLIMALUX NEOLINE Carport offers the ideal solution to protect your vehicle (car, van, motorhome, motorcycle, scooter, etc.) from bad weather such as rain, hail or snow. It also protects it from heat and sun exposure.

The CLIMALUX NEOLINE is an aluminum carport featuring a system of custom cold-series self-supporting profiles designed for easy and fast assembly. Its peripheral decorative fascia achieves a modern design, and the overall structure takes on the appearance of a flat roof with a clean look.

The simplicity of the system allows for the construction of multiple configurations. The CLIMALUX NEOLINE Car Shelter respects your budget and excels in its simplicity, professionalism and aesthetics.

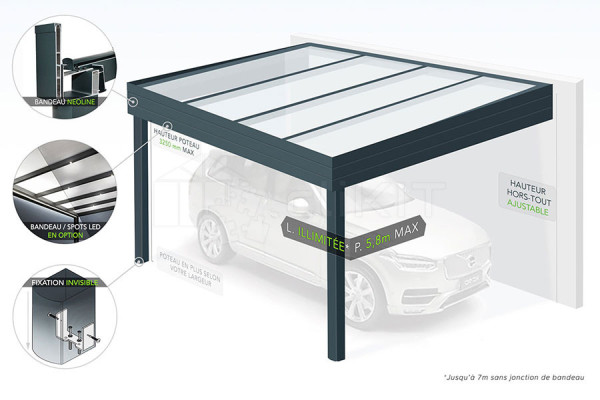

Diagram of the CLIMALUX NEOLINE Aluminum Carport

Powder-coated aluminum

Pictogram of the Standard CliKIT Gloss White color CliKIT Gloss White
Pictogram of the Standard Structured Anthracite Grey 7016 Color Anthracite Grey 7016 Textured
Non-Standard color pictogram Non-Standard (surcharge on quote)

Color Selection (Flat rate €275 incl. VAT)

Pictogram of the Structured Black 9005 Color Black 9005 Textured
Pictogram of the Standard Pure White 9010 Textured color Pure White 9010 Textured
Pictogram of the Cream 9001 Gloss color Cream 9001 Gloss
Pictogram of the Alu Grey 9007 Textured color Alu Grey 9007 Textured
Pictogram of the Alu White 9006 Textured color Alu White 9006 Textured
Pictogram of the Metal Grey 9009 Textured color Metal Grey 9009 Textured
Pictogram of the Quartz Grey 7039 Textured color Quartz Grey 7039 Textured
Pictogram of the Sepia Brown 8014 Textured color Sepia Brown 8014 Textured
Pictogram of the Purple Red 3004 Textured color Purple Red 3004 Textured

16mm polycarbonate roof

Diagram of the Clear Shade Clear Shade
Diagram of the Opal Shade Opal Shade
Diagram of the Heat-Resistant Opal Shade Heat-Resistant Opal

Concealed fixings

Pictogram of the 110 x 141mm post 110 x 141mm post
Pictogram of the integrated post downpipe Integrated post downpipe
Pictogram of the concealed crapaudine bracket fixing Concealed fixing with crapaudine bracket

A reinforced aluminum structure

  • Powder-coated aluminum structure with the QUALICOAT LABEL, cut to your measurements on request
  • PX support posts in aluminum, 110 x 141mm with a length of 2500mm, cuttable to size on request, fixed with provided floor anchors (Maximum width between posts: 4 m)
  • 80mm diameter rainwater drainage integrated into one post of your choice
  • GX gutter profile with its NEOLINE GR ornamental profile in powder-coated aluminum
  • Modular Climacrown fascia in powder-coated aluminum made up of one or more profiles with a height of 150 or 225mm (maximum length of 7 m)
  • CL16 clamping clips for 16mm aluminum panels
  • Roof pitch: customizable from 5° of inclination
  • Stainless steel Torx screws included, lacquered to match the color of your carport

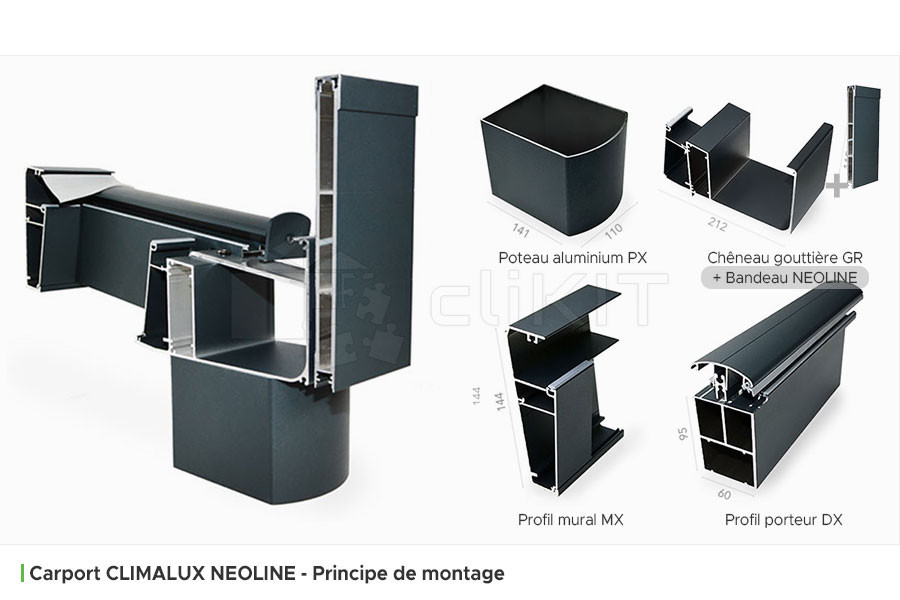

Photo of the Assembly Principle of the CLIMALUX NEOLINE Model
Photo of the Aluminum Post PX Aluminum Post PX
Photo of the GR Gutter Fascia GR Gutter Fascia
Photo of the MX Wall Profile MX Wall Profile
Photo of the DX Load-Bearing Profile DX Load-Bearing Profile
Photo of the CCL Corner Profile and its CCLAS Cover CCL Corner Profile and its CCLAS Cover
Photo of the Stiffener and its SupportX Hook Stiffener and its Support Hook
Photo of the CC150/CC225 Fascia Profile CC150/CC225 Fascia Profile
Photo of the NEOLINE Fascia U Profile NEOLINE Fascia U Profile
My online quote

Custom-designed profiles

  • 110 x 141mm post with integrated and concealed downpipe
  • Strainer for rainwater drainage
  • GX gutter fascia in powder-coated aluminum with its NEOLINE fascia made up of one or more profiles with a height of 75mm
  • MX wall profile with a height of 144mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminum clamping clips with sealing gasket for 16mm thick panels
  • LED light strip integrated into the gutter (Optional)
  • Power supply for the LED light strip (Optional)

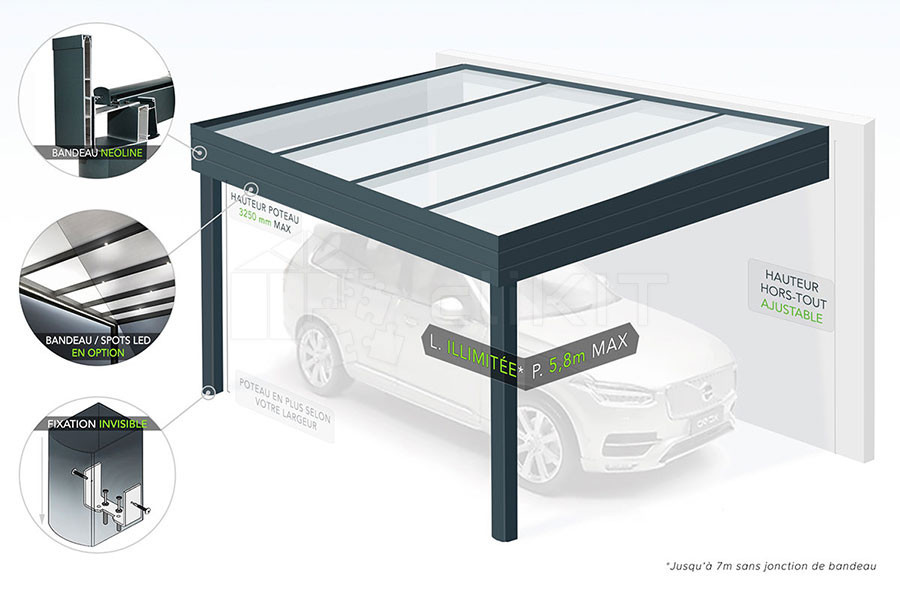

Numbered diagram of the Assembly Principle of the CLIMALUX NEOLINE Model

Customize your project to your liking

CliKIT gives you the possibility to create your 100% custom project by adapting to your needs and desires. Standard configurations come with no additional cost.

With a standard configuration

Diagram no. 1 showing an example of the standard configuration of the CLIMALUX NEOLINE Carport Diagram no. 2 showing an example of the standard configuration of the CLIMALUX NEOLINE Carport Diagram no. 3 showing an example of the standard configuration of the CLIMALUX NEOLINE Carport Diagram no. 4 showing an example of the standard configuration of the CLIMALUX NEOLINE Carport Diagram no. 5 showing an example of the standard configuration of the CLIMALUX NEOLINE Carport

If you are in one of the customized configurations below, we invite you to attach a plan to your quote request. You can also send it to us by email at contact@clikit.fr.

With a customized configuration

Diagram no. 1 showing an example of the customized configuration of the CLIMALUX NEOLINE Carport Diagram no. 2 showing an example of the customized configuration of the CLIMALUX NEOLINE Carport Diagram no. 3 showing an example of the customized configuration of the CLIMALUX NEOLINE Carport Diagram no. 4 showing an example of the customized configuration of the CLIMALUX NEOLINE Carport Diagram no. 5 example of the custom configuration of the CLIMALUX NEOLINE Carport
Legend diagram of support wallsFixed support wallLegend diagram of optional support wallsOptional support walls (depending on your layout)

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more impact-resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

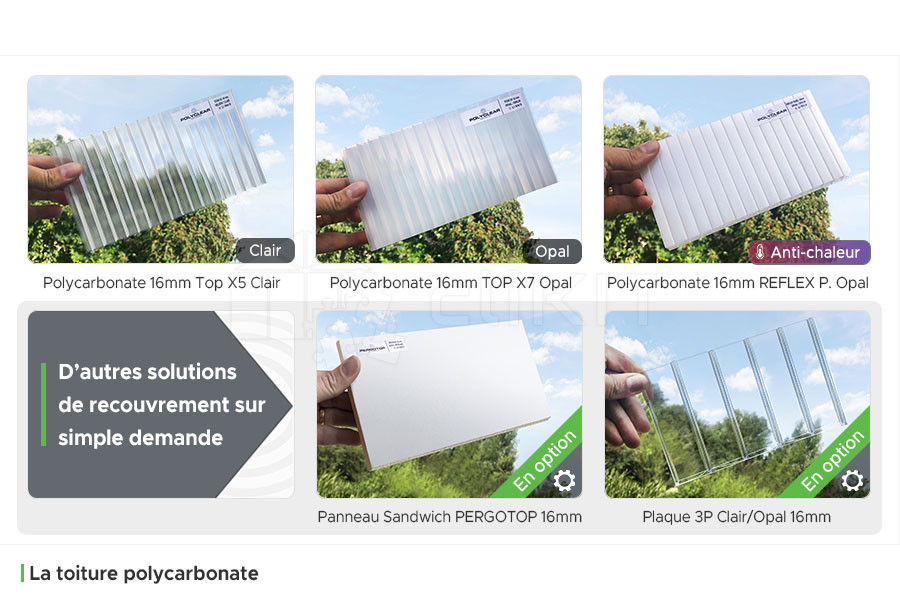

Photo of 16mm Polycarbonate Panel models for Carport

The 16mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 16mm multi-wall panels make them one of the most popular panels on the veranda and carport market. The TOP X7 16mm Opal or Clear panel has a U-value of 2.1 W/m².K.

The 16mm REFLEX PEARL Polycarbonate - Heat-Resistant Opal

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 81% of heat and offers a light transmission of 28%! In winter, you benefit from excellent insulation, and in summer, the temperature under your carport is pleasant thanks to its reflective properties.

 TOP X7 Polycarbonate
16mm Clear		TOP X7 Polycarbonate
16mm Opal		REFLEX P. Polycarbonate
16mm Opal Heat-Resistant
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Heat-Resistant Opal Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200
Panel Shade Clear Shade Opal Shade Heat-Resistant Opal Shade
Weight per m² 2.4 kg 2.4 kg 2.5 kg
Light transmission 64% 55% 28%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB
Photo of the 16mm Clear Polycarbonate
Photo of the 16mm Opal Polycarbonate
Photo of the 16mm Heat-Resistant Opal Polycarbonate

Other covering solutions available on request

The PERGOTOP 16mm Sandwich Panel

The PERGOTOP 16mm soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminum panels. Added to its good insulation coefficient is high resistance to UV rays. View our photos>

The scratch-resistant coating ensures you can enjoy your carport worry-free. The sandwich panels are installed in exactly the same way as the other panels.

Photo of PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 16mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its honeycomb structure offers many advantages. It provides extremely high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV coating, there is no discoloration or loss of clarity, and light diffusion is durably guaranteed. Furthermore, its protective coating and the large size of its cells effectively limit condensation effects.

32mm thickness Polycarbonate available on request

If you live in a mountainous area, it may be worth considering a 32mm thick roof covering. This will be more resistant to snow loads. However, you will benefit from less natural light under your carport. To help guide your choice, you can consult our guide Polycarbonate 16/32mm Comparison>

My online quote

Day and night!

An LED light strip can be integrated directly under the gutter fascia. This LED lighting diffuses an indirect and pleasant light that will allow you to see your vehicle at any time of day! View our photos>

With the LED Spot Kit, you can customize the area you want to illuminate under your carport — one side lit and the other dimmed, anything goes!

Photo of the LED light strip and the LED Spot Kit for Carport

An expandable and customizable carport for every season!

CliKIT develops the concept of an Expandable Carport to adapt as closely as possible to your desires or your current budget. Rest assured that in the near or distant future, your carport remains in perpetual evolution!

Do you want to shelter your vehicle from the sun, wind, rain or enclose a space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Walls... and much more!

Be sure to take a look at our must-have accessories to upgrade your carport!

Photo of Glass Curtains for Carport Glass Curtains
Photo of Blinds and Sails for Carport Blinds & Sails
Photo of Side Walls for Carport Side Walls

Support resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will quickly notice how easy the system is to install. Assembly can be completed in just a few hours. Your CliKIT carport will arrive as a kit containing the aluminum roof structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all the documents available to you:

Installation Guide pictogramInstallation Guide>
Assembly Video pictogramAssembly Video>
Photo Book pictogramPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you every step of the way.

A dedicated technical advisor is assigned to help you refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any inquiries, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time pictogram

Manufacturing lead time

For more information about manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The definitive lead time is only known upon production start and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Belgian flag pictogram

Made in Belgium

Free delivery pictogram

Free delivery

Our kit carports are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Warranties pictogram

Warranties

Our aluminum carports come with a 10-year warranty and comply with the strictest European standards. The aluminum profiles are powder-coated and carry the QUALICOAT LABEL.

Snow load: unless otherwise specified, load calculations are performed with a snow load in accordance with current standards. Please inform us of altitudes above 800 metres.

The span was calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.
