PANORAMA Aluminium Carport

Besoin d'un conseil ?
03 66 72 15 14
  • -15%
Photo n°1 of the PANORAMA Aluminium Carport
They talk about usChannel Logo See> Discover> Watch the video>
Product Description Picto Product
Description Installation Guide Picto Installation
Guide Customer Reviews Picto Customer
Reviews Delivery Terms Picto Delivery
Terms

Configure your PANORAMA Aluminium Carport

  • Made in Belgium
  • Width: unlimited & custom-made
  • Depth: up to 6000mm
  • Gutter channel: rounded
  • Roof: polycarbonate, glass, opaque
  • Posts: Posts: 110 x 181mmm
  • Expandable and upgradeable carport
  • Up to 7m between posts
*Required step
Your configuration

Factory direct price (incl. tax)

4,266.72
Instead of 5,019.67
Final price (tax incl.)
4,266.72

Summary

My online quote Delivery time pictogramLead time: 6 to 8 weeks* Premium colors: 8 to 10 weeks
  • Delivery pictogram Free
    Delivery*
  • Manufacturing pictogram Custom-
    Made
  • Warranty pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
PANORAMA Aluminium Carport XL Gutter Channel Version

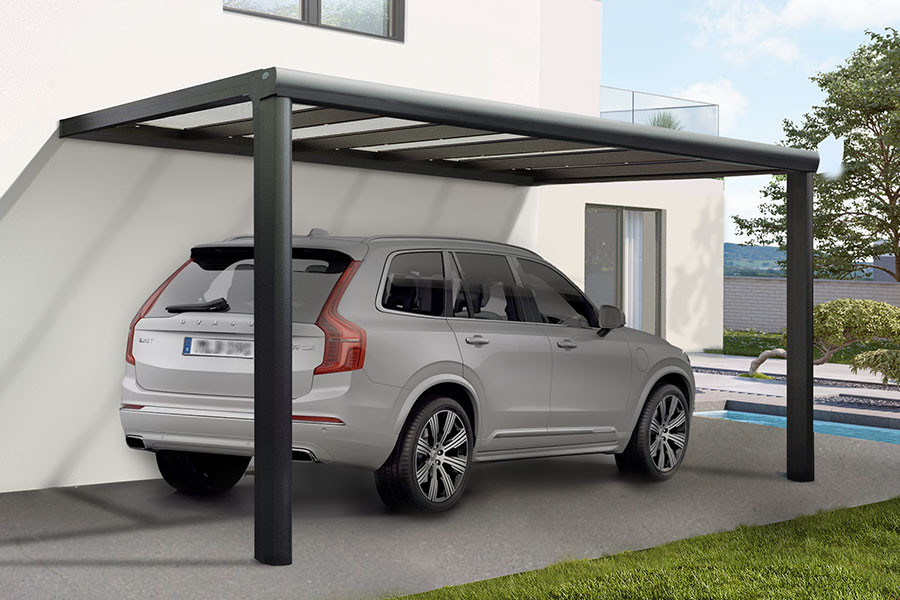

Photo of the PANORAMA Aluminium Carport

Your vehicle deserves the best!

The PANORAMA Carport offers the ideal solution for extending your home in the form of an Aluminium Carport, carport or for fitting out your terrace.

The PANORAMA is an aluminium carport featuring a system of self-supporting cold-series custom-made profiles designed for easy and fast assembly.

Thanks to an innovative process, the extremely robust structure of the PANORAMA allows widths of up to 7m without intermediate posts. The PANORAMA Car Shelter respects your budget and excels in its simplicity, professionalism and aesthetics.

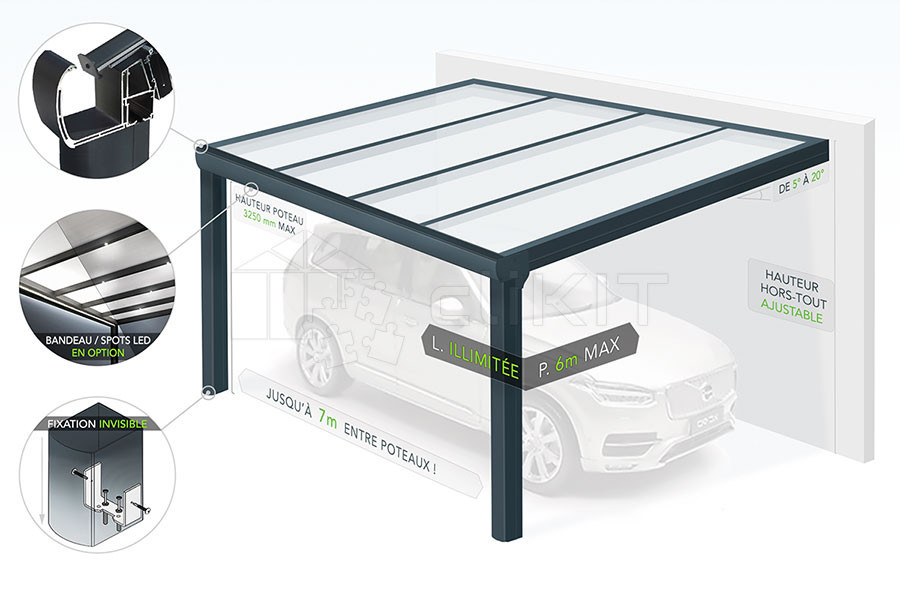

Diagram of the PANORAMA Aluminium Carport

Powder-coated aluminium

Picto of the Standard Color CliKIT Brilliant White CliKIT Brilliant White
Picto of the Standard Color Anthracite Grey 7016 Structured Anthracite Grey 7016 Structured
Picto of the Non-Standard Color Non-Standard (surcharge on quote)

Color Selection (Flat rate €275 incl. VAT)

Picto of the Black 9005 Structured Color Black 9005 Structured
Picto of the Standard Color Pure White 9010 Structured Pure White 9010 Structured
Picto of the Cream 9001 Gloss Color Cream 9001 Gloss
Picto of the Alu Grey 9007 Structured Color Alu Grey 9007 Structured
Picto of the Alu White 9006 Structured Color Alu White 9006 Structured
Picto of the Metal Grey 9009 Structured Color Metal Grey 9009 Structured
Picto of the Quartz Grey 7039 Structured Color Quartz Grey 7039 Structured
Picto of the Sepia Brown 8014 Structured Color Sepia Brown 8014 Structured
Picto of the Purple Red 3004 Structured Color Purple Red 3004 Structured

32mm polycarbonate roof

Diagram of the Clear Tint Clear Tint
Diagram of the Opal Tint Opal Tint
Diagram of the Opal Anti-heat Tint Opal Anti-heat

Invisible fixings

Picto of the 110 x 181mm Post 110 x 181mm Post
Picto of the Integrated post downpipe Integrated post downpipe
Picto of the Invisible fixing by socket plate Invisible fixing by socket plate

A reinforced aluminium structure

  • Powder-coated aluminium structure with QUALICOAT LABEL certification, cut to your measurements on request
  • PX support posts in aluminium measuring 110 x 141mm with a length of 2500mm, cuttable to size on request, fixed by provided socket plates (Maximum width between posts: 4 m)
  • Rainwater drainage with an 80mm diameter integrated into one of the posts of your choice
  • GDG aluminium powder-coated gutter profile with a height of 162mm and a depth of 222mm
  • CL32 clamping clips for 32mm panels
  • Roof pitch: customizable between 5° and 20°
  • Stainless steel Torx screws included, lacquered to match the color of your carport

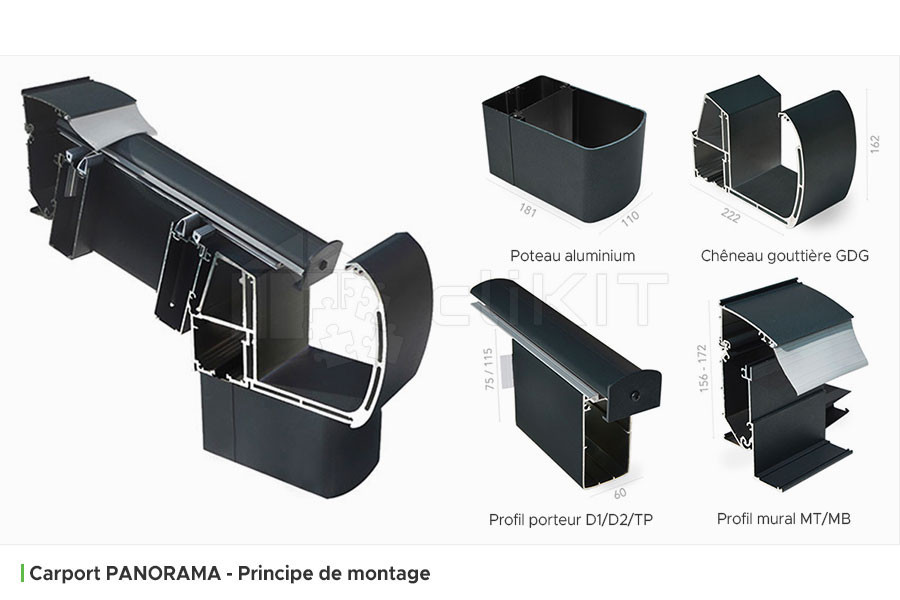

Photo of the Assembly Principle of the PANORAMA Model
Photo of the Aluminium Post Aluminium Post
Photo of the GDG Gutter Channel GDG Gutter Channel
Photo of the MT/MB Wall Profile MT/MB Wall Profile
Photo of the D1-D2/TP Load-Bearing Profile D1-D2/TP Load-Bearing Profile
My online quote

Custom-designed profiles

  • 110 x 181mm post with integrated and invisible water downpipe
  • Strainer for rainwater drainage
  • GDG gutter channel with a height of 162mm
  • MT/MB wall profile with a height between 156 and 172mm
  • D1/TP load-bearing profile with a height and width of 75 x 60mm
  • Aluminium clamping clips with sealing gasket for panels with a thickness of 32mm
  • LED light strip integrated into the gutter channel (Optional)
  • Power supply for the LED light strip (Optional)
Numbered diagram of the Assembly Principle of the PANORAMA Model

Customize your project as you wish

CliKIT gives you the possibility to realize your 100% custom-made project by adapting to your needs and desires. Standard configurations have no surcharges.

With a standard configuration

Diagram no. 1 example of the standard configuration of the PANORAMA Carport Diagram no. 2 example of the standard configuration of the PANORAMA Carport Diagram no. 3 example of the standard configuration of the PANORAMA Carport Diagram no. 4 example of the standard configuration of the PANORAMA Carport Diagram no. 5 example of the standard configuration of the PANORAMA Carport

If you are in one of the customized configurations below, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a customized configuration

Diagram no. 1 example of the customized configuration of the PANORAMA Carport Diagram no. 2 example of the customized configuration of the PANORAMA Carport Diagram no. 3 example of the customized configuration of the PANORAMA Carport Diagram no. 4 example of the customized configuration of the PANORAMA Carport Diagram no. 5 example of the customized configuration of the PANORAMA Carport
Legend diagram of support wallsFixed support wallLegend diagram of support walls of your choiceSupport walls of your choice (depending on your layout)

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

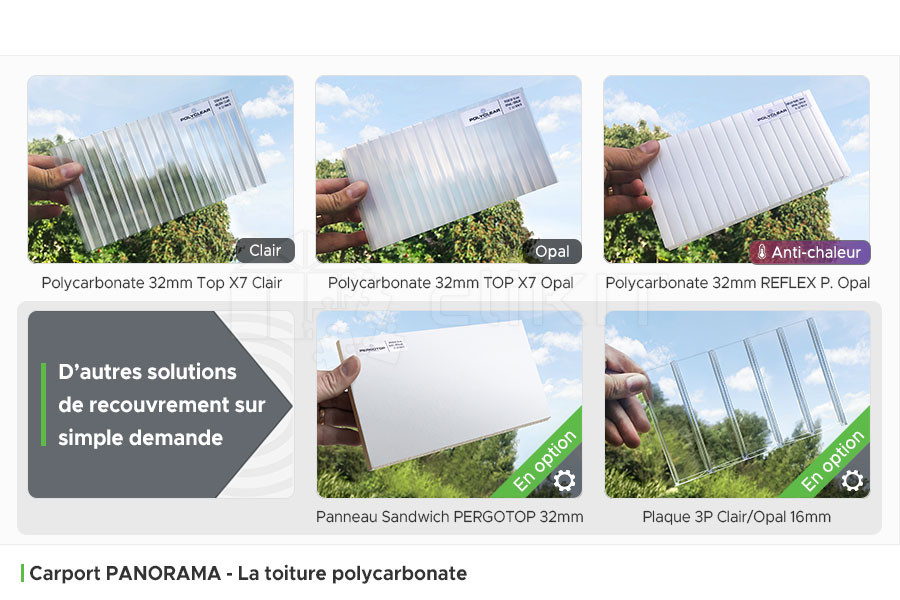

Photo of the 32mm Polycarbonate Panel models for Carport

The 32mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 32mm cellular panels make them one of the most popular panels on the veranda and carport market. The TOP X7 32mm Opal or Clear panel has a U value of 1.2 W/m2.K.

The 32mm REFLEX PEARL Polycarbonate - Opal Anti-heat

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 82% of heat and offers a light transmission of 12%! In winter, you enjoy very good insulation, and in summer, the temperature under your carport is pleasant thanks to its reflective properties.

 TOP X7 Polycarbonate
32mm Clear		TOP X7 Polycarbonate
32mm Opal		REFLEX P. Polycarbonate
32mm Opal Anti-heat
Polyclear brand logo Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Opal Anti-heat Polycarbonate
Panel Width (mm) 980/1230 980/1230 980/1230
Panel Tint Clear Tint Opal Tint Opal Anti-heat Tint
Weight per m² 3.7 kg 3.7 kg 3.8 kg
Light transmission 57% 32% 12%
Insulation U value 1.2 W/m² K 1.2 W/m² K 1.0 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 23 dB
Photo of the 32mm Clear Polycarbonate
Photo of the 32mm Opal Polycarbonate
Photo of the 32mm Opal Anti-heat Polycarbonate

Other roofing solutions available on request

The PERGOTOP 32mm Sandwich Panel

The PERGOTOP 32mm soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminium sheets. Its good insulation coefficient is complemented by high resistance to UV rays. View our photos>

Composed of a soft membrane on the exterior side and a scratch-resistant coating or an identical membrane on its inner face, the PERGOTOP Soft Sandwich Panel effectively dampens contact noises such as rain or hail. Its Soft soundproofing layer absorbs acoustic energy optimally, available in 1 or 2 layer versions depending on your needs.

Photo of the PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 32mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its cellular structure offers numerous advantages. It has extremely high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV layer, there is no discoloration or loss of clarity, and light diffusion is durably guaranteed. Furthermore, its protective coating and the large cell dimensions effectively limit condensation effects.

My online quote

Day and night

An LED light strip can be integrated directly under the gutter channel. This LED lighting diffuses an indirect and pleasant light that will allow you to see your vehicle at any time of day!

With this LED Spot Kit, you can easily leave the light on all night under your carport without worrying about the energy bill. This also ensures a certain level of security.

Photo of the LED Light Strip for Carport

An expandable and customizable carport through the seasons!

CliKIT develops the concept of an Expandable Carport to adapt as closely as possible to your desires or your current budget. Rest assured that in the near or distant future, your carport will remain in perpetual evolution!

Do you want to shelter your vehicle from the sun, wind, rain or create an enclosed space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to take a look at our essential accessories to upgrade your carport!

Photo of Glass Curtains for Carport Glass Curtains
Photo of Blinds and Shade Sails for Carport Blinds & Shade Sails
Photo of the Side Panels for Carport Side Panels

Resources to assist you

Our technical team remains available and attentive to you throughout the entire assembly phase of your carport. You will notice the simplicity of the installation system quite quickly. It is possible to complete the assembly in just a few hours. Your CliKIT carport will arrive as a kit containing the aluminium roof structure, the roofing elements, the accessories, as well as the installation guide.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone applicator
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents made available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our construction experts and enthusiasts to guide you throughout the entire process.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, please do not hesitate to contact our team who will be happy to answer you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please consult our page on Delivery Terms>

*The final lead time is only known at the start of production and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of the Belgian flag

Made in Belgium

Picto of Free Delivery

Free delivery

Our kit carports are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Picto of Guarantees

Guarantees

Our aluminium carports are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL certification.

Snow load: unless otherwise specified, load calculations are made with a snow load in accordance with current standards. Please notify us for altitudes above 800 metres.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 32mm.

Picto of quality label guarantees
