CLIMALUX Freestanding Aluminium Carport

  • -15%

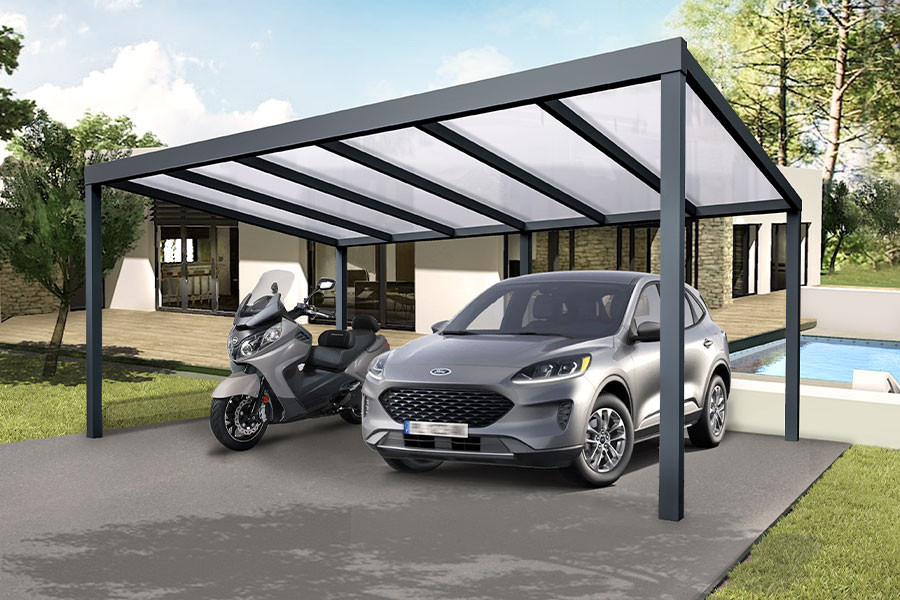

Photo n°1 of the CLIMALUX Freestanding Aluminium Carport
They talk about usChannel Logo See> Discover> Watch the video>
Product Description Picto Product
Description Installation Guide Picto Installation
Guide Customer Reviews Picto Customer
Reviews Delivery Terms Picto Delivery
Terms

Configure your CLIMALUX Freestanding Aluminium Carport

  • Made in Belgium
  • Width: unlimited & custom-made
  • Depth: up to 5800mm
  • Gutter channel: straight
  • Roof: polycarbonate, glass, opaque
  • Posts: 110 x 141mm, 110 x 110mm
  • Expandable and customisable carport
  • Self-supporting structure
*Required step
Your configuration

Factory direct price (incl. tax)

3,738.59
Instead of 4,398.34
Final price (tax incl.)
3,738.59

Summary

My online quote Delivery Lead Time PictoLead time: 6 to 8 weeks* Colors with surcharge: 8 to 10 weeks
  • Delivery Picto Free
    delivery*
  • Manufacturing Picto Custom-
    Made
  • Warranty Picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
CLIMALUX Freestanding Aluminum Carport Island Version

Your vehicle deserves the best!

The CLIMALUX Freestanding Carport offers the ideal solution to protect your vehicle (car, van, motorhome, motorcycle, scooter, etc.) from bad weather such as rain, hail or snow. It also allows you to protect it from heat and sun exposure.

The CLIMALUX is an aluminum carport featuring a cold-series self-supporting custom profile system designed for easy and fast assembly. No need to fix the structure to the wall — a new load-bearing profile replaces the wall profile to support the roof. The whole forms a completely independent island unit!

The simplicity of the system allows for multiple construction configurations. The CLIMALUX Freestanding Car Shelter respects your budget and excels in its simplicity, professionalism and aesthetics.

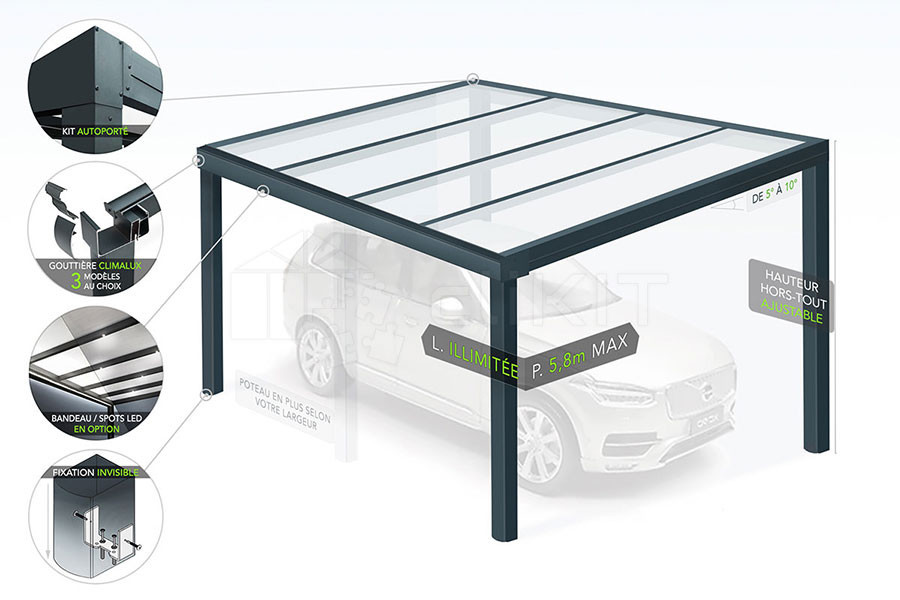

Diagram of the Climalux Aluminum Carport

Powder-coated aluminum

Picto of the Standard CliKIT White Gloss Color CliKIT White Gloss
Picto of the Standard Anthracite Grey 7016 Structured Color Anthracite Grey 7016 Structured
Picto of the Non-Standard Color Non-Standard (surcharge on quote)

Color Selection (Package €275 incl. VAT)

Picto of the Black 9005 Structured Color Black 9005 Structured
Picto of the Standard Pure White 9010 Structured Color Pure White 9010 Structured
Picto of the Cream 9001 Gloss Color Cream 9001 Gloss
Picto of the Alu Grey 9007 Structured Color Alu Grey 9007 Structured
Picto of the White Alu 9006 Structured Color White Alu 9006 Structured
Picto of the Grey Metal 9009 Structured Color Metal Grey 9009 Structured
Picto of the Quartz Grey 7039 Structured Color Quartz Grey 7039 Structured
Picto of the Sepia Brown 8014 Structured Color Sepia Brown 8014 Structured
Picto of the Purple Red 3004 Structured Color Purple Red 3004 Structured

16mm polycarbonate roofing

Diagram of the Clear Tint Clear Tint
Diagram of the Opal Tint Opal Tint
Diagram of the Heat-Resistant Opal Tint Heat-Resistant Opal

Invisible fixings

Picto of the 110 x 141mm Post Post 110 x 141mm
Picto of the Downpipe Integrated into the Post Downpipe integrated into the post
Picto of the Invisible Fixing by Floor Anchor Invisible fixing by floor anchor

A reinforced aluminum structure

  • Powder-coated aluminum structure with QUALICOAT LABEL certification, cut to your measurements on request
  • PX aluminum support posts of 110 x 141mm with a length of 2500mm, cuttable on request, fixed by supplied floor anchors (Maximum width between posts: 4 m)
  • Rainwater drainage with an 80mm diameter integrated into one post of your choice
  • GX aluminum powder-coated gutter profile alone or, optionally, with its ornamental profiles SOFTLINE GLX / TRADITION GR
  • CL16 clamping clips for 16mm aluminum panels
  • Roof pitch: customizable between 5° and 10°
  • Stainless steel Torx screws included, powder-coated to match the color of your carport
  • Freestanding Kit: comprising the GDX freestanding support beam, the GDSX trim profile under the support beam, as well as the PGDX posts

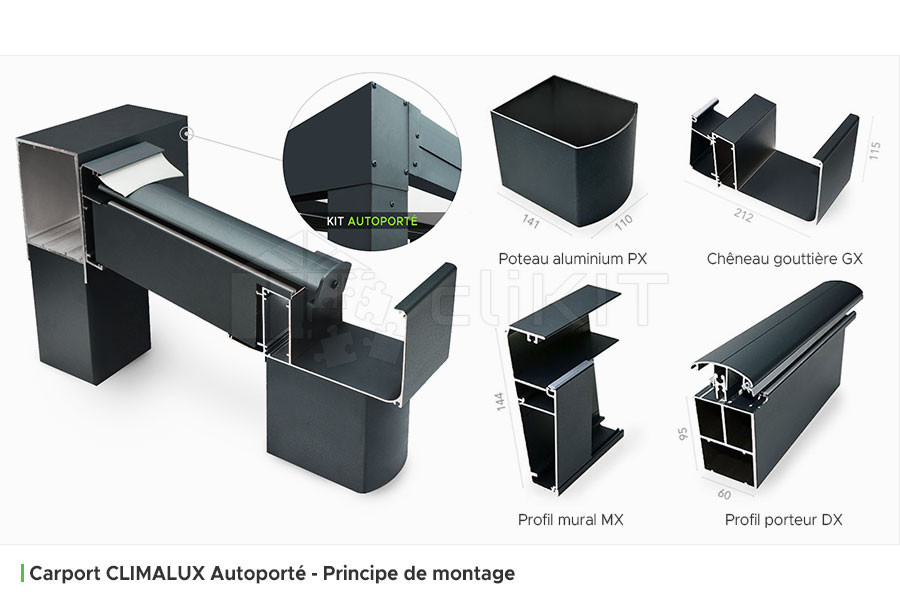

Photo of the Assembly Principle of the CLIMALUX Model
Photo of the PX Aluminum Post PX Aluminum Post
Photo of the GX Gutter Profile GX Gutter Profile
Photo of the MX Support Profile MX Support Profile
Photo of the DX Load-Bearing Profile DX Load-Bearing Profile
Photo of the Freestanding Kit Freestanding Kit
My online quote

Custom-made profiles

  • Post 110 x 141mm with integrated and invisible downpipe
  • Strainer for rainwater drainage
  • GX gutter profile alone or, optionally, with its ornamental profiles
  • MX support profile with a height of 144mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminum clamping clips and sealing gasket for 16mm panels
  • LED light strip integrated into the gutter profile (Optional)
  • Power supply for the LED Light Strip (Optional)
  • GDX freestanding support beam with a height and width of 190 x 117mm
  • GDSX trim profile under the support beam
  • Sharp-edged post PGDX 110 x 110mm
Numbered diagram of the Assembly Principle of the CLIMALUX Freestanding Model

Customize your project as you wish

CliKIT gives you the possibility to carry out your 100% custom-made project by adapting to your needs and wishes. Standard configurations have no surcharges. If you are in one of the personalized configurations below, we invite you to attach a plan to your quote request. You can also send it to us by email at contact@clikit.fr.

A few configuration examples — anything is possible!

Diagram no. 1 showing an example configuration of the CLIMALUX Freestanding Carport Diagram no. 2 showing an example configuration of the CLIMALUX Freestanding Carport Diagram no. 3 showing an example configuration of the CLIMALUX Freestanding Carport Diagram no. 4 showing an example configuration of the CLIMALUX Freestanding Carport Diagram no. 5 showing an example configuration of the CLIMALUX Freestanding Carport
Legend diagram of support wallsWall-mounted version on fixed support wall

A polycarbonate roofing stronger than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

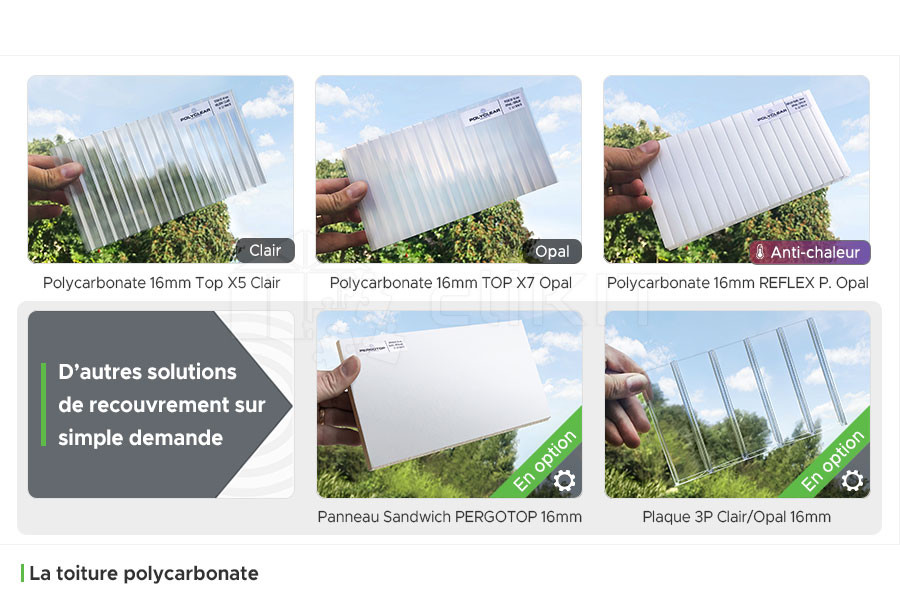

Photo of the 16mm Polycarbonate Panel models for Carport

The 16mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 16mm multiwall panels make them one of the most popular panels on the veranda and carport market. The TOP X7 16mm Opal or Clear panel has a U-value of 2.1 W/m².K.

The 16mm REFLEX PEARL Polycarbonate - Opal Heat-Resistant

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 81% of heat and offers a light transmission of 28%! In winter, you benefit from excellent insulation, and in summer, the temperature under your carport is comfortable thanks to its reflective properties.

 TOP X7 Polycarbonate
16mm Clear		TOP X7 Polycarbonate
16mm Opal		REFLEX P. Polycarbonate
16mm Opal Heat-Resistant
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Heat-Resistant Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200
Panel Tint Clear Tint Opal Tint Heat-Resistant Opal Tint
Weight per m² 2.4 kg 2.4 kg 2.5 kg
Light transmission 64% 55% 28%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB
Photo of the 16mm Clear Polycarbonate
Photo of the 16mm Opal Polycarbonate
Photo of the 16mm Opal Heat-Resistant Polycarbonate

Other covering solutions available on request

The PERGOTOP 16mm Sandwich Panel

The PERGOTOP 16mm soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminum panels. Its excellent insulation coefficient is complemented by high UV resistance. View our photos>

The scratch-resistant coating ensures you can enjoy your carport worry-free. The sandwich panels are installed in exactly the same way as the other panels.

Photo of the PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 16mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its multiwall structure offers numerous advantages. It provides very high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV coating, there is no discoloration or loss of clarity and light diffusion is durably guaranteed. Furthermore, its protective coating and the large size of its cells effectively limit condensation effects.

32mm thickness Polycarbonate on request

If you live in a mountainous area, it may be worth considering a 32mm thick roofing panel. This will be more resistant to snow loads. However, you will benefit from less light under your carport. To help guide your choice, you can consult our guide Polycarbonate 16/32mm Comparison>

My online quote

Day and night!

An LED light strip can be integrated directly under the gutter profile. This LED lighting diffuses an indirect and pleasant light that will allow you to see your vehicle at any time of day! View our photos>

With the LED Spot Kit, you have the possibility to customize the area you wish to illuminate under your carport — one side lit and the other dimmed, anything is possible!

Photo of the LED Light Strip and LED Spot Kit for Carport

An upgradeable and customizable carport with the seasons!

CliKIT develops the concept of an Upgradeable Carport to adapt as closely as possible to your wishes or your current budget. Rest assured that in the near or distant future, your carport will remain in perpetual evolution!

Do you want to shelter your vehicle from the sun, wind, rain, or enclose a space? No worries, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to check out our must-have accessories to upgrade your carport!

Photo of the Glass Curtains for Carport Glass Curtains
Photo of the Blinds and Sails for Carport Blinds & Sails
Photo of the Side Panels for Carport Side Panels

Resources to assist you

Our technical team remains available and attentive to you throughout the entire assembly phase of your carport. You will quickly notice how simple the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT carport will arrive as a kit containing the aluminum roof structure, the roofing elements, the accessories, as well as the installation guide.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Easel or trestles
  • Rubber mallet

For more information on installation, please feel free to view all our documents made available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Installation GuideFreestanding Kit Installation Guide>
Picto of the Assembly VideoAssembly Video>
Picto of the Assembly VideoAssembly Video>
Freestanding Kit
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our construction experts and enthusiasts to guide you throughout your project.

A dedicated technical advisor is assigned to you to refine your project together and best meet your needs before and after your order, as well as throughout the entire assembly phase.

For any inquiries, please do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of the Belgian flag

Made in Belgium

Picto of Free Delivery

Free delivery

Our kit carports are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Picto of Warranties

Warranties

Our aluminum carports are guaranteed for 10 years and comply with the strictest European standards. The aluminum profiles are powder-coated and benefit from the QUALICOAT LABEL.

Snow load: unless otherwise specified, load calculations are made with a snow load in accordance with current standards. Please notify us of altitudes above 800 meters.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.

Picto of quality label guarantees

Your testimonials

Write a testimonial

25/06/2026

Alain J. from Mettet (5640) in the Walloon region, Belgium. Province of Namur.

Freestanding Aluminium Carport CLIMALUX

Review rating pictogram
Customer region pictogram

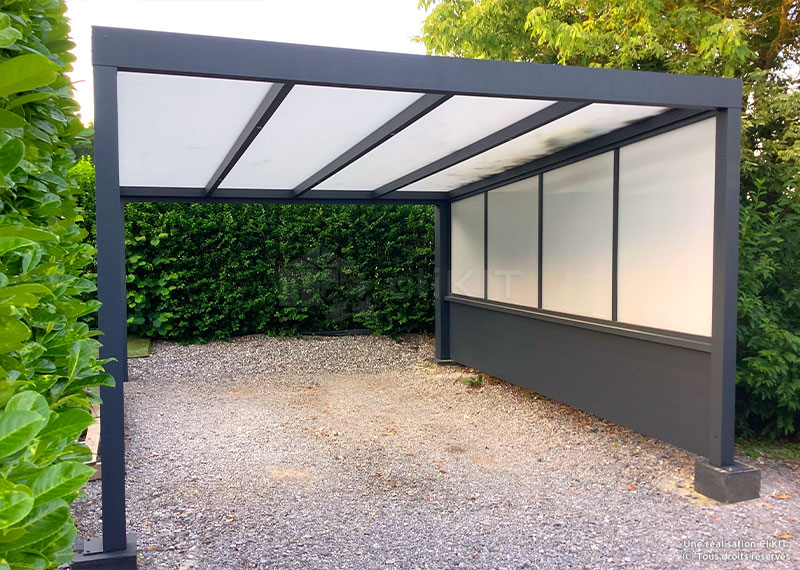

Customer photo
Customer photo ×

Order of pergolas and then a freestanding carport, satisfied with the delivery, nothing missing and perfectly packaged….
The product is excellent and sturdy, the construction is not within reach of someone who is not an experienced DIYer. You need to use the videos on the website and the manual provided with it.
Once finished I am very satisfied with the result as it is professional and solid.
I strongly recommend it because even though it was not easy for me, the quality is there and the price is unbeatable.

29/09/2025

Pierre L. from Carantec (29660) in the Brittany region. Finistère department

Freestanding Aluminium Carport CLIMALUX

Review rating pictogram
Customer region pictogram
Customer photo
Customer photo ×

Purchase of a 20m² freestanding carport. Received on a pallet, very well packaged, each box clearly labelled.
Several phone contacts with Mr Jérôme Menu, before purchase and afterwards to get technical clarifications.
Each time Mr Menu was available, precise, gave good advice and was very pleasant. Easy assembly by 2 competent DIYers with no unpleasant surprises, thanks to the videos and photos.
Excellent result, very good quality and very attractive appearance.
I strongly recommend.

20/05/2024

Guy J. from Barr (67140) in the Grand Est region. Bas-Rhin department

Freestanding Aluminium Carport CLIMALUX

Review rating pictogram
Customer region pictogram
Customer photo
Customer photo ×

There it is, assembled.
Thank you

07/02/2024

Jean-Michel C. from Béard-Géovreissiat (01460) in the Auvergne-Rhône-Alpes region. Ain department

Freestanding Aluminium Carport CLIMALUX

Review rating pictogram
Customer region pictogram
Customer photo
Customer photo ×

Hello,
Just a quick email to let you know that my carport is assembled.
Everything went well, and I am very satisfied with the product purchased.
Product matches my expectations, thank you for the quality.
Kind regards,
Jean Michel C.

10/07/2023

Laurent B. from La Bâtie-Divisin (38490) in the Auvergne-Rhône-Alpes region. Isère department

Freestanding Aluminium Carport CLIMALUX

Review rating pictogram
Customer region pictogram
Customer photo
Customer photo ×

Hello, I have finished assembling my Carport.
Regarding the rating I would give it 4/5, the value for money is very good, my only slight reservation is about the assembly manual which is not very clear. There is a lot of information and you have to juggle with the video, but it still goes together very easily. Otherwise I am very satisfied with all our exchanges before and during manufacturing.
It took me about a day to complete the assembly.
I am attaching 2 photos of the assembled Carport.
Best regards.
Laurent B.

30/03/2023

Jean P. from Fleurey-sur-Ouche (21410) in the Bourgogne-Franche-Comté region. Côte-d'Or department

Freestanding Aluminium Carport CLIMALUX

Review rating pictogram
Customer region pictogram
Customer photo
Customer photo ×

Hello Mr Menu,
I am sending you a photo of the nearly completed assembly of the Clikit Carport.
A few finishing details still need to be sorted out.
No problems encountered.
The result is exactly what was expected.
Have a good day.
Kind regards.
J. P.

06/11/2022

Christophe C. from Boé (47550) in the Nouvelle-Aquitaine region. Lot-et-Garonne department

Freestanding Aluminium Carport CLIMALUX

Review rating pictogram
Customer region pictogram
Customer photo
Customer photo ×

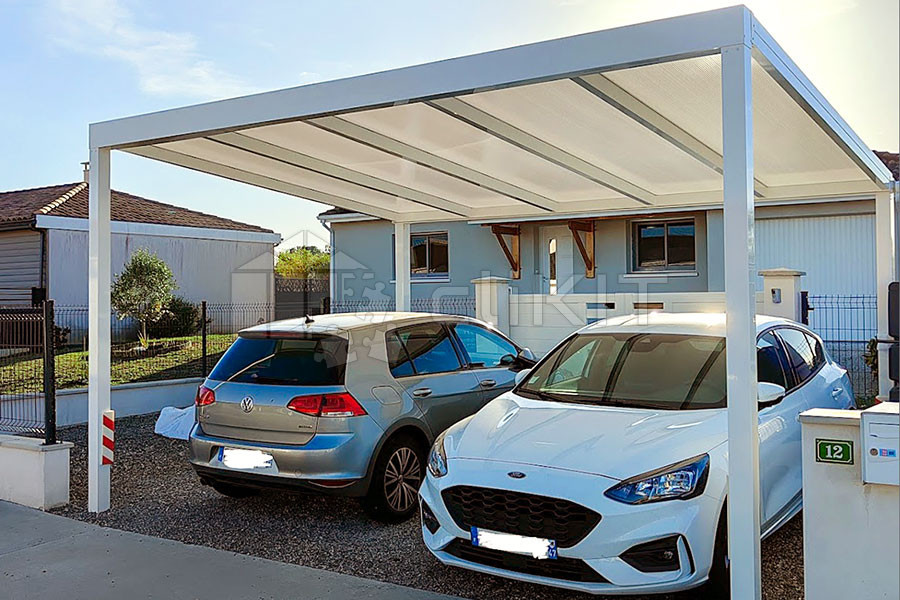

Purchase of a carport to park my 2 cars. Very happy with the result and the quality of the product.
Very good communication and support from the sales technicians and customer service.
Manufacturing/delivery lead times respected and even shorter than announced.
Very good value for money

27/07/2021

Bruno L. from Eaubonne (95600) in the Île-de-France region. Val-d'Oise department

Freestanding Aluminium Carport CLIMALUX

Review rating pictogram
Customer region pictogram
Customer photo
Customer photo ×

Great quality, easy assembly and live advice during the assembly
Delivery on time and well packaged

View all testimonials ›
Skylux

Data sheet

Warranty
10 years*
