Configure your HORIZON Aluminium Pergola

  • Made in Belgium
  • Width: unlimited & made-to-measure
  • Depth: up to 5800mm
  • Gutter channel: straight
  • Roof: polycarbonate, glass, opaque
  • Posts: 150 x 177mm
  • Expandable and customizable pergola
  • Up to 7m between posts
*Required step
Your configuration

Factory direct price (incl. tax)

3,123.05
Instead of 3,674.18

Final price (tax incl.)
3,123.05

Summary

My online quote Delivery time pictoLead time: 6 to 8 weeks* Premium colors: 8 to 10 weeks
  • Delivery picto Delivery
    free*
  • Manufacturing picto Custom-
    Made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
Aluminium Pergola HORIZON XL Version

Enjoy your outdoor space at last!

The HORIZON Aluminium Pergola is the ideal solution to extend your living space, offering you the perfect compromise: the ability to enjoy your terrace all year round while protecting yourself from the sun's rays and any adverse weather conditions.

You rediscover your outdoor space in a new light, with the freedom to extend your relaxation moments whether alone, with family or with friends!

Thanks to its robust and elegant structure, you enjoy an exceptional panoramic view of your garden with a width of up to 7 meters without intermediate posts!

With its modern and clean lines, the HORIZON is an aluminium pergola that enhances and adds value to your home. Its custom-made design allows it to adapt to all types of architecture and its installation is designed to be simple and accessible to everyone.

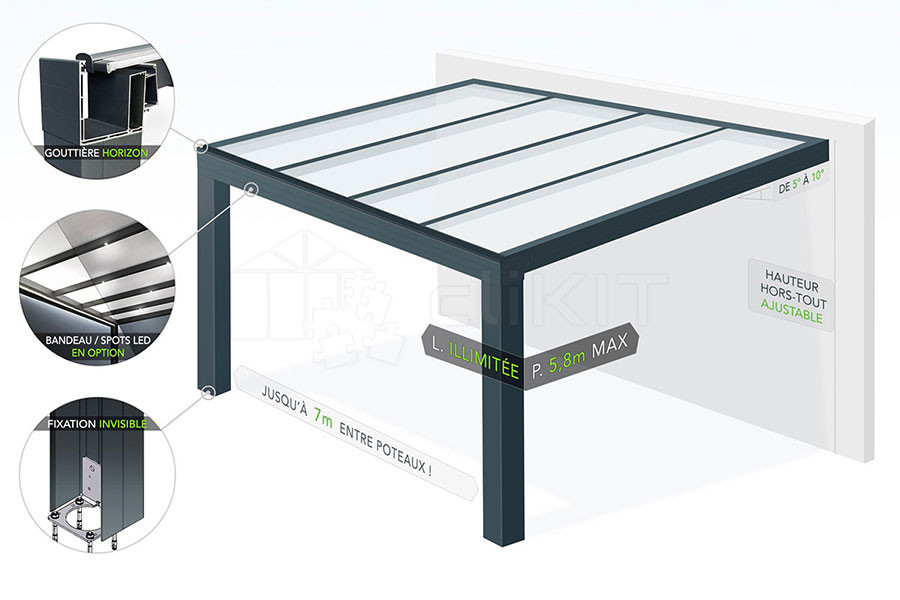

Diagram of the HORIZON Aluminium Pergola

Powder-coated aluminium

Standard White CliKIT Gloss Color Pictogram White CliKIT Gloss
Standard Anthracite Grey 7016 Structured Color Pictogram Anthracite Grey 7016 Structured
Non-Standard Color Pictogram Non-Standard (surcharge on quote)

Color Selection (Flat rate €275 incl. VAT)

Pictogram of the Black 9005 Structured Color Black 9005 Structured
Standard Pure White 9010 Structured Color Pictogram Pure White 9010 Structured
Pictogram of the Cream 9001 Gloss Color Cream 9001 Gloss
Pictogram of the Alu Grey 9007 Structured Color Alu Grey 9007 Structured
Pictogram of the White Alu 9006 Structured Color White Alu 9006 Structured
Pictogram of the Metal Grey 9009 Structured Color Metal Grey 9009 Structured
Pictogram of the Quartz Grey 7039 Structured Color Quartz Grey 7039 Structured
Pictogram of the Sepia Brown 8014 Structured Color Sepia Brown 8014 Structured
Pictogram of the Purple Red 3004 Structured Color Purple Red 3004 Structured

16mm polycarbonate roofing

Clear Shade Diagram Clear Tint
Diagram of the Opal Shade Opal Shade
Diagram of the Anti-heat Opal Shade Anti-heat Opal

Invisible fixings

Pictogram of the 150 x 177mm Post Post 150 x 177mm
Pictogram of the Integrated Downpipe in Post Integrated downpipe in post
Pictogram of invisible fixing with pivot socket Invisible fixing with pivot socket

A reinforced aluminium structure

  • Powder-coated aluminium structure with QUALICOAT LABEL, cut to your measurements on request
  • PXLX aluminium support posts with PCLXLX clip, 2500mm in length cuttable on request, fixed with provided pivot sockets (maximum width between posts: 7 m)
  • Rainwater drainage with an 80mm diameter integrated into one post of your choice
  • GXLX powder-coated aluminium gutter profile with a height of 115mm and a depth of 212mm
  • CL16 clamping clips for 16mm aluminium panels
  • Roof pitch: customizable between 5° and 10°
  • Stainless steel Torx screws included, powder-coated to match the color of your pergola

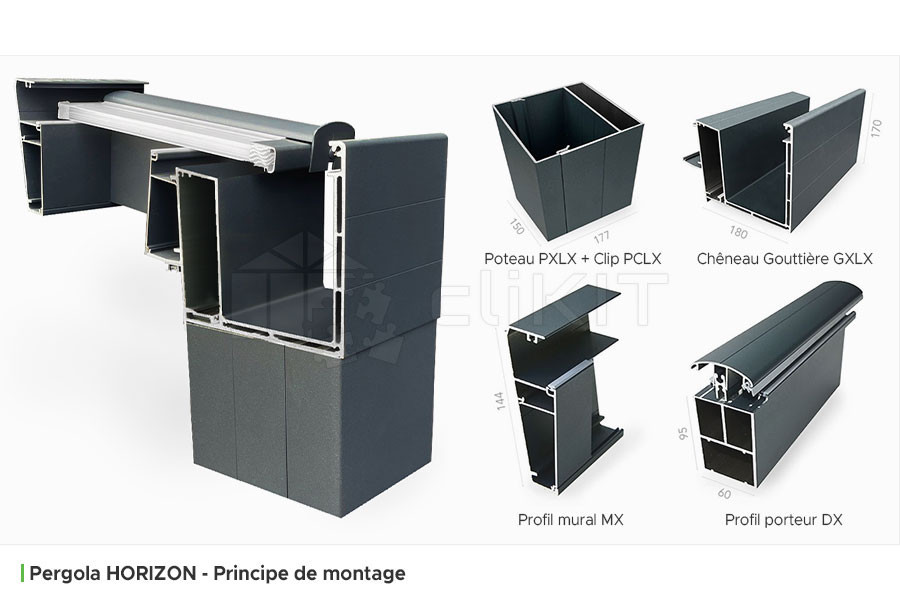

Photo of the Assembly Principle of the HORIZON Model
My online quote

Custom-designed profiles

  • Post 150 x 177mm with integrated and invisible downpipe
  • Strainer for rainwater drainage
  • GXLX gutter channel with a height of 170mm
  • V1243 Gutter Reinforcement (Optional)
  • MX wall profile with a height of 144mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminium clamping clips with sealing gasket for 16mm thick polycarbonate panels
  • LED Light Strip integrated into the gutter channel (Optional)
  • Power supply for the LED Light Strip (Optional)
Numbered diagram of the Assembly Principle of the HORIZON Model

Customize your project to your liking

CliKIT gives you the opportunity to realize your project 100% custom-made, adapting to your needs and desires. Standard configurations come with no added costs.

With a standard configuration

Diagram no. 1 example of the standard configuration of the HORIZON Pergola Diagram no. 2 example of the standard configuration of the HORIZON Pergola Diagram no. 3 example of the standard configuration of the HORIZON Pergola Diagram no. 4 example of the standard configuration of the HORIZON Pergola Diagram no. 5 example of the standard configuration of the HORIZON Pergola

If you are in one of the custom configurations below, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a custom configuration

Diagram no. 1 example of the custom configuration of the HORIZON Pergola Diagram no. 2 example of the custom configuration of the HORIZON Pergola Diagram no. 3 example of the custom configuration of the HORIZON Pergola Diagram no. 4 example of the custom configuration of the HORIZON Pergola Diagram no. 5 example of the custom configuration of the HORIZON Pergola
Legend diagram of support wallsFixed support wallLegend diagram of the choice of support wallsChoice of support walls (depending on your layout)

A polycarbonate roofing more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

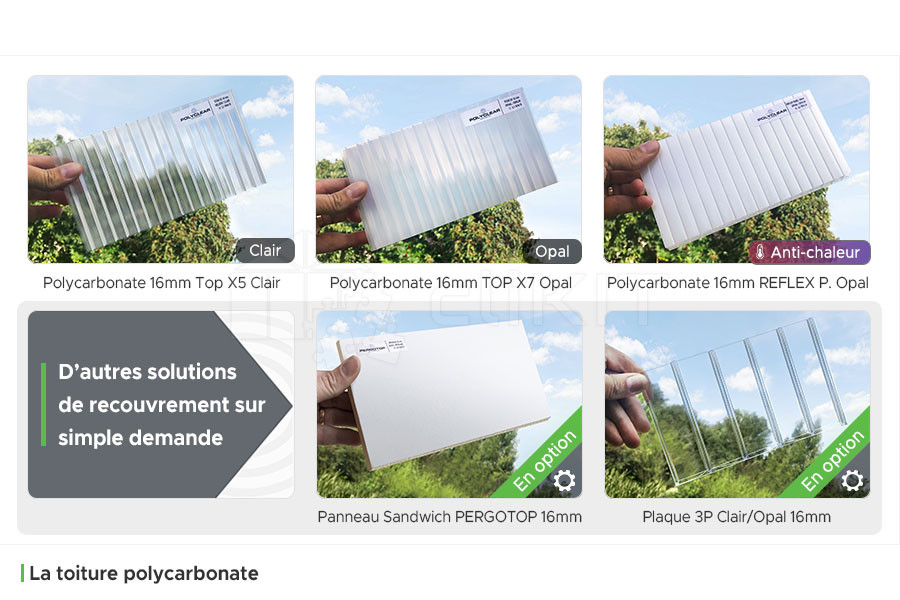

Photo of the 16mm Polycarbonate Panel models for Pergola

The 16mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the X Structure TOP X7 16mm cellular panels make them one of the most popular panels on the conservatory and pergola market. The TOP X7 16mm Opal or Clear panel has a U-value of 2.1 W/m2.K.

The 16mm REFLEX PEARL Polycarbonate - Anti-heat Opal

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 81% of heat and offers a light transmission of 28%! In winter, you enjoy excellent insulation, and in summer, the temperature under your pergola is comfortable thanks to its reflective properties.

 TOP X7 Polycarbonate
16mm Clear
TOP X7 Polycarbonate
16mm Opal
REFLEX P. Polycarbonate
16mm Anti-heat Opal
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-heat Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200
Panel Shade Clear Shade Opal Shade Anti-heat Opal Shade
Weight per m² 2.4 kg 2.4 kg 2.5 kg
Light transmission 64% 55% 28%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB

Other covering solutions available on request

The PERGOTOP 16mm Sandwich Panel

The PERGOTOP 16mm soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene foam bonded between two pre-lacquered aluminium sheets. In addition to its excellent insulation coefficient, it offers high resistance to UV rays. View our photos>

The scratch-resistant coating ensures you can enjoy your pergola worry-free. The sandwich panels are assembled in exactly the same way as the other panels.

Photo of the PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 16mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its cellular structure offers many advantages. It features very high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV layer, there is no discoloration or loss of clarity and light diffusion is durably guaranteed. In addition, its protective coating and the large cell dimensions effectively limit condensation effects.

32mm thickness Polycarbonate on request

If you live in a mountainous area, it may be worth considering a 32mm thick roof covering. This will be more resistant to snow loads. However, you will benefit from less natural light under your pergola. To guide your choice, you can consult our guide Comparison of 16/32mm Polycarbonate>

My online quote

Light up your evenings!

An LED Light Strip can be integrated directly under the gutter channel. This LED lighting diffuses indirect and pleasant light that will allow you to extend your evenings under your terrace! View our photos>

With the LED Spot Kit, you have the option to customize the area you wish to illuminate under your pergola — one side lit for reading, another dimmed for relaxing, anything is possible!

Photo of the LED Light Strip and LED Spot Kit for Pergola

An expandable and customizable pergola through the seasons!

CliKIT develops the concept of an Expandable Pergola to adapt as closely as possible to your desires or current budget. Rest assured that in the near or distant future, your pergola remains in perpetual evolution!

Do you want to shelter from the sun, wind, rain or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to take a look at our essentials to upgrade your pergola!

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your pergola. You will quickly notice the simplicity of the system's installation. It is possible to complete the assembly in just a few hours. Your CliKIT pergola will arrive as a kit containing the aluminium roof structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your pergola, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents available to you:

Installation Guide PictogramInstallation Guide>
Assembly Video PictogramAssembly Video>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you throughout your entire process.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any inquiries, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing Lead Time Pictogram

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Free Delivery Pictogram

Free delivery

Our kit pergolas are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranties Pictogram

Warranties

Our aluminium pergolas come with a 10-year warranty and comply with the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL.

Snow load: unless otherwise specified, load calculations are performed with a snow load according to current standards. Please inform us of altitudes above 800 meters.

The span was calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.
