ECOLINE Aluminium Pergola

Besoin d'un conseil ?
03 66 72 15 14
  • -15%
Photo n°1 of the ECOLINE Aluminium Pergola
They talk about usChannel logo See> Discover> Watch the video>
Product description picto Product
description Assembly video picto Assembly
video Installation guide picto Installation
guide Customer reviews picto Customer
reviews Delivery terms picto Delivery
terms

Configure your ECOLINE Aluminium Pergola

  • Made in Germany
  • Width: up to 6000mm
  • Depth: up to 4998mm
  • Gutter channel: straight
  • Roof: polycarbonate
  • Posts: 110 x 110mm
  • Optimal quality/price ratio
  • Standard product
*Required step
Your configuration

Factory direct price (incl. tax)

1,947.63
Instead of 2,291.33
Final price (tax incl.)
1,947.63

Summary

My online quote Delivery time pictoLead time: 8 to 10 weeks*
  • Delivery picto Free
    delivery*
  • Manufacturing picto Standard
    product
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
ECOLINE Aluminium Pergola Lean-To Standard Version

Finally enjoy your outdoor space!

The ECOLINE Aluminium Pergola is the perfect option to transform your living space. It allows you to enjoy your terrace all year round, while staying sheltered from the elements.

Discover a new way of living outdoors, with the freedom to relax alone, with family or with friends, whatever the weather conditions!

With its modern and clean design, this aluminium pergola enhances the aesthetics of your home. It adapts to all architectural styles, and its simple and quick installation is within everyone's reach.

Furthermore, the ECOLINE Pergola is offered at an affordable price, allowing you to maximise your outdoor comfort without exceeding your budget. Enjoy an economical solution to enhance and add value to your home.

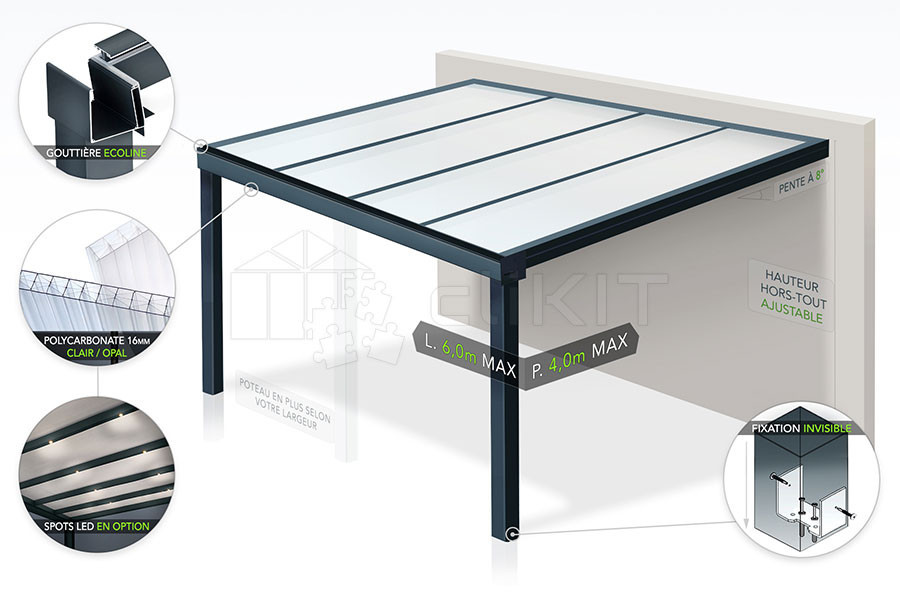

Diagram of the ECOLINE Aluminium Pergola

Powder-coated aluminium

Pictogram of the Standard Colour Pure White 9010 Structured Pure White 9010 Structured
Pictogram of the Standard Colour Anthracite Grey 7016 Structured Anthracite Grey 7016 Structured

16mm polycarbonate roof

Diagram of the Clear Tint Clear Tint
Diagram of the Opal Tint Opal Tint

Concealed fixings

Pictogram of the 110 x 110mm Post 110 x 110mm Post
Pictogram of the integrated downpipe in the post Integrated downpipe in the post
Pictogram of the concealed fixing with pad eye Concealed fixing with pad eye

A reinforced aluminium structure

  • Powder-coated aluminium structure with QUALICOAT LABEL certification, available in several dimensions depending on your project
  • AL3507 aluminium support posts of 110 x 110mm with a recutting length of 2400mm, fixing with supplied pad eyes (Maximum width between posts: 4m)
  • Rainwater drainage with an 80mm diameter integrated into one post of your choice
  • AL10200A gutter profile in powder-coated aluminium with a height of 126mm and a depth of 167mm
  • AL5437 clamping clips for 16mm aluminium sheets
  • Roof slope with an angle of 8°
  • Torx stainless steel screws included, powder-coated to match the colour of your pergola

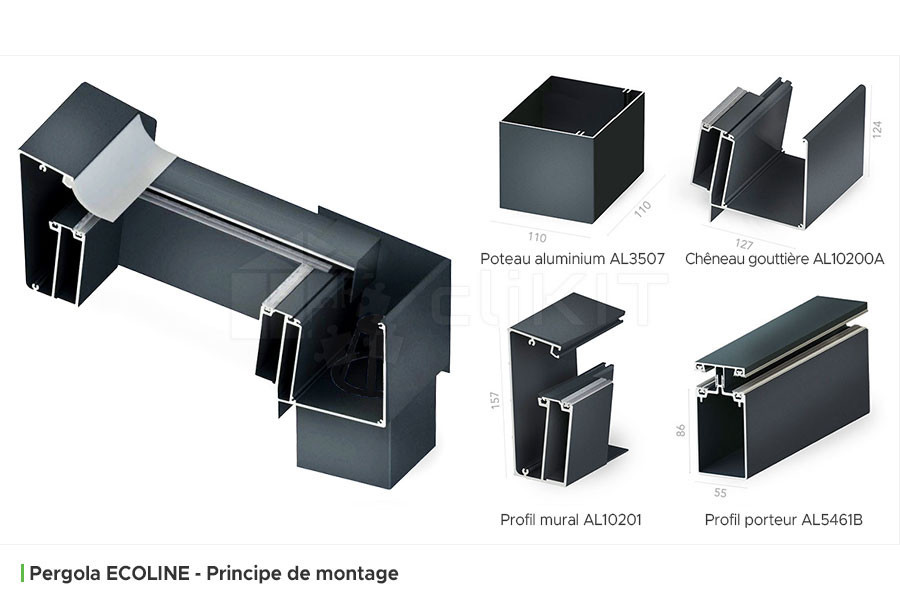

Photo of the Assembly Principle of the ECOLINE Model
Photo of the AL3507 Aluminium Post AL3507 Aluminium Post
Photo of the AL10200A Gutter Channel AL10200A Gutter Channel
Photo of the AL10201 Wall Profile AL10201 Wall Profile
Photo of the AL5461B Load-Bearing Profile AL5461B Load-Bearing Profile
My online quote

Custom-designed profiles

  • 110 x 110mm post with integrated and concealed downpipe
  • Strainer for rainwater drainage
  • AL10200A gutter channel with a height of 126mm
  • EL-01 lateral gutter profile with overflow opening
  • AL10201 wall profile with a height of 157mm
  • AL5461B load-bearing profile with a height and width of 86 x 55mm
  • AL5437 aluminium clamping clips with sealing gasket for a sheet thickness of 16mm
  • AL4201 glazing beads to clip onto the wall profile and the gutter channel
Numbered diagram of the Assembly Principle of the ECOLINE Model

Customise your project as you wish

CliKIT gives you the possibility to carry out your project by adapting to your needs and desires. The standard configurations come at no extra cost and are available in various installations depending on your location.

If you would like a fully customisable, bespoke configuration better suited to a specific installation, we invite you to consider a product specially designed for this purpose, our flagship model the CLIMALUX Aluminium Pergola.

Configuration examples

Diagram no. 1 showing an example of the standard configuration of the ECOLINE Pergola Diagram no. 2 showing an example of the standard configuration of the ECOLINE Pergola Diagram no. 3 showing an example of the standard configuration of the ECOLINE Pergola Diagram no. 4 showing an example of the standard configuration of the ECOLINE Pergola
Legend diagram of the support wallsFixed support wallLegend diagram of the support walls of your choiceSupport walls of your choice (depending on your installation)
Close-up of the ECOLINE Aluminium Pergola

The Product +

  • Available in standard dimensions for an optimal value for money
  • Robust powder-coated aluminium structure, simple and quick to assemble
  • Clear or opal polycarbonate tint, adapted to your sunshine levels and preferences
  • Optional LED spot lighting, controlled by a remote
  • Simple and quick assembly, with remote assistance by phone, email, SMS or video call.
  • German manufacturing, 10-year guarantee

A polycarbonate roof more resistant than glass

EXOLON polycarbonate sheets are ultra strong: up to 250 times more resistant than glass. Made up of a triple-wall 16mm thickness, its X-structure provides increased rigidity.

It combines high light transmission, good thermal insulation, and excellent weather resistance. This polycarbonate sheet is lightweight, impact-resistant, and easy to install.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures.

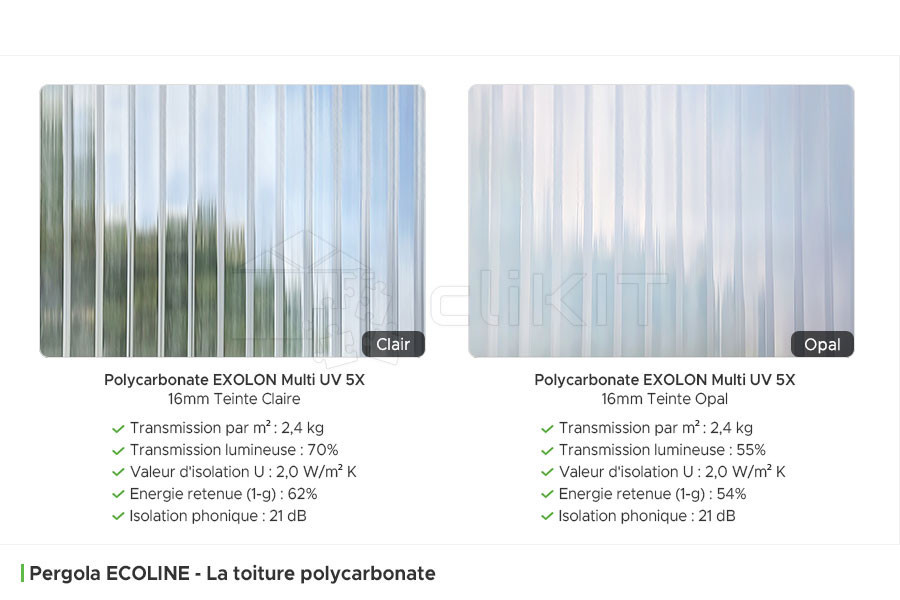

Photo of the 16mm EXOLON Multi UV Polycarbonate Sheet models

The 16mm EXOLON Multi UV 5X Clear Polycarbonate

The 16mm EXOLON Multi UV 5X Clear Polycarbonate for your pergola is ideal for maximising natural light and providing optimal transparency. Its clear tint adapts perfectly to the sunshine levels in your region, creating a bright and pleasant atmosphere.

The 16mm EXOLON Multi UV 5X Opal Polycarbonate

The 16mm EXOLON Multi UV 5X Opal Polycarbonate for your pergola is perfect for regulating brightness according to your exposure. Thanks to its tint, it adapts to the sunshine levels in your region, filtering the light to reduce glare. In addition, it provides excellent protection against UV rays while maintaining a bright and pleasant atmosphere under your pergola.

EXOLON Multi UV 5X Polycarbonate
16mm Clear Tint		EXOLON Multi UV 5X Polycarbonate
16mm Opal Tint
EXOLON Multi UV brand logo
Diagram of the 16mm Clear Polycarbonate
Diagram of the 16mm Opal Polycarbonate
Sheet Tint Clear Tint Opal Tint
Weight per m² 2.4 kg 2.4 kg
Light transmission 62% 55%
U insulation value 2.0 W/m² K 2.0 W/m² K
Energy retained (1-g) 36% 46%
Sound insulation 21 dB 21 dB
My online quote

Light up your evenings!

With the LED Spot Kit, you can customise the area you wish to illuminate under your pergola — one side lit for reading, another dimmed for relaxing, anything is possible!

It is up to you to determine their position when assembling your pergola and to control the light using the dimmer.

Thanks to this LED Spot Kit, you can easily keep the light on all night under your carport or patio roof without worrying about your energy bill. This also guarantees a certain level of security.

Photo of the LED Light Strip and the LED Spot Kit for Pergola

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your pergola. You will quickly notice how straightforward the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT pergola will arrive as a kit containing the aluminium roof structure, the roofing elements, the accessories, and the installation guide.

Link to an online quote

To ensure a successful assembly of your pergola, you will need the following tools:

  • Tape measure
  • Ø 12mm concrete drill bit
  • Ø 4mm metal drill bit
  • Ø 83mm hole saw
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all the documents available to you:

Pictogram of the Installation GuideInstallation Guide>
Pictogram of the Assembly VideoAssembly Video>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you throughout your project.

A dedicated technical advisor is assigned to you to refine your project together and best respond to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, please do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Pictogram of the manufacturing lead time

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please consult our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Pictogram of the Belgian flag

Made in Germany

Pictogram of free delivery

Free delivery

Our kit pergolas are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Pictogram of Warranties

Warranties

This aluminium pergola model comes with a 10-year guarantee and meets the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL.

Snow load: unless otherwise specified, load calculations are performed with a snow load in accordance with current standards. Please notify us of altitudes above 800 metres.

The span has been calculated with a minimum snow load of 350 Newtons (± 35kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard sheet width of 980mm and a thickness of 16mm.

Pictogram of the quality label warranties
