CLIMALUX Aluminium Pergola

Besoin d'un conseil ?

Configure your CLIMALUX Aluminium Pergola

  • Made in Belgium
  • Width: unlimited & made-to-measure
  • Depth: up to 5800mm
  • Gutter rail: straight
  • Roof: polycarbonate, glass, opaque
  • Posts: 110 x 141mm
  • Expandable and customizable pergola
  • Our best-seller model
*Required step
Your configuration

Factory direct price (incl. tax)

2,497.53
Instead of 2,938.27

Final price (tax incl.)
2,497.53

Summary

My online quote Delivery time pictogramLead time: 6 to 8 weeks* Colors with surcharge: 8 to 10 weeks
  • Delivery pictogram Delivery
    included*
  • Manufacturing pictogram Custom-
    Made
  • Warranty pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
CLIMALUX Aluminium Pergola Straight Gutter Version

Finally enjoy your outdoor space!

The CLIMALUX Terrace Roof offers the ideal solution for extending your home in the form of an aluminium pergola, carport or for fitting out your terrace.

The CLIMALUX is an aluminium pergola featuring a self-supporting cold-section profile system made to measure, designed for easy and quick assembly.

The simplicity of the system allows for various constructions. The CLIMALUX Terrace Shelter respects your budget and excels in its simplicity, professionalism and aesthetics.

Diagram of the Climalux Aluminium Pergola

Powder-coated aluminium

Picto of the CliKIT Standard White Gloss Color CliKIT Gloss White
Picto of the Standard Anthracite Grey 7016 Textured Color Anthracite Grey 7016 Textured
Picto of the Non-Standard Color Non-Standard (additional cost on quote)

Color Selection (Package €275 incl. tax)

Picto of the Black 9005 Textured Color Black 9005 Textured
Picto of the Standard Pure White 9010 Textured Color Pure White 9010 Textured
Picto of the Cream 9001 Gloss Color Cream 9001 Gloss
Picto of the Alu Grey 9007 Textured Color Alu Grey 9007 Textured
Picto of the White Alu 9006 Structured Color Alu White 9006 Textured
Picto of the Metal Grey 9009 Textured Color Metal Grey 9009 Textured
Picto of the Quartz Grey 7039 Textured Color Quartz Grey 7039 Textured
Picto of the Sepia Brown 8014 Textured Color Sepia Brown 8014 Textured
Picto of the Purple Red 3004 Textured Color Purple Red 3004 Textured

16mm polycarbonate roof

Diagram of the Clear Shade Clear Shade
Diagram of the Opal Shade Opal Shade
Diagram of the Opal Anti-heat Shade Opal Anti-heat

Invisible fixings

Picto of the 110 x 141mm Post 110 x 141mm Post
Picto of the Integrated Downpipe in the Post Integrated downpipe in the post
Picto of the Invisible Fixing with Crapaudine Bracket Invisible fixing with crapaudine bracket
View our customers' photos>

A reinforced aluminium structure

  • Powder-coated aluminium structure with QUALICOAT LABEL certification, cut to your measurements on request
  • PX aluminium support posts 110 x 141mm with a length of 2500mm, cuttable on request, fixed with supplied crapaudine brackets (Maximum width between posts: 4 m)
  • Rainwater drainage with an 80mm diameter integrated into one post of your choice
  • GX aluminium powder-coated gutter profile with a height of 115mm and a depth of 212mm
  • CL16 clamping clips for 16mm aluminium panels
  • Roof pitch: customizable between 5° and 10°
  • Stainless steel Torx screws included, powder-coated to match the color of your pergola

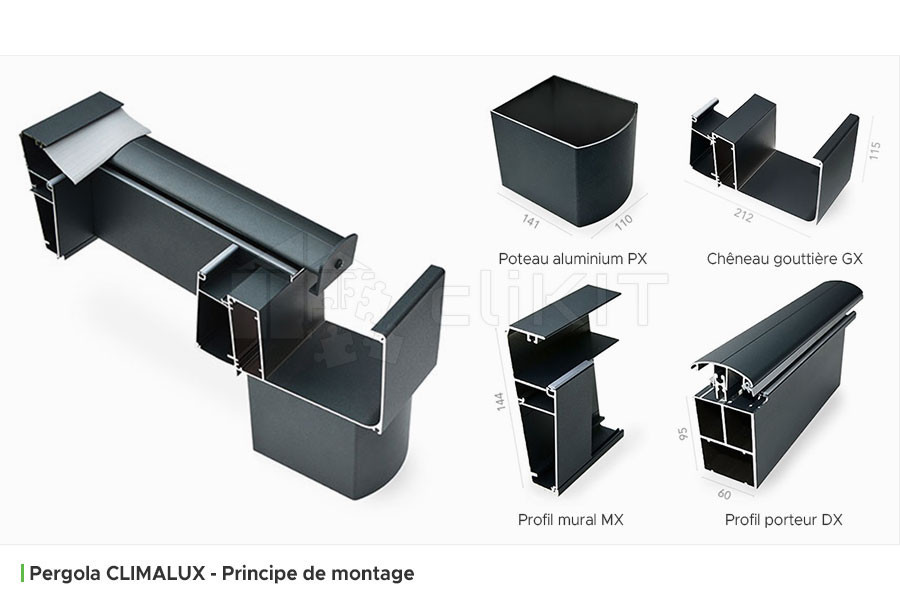

Photo of the Assembly Principle of the CLIMALUX Model
My online quote

Custom-designed profiles

  • 110 x 141mm post with integrated and concealed downpipe
  • Strainer for rainwater drainage
  • GX gutter profile with a height of 115mm
  • MX wall profile with a height of 144mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminium clamping clips with sealing gasket for panels with a thickness of 16mm
  • LED lighting strip integrated into the gutter (Optional)
  • Power supply for the LED lighting strip (Optional)
Numbered diagram of the Assembly Principle of the CLIMALUX Model

Customize your project as you wish

CliKIT gives you the possibility to realize your 100% custom-made project, adapting to your needs and desires. Standard configurations come with no additional cost.

With a standard configuration

Diagram no. 1 example of the standard configuration of the CLIMALUX Pergola Diagram no. 2 example of the standard configuration of the CLIMALUX Pergola Diagram no. 3 example of the standard configuration of the CLIMALUX Pergola Diagram no. 4 example of the standard configuration of the CLIMALUX Pergola Diagram no. 5 example of the standard configuration of the CLIMALUX Pergola

If you are in one of the custom configurations below, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a custom configuration

Diagram no. 1 example of the custom configuration of the CLIMALUX Pergola Diagram no. 2 example of the custom configuration of the CLIMALUX Pergola Diagram no. 3 example of the custom configuration of the CLIMALUX Pergola Diagram no. 4 example of the custom configuration of the CLIMALUX Pergola Diagram no. 5 example of the custom configuration of the CLIMALUX Pergola
Legend diagram of support wallsFixed support wallLegend diagram of the optional support wallsSupport walls of your choice (depending on your layout)

A polycarbonate roof stronger than glass

Polyclear" polycarbonate panels are ultra strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

Photo of the 16mm Polycarbonate Panel models for Pergola

The 16mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 16mm cellular panels make them one of the most popular panels on the veranda and pergola market. The TOP X7 16mm Opal or Clear panel has a U value of 2.1 W/m².K.

The 16mm REFLEX PEARL Polycarbonate - Opal Anti-heat

Thanks to its co-extruded, reflective outer layer, the REFLEX PEARL panel reflects up to 81% of heat and offers a light transmission of 28%! In winter, you benefit from excellent insulation, and in summer, the temperature under your pergola is pleasant thanks to its reflective properties.

 TOP X7 Polycarbonate
16mm Clear
TOP X7 Polycarbonate
16mm Opal
REFLEX P. Polycarbonate
16mm Opal Anti-heat
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-heat Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200
Plate Color Clear Shade Opal Shade Opal Anti-heat Shade
Weight per m² 2.4 kg 2.4 kg 2.5 kg
Light transmission 64% 55% 28%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K
Energy retained (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB

Other covering solutions available on request

The PERGOTOP 16mm Sandwich Panel

The PERGOTOP 16mm soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-painted aluminium sheets. Its excellent insulation coefficient is complemented by high UV resistance. View our photos>

The scratch-resistant coating ensures you can enjoy your pergola worry-free. The sandwich panels are installed in exactly the same way as the other panels.

Photo of the PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 16mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its cellular structure offers many advantages. It has very high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV layer, there is no discoloration or loss of clarity, and light diffusion is durably guaranteed. In addition, its protective coating and the large size of its cells effectively limit condensation effects.

32mm thickness Polycarbonate available on request

If you live in a mountainous area, it may be worth opting for a 32mm thick roof covering. This will be more resistant to snow load. However, you will benefit from less light under your pergola. To help you make your choice, you can consult our guide Polycarbonate 16/32mm Comparison>

My online quote

Light up your evenings!

An LED light strip can be integrated directly under the gutter profile. This LED lighting diffuses an indirect and pleasant light that will allow you to extend your evenings under your terrace! View our photos>

With the LED Spot Kit, you have the option to customize the area you want to light under your pergola — one side lit for reading, another dimmed for relaxing, anything is possible!

Photo of the LED Light Strip and LED Spot Kit for Pergola

An adaptable and customizable pergola for every season!

CliKIT develops the concept of an Adaptable Pergola to best match your desires or your current budget. Rest assured that in the near or distant future, your pergola will always be evolving!

Want to shelter from the sun, wind, rain or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Walls... and much more!

Remember to take a look at our must-haves to upgrade your pergola!

Support resources to assist you

Our technical team remains available and attentive throughout the assembly phase of your pergola. You will notice the simplicity of the installation system quite quickly. It is possible to complete the assembly in just a few hours. Your CliKIT pergola will arrive as a kit containing the aluminium roof structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your pergola, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents made available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Assembly VideoAssembly Video>
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to accompany you throughout your project.

A dedicated technical advisor is assigned to you to refine your project together and best meet your needs before and after your order, as well as throughout the entire assembly phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of Free Delivery

Free delivery

Our kit pergolas are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Picto of the Warranties

Warranties

Our aluminium pergolas are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL certification.

Snow load: unless otherwise specified, load calculations are performed with a snow load in accordance with current standards. Please notify us of altitudes above 800 metres.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the supports does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.
