Configure your SOFTLINE Aluminum Pergola

  • Made in Belgium
  • Width: unlimited & custom-made
  • Depth: up to 5800mm
  • Gutter channel: rounded
  • Roof: polycarbonate, glass, opaque
  • Posts: 110 x 141mm
  • Expandable and customizable pergola
  • Rounded design finish
*Required step
Your configuration

Factory direct price (incl. tax)

2,658.05
Instead of 3,127.12

Final price (tax incl.)
2,658.05

Summary

My online quote Delivery time iconDelivery time: 6 to 8 weeks* Colors with surcharge: 8 to 10 weeks
  • Delivery icon Delivery
    free*
  • Manufacturing icon Custom-
    made
  • Warranty icon Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
CLIMALUX SOFTLINE Aluminum Pergola Rounded Gutter Channel Version

Finally enjoy your outdoor space!

The CLIMALUX SOFTLINE Terrace Roof offers the ideal solution for extending your home in the form of an aluminium pergola, carport or for fitting out your terrace.

The CLIMALUX SOFTLINE is an aluminum pergola featuring a custom cold-break self-supporting profile system designed for easy and quick assembly.

The simplicity of the system allows for various construction configurations. The CLIMALUX SOFTLINE Terrace Shelter respects your budget and excels in its simplicity, professionalism, and aesthetics.

Diagram of the CLIMALUX SOFTLINE Aluminum Pergola

Powder-coated aluminum

Picto of the Standard Color CliKIT Brilliant White CliKIT Brilliant White
Picto of the Standard Structured Anthracite Grey 7016 Color Structured Anthracite Grey 7016
Picto of the Non-Standard Color Non-Standard (surcharge on quote)

Colour Selection (Flat rate €275 incl. VAT)

Picto of the Structured Black 9005 Color Structured Black 9005
Picto of the Standard Color Structured Pure White 9010 Structured Pure White 9010
Picto of the Brilliant Cream 9001 Color Brilliant Cream 9001
Picto of the Structured Alu Grey 9007 Color Structured Alu Grey 9007
Picto of the Structured Alu White 9006 Color Structured Alu White 9006
Picto of the Structured Metal Grey 9009 Color Structured Metal Grey 9009
Picto of the Structured Quartz Grey 7039 Color Structured Quartz Grey 7039
Picto of the Structured Sepia Brown 8014 Color Structured Sepia Brown 8014
Picto of the Structured Purple Red 3004 Color Structured Purple Red 3004

16mm polycarbonate roofing

Clear Tint Diagram Clear Tint
Opal Tint Diagram Opal Tint
Opal Anti-heat Tint Diagram Opal Anti-heat

Invisible fixings

Picto of the 110 x 141mm Post 110 x 141mm Post
Picto of the Downpipe Integrated into the Post Downpipe integrated into the post
Picto of the Invisible fixing with pivot socket Invisible fixing with pivot socket
See our customers' photos>

A reinforced aluminum structure

  • Powder-coated aluminum structure with QUALICOAT LABEL certification, cut to your measurements on request
  • PX aluminum support posts of 110 x 141mm with a length of 2500mm, cuttable on request, fixing with provided pivot sockets (Maximum width between posts: 4 m)
  • Rainwater drainage with an 80mm diameter integrated into one post of your choice
  • GX gutter profile with its SOFTLINE GLX ornamental profile in powder-coated aluminum
  • CL16 clamping clips for 16mm panels in aluminum
  • Roof pitch: customizable between 5° and 10°
  • Stainless steel Torx screws included, lacquered to match the color of your pergola

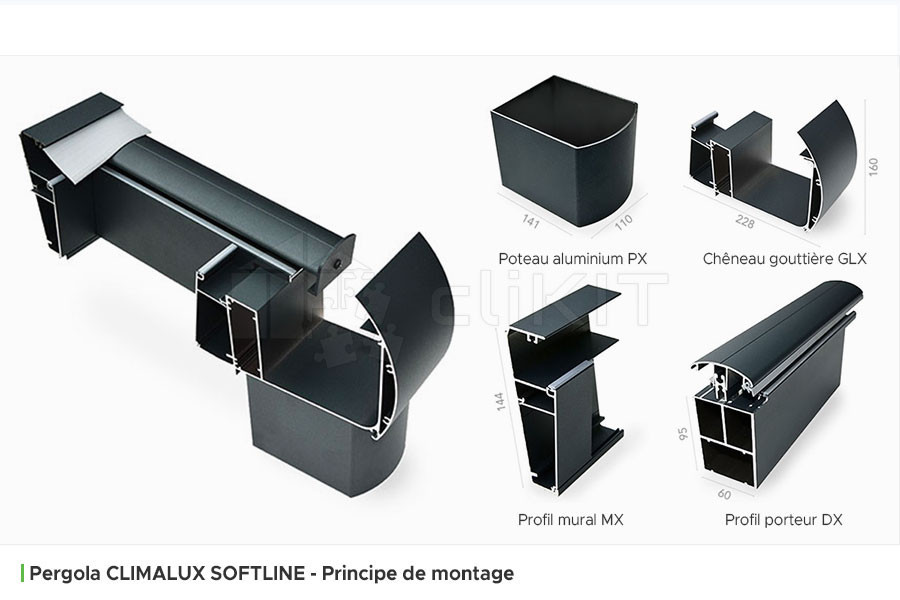

Photo of the Assembly Principle of the CLIMALUX SOFTLINE Model
My online quote

Custom-designed profiles

  • 110 x 141mm post with integrated and invisible downpipe
  • Strainer for rainwater drainage
  • Gutter channel with its Softline GLX ornamental profile
  • MX wall profile with a height of 144mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminum clamping clips with sealing gasket for panels with a thickness of 16mm
  • LED light strip integrated into the gutter channel (Optional)
  • Power supply for the LED light strip (Optional)
Numbered diagram of the Assembly Principle of the CLIMALUX SOFTLINE Model

Customize your project as you wish

CliKIT gives you the possibility to carry out your 100% custom-made project, adapting to your needs and desires. Standard configurations come with no additional cost.

With a standard configuration

Diagram no. 1 example of the standard configuration of the CLIMALUX SOFTLINE Pergola Diagram no. 2 example of the standard configuration of the CLIMALUX SOFTLINE Pergola Diagram no. 3 example of the standard configuration of the CLIMALUX SOFTLINE Pergola Diagram no. 4 example of the standard configuration of the CLIMALUX SOFTLINE Pergola Diagram no. 5 example of the standard configuration of the CLIMALUX SOFTLINE Pergola

If you are in one of the custom configurations below, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a custom configuration

Diagram no. 1 example of the custom configuration of the CLIMALUX SOFTLINE Pergola Diagram no. 2 example of the custom configuration of the CLIMALUX SOFTLINE Pergola Diagram no. 3 example of the custom configuration of the CLIMALUX SOFTLINE Pergola Diagram no. 4 example of the custom configuration of the CLIMALUX SOFTLINE Pergola Diagram no. 5 example of the custom configuration of the CLIMALUX SOFTLINE Pergola
Legend diagram of support wallsFixed support wallLegend diagram of support walls of your choiceSupport walls of your choice (depending on your installation)

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key fire safety advantage thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. See our photos>

Photo of the 16mm Polycarbonate Panel models for Pergola

The 16mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 16mm cellular panels make them one of the most popular panels on the veranda and pergola market. The TOP X7 16mm Opal or Clear panel has a U value of 2.1 W/m2.K.

The 16mm REFLEX PEARL Polycarbonate - Opal Anti-heat

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 81% of heat and offers a light transmission of 28%! In winter, you benefit from very good insulation, and in summer, the temperature under your pergola is pleasant thanks to its reflective properties.

 TOP X7 Polycarbonate
16mm Clear
TOP X7 Polycarbonate
16mm Opal
Polycarbonate REFLEX P.
16mm Opal Anti-heat
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-heat Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200
Panel Tint Clear Tint Opal Tint Opal Anti-heat Tint
Weight per m² 2.4 kg 2.4 kg 2.5 kg
Light transmission 64% 55% 28%
Insulation value U 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB

Other covering solutions available on request

The PERGOTOP 16mm Sandwich Panel

The PERGOTOP 16mm Soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminum panels. Its good insulation coefficient is complemented by high resistance to UV rays. See our photos>

The scratch-resistant coating ensures you can enjoy your pergola without any worries. The sandwich panels are assembled in exactly the same way as the other panels.

Photo of the PERGOTOP Sandwich Panels and PLEXIGLAS Alltop 16mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its cellular structure offers numerous advantages. It has very high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV coating, there is no discoloration or loss of clarity, and light diffusion is durably guaranteed. Furthermore, its protective coating and the large size of its cells effectively limit condensation effects.

32mm Polycarbonate available on request

If you live in a mountainous area, it may be worth considering a 32mm thick roof covering. This will be more resistant to snow loads. However, you will benefit from less light under your pergola. To help guide your choice, you can consult our guide Polycarbonate 16/32mm Comparison>

My online quote

Light up your evenings!

An LED light strip can be integrated directly under the gutter channel. This LED lighting diffuses an indirect and pleasant light that will allow you to extend your evenings under your terrace! See our photos>

With the LED Spot Kit, you have the option to customize the area you want to illuminate under your pergola — one side lit for reading, another dimmed for relaxing, anything is possible!

Photo of the LED Light Strip and LED Spot Kit for Pergola

An adaptable and customizable pergola for every season!

CliKIT develops the concept of an Adaptable Pergola to match your desires or your current budget as closely as possible. Rest assured that, in the near or distant future, your pergola will continue to evolve!

Would you like to shelter from the sun, wind, rain or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to check out our must-haves to upgrade your pergola!

Resources to assist you

Our technical team remains available and at your service throughout the entire assembly phase of your pergola. You will quickly notice the simplicity of the installation system. The assembly can be completed in just a few hours. Your CliKIT pergola will arrive as a kit containing the aluminum roof structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your pergola, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Assembly VideoAssembly Video>
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our construction experts and enthusiasts to guide you throughout your project.

A dedicated technical advisor will work with you to refine your project and respond to your requests as best as possible before and after your order, as well as throughout the entire assembly phase.

For any information, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Structural Engineering Manager

Nicolas Font Structural Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of Free Delivery

Free delivery

Our kit pergolas are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Picto of Guarantees

Guarantees

Our aluminium pergolas are guaranteed for 10 years and meet the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL.

Snow load: unless otherwise specified by you, load calculations are carried out with a snow load in accordance with current standards. Please notify us of altitudes above 800 meters.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.
