PANORAMA Aluminium Pergola

Besoin d'un conseil ?

  • -15%
They talk about us onChannel logo View> Discover> Watch the video>
Product Description icon Product
description
Customer
projects
Installation Guide icon Installation
guide
Customer Reviews icon Customer
reviews
Delivery Terms icon Delivery
terms

Configure your PANORAMA Aluminium Pergola

  • Made in Belgium
  • Width: unlimited & custom-made
  • Depth: up to 6000mm
  • Gutter channel: rounded
  • Roof: polycarbonate, glass, opaque
  • Posts: 110 x 181mm
  • Expandable and customizable pergola
  • Up to 7m between posts
*Required step
Your configuration

Factory direct price (incl. tax)

4,266.71
Instead of 5,019.66

Final price (tax incl.)
4,266.71

Summary

My online quote Delivery time iconDelivery time: 6 to 8 weeks* Colors with surcharge: 8 to 10 weeks
  • Delivery icon Delivery
    free*
  • Manufacturing icon Custom-
    made
  • Warranty icon Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
PANORAMA Aluminum Pergola GDG XL Gutter Channel Version

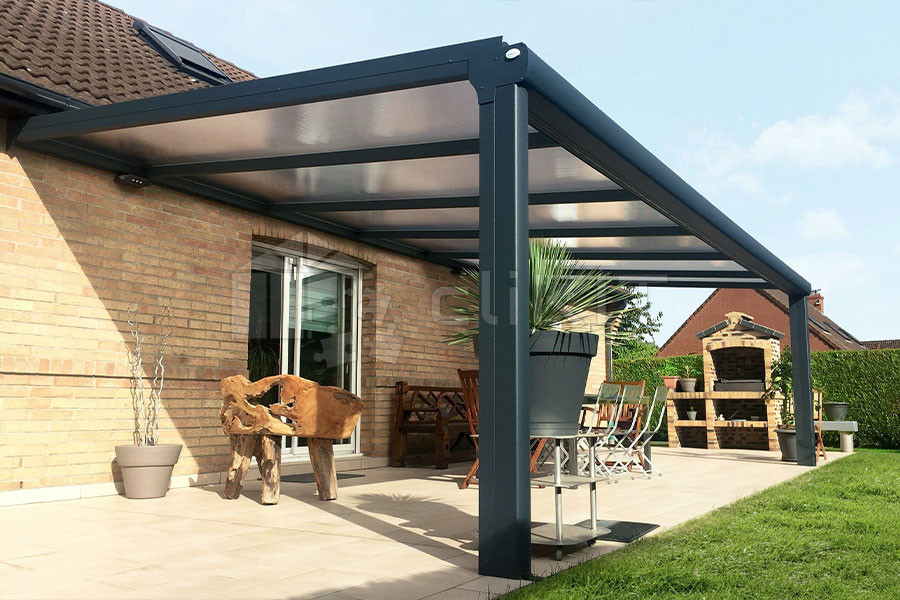

Photo of the PANORAMA Aluminum Pergola

Finally enjoy your outdoor space!

The PANORAMA Patio Roof offers the ideal solution for extending your home as an aluminum pergola, carport, or for fitting out your terrace.

The PANORAMA is an aluminum pergola featuring a custom cold-series self-supporting profile system designed for easy and fast assembly.

Thanks to an innovative process, the extremely robust structure of the PANORAMA allows for widths of up to 7m without intermediate posts. The PANORAMA Patio Shelter respects your budget and excels in its simplicity, professionalism, and aesthetics.

Diagram of the PANORAMA Aluminum Pergola

Powder-coated aluminum

Picto of the Standard CliKIT Glossy White Color CliKIT Glossy White
Picto of the Standard Structured Anthracite Grey 7016 Color Structured Anthracite Grey 7016
Picto of the Non-Standard Color Non-Standard (surcharge on quote)

Color Selection (Package €275 incl. tax)

Picto of the Structured Black 9005 Color Structured Black 9005
Picto of the Standard Structured Pure White 9010 Color Structured Pure White 9010
Picto of the Glossy Cream 9001 Color Glossy Cream 9001
Picto of the Structured Aluminium Grey 9007 Color Structured Aluminium Grey 9007
Picto of the Structured Alu White 9006 Color Structured Alu White 9006
Picto of the Structured Metal Grey 9009 Color Structured Metal Grey 9009
Picto of the Structured Quartz Grey 7039 Color Structured Quartz Grey 7039
Picto of the Structured Sepia Brown 8014 Color Structured Sepia Brown 8014
Picto of the Structured Purple Red 3004 Color Structured Purple Red 3004

32mm polycarbonate roof

Diagram of the Clear Tint Clear Tint
Diagram of the Opal Tint Opal Tint
Diagram of the Heat-Resistant Opal Tint Heat-Resistant Opal

Invisible fixings

Picto of the 110 x 181mm Post 110 x 181mm Post
Picto of the Drainage Integrated into the Post Drainage integrated into the post
Picto of the Invisible Hinge Socket Fixation Invisible hinge socket fixation
View our customers' photos>

A reinforced aluminum structure

  • Powder-coated aluminum structure with the QUALICOAT LABEL, cut to your measurements on request
  • Aluminum support posts 110 x 181mm with a length of 2500mm, cuttable on request, fixation via supplied hinge sockets (Maximum width between posts: 7 m)
  • Rainwater drainage with an 80mm diameter integrated into one post of your choice
  • GDG gutter profile in powder-coated aluminum with a height of 162mm and a depth of 222mm
  • CL32 clamping clips for 32mm panels
  • Roof pitch: customizable between 5° and 20°
  • Stainless steel Torx screws included, powder-coated to match the color of your pergola

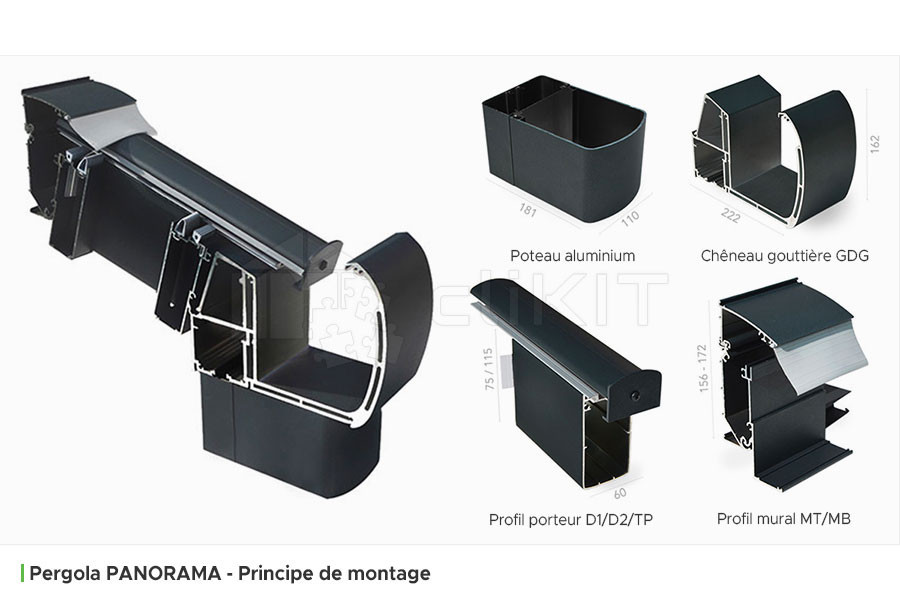

Photo of the Assembly Principle of the PANORAMA Model
My online quote

Custom-designed profiles

  • 110 x 181mm post with integrated and invisible water drainage
  • Strainer for rainwater drainage
  • GDG gutter channel with a height of 162mm
  • MT/MB wall profile with a height between 156 and 172mm
  • Load-bearing profile D1/TP with a height and width of 75 x 60mm
  • Aluminum clamping clips with sealing gasket for panels 32mm thick
  • LED light strip integrated into the gutter channel (optional)
  • Power supply for the LED light strip (optional)
Numbered diagram of the Assembly Principle of the PANORAMA Model

Customize your project to your liking

CliKIT gives you the ability to create your 100% custom-made project, adapting to your needs and desires. Standard configurations come at no extra cost.

With a standard configuration

Diagram n°1 of an example of the standard configuration of the PANORAMA Pergola Diagram n°2 of an example of the standard configuration of the PANORAMA Pergola Diagram n°3 of an example of the standard configuration of the PANORAMA Pergola Diagram n°4 of an example of the standard configuration of the PANORAMA Pergola Diagram n°5 of an example of the standard configuration of the PANORAMA Pergola

If you are in one of the customized configurations below, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

With a customized configuration

Diagram n°1 of an example of the customized configuration of the PANORAMA Pergola Diagram n°2 of an example of the customized configuration of the PANORAMA Pergola Diagram n°3 of an example of the customized configuration of the PANORAMA Pergola Diagram n°4 of an example of the customized configuration of the PANORAMA Pergola Diagram n°5 of an example of the customized configuration of the PANORAMA Pergola
Legend diagram of the support wallsFixed support wallLegend diagram of the optional support wallsChoice of support walls (depending on your installation)

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures. View our photos>

Photo of the 32mm Polycarbonate Panel models for Pergola

32mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP X7 32mm cellular panels make them one of the most popular panels on the veranda and pergola market. The TOP X7 32mm Opal or Clear panel has a U-value of 1.2 W/m².K.

32mm REFLEX PEARL Polycarbonate - Heat-Resistant Opal

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 82% of heat and offers a light transmission of 12%! In winter, you benefit from excellent insulation, and in summer, the temperature under your pergola is pleasant thanks to its reflective properties.

 TOP X7 Polycarbonate
32mm Clear
TOP X7 Polycarbonate
32mm Opal
REFLEX P. Polycarbonate
32mm Opal Heat-Resistant
Polyclear brand logo Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Heat-Resistant Opal Polycarbonate
Panel Width (mm) 980/1230 980/1230 980/1230
Panel Tint Clear Tint Opal Tint Heat-Resistant Opal Tint
Weight per m² 3.7 kg 3.7 kg 3.8 kg
Light transmission 57% 32% 12%
U insulation value 1.2 W/m² K 1.2 W/m² K 1.0 W/m² K
Retained energy (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 23 dB

Other covering solutions available upon request

The 32mm PERGOTOP Sandwich Panel

The 32mm PERGOTOP soundproofing Sandwich Panel is specially designed to provide optimal insulation thanks to its extruded polystyrene foam bonded between two pre-painted aluminum panels. Its good insulation coefficient is complemented by high UV resistance. View our photos>

Composed of a soft membrane on the exterior side and an anti-scratch coating or an identical membrane on its inner face, the PERGOTOP Soft Sandwich Panel effectively reduces contact noise such as rain or hail. Its Soft soundproofing layer absorbs acoustic energy optimally, available in 1 or 2-layer versions depending on your needs.

Photo of the PERGOTOP Sandwich Panels and the PLEXIGLAS Alltop 32mm Panels

The 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its cellular structure offers numerous advantages. It has very high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV layer, there is no discoloration or loss of clarity and light diffusion is durably guaranteed. In addition, its protective coating and the large size of its cells effectively limit condensation effects.

My online quote

Light up your evenings!

With the LED Spot Kit, you can customize the area you wish to illuminate under your pergola — one side lit for reading and another dimmed for relaxing, anything is possible!

Thanks to this LED Spot Kit, you can easily leave the light on all night under your carport or patio roof without worrying about the energy bill. This also ensures a certain level of security.

Photo of the LED Light Strip for Pergola

An adaptable and customizable pergola for every season!

CliKIT develops the concept of an Adaptable Pergola to best match your desires or current budget. Rest assured that in the near or distant future, your pergola will continue to evolve!

Do you want to shelter from the sun, wind, rain, or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Don't forget to check out our must-have accessories to upgrade your pergola!

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your pergola. You will quickly notice how simple the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT pergola will arrive as a kit containing the aluminum roof structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your pergola, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole Saw Ø 80mm
  • Utility knife
  • Drill
  • Screwdriver
  • Silicone gun
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all the documents available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you every step of the way.

A dedicated technical advisor will work with you to refine your project and best meet your requests before and after your order, as well as throughout the entire assembly phase.

For any inquiries, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information on manufacturing and delivery lead times*, visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of the Free Delivery

Free delivery

Our kit pergolas are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Picto of the Warranties

Warranties

Our aluminum pergolas are guaranteed for 10 years and comply with the strictest European standards. The aluminum profiles are powder-coated and carry the QUALICOAT LABEL.

Snow load: unless otherwise specified, load calculations are made with a snow load in accordance with current standards. Please inform us of altitudes above 800 meters.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 32mm.
