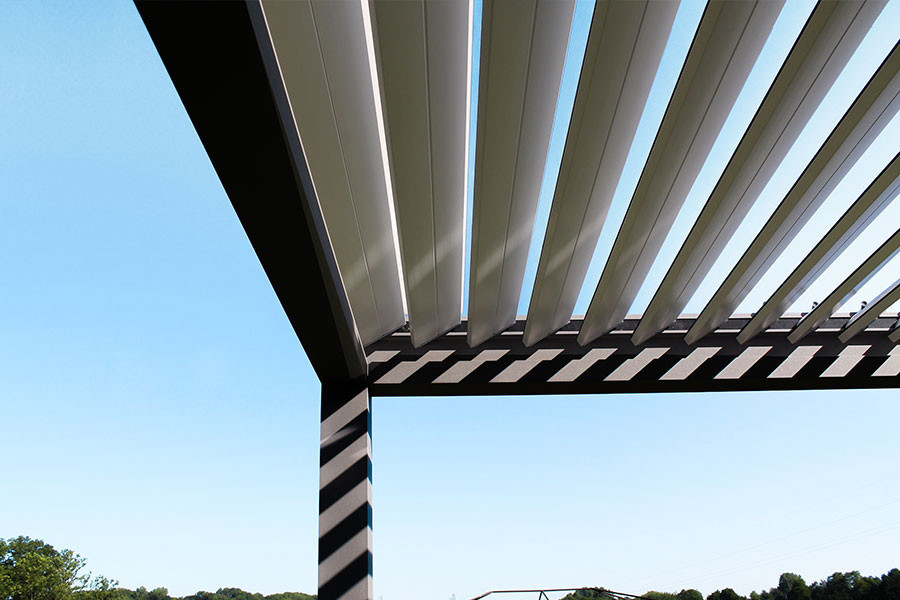

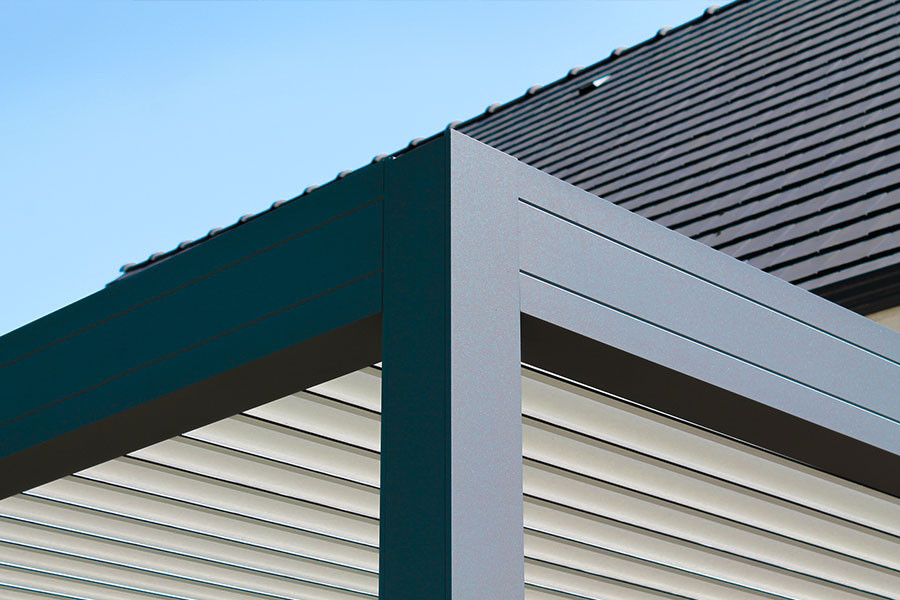

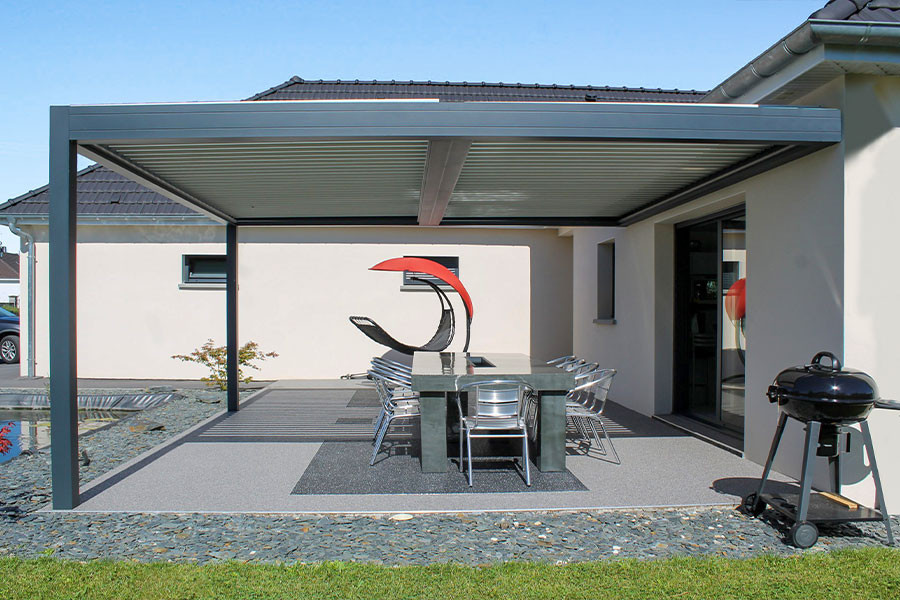

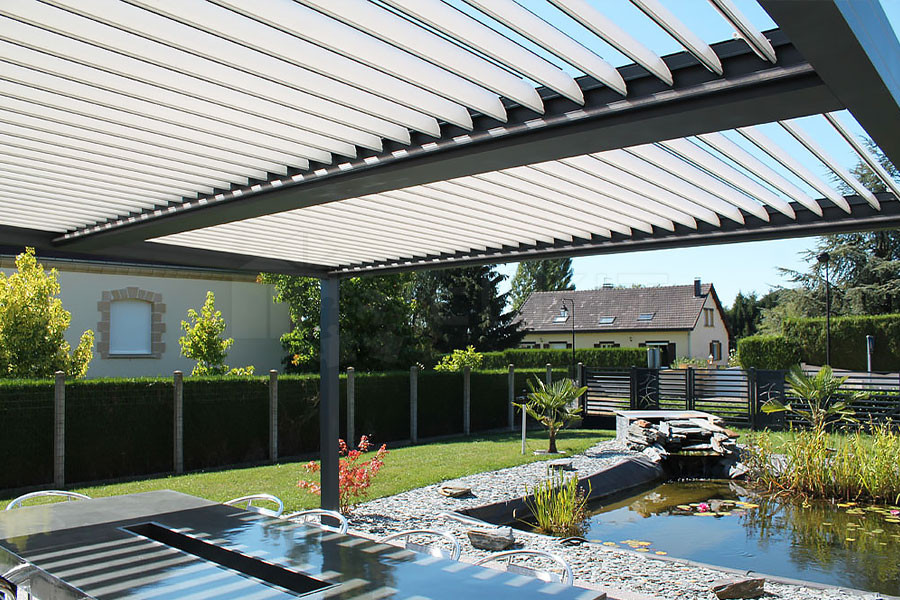

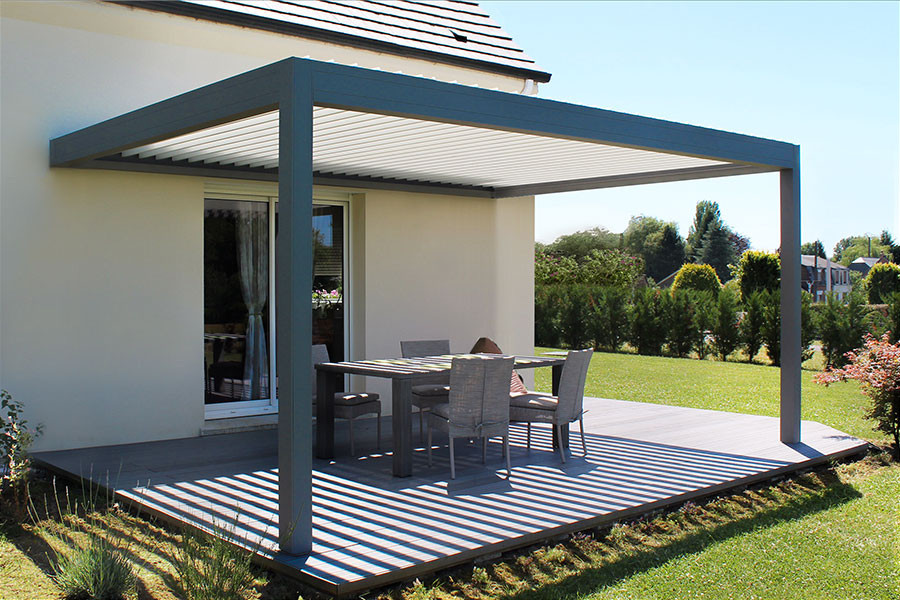

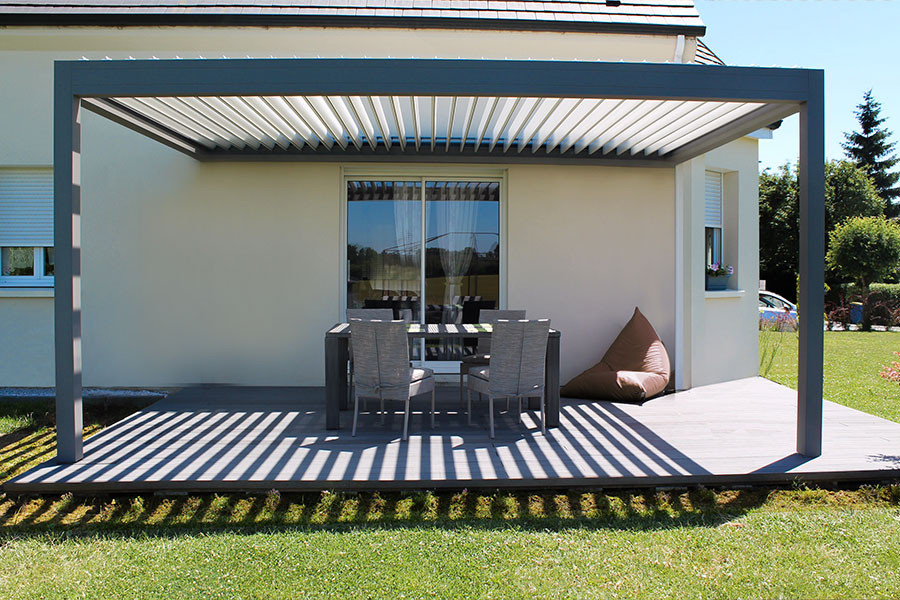

Photo n°1 of the EOLUX Lean-To Bioclimatic Pergola
They talk about us onChannel logo See> Discover> Watch the video>
Product Description picto Product
description Installation Guide picto Installation
guide Customer testimonials picto Customer
testimonials Delivery terms picto Delivery
terms

Configure your EOLUX Lean-To Bioclimatic Pergola

  • Made in France
  • Width: up to 6000mm
  • Depth: up to 6000mm
  • Roofing: perpendicular slats
  • Posts: 120 x 120mm
  • Motor: remote-controlled actuator
  • Expandable and customizable pergola
  • Lean-to structure
*Required step
Your configuration

Factory direct price (incl. tax)

5,612.72
Instead of 8,018.17
Final price (tax incl.)
5,612.72

Summary

My online quote Delivery lead time pictogramLead time: 6 to 8 weeks*
  • Delivery pictogram Delivery
    free*
  • Manufacturing pictogram Custom-
    Made
  • Warranty pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
EOLUX Lean-To Bioclimatic Pergola Standard/Custom Version
Photo of the EOLUX Lean-To Bioclimatic Pergola

Finally enjoy your outdoor space!

Do you want to open your living space to the outdoors? The EOLUX Lean-To Bioclimatic Pergola is made for you! Equipped with motorized adjustable slats, it will satisfy you in all weather conditions.

Its closed slats protect you from heat or bad weather (rain, snow, etc.). In the semi-open and open positions, you benefit from natural ventilation while regulating the brightness.

The EOLUX Pergola stands out with its design that is both stylish and modern, perfect for enhancing and adding value to your terrace and home!

Equipped with an electric actuator motorization, you can tilt the slats and adjust the light level in the blink of an eye thanks to its remote control.

Available in standard or custom-made version, this bioclimatic pergola model is designed for simple and quick installation. This way, you save up to -50% by assembling it yourself!

Diagram of the EOLUX Lean-To Bioclimatic Pergola

Powder-coated aluminum

Standard Color Anthracite Gray 7016 Sanded Anthracite Gray 7016
Pure White 9010 Slats
Standard Color Pure White 9010 Matte Pure White 9010 Matte
Pure White 9010 Slats
Custom ColorsCustom Colors
See all> Custom Color List ×

2 Versions depending on your dimensions

Pictogram of the 1-Module Version 1-Module Version
Pictogram of the 2-Module Version 2-Module Version

Features

Pictogram of UV Ray Resistance UV ray resistance
Pictogram of Wind Resistance Wind resistance
Pictogram of Rain Waterproofing Rain
waterproofing

A reinforced aluminum structure

  • Structure and slats in powder-coated aluminum with a streamlined design
  • Partial or total solar light flux regulation, bioclimatic
  • Slat orientation up to 120°, perpendicular to the width of the pergola
  • Assembly of double-seal slats using a screwing system
  • Integrated water drainage in the slat support profile
  • 120 x 120mm post with integrated and invisible water drainage
  • Post fixation to the ground via base plate
  • Smooth and silent electric actuator motorization
  • Motorized system controlled by a multi-channel remote control
  • Stainless steel hardware included
  • Remote-controlled LED light strip (optional upon request)
  • Wind, rain and temperature weather sensors (optional upon request)
Photo of the Assembly Principle of the EOLUX Bioclimatic Pergola
Photo of the Slat Support Profiles and Housing Slat support profiles and housing
Photo of the Rafter with integrated water drainage Rafter with integrated water drainage
Photo of the Post with invisible water drainage Post with invisible water drainage
Photo of the Aluminum Slats with weatherproof seal Aluminum slats with weatherproof seal

Adjustable slats to your liking!

Made from lacquered extruded aluminum, each adjustable slat measures 167mm wide with a thickness of 40mm. In the closed position, the double seals with which they are equipped ensure a perfect watertight seal.

Furthermore, a drainage system channels water evacuation to a downspout integrated into the post. In the closed position, the slats form a deck that drains rainwater. Each slat is fitted with a gutter that flows discreetly from the gutter channel to the post.

The rounded profile of each slat helps reduce the noise impact of rain on your pergola.

Photo of the adjustable slats of the EOLUX Bioclimatic Pergola

Made from very high-quality aluminum, its French-made structure demonstrates great robustness while combining lightweight properties, specially designed to offer the best resistance against multiple weather events.

To fully enjoy your living space without worrying about weather conditions, the EOLUX Bioclimatic Pergola innovates with its adjustable slats that allow you to spend time on your terrace in every season.

Diagram of a Bioclimatic Pergola with its slats closed in the rain Closed slats for protection against bad weather (rain, snow, etc.)
Diagram of a Bioclimatic Pergola with its slats closed under the sun Closed slats to protect from the sun's UV rays
Diagram of a Bioclimatic Pergola with its slats open with an airflow Open slats to enjoy the sun with optimal ventilation
Diagram of a Bioclimatic Pergola with its slats half-open for natural ventilation Half-open slats for natural ventilation while regulating brightness

Regulate the brightness with a single click!

The orientation of the slats is managed by an actuator motor that ensures optimal fluidity and precision. Silent, the motor actuator is positioned at the rear of the pergola facade for greater discretion, under an aluminum cover provided for this purpose.

This motorized system is operated by a 6-channel remote control to adjust the slat inclination remotely. These channels allow you to create scenarios: you can control the front slats on one channel, the rear slats on another, and all of them on a third channel. With the LED option, your remote control can also manage the lighting.

Photo of the EOLUX Bioclimatic Pergola and its magnetic crank

Add color to your evenings!

An LED Light Strip can be discreetly integrated into the beams to provide lighting across the entire pergola surface. This LED lighting diffuses an indirect and pleasant light that will allow you to extend your evenings under your patio according to the ambiance you prefer!

This LED lighting option has a power of 1270 lumens at 4000K and a consumption of 14.4W/meter for optimal and economical brightness, day and night.

The LED Lighting option is available upon simple request.

Photo of the LED option of the EOLUX Bioclimatic Pergola
Photo of the LED option with orange lighting Orange ambiance
Photo of the LED option with green lighting Green ambiance
Photo of the LED option with blue lighting Blue ambiance
Photo of the LED option with rosy lighting Rosy ambiance
My online quote

Weather sensors available upon simple request

No longer worry about weather conditions under your pergola thanks to the various weather sensors connected to the motorized system of the adjustable slats, available as an option upon request.

Stay dry with the Rain Sensor RAIN102H which will trigger the complete closure of the slats at the first sign of a shower.

The ANEM4 Wind Sensor allows the slats to be partially opened in the event of a gust of wind to let air circulate without applying pressure on the whole structure.

In case of frost, the Temperature Sensor TPMP150 can command the temporary blocking of the automatic slat operation to prevent any potential damage until temperatures become milder.

Photo of the weather sensors on the EOLUX Bioclimatic Pergola
Introductory pictogram for Weather Sensors
Photo of the Rain Sensor Rain sensor RAIN102H
Photo of the Wind Sensor ANEM4 Wind Sensor
Photo of the Temperature Sensor Temperature sensor TPMP150

An evolving and customizable pergola with the seasons!

CliKIT develops the concept of an Evolving Pergola to adapt as closely as possible to your desires or your current budget. Rest assured that in the near or distant future, your pergola will remain in perpetual evolution!

Do you want to shelter from the sun, wind, rain or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Awnings, Shade Sails, Side Panels... and much more!

Remember to take a look at our essential add-ons to enhance your pergola!

Photo of the Glass Curtains for Pergola Glass Curtains
Photo of the Awnings and Shade Sails for Pergola Awnings & Shade Sails
Photo of the Side Panels for Pergola Side Panels

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your pergola. You will quickly notice how simple the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT pergola will arrive as a kit containing the aluminum structure and roofing elements, accessories, as well as the installation guide.

Link to an online quote

To successfully complete the assembly of your pergola, you will need the following tools:

  • Allen key set (3, 4, 5 and 6)
  • PH2 cross-head bit
  • Torx AW20 bit
  • Utility knife
  • Caulking gun
  • Drill
  • Clutch screwdriver
  • Ø 8mm socket
  • Drill bits depending on floor and wall fixation
  • 13mm flat wrench
  • Spirit level
  • Rubber mallet
  • Sawhorse or trestles

For more information on installation, feel free to view all our documents made available to you:

Pictogram of the Installation GuideInstallation Guide>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you every step of the way.

A dedicated technical advisor is assigned to you to refine your project together and best respond to your requests before and after your order, as well as throughout the entire assembly phase.

For any information, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor (female)

Fiona Rossignol Technical Advisor

My online quote
Pictogram of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known at the start of production, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Pictogram of the French flag

Made in France

Pictogram of Free Delivery

Free delivery

Our bioclimatic pergolas in kit form are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Pictogram of the Warranties

Warranties

Our bioclimatic pergolas are designed to meet the most stringent European standards, guaranteeing optimal manufacturing quality, durability and reliability. All aluminum profiles benefit from QUALICOAT-certified powder coating, a guarantee of excellent resistance to UV rays, weathering and corrosion, for a long-lasting finish over time.

Manufacturer warranties

    • Aluminum structure and powder coating: 10 years. Warranty against manufacturing defects in the structure and its powder-coated finish.
    • Wear parts: 2 years. This warranty covers in particular electrical equipment (motor, actuator, electronics) as well as slat seals.
    • LED lighting kit: 2 years. Warranty on the components of the lighting system.

These warranties reflect the manufacturer's commitment to offering products that combine performance, longevity and manufacturing quality.
