EOLITE Wall-Mounted Bioclimatic Pergola

Besoin d'un conseil ?
03 66 72 15 14
  • -30%
Diagram of the EOLITE Wall-Mounted Bioclimatic Pergola
They talk about usChannel logo View> Discover> Watch the video>
Product description pictogram Product
description Installation guide pictogram Installation
guide Customer reviews pictogram Customer
reviews Delivery terms pictogram Delivery
terms

Configure your EOLITE Wall-Mounted Bioclimatic Pergola

  • Made in France
  • Width: up to 5180mm
  • Depth: up to 3500mm
  • Roof: perpendicular slats
  • Posts: 100 x 100mm
  • Motor: remote-controlled actuator
  • Expandable and customizable pergola
  • Wall-mounted structure
*Required step
Your configuration

Factory direct price (incl. tax)

5,097.08
Instead of 7,281.54
Final price (tax incl.)
5,097.08

Summary

My online quote Delivery lead time pictogramLead time: 6 to 8 weeks*
  • Delivery pictogram Delivery
    free*
  • Manufacturing pictogram Custom-
    Made
  • Warranty pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
EOLITE Lean-To Bioclimatic Pergola Standard/Custom-Made Version

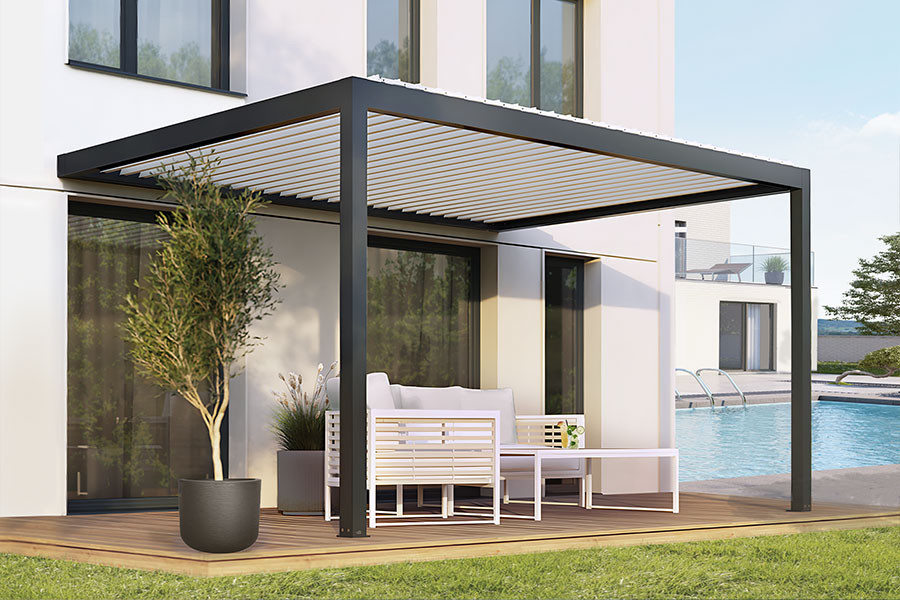

Photo of the EOLITE Lean-To Bioclimatic Pergola

Finally enjoy your outdoor space!

Do you dream of connecting your living space to the outdoors? The EOLITE Lean-To Bioclimatic Pergola is the ideal option for you! Thanks to its motorised and adjustable blades, it ensures optimum comfort in all weather conditions.

When the blades are closed, they protect you from heat and bad weather (rain, snow, etc.). In the semi-open or open position, they allow natural ventilation while regulating the light.

With its contemporary and elegant design, the EOLITE Pergola adds an aesthetic touch to your terrace.

Equipped with an electric actuator system, you can easily adjust the blade inclination and control the amount of light with a simple press of the remote control.

Available in standard or custom-made version, this bioclimatic pergola is designed for simple and quick installation. By choosing to install it yourself, you can save up to 50%!

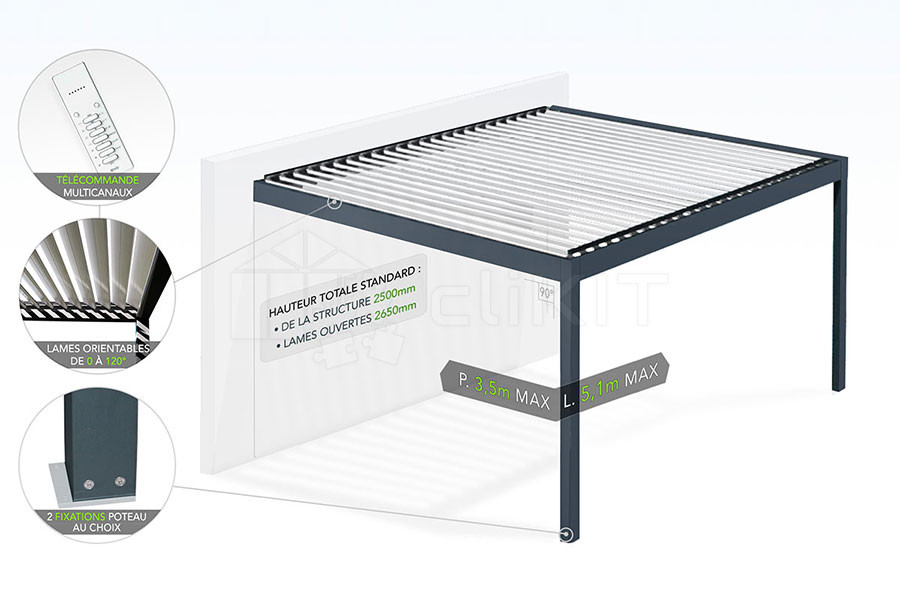

Diagram of the EOLITE Lean-To Bioclimatic Pergola

Powder-coated aluminium

Standard Colour Anthracite Grey 7016 Sand Anthracite Grey 7016
Blades Pure White 9010
Standard Colour Pure White 9010 Matt Pure White 9010 Matt
Blades Pure White 9010
Custom ColoursCustom Colours
See all> List of Custom Colours ×

Included fixing types

Pictogram of Concealed Fixing Concealed fixing
Pictogram of Semi-Projecting Fixing Semi-projecting

Specifications

Pictogram of UV Resistance UV resistance
Pictogram of Wind Resistance Wind resistance
Pictogram of Rain Waterproofing Waterproofing
against rain

A reinforced aluminium structure

  • Structure and blades in powder-coated aluminium with a clean design
  • Partial or total solar light flux regulation, bioclimatic
  • Blade orientation up to 120°, perpendicular to the width of the pergola
  • Blade assembly with weatherproof seal using a screwing system
  • Water drainage integrated into the blade support profile
  • 100 x 100mm post with integrated and concealed water drainage
  • Post fixing to the ground via base plate
  • Smooth and silent electric actuator motorisation
  • Motorised system controlled by a multi-channel remote control
  • Stainless steel screws included
  • Remote-controlled LED light strip (optional on request)
  • Wind, rain and temperature weather sensors (optional on request)

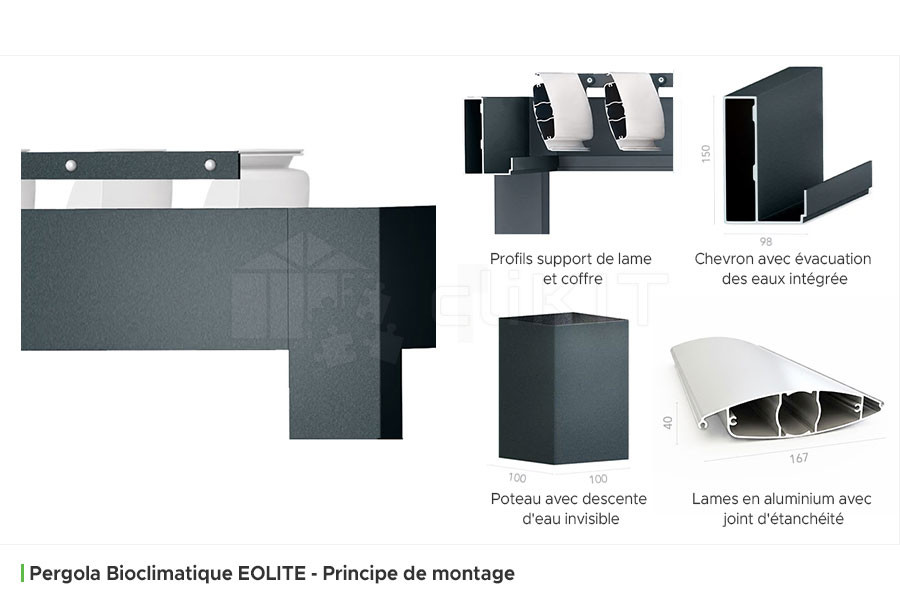

Photo of the Assembly Principle of the EOLITE Bioclimatic Pergola
Photo of the Blade Support Profiles and Housing Blade support profiles and housing
Photo of the Rafter with integrated water drainage Rafter with integrated water drainage
Photo of the Post with concealed water drainage Post with concealed water drainage
Photo of the Aluminium Blades with weatherproof seal Aluminium blades with weatherproof seal

Adjustable blades to suit your needs!

Made from lacquered extruded aluminium, each adjustable blade measures 167mm wide with a thickness of 40mm. In the closed position, the double seals with which they are fitted ensure a perfect watertight seal.

Furthermore, a drainage system channels water to an outlet integrated into the post. In the closed position, the blades form a deck that drains rainwater. Each blade is fitted with a gutter that flows discreetly from the gutter channel to the post.

The rounded profile of each blade helps reduce the noise impact of rain on your pergola.

Photo of the adjustable blades of the EOLUX Bioclimatic Pergola

Made from very high-quality aluminium, its French-manufactured structure is highly robust while combining lightweight properties, specially designed to offer the best resistance against multiple weather events.

To fully enjoy your living space without worrying about weather conditions, the EOLUX Bioclimatic Pergola innovates with its adjustable blades that allow you to spend time on your terrace in any season.

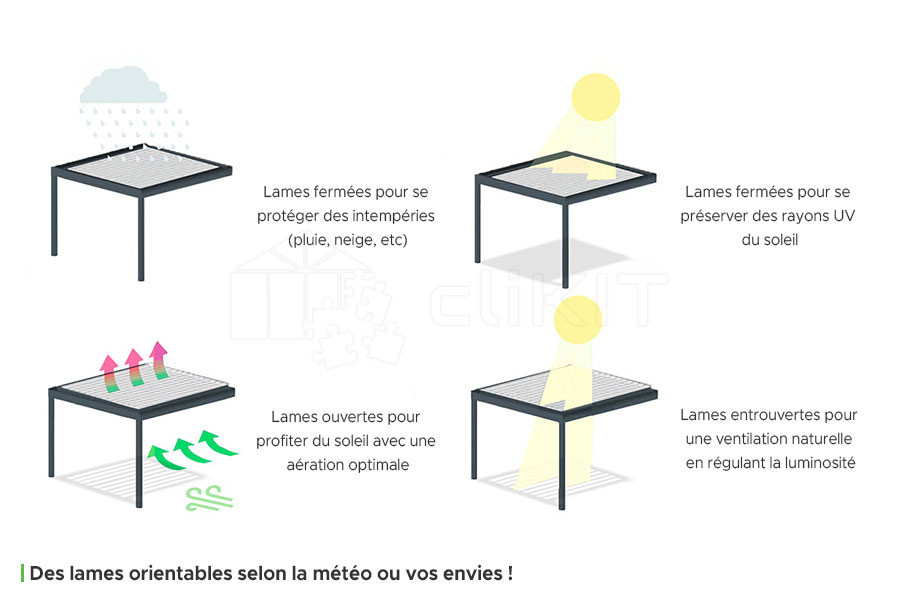

Diagram of a Bioclimatic Pergola with its blades closed in the rain Blades closed to protect against bad weather (rain, snow, etc.)
Diagram of a Bioclimatic Pergola with its blades closed in the sun Blades closed to protect against UV rays from the sun
Diagram of a Bioclimatic Pergola with its blades open allowing airflow Blades open to enjoy the sun with optimal ventilation
Diagram of a Bioclimatic Pergola with its blades slightly open for natural ventilation Blades slightly open for natural ventilation while regulating the light

Adjust the brightness with a single click!

The blade orientation is managed by an actuator motor that ensures optimum fluidity and precision. Silent, the motor actuator is positioned at the rear of the pergola facade for greater discretion, beneath an aluminium cover provided for this purpose.

This motorised system is controlled by a 6-channel remote control to adjust the blade inclination remotely. These channels allow you to create scenarios: you can control the front blades on one channel, the rear blades on another, and all blades together on a third channel. With the LED option, your remote control can also manage the lighting.

Photo of the EOLUX Bioclimatic Pergola and its magnetic crank handle

Light up your evenings!

An LED Light Strip is discreetly integrated into the beams to provide lighting across the entire surface of the pergola. This LED lighting diffuses an indirect and pleasant light that will allow you to extend your evenings on your terrace.

This LED lighting option has a power of 8w/m at 3000K with an IP67 protection rating for optimum and energy-efficient brightness, day and night.

The LED Lighting option is included with the pergola.

Photo of the LED option of the EOLITE Bioclimatic Pergola
My online quote

An expandable and customisable pergola through the seasons!

CliKIT develops the concept of an Expandable Pergola to adapt as closely as possible to your desires or your current budget. Rest assured that in the near or distant future, your pergola will remain in constant evolution!

Do you want to shelter from the sun, wind, rain or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Don't forget to take a look at our must-have accessories to enhance your pergola!

Photo of the Glass Curtains for Pergola Glass Curtains
Photo of the Blinds and Sails for Pergola Blinds & Sails
Photo of the Side Panels for Pergola Side Panels

Resources to assist you

Our technical team remains available and at your disposal throughout the entire assembly phase of your pergola. You will quickly notice how simple the installation system is. Assembly can be completed in just a few hours. Your CliKIT pergola will arrive as a kit containing the aluminium structure and roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your pergola, you will need the following tools:

  • Allen key set (3, 4, 5 and 6)
  • PH2 cross-head bit
  • Torx AW20 bit
  • Cutter
  • Caulking gun
  • Drill
  • Clutch screwdriver
  • Ø 8mm socket
  • Drill bits according to floor and wall fixing
  • 13mm flat spanner
  • Spirit level
  • Rubber mallet
  • Sawhorse or trestles

For more information on installation, please feel free to view all our documents made available to you:

Pictogram of the Installation GuideInstallation Guide>

More than just a customer service

You can count on the support of our experts and passionate building professionals to guide you throughout your project.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, please do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Pictogram of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The definitive lead time is only known once production begins, and may vary depending on the seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Pictogram of the French flag

Made in France

Pictogram of Free Delivery

Free delivery

Our bioclimatic pergolas in kit form are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Pictogram of Warranties

Warranties

Our bioclimatic pergolas are designed to meet the strictest European standards, guaranteeing optimum manufacturing quality, durability and reliability. All aluminium profiles benefit from QUALICOAT-certified powder coating, a guarantee of excellent resistance to UV rays, bad weather and corrosion, for a finish that lasts over time.

Manufacturer warranties

    • Aluminium structure and powder coating: 10 years. Guarantee against manufacturing defects in the structure and its powder-coated finish.
    • Wear parts: 2 years. This warranty covers in particular the electrical equipment (motor, actuator, electronics) as well as the blade seals.
    • LED lighting kit: 2 years. Warranty on the components of the lighting system.

These warranties reflect the manufacturer's commitment to offering products that combine performance, longevity and manufacturing quality.

Pictogram of quality label warranties
