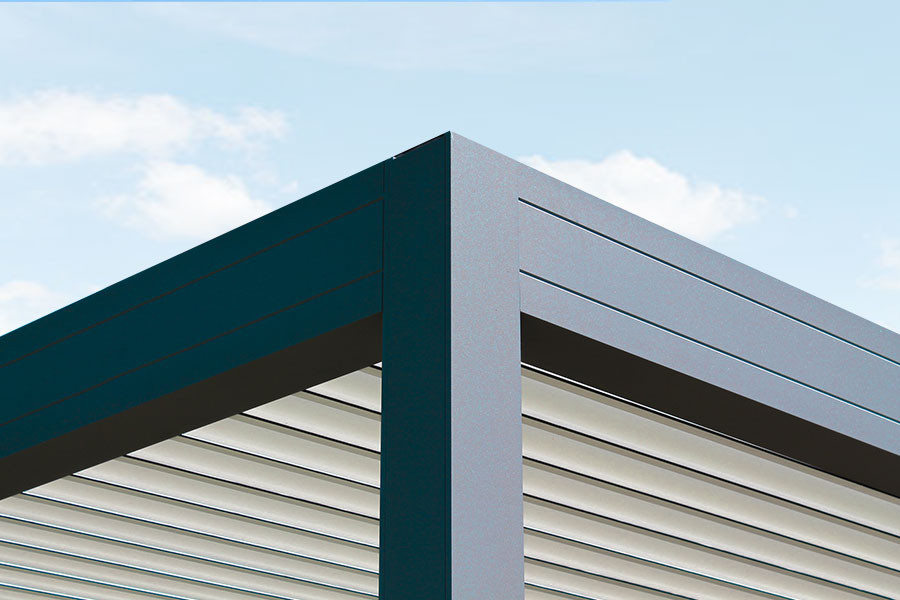

Photo n°1 of the EOLUX LP Lean-To Bioclimatic Pergola
They talk about us onChannel logo View> Discover> Watch the video>
Product description picto Product
description Installation guide picto Installation
guide Customer reviews picto Customer
reviews Delivery terms picto Delivery
terms

Configure your EOLUX LP Wall-Mounted Bioclimatic Pergola

  • Made in France
  • Width: up to 6000mm
  • Depth: up to 6000mm
  • Roofing: parallel slats
  • Posts: 120 x 120mm
  • Motor: remote-controlled actuator
  • Expandable and customizable pergola
  • Wall-mounted structure
*Required step
Your configuration

Factory direct price (incl. tax)

5,761.26
Instead of 8,230.37
Final price (tax incl.)
5,761.26

Summary

My online quote Delivery time pictogramLead time: 6 to 8 weeks*
  • Delivery pictogram Free
    delivery*
  • Manufacturing pictogram Custom-
    Made
  • Warranty pictogram 10-year*
    Warranty
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
EOLUX LP Wall-Mounted Bioclimatic Pergola Standard/Custom-Made Parallel Slats Version

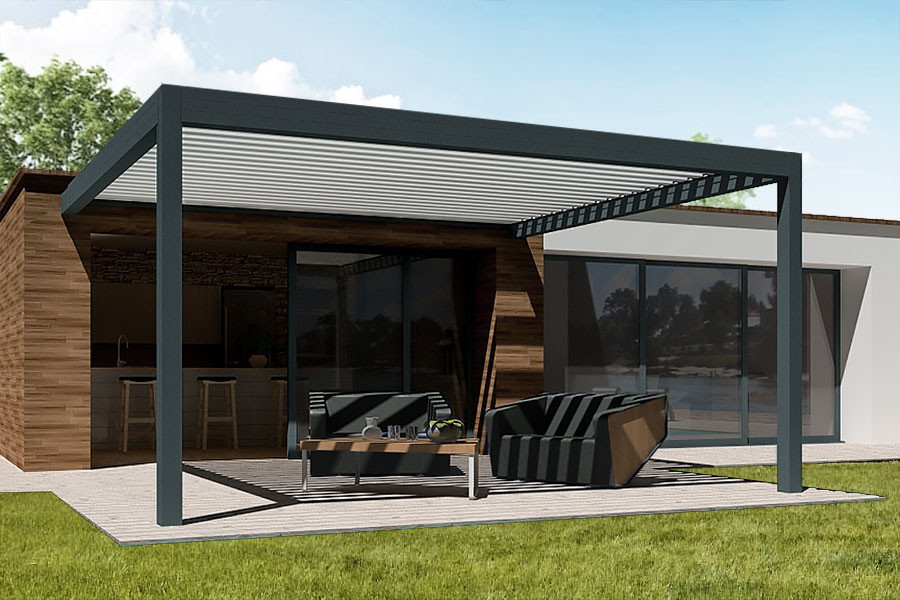

Photo of the EOLUX LP Wall-Mounted Bioclimatic Pergola

Finally enjoy your outdoor space!

Would you like to open your living space to the outdoors? The EOLUX LP Wall-Mounted Bioclimatic Pergola is made for you! Fitted with motorized adjustable slats, it will satisfy you in all weather conditions.

When closed, its slats protect you from heat or bad weather (rain, snow, etc.). In the semi-open and open positions, you benefit from natural ventilation while regulating brightness.

The EOLUX Pergola stands out with its design that is both stylish and modern, perfect for enhancing and adding value to your terrace and home!

Equipped with an electric actuator motor, you can tilt the slats and adjust the light level in the blink of an eye using its remote control.

Available in standard or custom-made version, this bioclimatic pergola model is designed for simple and quick installation. This way, you save up to -50% by assembling it yourself!

Diagram of the EOLUX LP Wall-Mounted Bioclimatic Pergola

Powder-coated aluminum

Standard Color Anthracite Grey 7016 Sandblasted Anthracite Grey 7016
Pure White Slats 9010
Standard Color Pure White 9010 Matt Pure White 9010 Matt
Pure White Slats 9010
Custom ColorsCustom Colors
See all> Custom Color List ×

2 Versions depending on your dimensions

Pictogram of the 1-Module Version 1-Module Version
Pictogram of the 2-Module Version 2-Module Version

Specifications

Pictogram of UV resistance UV resistance
Pictogram of Wind resistance Wind resistance
Pictogram of Rain waterproofing Rain
waterproofing

A reinforced aluminum structure

  • Structure and slats in powder-coated aluminum with a sleek design
  • Partial or total solar light flow regulation, bioclimatic
  • Slat orientation up to 120°, perpendicular to the width of the pergola
  • Double-seal slat assembly by screw-fitting system
  • Water drainage integrated into the slat support profile
  • 120 x 120mm post with built-in and invisible water downspout
  • Post anchoring to the ground by base plate
  • Smooth and silent electric actuator motorization
  • Motorized system controlled by a multi-channel remote control
  • Stainless steel screws included
  • Remote-controlled LED lighting strip (optional on request)
  • Wind, rain and temperature weather sensors (optional on request)
Photo of the Assembly Principle of the EOLUX Bioclimatic Pergola
Photo of the Slat support profiles and housing Slat support profiles and housing
Photo of the Rafter with integrated water drainage Rafter with integrated water drainage
Photo of the Post with hidden water drainage Post with hidden water downspout
Photo of Aluminum slats with weatherproof seal Aluminum slats with weatherproof seal

Adjustable slats at your discretion!

Made from lacquered extruded aluminum, each adjustable slat measures 167mm wide with a thickness of 40mm. In the closed position, the double seals with which they are fitted ensure a perfect waterproof seal.

In addition, a drainage system directs water to a downspout built into the post. In the closed position, the slats form a deck that drains rainwater. Each slat is fitted with a gutter that discreetly channels water from the gutter rail to the post.

The rounded profile of each slat helps reduce the noise impact of rain on your pergola.

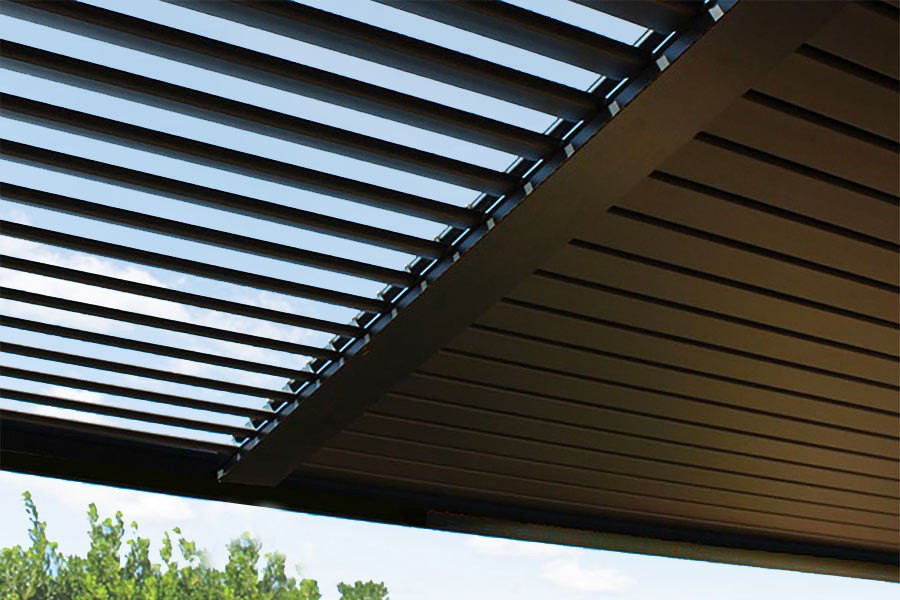

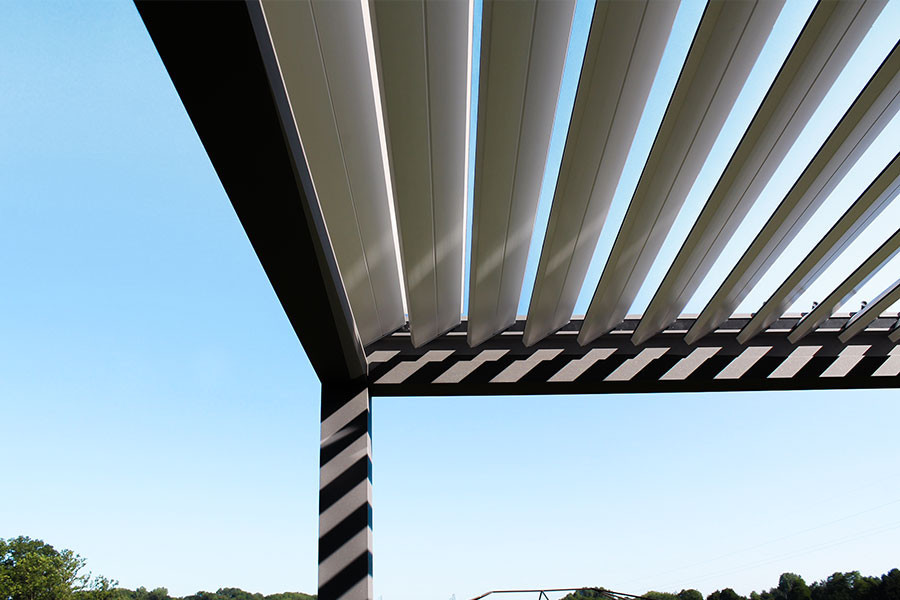

Photo of the adjustable slats of the EOLUX Bioclimatic Pergola

Made from very high-quality aluminum, its French-manufactured structure is highly robust while combining lightweight properties, specially designed to offer the best resistance against multiple weather events.

To fully enjoy your living space without worrying about weather conditions, the EOLUX Bioclimatic Pergola innovates with its adjustable slats that allow you to spend time on your terrace in any season.

Diagram of a Bioclimatic Pergola with its closed slats in the rain Closed slats to protect against bad weather (rain, snow, etc.)
Diagram of a Bioclimatic Pergola with its closed slats in the sun Closed slats to protect from UV rays
Diagram of a Bioclimatic Pergola with its open slats allowing airflow Open slats to enjoy the sun with optimal ventilation
Diagram of a Bioclimatic Pergola with its half-open slats for natural ventilation Half-open slats for natural ventilation while regulating brightness

Regulate brightness with a single click!

The orientation of the slats is managed by an actuator motor that ensures optimal fluidity and precision. Silent, the motor actuator is positioned at the rear of the pergola facade for greater discretion, under an aluminum cover provided for this purpose.

This motorized system is operated by a 6-channel remote control to adjust the tilt of the slats remotely. These channels allow you to create scenarios: you can control the front slats on one channel, the rear slats on another, and all slats together on a third channel. With the LED option, your remote control can also manage the lighting.

Photo of the EOLUX Bioclimatic Pergola and its magnetic handle

Add some color to your evenings!

An LED Light Strip can be discreetly integrated into the beams to provide lighting across the entire surface of the pergola. This LED lighting diffuses an indirect and pleasant light that will allow you to extend your evenings under your terrace in whatever ambiance you choose!

This LED lighting option has a power of 1270 lumens at 4000K and a consumption of 14.4W / meter for optimal and economical brightness, day and night.

The LED Lighting option is available on simple request.

Photo of the LED option of the EOLUX Bioclimatic Pergola
Photo of the LED option with orange lighting Orange ambiance
Photo of the LED option with green lighting Green ambiance
Photo of the LED option with blue lighting Blue ambiance
Photo of the LED option with pink lighting Pink ambiance
My online quote

Weather sensors on simple request

No longer worry about weather changes under your pergola thanks to the various weather sensors connected to the motorized adjustable slat system, available as an option on request.

Stay ahead of the rain with the Rain Sensor RAIN102H which will trigger the complete closure of the slats at the first sign of a shower.

The ANEM4 Wind Sensor allows the slats to be partially opened in the event of gusts to let air circulate without applying pressure on the structure.

In the event of frost, the Temperature Sensor TPMP150 can temporarily lock the automatic operation of the slats to prevent any potential damage until temperatures are more favorable.

Photo of weather sensors on the EOLUX Bioclimatic Pergola
Introductory pictogram for Weather sensors
Photo of the Rain sensor Rain Sensor RAIN102H
Photo of the Wind Sensor ANEM4 Wind Sensor
Photo of the Temperature sensor Temperature Sensor TPMP150

An adaptable and customizable pergola through the seasons!

CliKIT develops the concept of an Adaptable Pergola to fit as closely as possible to your wishes or your current budget. Rest assured that in the near or distant future, your pergola will continue to evolve!

Would you like to shelter from the sun, wind, rain or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to take a look at our must-haves to upgrade your pergola!

Photo of Glass Curtains for Pergola Glass Curtains
Photo of Blinds and Sails for Pergola Blinds & Sails
Photo of Side Panels for Pergola Side Panels

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your pergola. You will quickly notice how simple the installation system is. Assembly can be completed in just a few hours. Your CliKIT pergola will arrive as a kit containing the aluminum structure and roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your pergola, you will need the following tools:

  • Allen key set (3, 4, 5 and 6)
  • PH2 cross-head bit
  • Torx AW20 bit
  • Cutter
  • Caulking gun
  • Drill
  • Clutch screwdriver
  • Ø 8mm socket
  • Drill bits for floor and wall fixings
  • 13mm open-end wrench
  • Spirit level
  • Rubber mallet
  • Sawhorse or trestles

For more information on installation, feel free to browse all the documents available to you:
