Configure your LIVERPOOL V4 Conservatory

  • Made in England
  • Version: Glazing without Transom
  • Dimensions: custom-made
  • Structure: PVC, aluminum
  • Roof: 32mm polycarbonate
  • Door: sliding, single, double
  • Optimal insulation and brightness
  • With thermal break
*Required step
Your configuration

Factory direct price (incl. tax)

7,289.00
Instead of 8,098.89

Final price (tax incl.)
7,289.00

Summary

My online quote Delivery time pictoLead time: 10 to 12 weeks*
  • Delivery picto Delivery
    free*
  • Manufacturing picto Custom-
    Made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
LIVERPOOL V4 Veranda Glazing Version without Transom

Outdoor living at the heart of your home

The LIVERPOOL V4 Veranda Glazing Version without Transom features a fixed roof pitch of 2.5°, and is of the lean-to type. A premium veranda designed with quality materials, the LIVERPOOL model adapts to all house styles while offering additional living space at an always unbeatable price!

Square or rectangular by default, the window frames, assembled and screwed onto an aluminum framework, are made of reinforced multi-chamber 70mm PVC. The roof structure is aluminum and the capping is PVC.

Thanks to its unique assembly concept, the installation of your veranda will be simplified. Each element is numbered and identified on a personalized assembly plan.

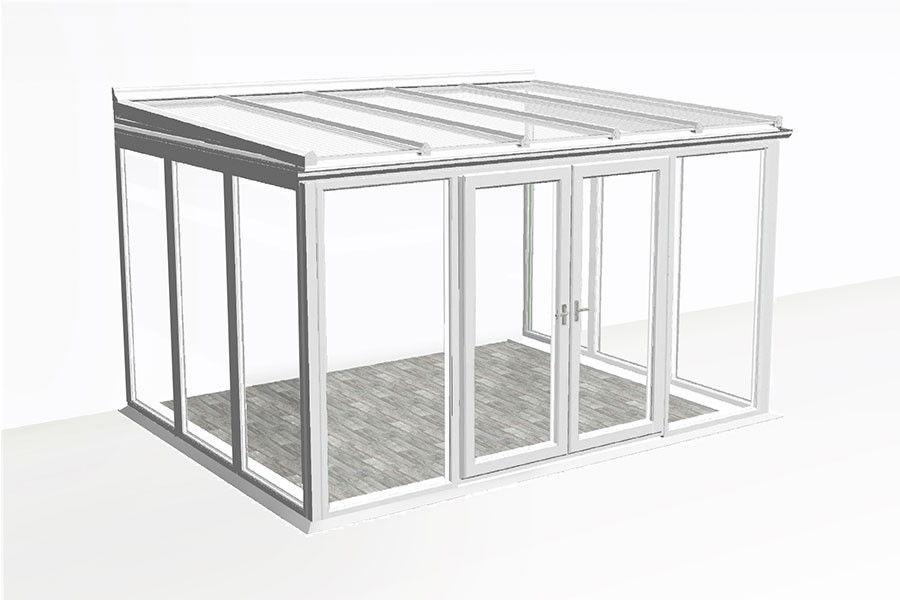

Diagram of the LIVERPOOL V4 Full Glazing Veranda

Aluminum structure & PVC-U capping

Picto of the White Color White

24 or 32mm polycarbonate roof

Photo of the Clear Tint Polycarbonate Polycarbonate
Clear
Photo of the Opal Tint Polycarbonate Polycarbonate
Opal

3 types of opening panels available

Diagram of the sliding frame Sliding frame
Diagram of the Double French Door Double French Door
Diagram of the simple French door Simple French door

3 window models to choose from

Diagram of the opening window frame Opening window frame
Diagram of the sliding window frame Sliding frame
Diagram of the optional transom Optional transom
See our customers' photos>

A unique roof concept

The LIVERPOOL Kit Veranda model features a reinforced aluminum roof structure with PVC-U caps.

The multi-chamber caps act as an additional insulating layer and increase the overall performance of the roof. The aluminum wall plate ensures your roof is held in place and the PVC rainwater downpipe is aesthetically pleasing and discreet.

The combination of aluminum and PVC provides much better thermal insulation thanks to the PVC capping. This further limits the transmission of external temperature absorbed by the aluminum structure. This forms a thermal barrier known as thermal bridge break.

Thanks to the properties of PVC, thermal performance is optimized and the level of condensation is greatly reduced.

Photo of the CLIMALUX Model Assembly Principle
My online quote

Custom-designed profiles

  • Double-chamber PVC-U cap for improved thermal performance and reduced condensation risk
  • Variable clip position for perfect polycarbonate adjustment
  • Lugs on the cap for reinforced and secure hold
  • Aluminum load-bearer guaranteeing greater strength
  • Discreet 10mm seal that adapts to the roof tolerance
  • Multiple chamber concealed under the seals for secondary drainage
  • Wide capping for greater stability
  • PVC-U capping for improved aesthetics
Numbered diagram of the Kit Veranda Load-Bearer

Customize your project as you wish

CliKIT gives you the possibility to realize your project 100% custom-made, adapting to your needs and wishes. Standard configurations are without additional cost. If you would like a personalized configuration, we invite you to attach a plan to your quote request. You can also send it to us by email at contact@clikit.fr.

Standard configurations

Aluminum and PVC: the perfect combination

Watertightness, energy efficiency, safety, style and elegance: our frames have all the assets to withstand external elements (wind, snow, pollution, sea spray, etc.).

Your veranda is fitted with reinforced DECEUNINCK multi-chamber 70mm PVC frames mounted on an aluminum framework, offering exceptional thermal and acoustic insulation quality, easy maintenance, impact resistance and anti-condensation properties.

The PVC frames are assembled, then screwed by you onto an aluminum framework to rigidify the whole structure.

Your choice of opening can include casement or sliding panels, transom vent panels, as well as casement or sliding opening windows.

Photo of the Veranda Window Frames

3 door models to choose from

3 window models to choose from

My online quote

A polycarbonate roof more resistant than glass

MARLON ST polycarbonate panels are ultra strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing characteristic of the raw material of polycarbonate and its resistance to high temperatures.

Photo of the Polycarbonate Panel Models

The COMFORT Pack: 25 and 32mm Anti-UV Polycarbonate

MARLON ST roofing panels in 25 and 32mm are UV-treated and guaranteed anti-yellowing. This polycarbonate is highly impact-resistant and provides thermal insulation of 1.25 W/m²K or 1.4 W/m²K. It is available in Clear, Opal or SolarControl (opaque).

These panels provide natural lighting with minimal heat loss for a better overall energy balance.

 MARLON ST Polycarbonate
Clear Tint
MARLON ST Polycarbonate
Opal Tint
MARLON ST Polycarbonate
Solar Control
BRETT MARTIN brand logo Photo of the MARLON ST Clear Polycarbonate Photo of the MARLON ST Opal Polycarbonate Photo of the MARLON ST SolarControl Polycarbonate
Panel Tint Clear Tint Opal Tint Opal Anti-Heat Tint
Thickness 25mm 32mm 25mm 32mm 25mm 32mm
Weight per m² 3.1kg 3.6kg 3.1kg 3.6kg 3.1kg 3.6kg
Light transmission 62% 64% 28% 33% 7% 4%
U insulation value 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K
Retained energy (1-g) 38% 45% 57% 65% 86% 92%

Low-emissivity double glazing for enhanced insulation

The Saint-Gobain PLANITHERM ULTRA N 28mm double glazing (4-20-4) is a low-emissivity glass.

Thanks to a chemical treatment, this glazing has the ability to repel the majority of heat back towards the warmest point.

The Argon gas filling achieves much lower thermal inertia than the air used in standard glazing.

Thanks to this gas, your glazing will heat up or cool down much more slowly than standard double glazing.

Presentation of the Saint-Gobain brand

The advantages of Saint-Gobain double glazing

The Saint-Gobain PLANITHERM ULTRA N double glazing triples the thermal insulation performance compared to standard double glazing. In addition, it allows:

  • A reduction in heating costs.
  • An improvement in comfort:
    • no cold zone near the glazed panels
    • maximum use of space
    • reduced risk of condensation on the interior glass
  • High light transmission and solar gain
  • Great architectural freedom (neutral appearance)
  • Environmental protection through reduced CO2 emissions
Diagram showing the insulation performance of the Saint-Gobain Double Glazing

Resources to assist you

Our technical team remains available and attentive throughout the entire installation phase of your veranda. You will quickly notice the simplicity of the installation system. Your CliKIT veranda will arrive as a kit containing the roof structure, roofing elements, frames, glazing and base components, accessories, as well as the installation guide.

Link to an online quote

To successfully complete the installation of your veranda, you will need the following tools:

  • Tape measure
  • Clamp
  • Ø 4.5mm metal drill bit
  • 10 and 13mm socket wrench
  • 13 and 17mm open-end wrench
  • Screwdriver
  • Cutter
  • Drill
  • Screwdriver drill
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents made available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Assembly VideoAssembly Video>
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you throughout your entire process.

A dedicated technical advisor is assigned to you to refine your project together and best meet your needs before and after your order, as well as throughout the entire installation phase.

For any information, do not hesitate to contact our team who will be happy to assist you:

  • Monday to Friday from 8:30 am to 12:30 pm and from 1:30 pm to 6:00 pm via our switchboard at +33 (0) 3 66 72 15 14
  • At any time by email at contact@clikit.fr

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Male Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of the Free Delivery

Free delivery

Our kit verandas are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Picto of the Warranties

Warranties

10-year warranty on the structure and joinery, 5 years for double glazing, 2 years for accessories.

The 70mm multi-chamber PVC profiles are reinforced and comply with European Standard NE12608.

The insulating double glazing complies with standards NE1279 and NE12600.
