Configure your PERGOLUX ECO Roof Covering Kit

  • Made in Belgium
  • Kit: PERGOLUX ECO
  • Length: up to 5000mm
  • Panel thickness: 16/32mm
  • Finish: raw aluminium
  • Covering: rubber seal
  • Ideal for load-bearing structures
  • Cuttable profiles
*Required step
Your configuration

Factory direct price (incl. tax)

205.24
Instead of 241.46
Final price (tax incl.)
205.24

Summary

Contact us Delivery lead time PictogramLead time: 3 to 4 weeks*
  • Delivery Pictogram Delivery
    included*
  • Manufacturing Pictogram Standard
    Product
  • Warranty Pictogram Warranty
    10 years*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
PERGOLUX ECO Roofing Cover Kit Raw Aluminum Series

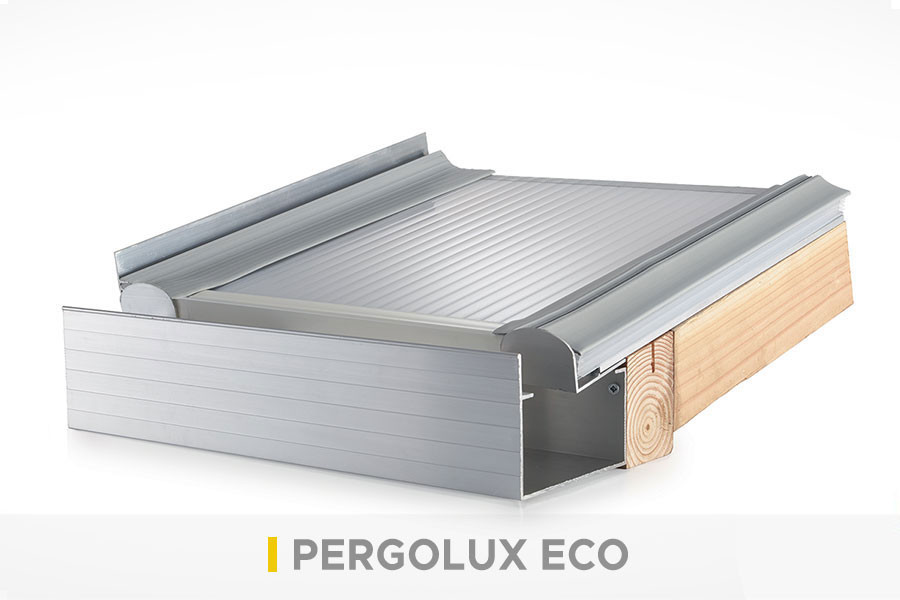

Photograph of the PERGOLUX Roofing Cover Kit for Wooden Load-Bearing Structure

Finally enjoy your outdoor space!

The PERGOLUX ECO Roofing Cover Kit for Load-Bearing Structure offers the ideal solution for your terrace covering. Ready to install on a wooden or metal framework, it is designed to adapt to a wide range of load-bearing structures (verandas, canopies, greenhouses…).

Thanks to its innovative system, the aluminum roofing profiles guarantee simple and quick assembly with a minimum of tools and effort!

Warning pictoFor greater flexibility during installation, all roofing profiles can be cut directly on site to perfectly adapt to your installation.

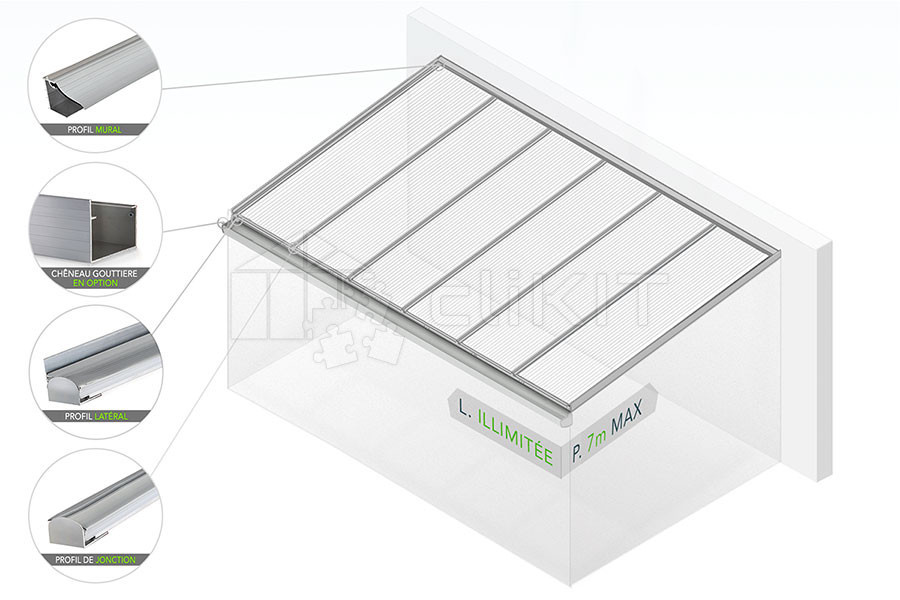

Diagram of the PERGOLUX Roofing Cover Kit
Title bullet pictoAluminum finish
Raw Aluminum Finish
Raw Aluminum
Title bullet picto16/32mm Polycarbonate Roofing
Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-heat Polycarbonate
16mm Clear Shade 16mm Opal Shade 16mm Opal Anti-heat
Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Opal Anti-heat Polycarbonate
32mm Clear Shade 32mm Opal Shade 32mm Opal Anti-heat
Title bullet pictoKit composition of your choice
Wall Profile picto Junction Profile picto Side Profile picto Optional gutter picto
Wall Profile Junction Profile Side Profile Gutter
(optional)
Image of the Assembly Principle of the PERGOLUX Roofing Cover Kit

Your Pergolux Kit - Raw Aluminum Series

  • Raw aluminum profile system with grey co-extruded rubber gaskets
  • Raw or powder-coated aluminum gutter channel (optional)
  • Extended range of standard lengths cuttable on site
  • Roof with 2 free edges
  • Several types of coverings available: 16mm or 32mm polycarbonate panels, sandwich panels, plexiglas
  • Mounting accessories and screws
  • Under a 10° slope

Compose your own personalized kit yourself if you wish!

To best adapt to your project, CliKIT gives you the opportunity to compose your own kit by ordering each part separately. To do so, simply go to the desired item(s) using the links below.

Numbered diagram of the Profiles for the PERGOLUX Roofing Cover Kit
  • Picto no. 1Wall profile M16/M32 in raw aluminum with its grey co-extruded rubber cover gasket C4CX
  • Picto no. 2Junction profile T16.1/T32.1 in raw aluminum with its grey co-extruded rubber gasket C2CX, and its 2 support gaskets C3
  • Picto no. 3Side profile L16/L32.1 in raw aluminum with its grey co-extruded rubber cover gasket C4CX
  • Picto no. 4Aluminum gutter channel G120A (optional)
  • Picto no. 5Sealing profile U16P/U32P for 16mm/32mm panels
  • Picto no. 616/32mm polycarbonate panels, sandwich panels, plexiglas
  • Picto no. 7Lateral end cap G120AS in aluminum for gutter channel
  • Picto no. 8Stop profile S16C/S32C in raw aluminum for junction profile and side profile
Link to the Junction Profile article
Image of the Wall Profile Wall Profile Pack 16/32mm>
Image of the Junction Profile Junction Profile Pack 16/32mm>
Image of the Side Profile Side Profile Pack 16/32mm>
Image of the Gutter Channel Pack Gutter Channel Pack>
Image of the Sealing Profile Sealing Profile 16/32mm>
Images of Polycarbonate Panels Polycarbonate 16/32mm>
Image of the Adhesive Tapes Adhesive tapes>

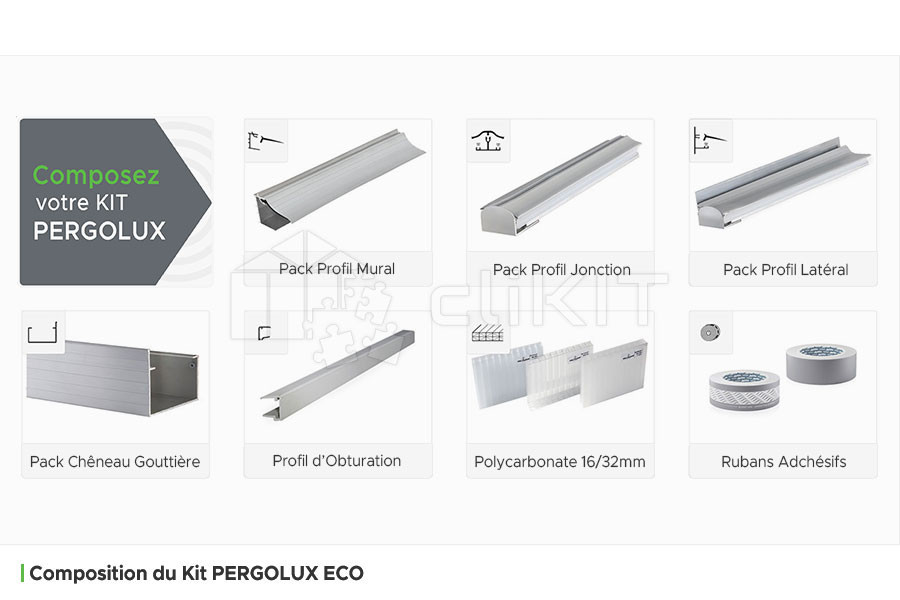

Composition of the Raw Aluminum Pergolux Kit
16mm Kit Diagram of the Wall Profile Pack for the 16mm Kit Diagram of the Junction Profile Pack for the 16mm Kit Diagram of the Side Profile Pack for the 16mm Kit Diagram of the Gutter Channel Pack for the 16mm Kit Diagram of the 16mm Panel with Plug for the 16mm Kit Diagram of the Adhesive Tapes for Panels for the 16mm Kit
Wall Profile Pack
EM16		 Junction Profile Pack
ET16.1		 Side Profile Pack
EL16		 Optional Gutter Channel Pack
G120A		 16mm Panel + Plug
U16P		 Adhesive tapes for panels
32mm Kit Diagram of the Wall Profile Pack for the 32mm Kit Diagram of the Junction Profile Pack for the 32mm Kit Diagram of the Side Profile Pack for the 32mm Kit Diagram of the Gutter Channel Pack for the 32mm Kit Diagram of the 32mm Panel with Plug for the 32mm Kit Diagram of the Adhesive Tapes for Panels for the 32mm Kit
Wall Profile Pack
EM32		 Junction Profiles Pack
ET32.1		 Side Profile Pack
EL32.1		 Optional Gutter Channel Pack
G120A		 32mm Panel + Plug
U32P		 Adhesive tapes for panels

A polycarbonate roofing more resistant than glass

Title bullet pictoPolycarbonate 16/32mm - Clear / Opal

The insulating characteristics of the X-structure honeycomb panels TOP X5 16mm and TOP X7 32mm make them one of the most popular panels on the veranda and pergola market. The TOP X5 16mm Opal or Clear panel has a U value of 2.1 W/m2.K and the TOP X7 32mm Opal or Clear panel has a U value of 1.2 W/m2.K.

Title bullet pictoPolycarbonate 16/32mm REFLEX PEARL - Opal Anti-heat

Thanks to its co-extruded reflective outer layer, the 16mm REFLEX PEARL Panel reflects up to 81% of heat with a light transmission of 28%, while the 32mm REFLEX PEARL Panel reflects up to 68% of heat with a light transmission of 12%. In winter, you enjoy very good insulation, and the temperature in summer remains pleasant thanks to its reflective properties.

TOP X5 16mm ClearTOP X5 16mm OpalREFLEX PEARL 16mm Opal ACTOP X7 32mm ClearTOP X7 32mm OpalREFLEX PEARL
32mm Opal AC
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-heat Polycarbonate Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Opal Anti-heat Polycarbonate
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-heat Polycarbonate Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Opal Anti-heat Polycarbonate
Panel Width (mm) 980/1050/1200 980/1050/1200 980/1200 980/1230 980/1230 980/1230
Panel Shade Clear Shade Opal Shade Opal Anti-heat Shade Clear Shade Opal Shade Opal Anti-heat Shade
Weight per m² 2.4 kg 2.4 kg 2.5 kg 3.7 kg 3.7 kg 3.8 kg
Light transmission 64% 55% 28% 57% 32% 12%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K 1.2 W/m² K 1.2 W/m² K 1.0 W/m² K
Energy retained (1-g) 39% 46% 68% 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB 21 dB 21 dB 23 dB

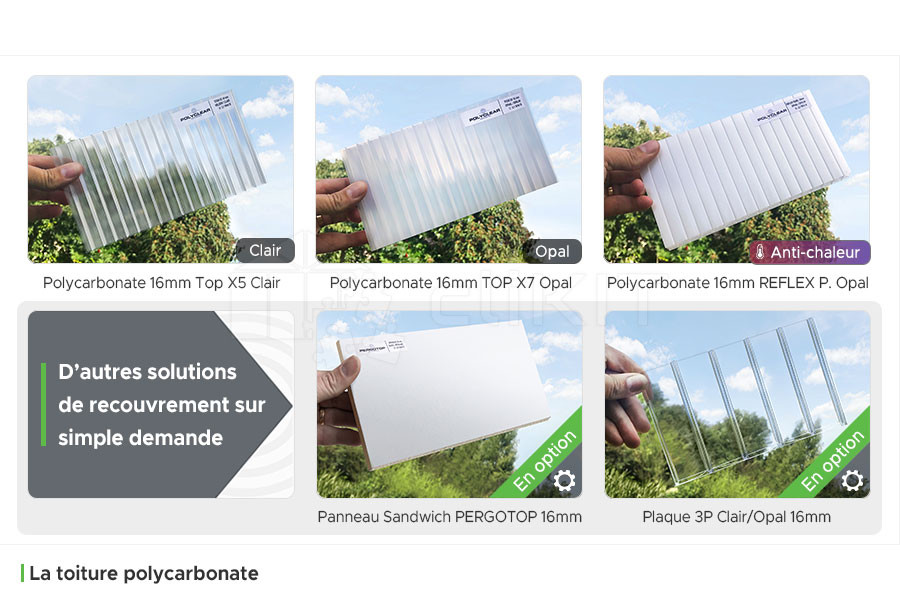

Image of the 16mm Clear Polycarbonate Image of the 16mm Opal Polycarbonate Image of the 16mm Opal Anti-heat Polycarbonate
Diagram of Sandwich Panels and Plexiglas acrylic Panels

Other covering solutions available on request

The soundproofing PERGOTOP 16mm Sandwich Panel is specially designed for optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminum panels. Its good insulation coefficient is complemented by high UV resistance. View our photos>

The scratch-resistant coating ensures you can enjoy your pergola without worry. The sandwich panels are installed in exactly the same way as the other panels.

With the PLEXIGLAS Alltop 16mm Panel, enjoy the best transparency and optimal light transmission! Its acrylic honeycomb structure offers many advantages. In addition to being lightweight, it has very high impact resistance, up to 10 times stronger than glass! Fitted with an anti-UV layer, there is no discoloration or loss of clarity, and light diffusion is durably guaranteed. Furthermore, its protective coating effectively limits condensation effects. View our photos>
