PERGOLUX PREMIUM Roof Covering Kit

Besoin d'un conseil ?
03 66 72 15 14
  • -15%
Photo n°1 of the PERGOLUX PREMIUM Roofing Cover Kit
They talk about us onChannel logo View> Discover> Watch the video>
Product Description Icon Product
description Installation Guide Icon Installation
guide Customer Reviews Icon Customer
reviews Delivery Terms Icon Delivery
terms

Configure your PERGOLUX PREMIUM Roof Covering Kit

  • Made in Belgium
  • Kit: PERGOLUX PREMIUM
  • Length: up to 5000mm
  • Panel thickness: 16/32mm
  • Finish: anthracite grey, pure white
  • Covering: aluminium clip
  • Ideal for load-bearing structures
  • Cuttable profiles
*Required step
Your configuration

Factory direct price (incl. tax)

446.05
Instead of 524.77
Final price (tax incl.)
446.05

Summary

Contact us Delivery lead time iconLead time: 3 to 4 weeks*
  • Delivery icon Free
    delivery*
  • Manufacturing icon Standard
    Product
  • Warranty icon Warranty
    10 years*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
PERGOLUX PREMIUM Roof Covering Kit Thermal Break Series

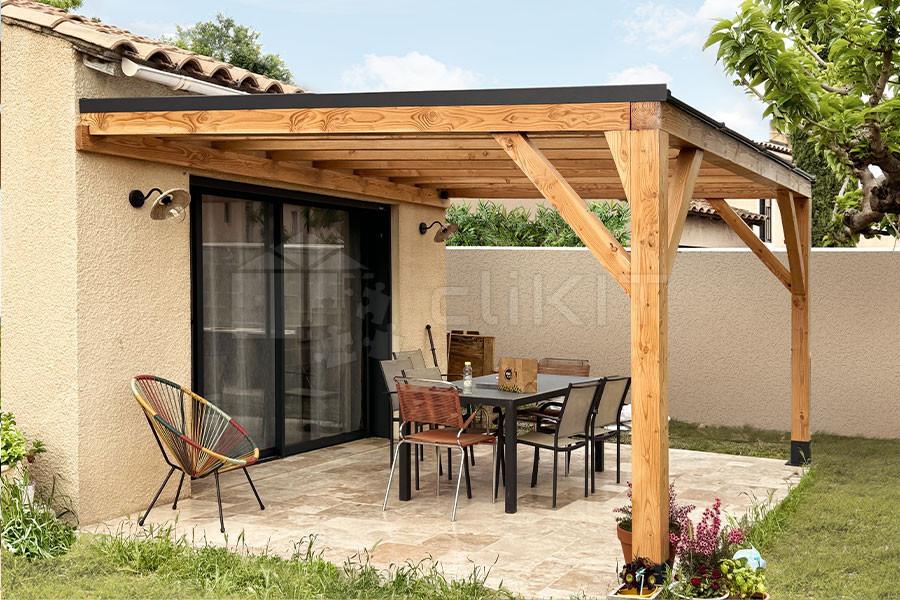

Photograph of the PERGOLUX Roof Covering Kit for Timber Load-Bearing Structure

Finally enjoy your outdoor space!

The Roof Covering Kit for PERGOLUX PREMIUM Load-Bearing Structure offers the ideal solution for your terrace covering. Ready to install on a timber or metal frame, it is designed to adapt to a wide range of load-bearing structures (verandas, canopies, greenhouses…).

Thanks to its innovative system, the roofing profiles in thermal break aluminium with clips guarantee simple and fast assembly with minimal tools and effort!

Warning PictoFor greater flexibility during installation, all roofing profiles can be cut to size on-site to perfectly suit your layout.

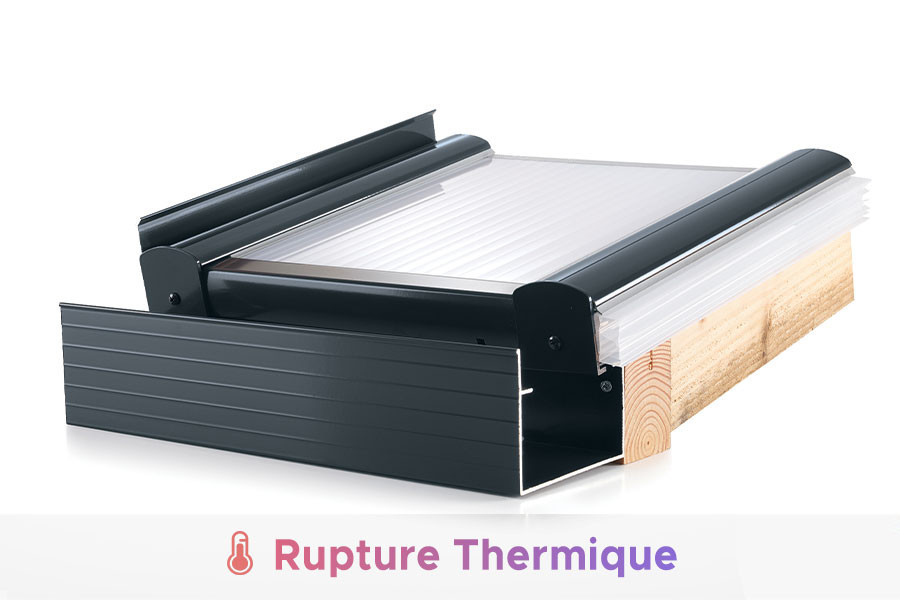

Thermal bridge insulation

The combination of aluminium and PVC ensures significantly better thermal insulation thanks to its co-extruded PVC lower profiles. These further limit the transmission of the outside temperature that is absorbed by the aluminium of the upper clips.

Thanks to the properties of PVC, thermal performance is optimised and the level of condensation is greatly reduced. This insulation process forms a heat barrier known as a thermal break.

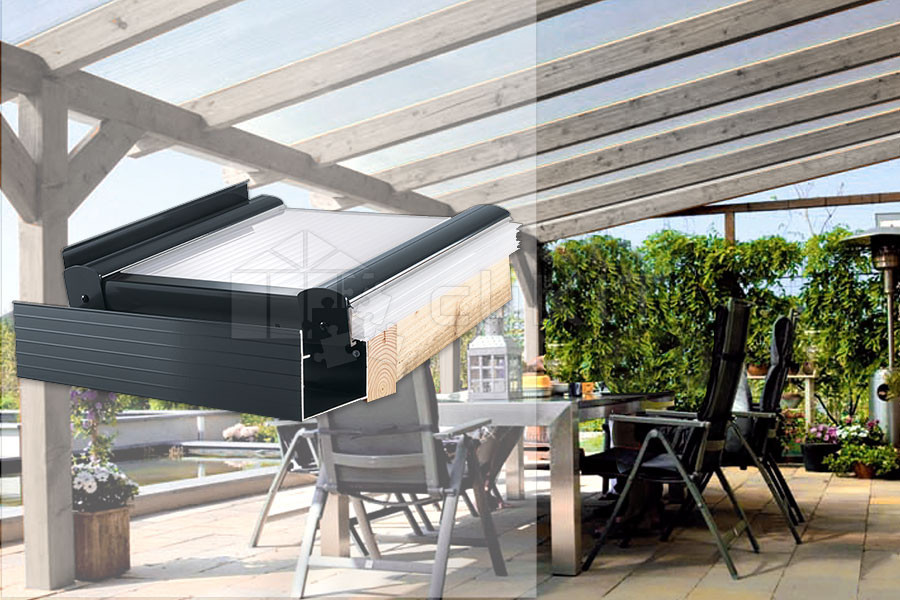

Photograph of the PERGOLUX Roof Covering Kit for Timber Load-Bearing Structure
Diagram of the PERGOLUX Roof Covering Kit
Title bullet pictoAluminium finish
White RAL 9010 Structured colour Anthracite Grey RAL 7016 Structured colour
White 9010 Structured Anthracite Grey 7016 Structured

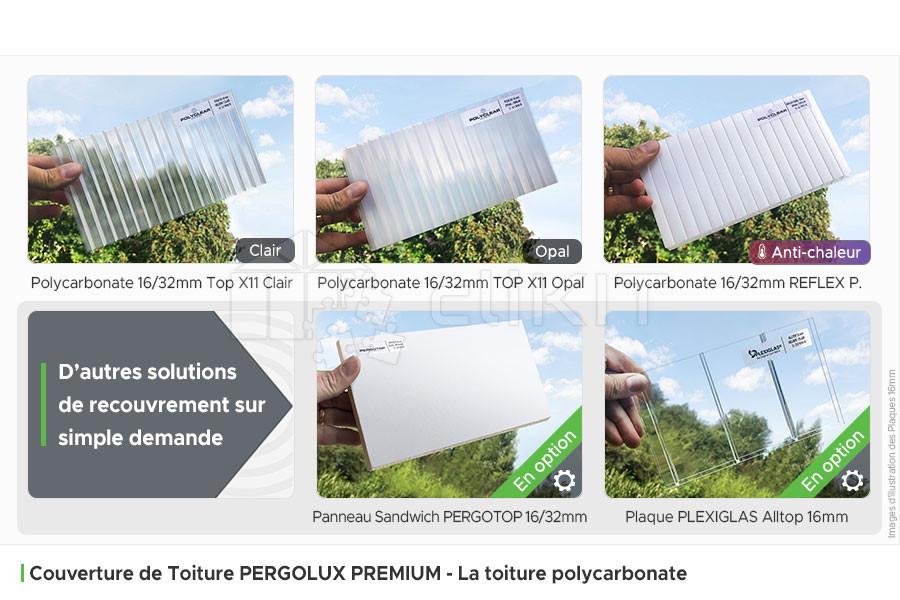

Title bullet pictoPolycarbonate Roof 16/32mm
Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-Heat Polycarbonate
16mm Clear Shade 16mm Opal Shade 16mm Opal Anti-Heat
Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Opal Anti-Heat Polycarbonate
32mm Clear Shade 32mm Opal Shade 32mm Opal Anti-Heat

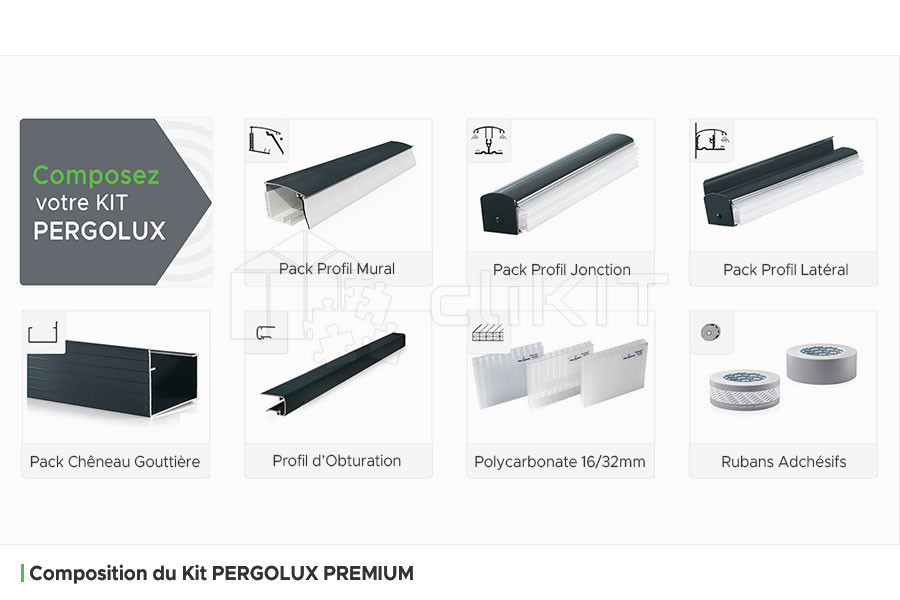

Title bullet pictoKit composition of your choice
Side Profile picto Load-Bearing Profile picto Wall Profile picto Picto of the Optional Gutter
Wall Profile Junction Profile Side Profile Gutter
(optional)

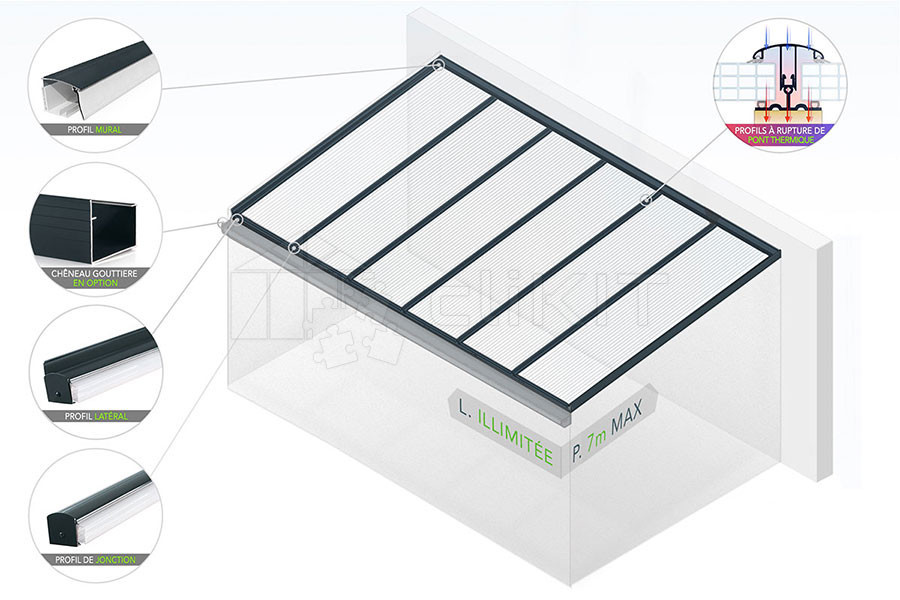

Image of the Assembly Principle of the PERGOLUX Roof Covering Kit

Your Pergolux Kit - Thermal Break Series

  • PCV thermal break profile system with thermally coated aluminium clips
  • Thermally coated aluminium gutter channel (optional)
  • Extended range of standard lengths cuttable on-site
  • Roof with 2 free edges
  • Several types of covering available: 16mm or 32mm polycarbonate panels, sandwich panels, plexiglas
  • Assembly accessories and fixings
  • Under a 10° pitch

Compose your own personalised kit if you wish!

To best suit your project, CliKIT gives you the option to compose your own custom kit by ordering each part separately. To do so, simply go to the desired item(s) using the links below.

Numbered diagram of the Profiles from the PERGOLUX Roof Covering Kit
  • Picto no. 1MP co-extruded PVC wall profile (white/brown) with its C31 support seal, its CLM thermally coated aluminium clip, its grey C1CX cover seal, and its C12 bearing seal
  • Picto no. 2T16P co-extruded PVC junction profile (white/brown) with its CL16/CL32 thermally coated aluminium clip and its 2 C8 compression seals.
  • Picto no. 3LP co-extruded PVC side profile (white/brown) with its CLL thermally coated aluminium clip and its grey C8 compression seal
  • Picto no. 4Aluminium gutter channel G120A (optional)
  • Picto no. 5U16/U32 closure profile for 16mm/32mm panels
  • Picto no. 6Polycarbonate panel 16/32mm, sandwich panels, plexiglas
  • Picto no. 7G120AS lateral end cap in aluminium for gutter channel
  • Picto no. 8S16.3/S32.3 thermally coated aluminium stop profile for junction profile and side profile
Link to the Junction Profile article
Image of the Wall Profile Wall Profile Pack 16/32mm>
Image of the Junction Profile Junction Profile Pack 16/32mm>
Image of the Side Profile Side Profile Pack 16/32mm>
Image of the Gutter Channel Pack Gutter Channel Pack>
Image of the Closure Profile Closure Profile 16/32mm>
Images of Polycarbonate Panels Polycarbonate 16/32mm>
Image of the Adhesive Tapes Adhesive tapes>
x
16mm Kit Diagram of the Wall Profile Pack from the 16mm Kit Diagram of the Junction Profile Pack from the 16mm Kit Diagram of the Side Profile Pack from the 16mm Kit Diagram of the Gutter Channel Pack from the 16mm Kit Diagram of the 16mm Panel with Closure Strip from the 16mm Kit Diagram of the adhesive tapes for panels from the 16mm Kit
Wall Profile Pack
EMP		 Junction Profile Pack
ETP16		 Side Profile Pack
ELP16		 Optional Gutter Channel Pack
G120A		 16mm Panel + Closure Strip
U16		 Adhesive tapes for panels
32mm Kit Diagram of the Wall Profile Pack from the 32mm Kit Diagram of the Junction Profile Pack from the 32mm Kit Diagram of the Side Profile Pack from the 32mm Kit Diagram of the Gutter Channel Pack from the 32mm Kit Diagram of the 32mm Panel with Closure Strip from the 32mm Kit Diagram of the adhesive tapes for panels from the 32mm Kit
Wall Profile Pack
EMP		 Junction Profile Packs
ETP32		 Side Profile Pack
ELP32		 Optional Gutter Channel Pack
G120A		 32mm Panel + Closure Strip
U32		 Adhesive tapes for panels

A polycarbonate roof more resistant than glass

Title bullet pictoPolycarbonate 16/32mm - Clear / Opal

The insulating characteristics of the Structure X TOP X5 16mm and TOP X7 32mm cellular panels make them one of the preferred panels on the veranda and pergola market. The TOP X5 16mm Opal or Clear panel has a U value of 2.1 W/m2.K and the TOP X7 32mm Opal or Clear panel has a U value of 1.2 W/m2.K.

Title bullet pictoPolycarbonate 16/32mm REFLEX PEARL - Opal Anti-Heat

Thanks to its co-extruded reflective outer layer, the 16mm REFLEX PEARL Panel reflects up to 81% of heat for a light transmission of 28%, while the 32mm REFLEX PEARL Panel reflects up to 68% of heat for a light transmission of 12%. In winter, you benefit from very good insulation, and the temperature in summer remains comfortable thanks to its reflective characteristics.

TOP X5 16mm ClearTOP X5 16mm OpalREFLEX PEARL 16mm Opal ACTOP X7 32mm ClearTOP X7 32mm OpalREFLEX PEARL
32mm Opal AC
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-Heat Polycarbonate Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Opal Anti-Heat Polycarbonate
Polyclear brand logo Diagram of the 16mm Clear Polycarbonate Diagram of the 16mm Opal Polycarbonate Diagram of the 16mm Opal Anti-Heat Polycarbonate Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Opal Anti-Heat Polycarbonate
Panel width (mm) 980/1050/1200 980/1050/1200 980/1200 980/1230 980/1230 980/1230
Panel Shade Clear Shade Opal Shade Opal Anti-Heat Shade Clear Shade Opal Shade Opal Anti-Heat Shade
Weight per m² 2.4 kg 2.4 kg 2.5 kg 3.7 kg 3.7 kg 3.8 kg
Light transmission 64% 55% 28% 57% 32% 12%
U insulation value 2.0 W/m² K 2.0 W/m² K 2.1 W/m² K 1.2 W/m² K 1.2 W/m² K 1.0 W/m² K
Retained energy (1-g) 39% 46% 68% 39% 46% 68%
Sound insulation 21 dB 21 dB 21 dB 21 dB 21 dB 23 dB
Image of the 16mm Clear Polycarbonate Image of the 16mm Opal Polycarbonate Image of the 16mm Opal Anti-Heat Polycarbonate
Diagram of Sandwich Panels and Plexiglas Acrylic Panels

Other covering solutions available on request

The PERGOTOP 16mm Sandwich Panel is soundproofing and specially designed to deliver optimal insulation thanks to its extruded polystyrene insulating foam bonded between two pre-lacquered aluminium panels. In addition to its good insulation coefficient, it offers high resistance to UV rays. View our photos>

The scratch-resistant coating ensures you can enjoy your pergola without worry. Sandwich panels are installed in exactly the same way as the other panels.

With the PLEXIGLAS Alltop 16mm Panel, enjoy the best transparency and optimal light transmission! Its acrylic cellular structure offers numerous advantages. As well as being lightweight, it offers very high impact resistance, up to 10 times stronger than glass! Equipped with an anti-UV layer, there is no discolouration or loss of clarity, and light diffusion is durably guaranteed. In addition, its protective coating effectively limits condensation effects. View our photos>

Resources to assist you

We remain available and attentive throughout your entire assembly phase. You will quickly notice how easy the system is to install. The assembly can be completed in just a few hours.

Contact Details and Online Quote Request

To successfully assemble your kit, feel free to watch our installation guide:

Installation Guide to Download Installation Guide>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you every step of the way.

A dedicated technical advisor is assigned to you to help refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team here for you!

Photo of the Sales Manager

Olivier Regnier Sales Manager

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

Manufacturing Lead Time picto

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

MadePicto representing manufacture in Belgiumin Belgium

Free delivery picto

Free delivery

Our aluminium profiles are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Free delivery from €1,500 incl. VAT in metropolitan France, Belgium, Germany, Austria, Netherlands, Luxembourg
Flat-rate delivery for metropolitan France and Belgium: €210 incl. VAT
Flat-rate transport for Paris intra-muros: on request
Flat-rate transport for the Breton islands: on request
Flat-rate transport for Corsica: on request
Flat-rate transport and customs documents for Switzerland: on request
Flat-rate transport for Monaco: on request

*if necessary and subject to access conditions by forklift and semi-trailer.

Picto of the flags of the delivery countries

Free delivery from €1,500 incl. VAT in metropolitan France, Belgium, Germany, Austria, Netherlands, Luxembourg
Delivery package for metropolitan France and Belgium: €210 incl. VAT
Shipping package for Paris intra-muros: on request
Shipping package for the Breton islands: on request
Shipping package for Corsica: on request
Shipping package and customs documents for Switzerland: on request
Shipping package for Monaco: on request

*if necessary and subject to access conditions by forklift and semi-trailer.

Delivery countries flag pictogram
Warranties picto

Warranties

Our roof coverings are guaranteed for 10 years and meet the strictest European standards. The aluminium profiles are thermally coated and carry the QUALICOAT LABEL.
Snow load: unless otherwise specified by you, load calculations are performed with a snow load in accordance with current standards. Please notify us of altitudes above 800 metres.
The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).
The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.

Picto representing European standards
