Configure your EMP Wall Profile Pack - PERGOLUX PREMIUM

  • Manufactured in Belgium
  • Kit: PERGOLUX PREMIUM
  • Length: up to 5000mm
  • Panel thickness: 16/32mm
  • Finish: anthracite grey, pure white
  • Cover: aluminium clip
  • Ideal for load-bearing structures
  • Cuttable profiles
*Required step
Your configuration

Factory direct price (incl. tax)

166.57
Instead of 195.97

Final price (tax incl.)
166.57

Summary

Contact us Delivery Lead Time IconLead time: 3 to 4 weeks*
  • Delivery Icon Free
    delivery*
  • Manufacturing Icon Standard
    Product
  • Warranty Icon Warranty
    10 years*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
EMP Wall Profile Pack for 16/32mm Panel for PERGOLUX PREMIUM Roof Covering - Thermal Break Series

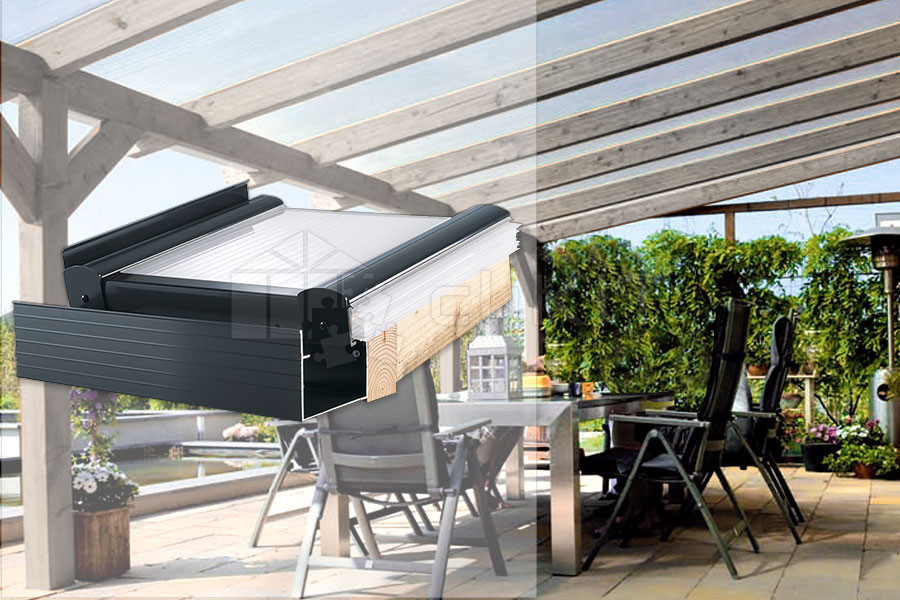

Photograph of the PERGOLUX Roof Covering Kit for Wooden Load-Bearing Structure

Compose your own personalised kit yourself!

The Wall Profile Pack EMP for PERGOLUX PREMIUM Thermal Break Series Roof Covering consists of the ridge section that is fixed against your wall, at the upper slope of your load-bearing structure (timber frame, metal framework...).

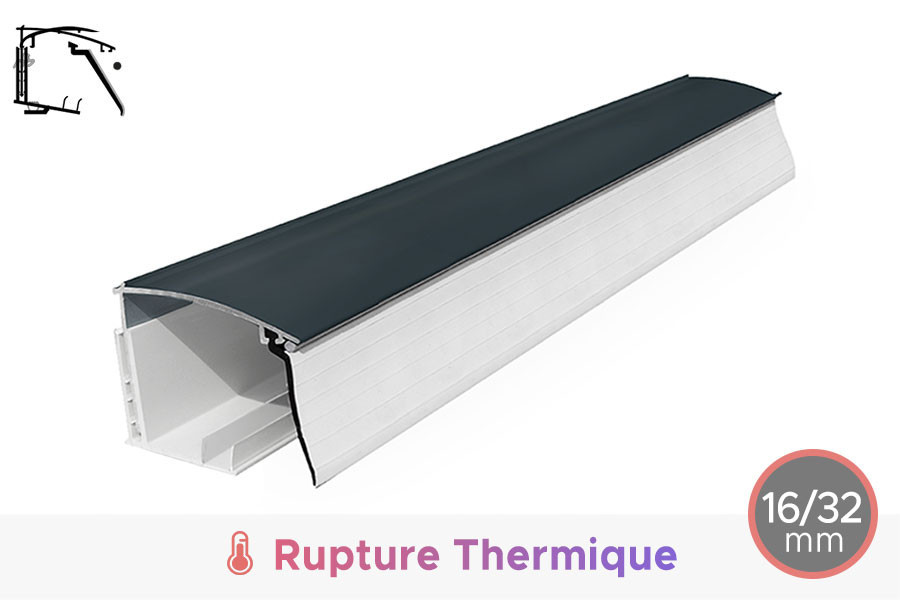

This pack includes the MP wall profile in co-extruded PVC (white/brown) with its C31 support seal, as well as the CLM clip in thermolacquered aluminium on top. Its grey C1CX covering seal and its C12 backing seal ensure a perfect watertight fit and guarantee the proper retention of your 16/32mm panels.

Warning PictogramFor greater flexibility during installation, all roofing profiles can be cut directly on site to perfectly suit your layout.

Thermal bridge insulation

The combination of aluminium and PVC provides significantly better thermal insulation thanks to its lower profiles in co-extruded PVC. These limit the transmission of the outside temperature absorbed by the aluminium of the upper clips.

Thanks to the properties of PVC, thermal performance is optimised and the level of condensation is greatly reduced. This insulation process forms a thermal barrier known as thermal bridge break.

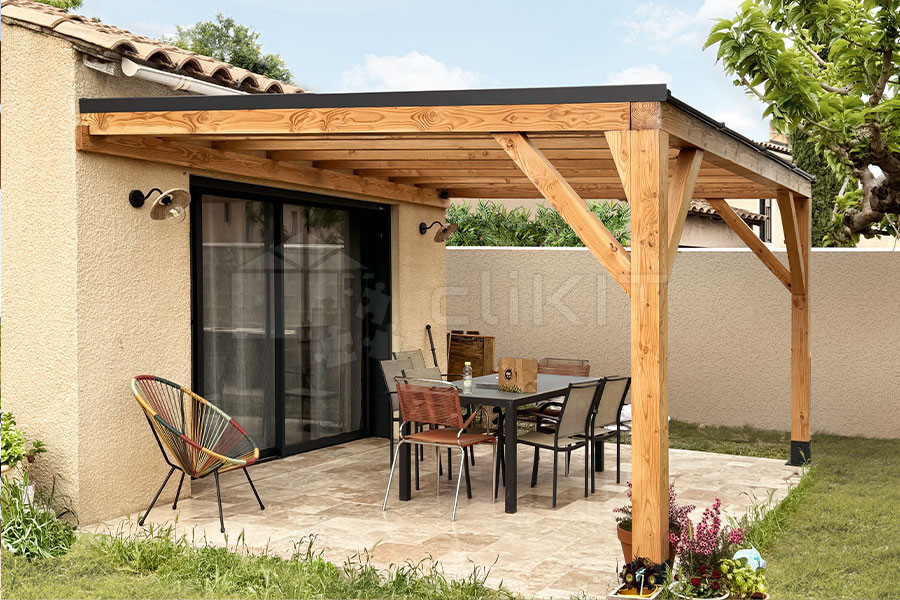

Photograph of the PERGOLUX Roof Covering Kit for Wooden Load-Bearing Structure

Compose your own personalised kit yourself if you wish!

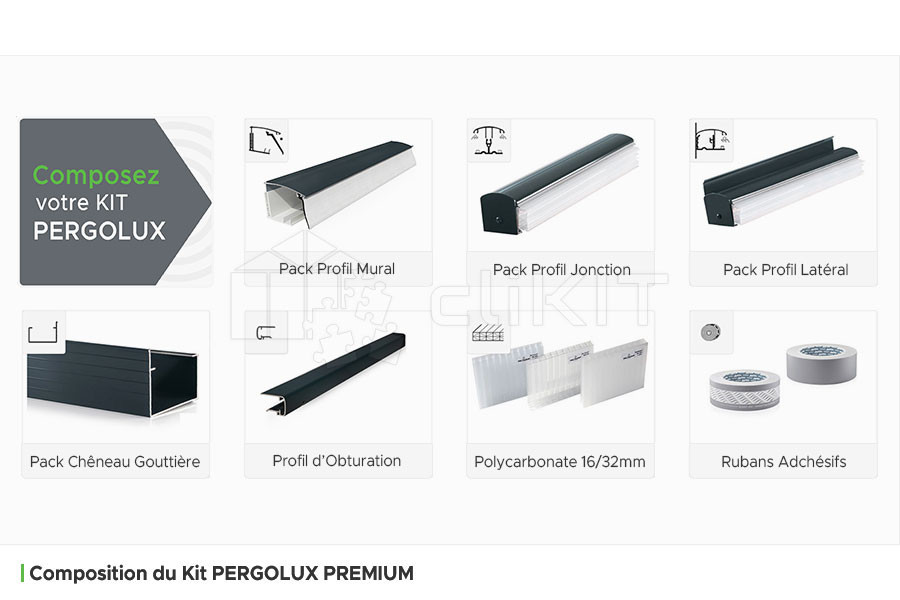

To best suit your project, CliKIT gives you the option of composing your own kit by ordering each part separately. To do so, simply go to the relevant product page(s) using the links below.

Link to the Junction Profile article
Image of the Wall Profile Wall Profile Pack 16/32mm>
Image of the Junction Profile Junction Profile Pack 16/32mm>
Image of the Lateral Profile Lateral Profile Pack 16/32mm>
Image of the Gutter Channel Pack Gutter Channel Pack>
Image of the End Cap Profile 16/32mm End Cap Profile>
Images of Polycarbonate Panels 16/32mm Polycarbonate>
Image of the Adhesive Tapes Adhesive tapes>

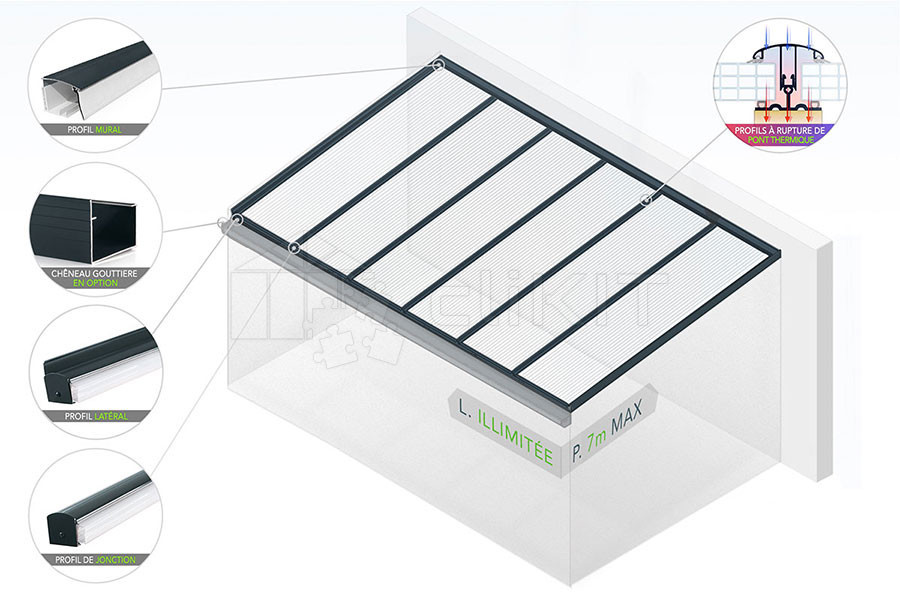

Numbered Diagram of the Profiles for the PERGOLUX Roof Covering Kit
  • Pictogram no. 1MP wall profile in co-extruded PVC (white/brown) with its C31 support seal, its CLM clip in thermolacquered aluminium, its grey C1CX covering seal, and its C12 backing seal
  • Pictogram no. 2T16P junction profile in co-extruded PVC (white/brown) with its thermolacquered aluminium clip CL16/CL32 and its 2 C8 compression seals.
  • Pictogram no. 3LP lateral profile in co-extruded PVC (white/brown) with its CLL clip in thermolacquered aluminium and its grey C8 compression seals
  • Pictogram no. 4G120A aluminium gutter channel (optional)
  • Pictogram no. 5U16/U32 end cap profile for 16mm/32mm panels
  • Pictogram no. 616/32mm polycarbonate panel, sandwich panels, plexiglass
  • Pictogram no. 7G120AS lateral end cap in aluminium for gutter channel
  • Pictogram no. 8S16.3/S32.3 stop profile in thermolacquered aluminium for junction profile and lateral profile
Composition of the Pergolux Thermal Break Kit
16mm Kit Diagram of the Wall Profile Pack for the 16mm Kit Diagram of the Junction Profile Pack for the 16mm Kit Diagram of the Lateral Profile Pack for the 16mm Kit Diagram of the Gutter Channel Pack for the 16mm Kit Diagram of the 16mm Panel with End Cap for the 16mm Kit Diagram of the Adhesive Tapes for Panels of the 16mm Kit
Wall Profile Pack
EMP
Junction Profile Pack
ETP16
Lateral Profile Pack
ELP16
Option Pack Gutter Channel
G120A
16mm Panel + End Cap
U16
Adhesive tapes for panels
32mm Kit Diagram of the Wall Profile Pack for the 32mm Kit Diagram of the Junction Profile Pack for the 32mm Kit Diagram of the Lateral Profile Pack for the 32mm Kit Diagram of the Gutter Channel Pack for the 32mm Kit Diagram of the 32mm Panel with End Cap for the 32mm Kit Diagram of the Adhesive Tapes for Panels of the 32mm Kit
Wall Profile Pack
EMP
Junction Profiles Pack
ETP32
Lateral Profile Pack
ELP32
Option Pack Gutter Channel
G120A
32mm Panel + End Cap
U32
Adhesive tapes for panels

Resources to assist you

We remain available and attentive throughout your entire installation phase. You will quickly notice how simple the system is to install. It is possible to complete the assembly in just a few hours.

Contact Details and Online Quote Request

To successfully assemble your kit, feel free to watch our installation guide:

Installation Guide to download Installation guide>

More than just customer service

You can count on the support of our experts and building enthusiasts to guide you throughout every step of your project.

A dedicated technical advisor works with you to refine your project and respond as effectively as possible to your requests before and after your order, as well as throughout the entire installation phase.

For any enquiry, do not hesitate to contact our team, who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
here for you!

Photo of the Sales Manager

Olivier Regnier Sales Manager

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Head of Engineering

Nicolas Font Head of Engineering

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

Manufacturing Lead Time Pictogram

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please consult our page on Delivery Terms>

*The final lead time is only confirmed at the start of production and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

MadePictogram representing manufacturing in Belgiumin Belgium

Free Delivery Pictogram

Free delivery

Your profiles are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranties Pictogram

Warranties

Our profiles are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are thermolacquered and hold the QUALICOAT LABEL.
