Configure your Lateral Profile Pack ELP16/32 - PERGOLUX PREMIUM

  • Made in Belgium
  • Kit: PERGOLUX PREMIUM
  • Length: up to 5000mm
  • Panel thickness: 16/32mm
  • Finish: anthracite grey, pure white
  • Covering: aluminium clip
  • Ideal for load-bearing structures
  • Cuttable profiles
*Required step
Your configuration

Factory direct price (incl. tax)

132.60
Instead of 156.00

Final price (tax incl.)
132.60

Summary

Contact us Delivery time iconDelivery time: 3 to 4 weeks*
  • Delivery icon Delivery
    free*
  • Manufacturing icon Standard
    Product
  • Warranty icon Warranty
    10 years*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
Lateral Profile Pack ELP16/32 for 16/32mm Panel for PERGOLUX PREMIUM Roof Covering - Thermal Break Series

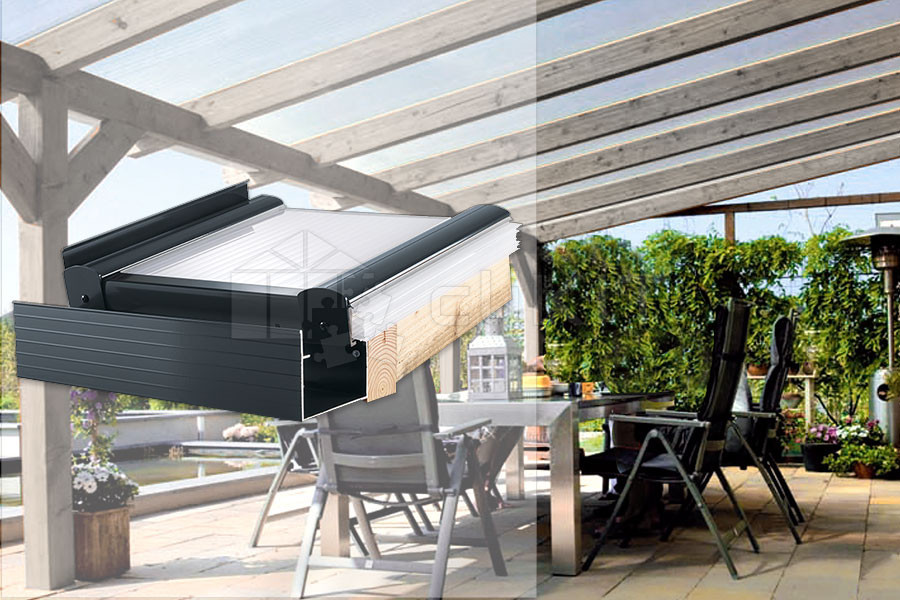

Photograph of the PERGOLUX Roof Covering Kit for Timber Load-Bearing Structure

Compose your own custom kit yourself!

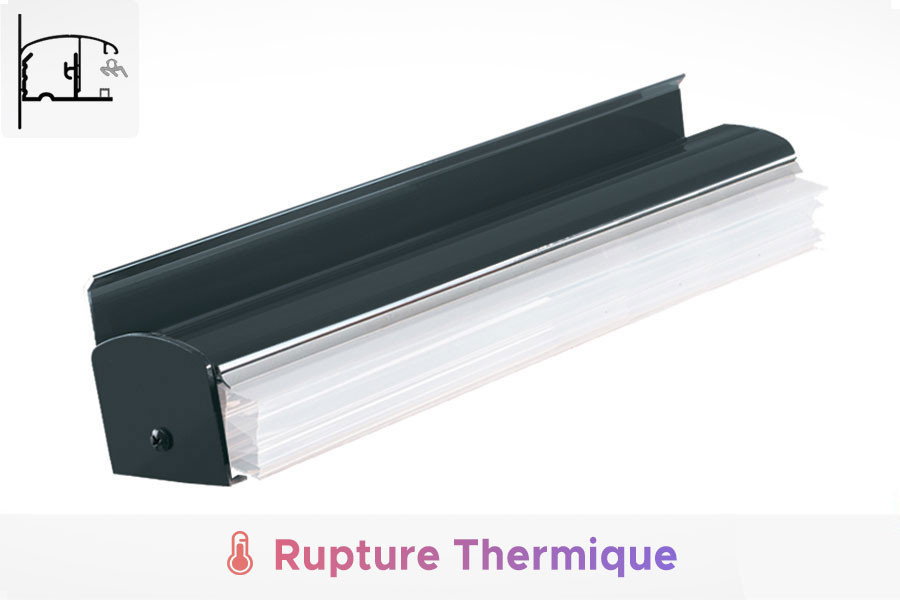

The Lateral Profile Pack ELP16/32 for PERGOLUX PREMIUM Roof Covering with Thermal Break consists of an edge profile that closes the two ends of the roof on your load-bearing structure (timber frame, metal framework...).

This pack includes the lateral profile LP in co-extruded PVC (white/brown) with its thermally powder-coated aluminium Clip CLL and its grey C8 compression seal. The latter guarantees a perfect seal and the proper retention of your panels.

Warning PictogramFor greater flexibility during installation, all roof profiles can be cut directly on site to perfectly fit your layout.

Thermal bridge insulation

The combination of aluminium and PVC provides significantly better thermal insulation thanks to its lower co-extruded PVC profiles. These further limit the transmission of outdoor temperature absorbed by the aluminium of the upper clips.

Thanks to the characteristics of PVC, thermal performance is optimized and the level of condensation is greatly reduced. This insulation process forms a thermal barrier known as a thermal break.

Photograph of the PERGOLUX Roof Covering Kit for Timber Load-Bearing Structure

Compose your own custom kit yourself if you wish!

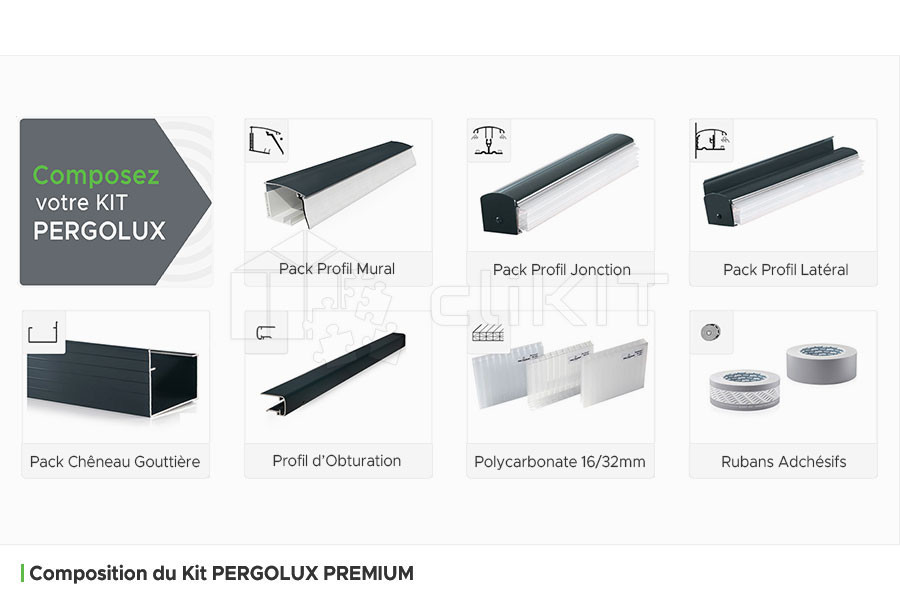

To best adapt to your project, CliKIT gives you the opportunity to compose your own kit by ordering each part separately. To do so, simply visit the desired product page(s) using the links below.

Link to the Junction Profile article
Image of the Wall Profile Wall Profile Pack 16/32mm>
Image of the Junction Profile Junction Profile Pack 16/32mm>
Image of the Lateral Profile Lateral Profile Pack 16/32mm>
Image of the Gutter Channel Pack Gutter Channel Pack>
Image of the Closure Profile Closure Profile 16/32mm>
Images of the Polycarbonate Panels Polycarbonate 16/32mm>
Image of the Adhesive Tapes Adhesive tapes>

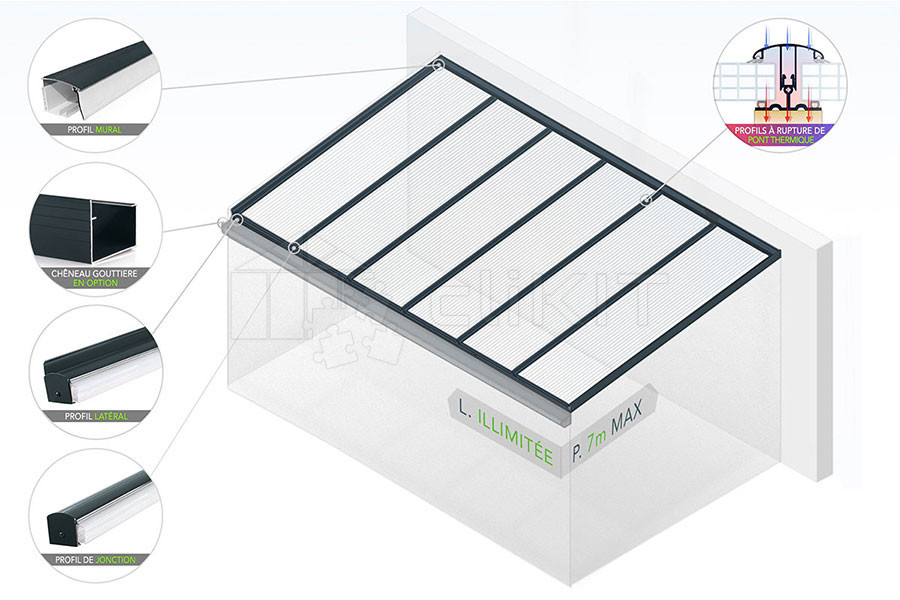

Numbered diagram of the Profiles of the PERGOLUX Roof Covering Kit
  • Pictogram No. 1Wall profile MP in co-extruded PVC (white/brown) with its C31 support seal, its thermally powder-coated aluminium CLM clip, its grey C1CX cover seal, and its C12 bearing seal
  • Pictogram No. 2Junction profile T16P in co-extruded PVC (white/brown) with its thermally powder-coated aluminium clip CL16/CL32 and its 2 compression seals C8.
  • Pictogram No. 3Lateral profile LP in co-extruded PVC (white/brown) with its thermally powder-coated aluminium CLL clip and its grey C8 compression seal
  • Pictogram No. 4Aluminium gutter channel G120A (optional)
  • Pictogram No. 5Closure profile U16/U32 for 16mm/32mm panels
  • Pictogram No. 616/32mm polycarbonate panel, sandwich panels, plexiglass
  • Pictogram No. 7Lateral end cap G120AS in aluminium for gutter channel
  • Pictogram No. 8Stop profile S16.3/S32.3 in thermally powder-coated aluminium for junction profile and lateral profile
Composition of the Pergolux Kit with Thermal Break
16mm Kit Diagram of the Wall Profile Pack for the 16mm Kit Diagram of the Junction Profile Pack for the 16mm Kit Diagram of the Lateral Profile Pack for the 16mm Kit Diagram of the Gutter Channel Pack for the 16mm Kit Diagram of the 16mm Panel with Closure Cap for the 16mm Kit Diagram of the Adhesive Tapes for panels of the 16mm Kit
Wall Profile Pack
EMP
Junction Profile Pack
ETP16
Lateral Profile Pack
ELP16
Gutter Channel Pack Option
G120A
16mm Panel + Closure Cap
U16
Adhesive tapes for panels
32mm Kit Diagram of the Wall Profile Pack for the 32mm Kit Diagram of the Junction Profile Pack for the 32mm Kit Diagram of the Lateral Profile Pack for the 32mm Kit Diagram of the Gutter Channel Pack for the 32mm Kit Diagram of the 32mm Panel with Closure Cap for the 32mm Kit Diagram of the Adhesive Tapes for panels of the 32mm Kit
Wall Profile Pack
EMP
Junction Profile Pack
ETP32
Lateral Profile Pack
ELP32
Gutter Channel Pack Option
G120A
32mm Panel + Closure Cap
U32
Adhesive tapes for panels

Resources to assist you

We remain available and attentive to your needs throughout the entire assembly phase. You will quickly notice how simple the system is to install. The assembly can be completed in just a few hours.

Contact Details and Online Quote Request

To successfully assemble your kit, feel free to watch our installation guide:

Installation Guide to download Installation Guide>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you every step of the way.

A dedicated technical advisor is assigned to you to refine your project together and best address your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, please do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

Manufacturing Lead Time Pictogram

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the time of production, and may vary depending on the season and factory holiday periods. If you have any deadlines, it is important to inform us in advance.

MadePictogram representing manufacturing in Belgiumin Belgium

Free Delivery Pictogram

Free delivery

Our profiles are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranties Pictogram

Warranties

Our profiles are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are thermally powder-coated and hold the QUALICOAT LABEL.
