Configure your LIVERPOOL V4 Entrance Lobby

  • Made in England
  • Version: Glazing without Transom
  • Dimensions: custom-made
  • Structure: PVC, aluminium
  • Roof: 32mm polycarbonate
  • Door: sliding, single, double
  • Optimal insulation and brightness
  • Thermal break
*Required step
Your configuration

Factory direct price (incl. tax)

4,543.78
Instead of 5,048.64

Final price (tax incl.)
4,543.78

Summary

My Online Quote Delivery Lead Time PictoLead time: 10 to 12 weeks*
  • Delivery Picto Free
    Delivery*
  • Manufacturing Picto Made-to-
    Measure
  • Warranty Picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*

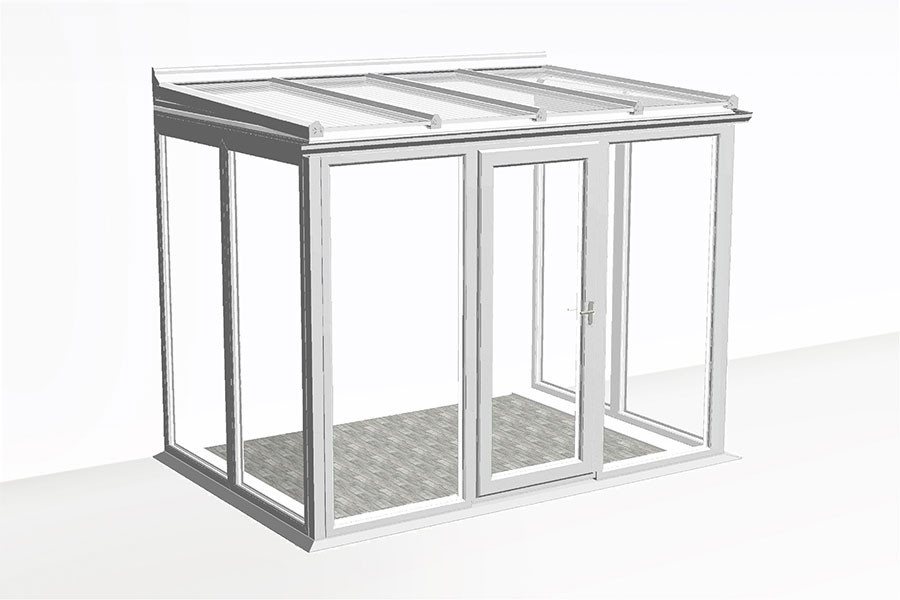

LIVERPOOL V4 Entrance Lobby Glazing Version without Transom

Give your home a warm welcome!

The LIVERPOOL V4 Entrance Lobby Glazing Version without Transom features a roof with a fixed pitch of 2.5°, of the lean-to type. A premium entrance lobby designed with quality materials, the LIVERPOOL model adapts to all house styles while offering additional living space at an unbeatable price!

Square or rectangular in base, the window frames, assembled and screwed onto an aluminium framework, are made of 70mm multi-chamber reinforced PVC. The roof structure is aluminium and the capping is PVC.

Thanks to its unique assembly concept, the installation of your entrance lobby is simplified. Each element is numbered and identified on a personalised assembly plan.

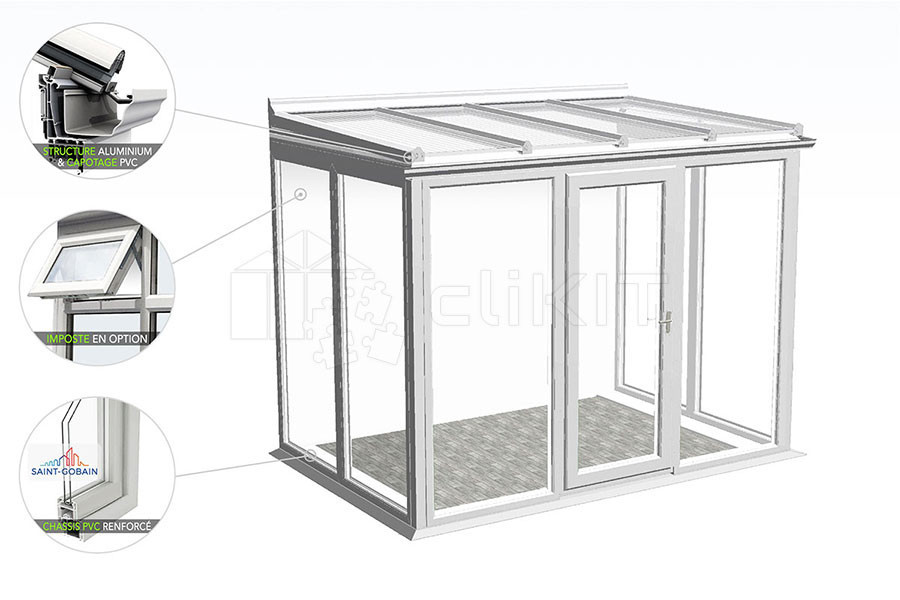

Diagram of the LIVERPOOL V4 Entrance Lobby Complete Glazing

Aluminium structure & PVC-U capping

White Colour pictogram White

24 or 32mm polycarbonate roofing

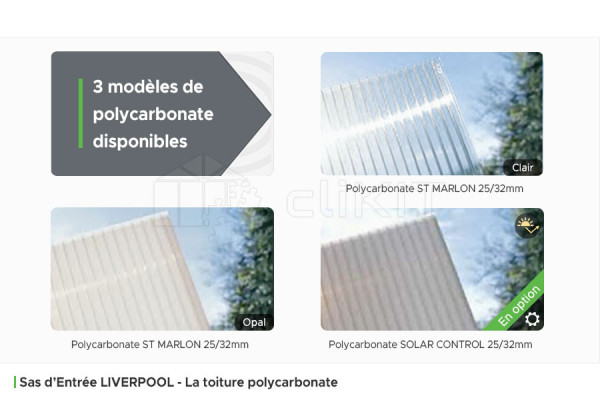

Photo of the Clear Tint Polycarbonate Polycarbonate
Clear
Photo of the Opal Tint Polycarbonate Polycarbonate
Opal

3 types of opening available

Diagram of the Sliding frame Sliding frame
Diagram of the Double French door Double French door
Diagram of the single French door Single French door

3 window models to choose from

Diagram of the Opening window frame Opening window frame
Diagram of the Sliding window frame Sliding frame
Diagram of the optional transom Optional transom
See our customers' photos>

A unique roofing concept

The LIVERPOOL Model Entrance Lobby features a reinforced aluminium roof structure with PVC-U caps.

The multi-chamber caps act as an additional insulating layer and increase the overall performance of the roof. The aluminium wall plate ensures the support of your roof and the PVC downpipe is aesthetically pleasing and discreet.

The combination of aluminium and PVC ensures much better thermal insulation thanks to the PVC capping. The latter further limits the transmission of external temperature absorbed by the aluminium structure. This forms a thermal barrier known as a thermal break.

Thanks to the properties of PVC, thermal performance is optimised and the level of condensation is greatly reduced.

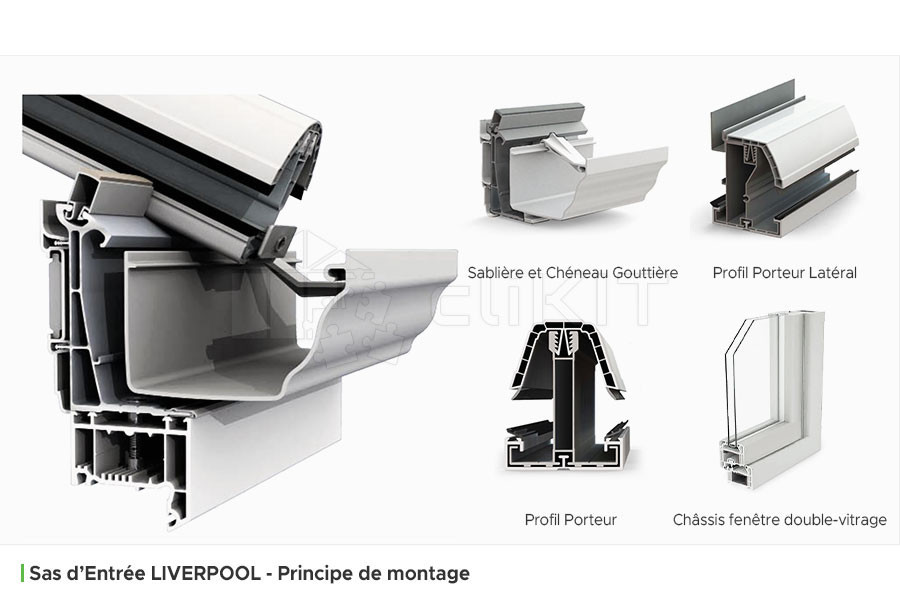

Photo of the CLIMALUX Model Assembly Principle
My online quote

Custom-designed profiles

  • Double-chamber PVC-U cap for improved thermal performance and reduced condensation risk
  • Variable clip position for perfect polycarbonate adjustment
  • Lugs on the cap for reinforced and secure hold
  • Aluminium carrier guaranteeing greater strength
  • Discreet 10mm seal that adapts to the roof tolerance
  • Multiple chamber concealed under seals for secondary drainage
  • Wide capping for greater stability
  • PVC-U capping for improved aesthetics
Numbered diagram of the Entrance Lobby Kit Carrier

Customise your project as you wish

CliKIT gives you the opportunity to realise your project 100% custom-made, adapting to your needs and desires. Standard configurations are included at no extra cost. If you would like a personalised configuration, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

Standard configurations

Aluminium and PVC: the perfect combination

Weathertightness, energy efficiency, security, style and elegance: our frames have all the qualities to withstand external elements (wind, snow, pollution, sea spray, etc.).

Your entrance lobby is fitted with DECEUNINCK multi-chamber 70mm reinforced PVC frames, mounted on an aluminium framework, offering exceptional thermal and acoustic insulation quality, easy maintenance, impact resistance and anti-condensation properties.

The PVC frames are assembled, then screwed by you onto an aluminium framework in order to rigidify the whole structure.

Your choice of opening can include inward-opening casements, sliding panels, top-hung transom vents, as well as inward-opening or sliding windows.

Photo of the Entrance Lobby window frames

3 door models to choose from

3 window models to choose from

My online quote

A polycarbonate roof more resistant than glass

MARLON ST polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a crucial advantage for fire safety thanks to the self-extinguishing characteristic of the polycarbonate raw material and its resistance to high temperatures.

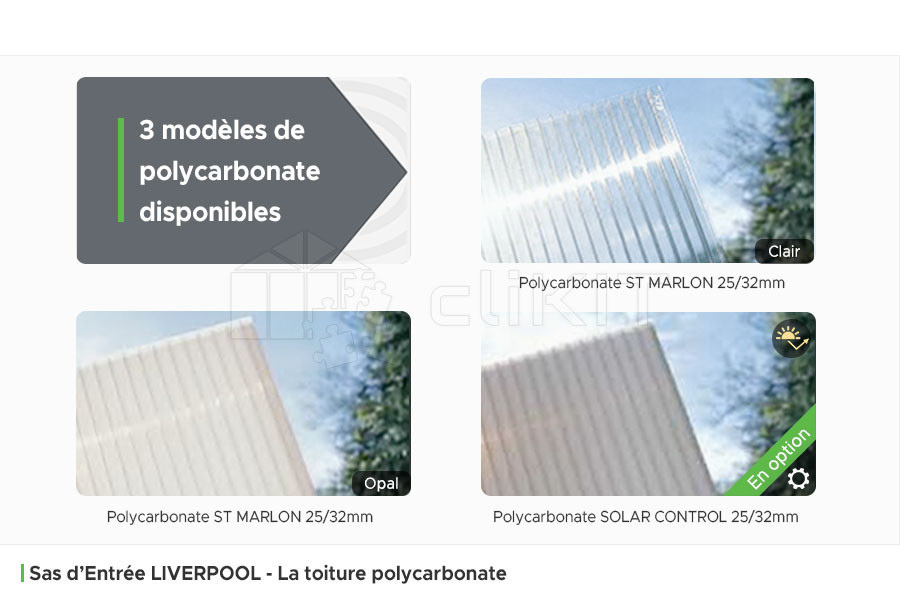

Photo of the Polycarbonate Panel models

The COMFORT Pack: 25 and 32mm Anti-UV Polycarbonate

MARLON ST roofing panels of 25 and 32mm are UV-treated and guaranteed against yellowing. This polycarbonate is highly impact-resistant and provides thermal insulation of 1.25 W/m²K or 1.4 W/m²K. It is available in Clear, Opal or SolarControl (opaque).

These panels provide natural lighting with minimal heat loss for a better overall energy balance.

 MARLON ST Polycarbonate
Clear Tint
MARLON ST Polycarbonate
Opal Tint
MARLON ST Polycarbonate
Solar Control
BRETT MARTIN brand logo Photo of the MARLON ST Clear Polycarbonate Photo of the MARLON ST Opal Polycarbonate Photo of the MARLON ST SolarControl Polycarbonate
Panel Tint Clear Tint Opal Tint Heat-Control Opal Tint
Thickness 25mm 32mm 25mm 32mm 25mm 32mm
Weight per m² 3.1kg 3.6kg 3.1kg 3.6kg 3.1kg 3.6kg
Light transmission 62% 64% 28% 33% 7% 4%
U insulation value 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K
Retained energy (1-g) 38% 45% 57% 65% 86% 92%

Low-emissivity double glazing for enhanced insulation

The 28mm (4-20-4) Saint-Gobain PLANITHERM ULTRA N double glazing is a low-emissivity glass.

Thanks to a chemical treatment, this glazing has the ability to deflect the majority of heat towards the warmest point.

Argon gas filling provides much lower thermal inertia than the air used in standard glazing.

Thanks to this gas, your glazing will heat up or cool down much more slowly than standard double glazing.

Presentation of the Saint-Gobain brand

The advantages of Saint-Gobain double glazing

The Saint-Gobain PLANITHERM ULTRA N double glazing triples the thermal insulation performance compared to standard double glazing. In addition, it provides:

  • A reduction in heating costs.
  • An improvement in comfort:
    • no cold zones near glazed walls
    • maximum use of space
    • reduced risk of condensation on interior glass
  • High light transmission and solar gain
  • Great architectural freedom (neutral appearance)
  • Environmental protection through reduced CO2 emissions
Diagram representing the insulation performance of Saint-Gobain Double glazing

Resources to assist you

Our technical team remains available and attentive throughout the entire installation phase of your entrance lobby. You will quickly notice how simple the installation system is. Your CliKIT entrance lobby will arrive as a kit containing the roof structure, roofing elements, frame, glazing and base components, accessories, as well as the installation guide.

Link to an online quote

To successfully complete the installation of your entrance lobby, you will need the following tools:

  • Tape measure
  • Clamp
  • Ø 4.5mm metal drill bit
  • 10 and 13mm socket spanner
  • 13 and 17mm flat spanner
  • Screwdriver
  • Cutter
  • Drill
  • Screwdriver (power)
  • Silicone gun
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents available to you:

Installation Guide pictogramInstallation Guide>
Assembly Video pictogramAssembly Video>
Photo Book pictogramPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to accompany you throughout every step of your project.

A dedicated technical advisor is assigned to you to refine your project together and best respond to your requests before and after your order, as well as throughout the entire installation phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

  • Monday to Friday from 8:30 am to 12:30 pm and from 1:30 pm to 6:00 pm via our switchboard at +33 (0) 3 66 72 15 14
  • At any time by email at contact@clikit.fr

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time pictogram

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The definitive lead time is only known once production begins, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Free delivery pictogram

Free delivery

Our kit entrance lobbies are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Guarantees pictogram

Guarantees

10-year guarantee on the structure and joinery, 5 years for double glazing, 2 years for accessories.

The 70mm multi-chamber PVC profiles are reinforced and comply with European Standard NE12608.

The insulating double glazing meets standards NE1279 and NE12600.
