MANCHESTER V1 Entry Porch Low Wall Version

Give your home a warm welcome!

The MANCHESTER V1 Entry Porch Low Wall Version features a lean-to roof with a variable roof angle of 5 to 25°. The lateral trapezoids are fitted with 28mm double glazing, providing excellent brightness. A premium Entry Porch designed with quality materials, the MANCHESTER model adapts to all house styles while offering additional living space at an always unbeatable price!

Square or rectangular in base, the window frames, assembled and screwed onto an aluminum framework, are made of 70mm multi-chamber reinforced PVC. The roof structure is aluminum and the capping is PVC.

Thanks to its unique assembly concept, installing your entry porch will be simplified. Each element is numbered and identified on a personalized assembly plan. For your comfort, you can choose between a 25/32mm polycarbonate roof or 24mm double glazing.

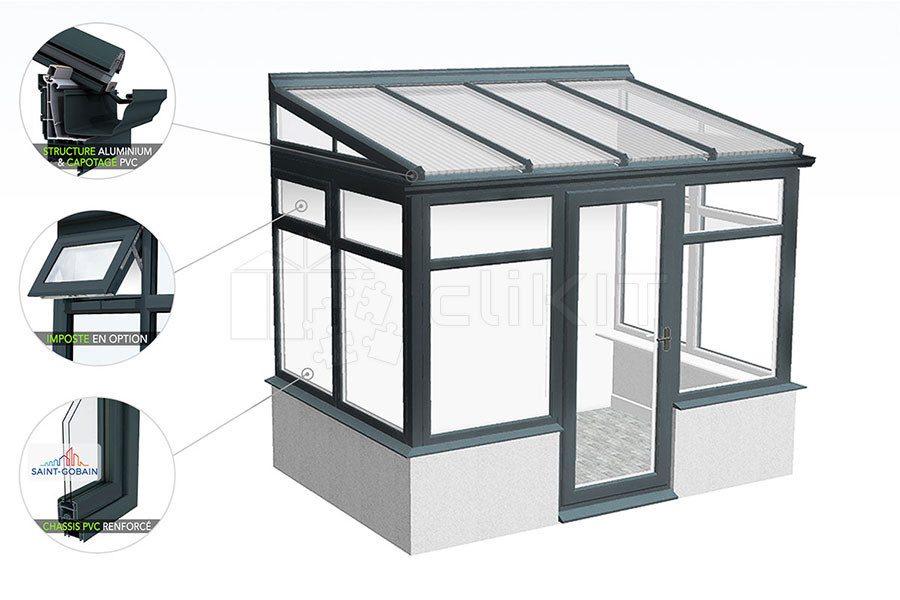

Diagram of the MANCHESTER V1 Entry Porch on Low Wall

Aluminum structure & PVC-U capping

White color pictogram White
Mixed Anthracite Grey / White color pictogram Anthracite Grey ext.
White int.
Mixed Golden Oak / White color pictogram Golden Oak ext.
White int
Golden Oak color pictogram Golden Oak
Mixed Mahogany / White color pictogram Mahogany ext.
White int.
Mahogany color pictogram Mahogany

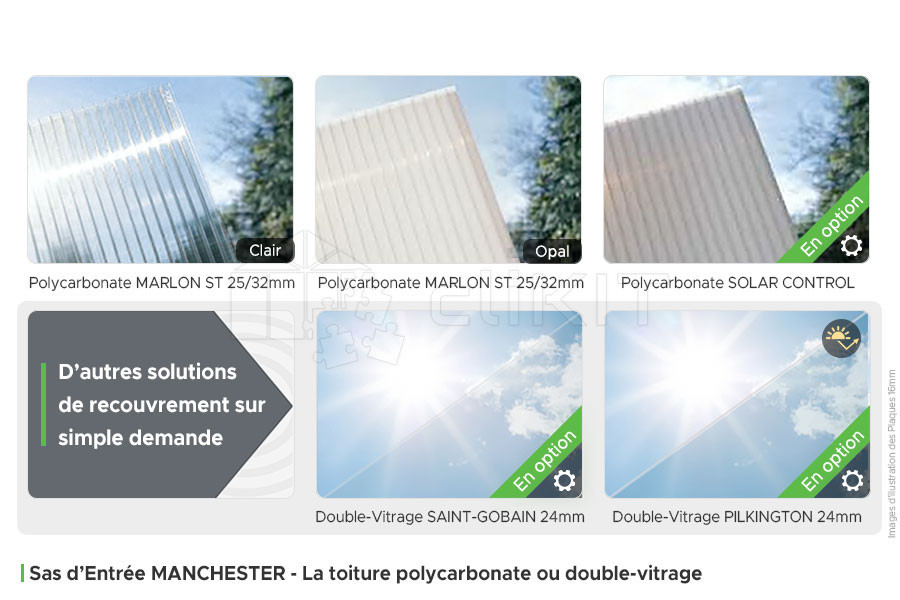

Polycarbonate or glass roofing

Photo of the Clear Tint Polycarbonate Polycarbonate
Clear
Photo of the Opal Tint Polycarbonate Polycarbonate
Opal
Photo of the PLANITHERM double glazing Double glazing
PLANITHERM
Photo of the PILKINGTON double glazing Double glazing
PILKINGTON

3 types of opening available

Diagram of the sliding frame Sliding frame
Diagram of the double French door Double French door
Diagram of the simple French door Simple French door

3 window models to choose from

Diagram of the opening window frame Opening window frame
Diagram of the sliding window frame Sliding frame
Diagram of the optional transom window Optional transom window
See our customers' photos>

A unique roofing concept

The MANCHESTER Model Entry Porch features a reinforced aluminum roof structure with PVC-U covers.

The multi-chamber covers act as an additional insulating layer and increase the overall performance of the roofing. The aluminum wall plate ensures the maintenance of your roof and the PVC rainwater downpipe is aesthetic and discreet

The combination of aluminum and PVC ensures much better thermal insulation thanks to the PVC capping. The latter further limits the transmission of external temperature absorbed by the aluminum structure. This forms a thermal barrier known as a thermal break.

Thanks to the characteristics of PVC, thermal performance is optimized and the level of condensation is greatly reduced.

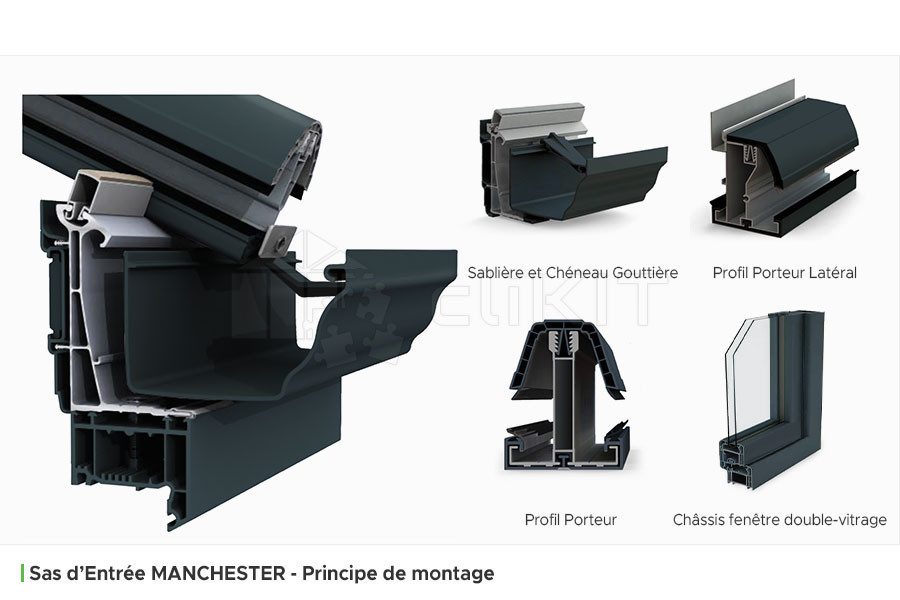

Photo of the Assembly Principle
My online quote

Custom-designed profiles

  • Double-chamber PVC-U cover for improved thermal performance and reduced risk of condensation
  • Variable clip position for perfect glazing adjustment
  • Cover lugs for enhanced and secure hold
  • Aluminum load-bearing profile guaranteeing greater resistance
  • Discreet 10mm seal that adapts to the roof tolerance
  • Multiple chamber concealed under seals for secondary drainage
  • Wide capping for greater stability
  • PVC-U capping for improved aesthetics
Numbered diagram of the Load-Bearing Profile of the Kit Entry Porch

Customize your project as you wish

CliKIT gives you the possibility to carry out your 100% custom-made project by adapting to your needs and desires. Standard configurations are without additional charges. If you would like a personalized configuration, we invite you to attach a plan to your quote request. You can also send it to us by email at contact@clikit.fr.

Standard configurations

Aluminum and PVC: the perfect combination

Waterproofing, energy efficiency, security, style and elegance: our frames have all the assets to withstand external aggressions (wind, snow, pollution, sea spray, etc.).

Your entry porch is equipped with DECEUNINCK 70mm multi-chamber reinforced PVC frames, mounted on an aluminum framework, offering exceptional thermal and sound insulation quality, easy maintenance, impact resistance and anti-condensation properties.

The PVC frames are assembled, then screwed by you onto an aluminum framework to rigidify the whole structure.

Your choice of opening can include French casement windows, sliding windows, top-hung transom windows, as well as French casement or sliding opening windows.

Photo of the window frames of the Entry Porch

3 door models to choose from

3 window models to choose from

My online quote

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing characteristic of the polycarbonate raw material and its resistance to high temperatures.

Photo of the Polycarbonate Panel models

The COMFORT Pack: 25 and 32mm Anti-UV Polycarbonate

The MARLON ST 25 and 32mm roofing panels are UV-treated and guaranteed anti-yellowing. This polycarbonate is highly impact-resistant and provides thermal insulation of 1.25 W/m²K or 1.4 W/m²K. It is available in Clear, Opal or SolarControl (opaque).

These panels provide natural lighting with minimal heat loss for a better overall energy balance.

 MARLON ST Polycarbonate
Clear Tint
MARLON ST Polycarbonate
Opal Tint
MARLON ST Polycarbonate
Solar Control
BRETT MARTIN brand logo Photo of the MARLON ST Clear Polycarbonate Photo of the MARLON ST Opal Polycarbonate Photo of the MARLON ST SolarControl Polycarbonate
Panel Tint Clear Tint Opal Tint Opal Anti-Heat Tint
Thickness 25mm 32mm 25mm 32mm 25mm 32mm
Weight per m² 3.1kg 3.6kg 3.1kg 3.6kg 3.1kg 3.6kg
Light transmission 62% 64% 28% 33% 7% 4%
U insulation value 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K
Retained energy (1-g) 38% 45% 57% 65% 86% 92%

The LUX Pack: 24mm insulating double glazing

This option allows you to replace the polycarbonate with a PLANITHERM 24mm double-glazed roof reinforced with Argon gas. For maximum brightness and optimal insulation, treat yourself to the LUX Pack.

Depending on the orientation of your roof, heat-resistant glazing is recommended to maximize control of solar gain in summer.

 SAINT-GOBAIN Double Glazing
PLANITHERM 24mm
PILKINGTON Double Glazing
ACTIV 24mm
Saint-Gobain and Pilkington brand logos Photo of the Saint-Gobain double glazing Photo of the Pilkington double glazing
Standard glazing Heat-resistant glazing
Thickness 24mm - 4/16/4 24mm - 4/16/4
Light transmission 80% 74%
U insulation value 1.1 W/m² K 1.0 W/m² K
Retained energy (1-g) 37% 49%

Low-emissivity double glazing for enhanced insulation

The Saint-Gobain PLANITHERM ULTRA N 28mm (4-20-4) double glazing is a low-emissivity glass.

Thanks to a chemical treatment, this glazing has the ability to repel the majority of heat towards the hottest point.

Filling with Argon gas provides much lower thermal inertia than the air used in standard glazing.

Thanks to this gas, your glazing will heat up or cool down much more slowly than standard double glazing.

Presentation of the Saint-Gobain brand

The advantages of Saint-Gobain double glazing

The Saint-Gobain PLANITHERM ULTRA N double glazing triples the thermal insulation performance compared to standard double glazing. In addition, it allows:

  • A reduction in heating costs.
  • An improvement in comfort:
    • no cold zone near glazed panels
    • maximum use of space
    • reduced risk of condensation on the inner glass
  • High light transmission and solar gain
  • Great architectural freedom (neutral appearance)
  • Environmental protection through the reduction of CO2 emissions
Diagram showing the insulation performance of Saint-Gobain double glazing

Support resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your entry porch. You will notice quite quickly the simplicity of installation of the system. Your CliKIT entry porch will arrive in kit form containing the roof structure, roofing elements, frames, glazing and base, accessories, as well as the installation guide.

Link to an online quote

To successfully complete the assembly of your entry porch, you will need the following tools:

  • Tape measure
  • Clamp
  • Ø 4.5mm metal drill bit
  • Socket wrench 10 and 13mm
  • 13 and 17mm flat wrench
  • Screwdriver
  • Cutter
  • Drill
  • Screwdriver (electric)
  • Silicone gun
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, please feel free to view all our documents made available to you:

Installation Guide pictogramInstallation Guide>
Assembly Video pictogramAssembly Video>
Photo Book pictogramPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you throughout your entire project.

A dedicated technical advisor will work with you to refine your project and best meet your needs before and after your order, as well as throughout the entire assembly phase.

For any information, please do not hesitate to contact our team who will be happy to assist you:

  • Monday to Friday from 8:30 am to 12:30 pm and from 1:30 pm to 6:00 pm via our switchboard at +33 (0) 3 66 72 15 14
  • At any time by email at contact@clikit.fr

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Manager

Olivier Regnier Sales Manager

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor (female)

Fiona Rossignol Technical Advisor (female)

My online quote
Manufacturing lead time pictogram

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The definitive lead time is only known at the start of production, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Free delivery pictogram

Free delivery

Our kit entry porches are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranties pictogram

Warranties

10-year warranty on the structure and joinery, 5 years for double glazing, 2 years for accessories.

The 70mm multi-chamber PVC profiles are reinforced and comply with European Standard NE12608.

The insulating double glazing meets standards NE1279 and NE12600.
