Configure your MANCHESTER V2 Entry Airlock

  • Made in England
  • Version: with Full Glazing
  • Dimensions: custom-made
  • Structure: PVC, aluminium
  • Roof: polycarbonate, double glazing
  • Door: sliding, single, double
  • Optimal insulation and brightness
  • With thermal break
*Required step
Your configuration

Factory direct price (incl. tax)

4,777.24
Instead of 5,308.04

Final price (tax incl.)
4,777.24

Summary

My Online Quote Delivery Lead Time PictoLead time: 10 to 12 weeks*
  • Delivery Picto Free
    Delivery*
  • Manufacturing Picto Made-to-
    Measure
  • Warranty Picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*

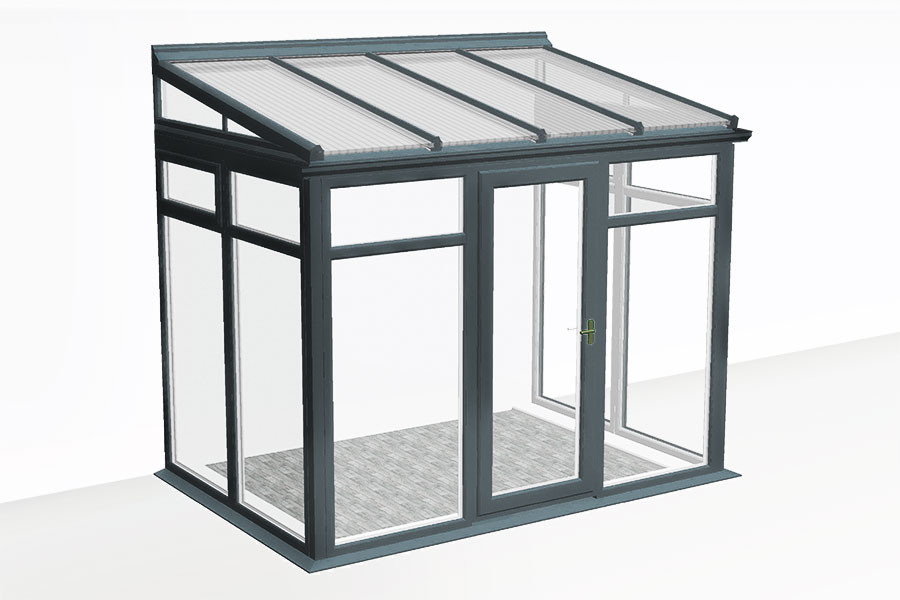

MANCHESTER V2 Entry Airlock Full Glazing Version

Give your home a warm welcome!

The MANCHESTER V2 Entry Airlock Full Glazing Version features a roof with a variable pitch angle of 5 to 25°, of the lean-to type. The lateral trapezoids are fitted with 28mm double glazing, providing excellent brightness. A premium Entry Airlock designed with quality materials, the MANCHESTER model adapts to all house styles while offering additional living space at an always unbeatable price!

Square or rectangular in shape, the window frames, assembled and screwed onto an aluminium frame, are made of 70mm multi-chamber reinforced PVC. The roof structure is aluminium and the capping is PVC.

Thanks to its unique assembly concept, the installation of your entry airlock is simplified. Each element is numbered and identified on a personalised assembly plan. For your comfort, you have the choice between a 25/32mm polycarbonate roof or 24mm double glazing.

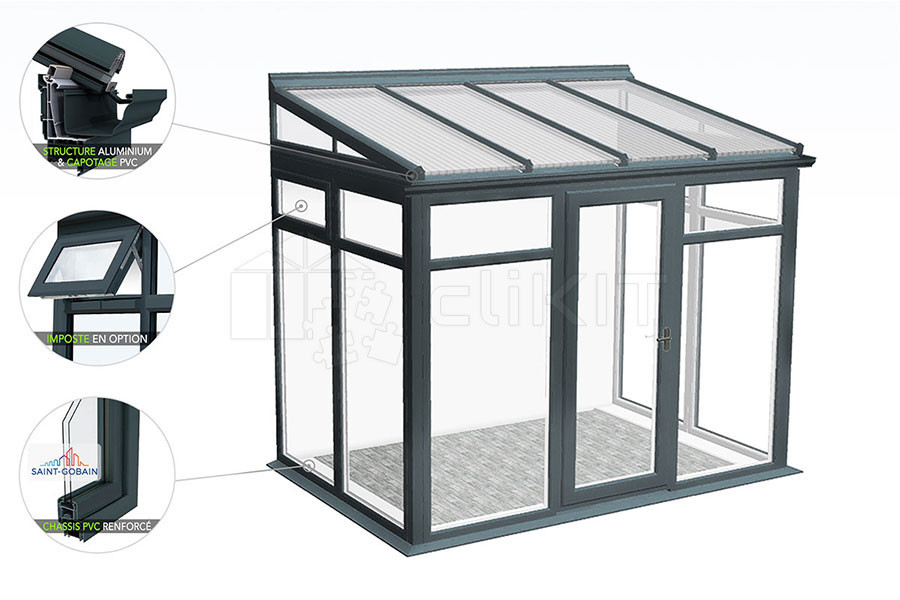

Diagram of the MANCHESTER V2 Entry Airlock Full Glazing

Aluminium structure & PVC-U capping

Pictogram of the White Colour White
Pictogram of the Mixed Anthracite Grey / White Colour Anthracite Grey ext.
White int.
Pictogram of the Mixed Golden Oak / White Colour Golden Oak ext.
White int.
Pictogram of the Golden Oak Colour Golden Oak
Pictogram of the Mixed Mahogany / White Colour Mahogany ext.
White int.
Pictogram of the Mahogany Colour Mahogany

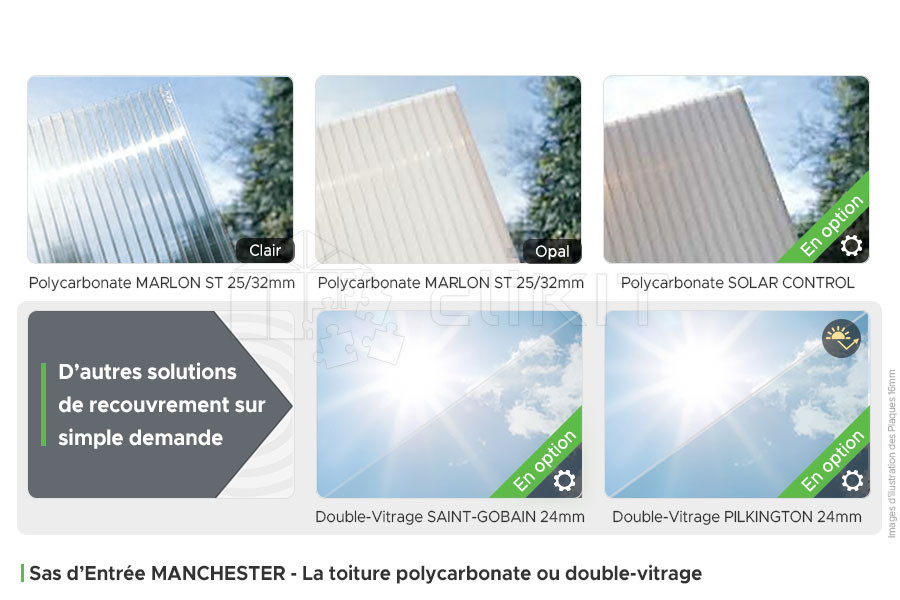

Polycarbonate or glass roof

Photo of the Clear Tint Polycarbonate Polycarbonate
Clear
Photo of the Opal Tint Polycarbonate Polycarbonate
Opal
Photo of the PLANITHERM Double Glazing Double glazing
PLANITHERM
Photo of the PILKINGTON Double Glazing Double glazing
PILKINGTON

3 types of opening panels available

Diagram of the sliding frame Sliding frame
Diagram of the Double French Door Double French door
Diagram of the single French door Single French door

3 window models to choose from

Diagram of the opening window frame Opening window frame
Diagram of the sliding window frame Sliding frame
Diagram of the optional transom Optional transom
See our customers' photos>

A unique roof concept

The MANCHESTER Model Entry Airlock features a reinforced aluminium roof structure with PVC-U covers.

The multi-chamber covers act as an additional insulating layer and increase the overall performance of the roof. The aluminium wall plate ensures the holding of your roof and the PVC rainwater downpipe is aesthetically pleasing and discreet.

The combination of aluminium and PVC ensures significantly better thermal insulation thanks to the PVC capping. The latter further limits the transmission of outdoor temperature absorbed by the aluminium structure. This forms a thermal barrier known as a thermal bridge break.

Thanks to the properties of PVC, thermal performance is optimised and the level of condensation is significantly reduced.

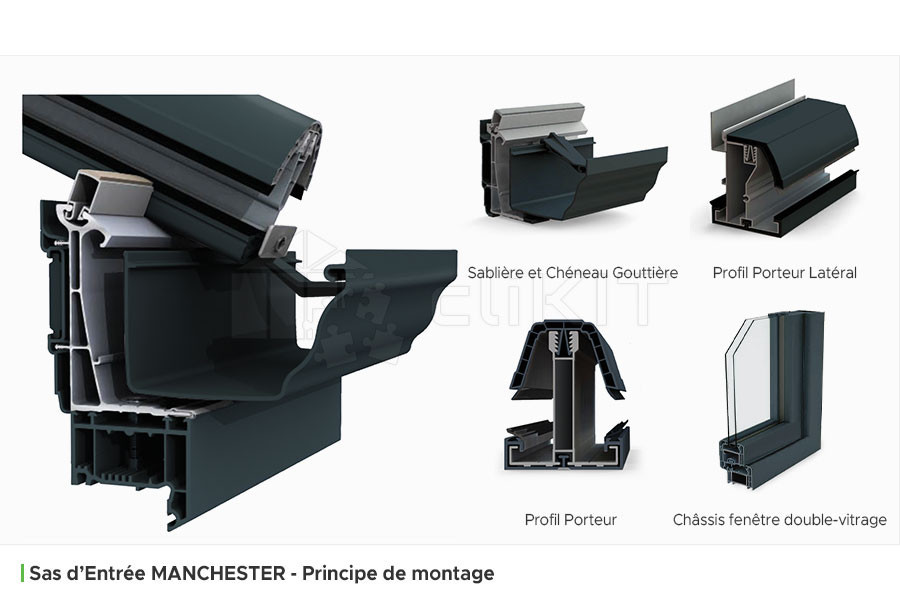

Photo of the Assembly Principle
My online quote

Custom-designed profiles

  • Double-chamber PVC-U cover for improved thermal performance and reduced risk of condensation
  • Variable clip position for perfect glazing adjustment
  • Lugs on the cover for reinforced and secure holding
  • Aluminium carrier ensuring greater resistance
  • Discreet 10mm seal that adapts to the roofing tolerance
  • Multiple chamber concealed under the seals for secondary drainage
  • Wide capping for greater stability
  • PVC-U capping for improved aesthetics
Numbered diagram of the Entry Airlock Carrier in Kit

Customise your project as you wish

CliKIT gives you the possibility to carry out your project 100% custom-made, adapting to your needs and desires. Standard configurations have no extra charges. If you would like a personalised configuration, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

Standard configurations

Aluminium and PVC: the perfect combination

Waterproofing, energy efficiency, security, style and elegance: our frames have all the assets to withstand external aggressions (wind, snow, pollution, sea spray, etc.).

Your entry airlock is fitted with DECEUNINCK 70mm multi-chamber reinforced PVC frames, mounted on an aluminium frame, offering exceptional thermal and acoustic insulation quality, easy maintenance, impact resistance and anti-condensation.

The PVC frames are assembled, then screwed by you onto an aluminium frame to rigidify the whole structure.

Your choice of opening can include French casement or sliding panels, fanlight transom openers, as well as French casement or sliding opening windows.

Photo of the Entry Airlock window frames

3 door models to choose from

3 window models to choose from

My online quote

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key benefit for fire safety thanks to the self-extinguishing characteristic of the polycarbonate raw material and its resistance to high temperatures.

Photo of the Polycarbonate Panel models

The COMFORT Pack: Anti-UV 25 and 32mm Polycarbonate

The MARLON ST 25 and 32mm roofing panels are UV-treated and guaranteed anti-yellowing. This polycarbonate is highly impact-resistant and provides thermal insulation of 1.25 W/m²K or 1.4 W/m²K. It is available in Clear, Opal or SolarControl (opaque).

These panels provide natural lighting with minimal heat loss for a better overall energy balance.

 MARLON ST Polycarbonate
Clear Tint
MARLON ST Polycarbonate
Opal Tint
MARLON ST Polycarbonate
Solar Control
BRETT MARTIN brand logo Photo of the MARLON ST Clear Polycarbonate Photo of the MARLON ST Opal Polycarbonate Photo of the MARLON ST SolarControl Polycarbonate
Panel Tint Clear Tint Opal Tint Opal Heat-Control Tint
Thickness 25mm 32mm 25mm 32mm 25mm 32mm
Weight per m² 3.1kg 3.6kg 3.1kg 3.6kg 3.1kg 3.6kg
Light transmission 62% 64% 28% 33% 7% 4%
U insulation value 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K
Retained energy (1-g) 38% 45% 57% 65% 86% 92%

The LUX Pack: 24mm insulating double glazing

This option allows the polycarbonate to be replaced by a PLANITHERM 24mm double-glazed roof reinforced with Argon gas. For maximum brightness and optimal insulation, treat yourself to the LUX Pack.

Depending on the orientation of your roof, a heat-control glazing is recommended to maximise control of solar heat gain in summer.

 SAINT-GOBAIN Double Glazing
PLANITHERM 24mm
PILKINGTON Double Glazing
ACTIV 24mm
Logo of the Saint-Gobain and Pilkington brands Photo of the Saint-Gobain Double Glazing Photo of the Pilkington Double Glazing
Standard glazing Heat-control glazing
Thickness 24mm - 4/16/4 24mm - 4/16/4
Light transmission 80% 74%
U insulation value 1.1 W/m² K 1.0 W/m² K
Retained energy (1-g) 37% 49%

Low-emissivity double glazing for enhanced insulation

The Saint-Gobain PLANITHERM ULTRA N 28mm (4-20-4) double glazing is a low-emissivity glass.

Thanks to a chemical treatment, this glazing has the ability to repel the majority of heat energy towards the hottest point.

Argon gas filling provides significantly lower thermal inertia than the air used in standard glazing.

Thanks to this gas, your glazing will heat up or cool down much more slowly than standard double glazing.

Presentation of the Saint-Gobain brand

The benefits of Saint-Gobain double glazing

The Saint-Gobain PLANITHERM ULTRA N double glazing allows the thermal insulation performance to be tripled compared to standard double glazing. In addition, it provides:

  • A reduction in heating costs.
  • An improvement in comfort :
    • no cold zone near glazed walls
    • maximum use of space
    • reduced risk of condensation on interior glass
  • High light transmission and solar gain
  • Great architectural freedom (neutral appearance)
  • Protection of the environment through reduced CO2 emissions
Diagram showing the insulation performance of Saint-Gobain Double Glazing

Support resources to assist you

Our technical team remains available and attentive throughout the entire installation phase of your entry airlock. You will quickly notice the simplicity of the installation system. Your CliKIT entry airlock will arrive as a kit containing the roof structure, roofing elements, frames, glazing and base, accessories, as well as the installation guide.

Link to an online quote

To successfully complete the installation of your entry airlock, you will need the following tools:

  • Tape measure
  • Clamp
  • Metal drill bit Ø 4.5mm
  • 10mm and 13mm socket wrench
  • 13mm and 17mm flat spanner
  • Screwdriver
  • Cutter
  • Drill
  • Screwdriver drill
  • Silicone dispenser
  • Spirit level
  • Easel or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents available to you:

Pictogram of the Installation GuideInstallation Guide>
Pictogram of the Assembly VideoAssembly Video>
Pictogram of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our experts and building enthusiasts to guide you through every step of the process.

A dedicated technical advisor is assigned to you to refine your project together and best respond to your requests before and after your order, as well as throughout the entire installation phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

  • Monday to Friday from 8:30 am to 12:30 pm and from 1:30 pm to 6:00 pm via our switchboard at +33 (0) 3 66 72 15 14
  • At any time by email at contact@clikit.fr

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Pictogram of the manufacturing lead time

Manufacturing lead time

For more information regarding manufacturing and delivery* lead times, consult our page on Delivery Terms>

*The final lead time is only known at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Pictogram of free delivery

Free delivery

Our kit entry airlocks are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Pictogram of Guarantees

Guarantees

10-year guarantee on the structure and joinery, 5 years for double glazing, 2 years for accessories.

The 70mm multi-chamber PVC profiles are reinforced and compliant with European Standard NE12608.

The insulating double glazing meets standards NE1279 and NE12600.
