Configure your MANCHESTER V4 Entry Vestibule

  • Made in England
  • Version: Glazing without Transom
  • Dimensions: custom-made
  • Structure: PVC, aluminium
  • Roof: polycarbonate, double glazing
  • Door: sliding, single, double
  • Optimal insulation and brightness
  • With thermal bridge break
*Required step
Your configuration

Factory direct price (incl. tax)

4,777.24
Instead of 5,308.04

Final price (tax incl.)
4,777.24

Summary

My online quote Delivery time pictoLead time: 10 to 12 weeks*
  • Delivery picto Free
    delivery*
  • Manufacturing picto Custom-
    made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
MANCHESTER V4 Entry Porch Full Base Version

Give your home a warm welcome!

The MANCHESTER V4 Entry Porch Full Base Version features a variable roof pitch from 5 to 25°, of the lean-to type. The side trapezoids are fitted with 28mm double glazing, providing excellent brightness. A premium Entry Porch designed with quality materials, the MANCHESTER model adapts to all house styles while offering additional living space at an unbeatable price!

Basically square or rectangular, the window frames, assembled and screwed onto an aluminium frame, are made of reinforced multi-chamber 70mm PVC. The roof structure is aluminium and the capping is PVC.

Thanks to its unique assembly concept, the installation of your entry porch is simplified. Each element is numbered and identified on a personalised assembly plan. For your convenience, you have the choice between a 25/32mm polycarbonate roof or 24mm double glazing.

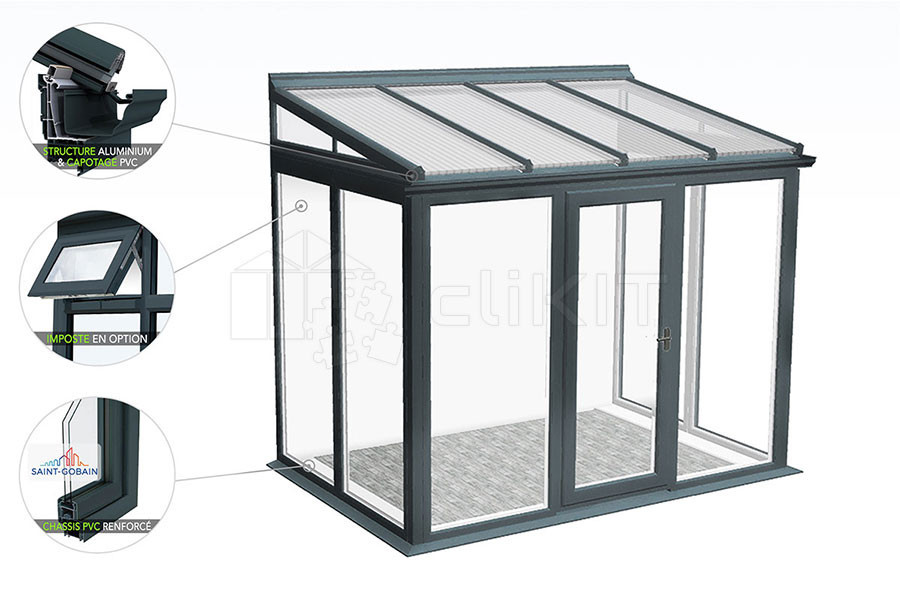

MANCHESTER V4 Full Base Entry Porch Diagram

Aluminium structure & PVC-U capping

White Colour Pictogram White
Pictogram of the Mixed Colour Anthracite Grey / White Anthracite Grey ext.
White int.
Pictogram of the Mixed Colour Golden Oak / White Golden Oak ext.
White int.
Golden Oak Colour Pictogram Golden Oak
Pictogram of the Mixed Colour Mahogany / White Mahogany ext.
White int.
Mahogany Colour Pictogram Mahogany

Polycarbonate or glass roofing

Photo of the Clear Tint Polycarbonate Polycarbonate
Clear
Opal Tint Polycarbonate Photo Polycarbonate
Opal
Photo of the PLANITHERM Double Glazing Double glazing
PLANITHERM
Photo of PILKINGTON Double Glazing Double glazing
PILKINGTON

3 types of opening available

Sliding Frame Diagram Sliding frame
Double French Door Diagram Double French Door
Single French door diagram Single French door

3 window models to choose from

Casement Window Frame Diagram Casement window frame
Sliding Window Frame Diagram Sliding frame
Optional Transom Diagram Transom as an option
See our customers' photos>

A unique roofing concept

The MANCHESTER Entry Porch Model features a reinforced aluminium roof structure with PVC-U covers.

The multi-chamber covers act as an additional insulating layer and increase the overall roof performance. The aluminium wall plate ensures your roof is held in place and the PVC rainwater downpipe is both aesthetic and discreet.

The combination of aluminium and PVC provides much better thermal insulation thanks to the PVC capping. This further limits the transmission of the external temperature absorbed by the aluminium structure. This forms a thermal barrier known as a thermal break.

Thanks to the properties of PVC, thermal performance is optimised and the level of condensation is greatly reduced.

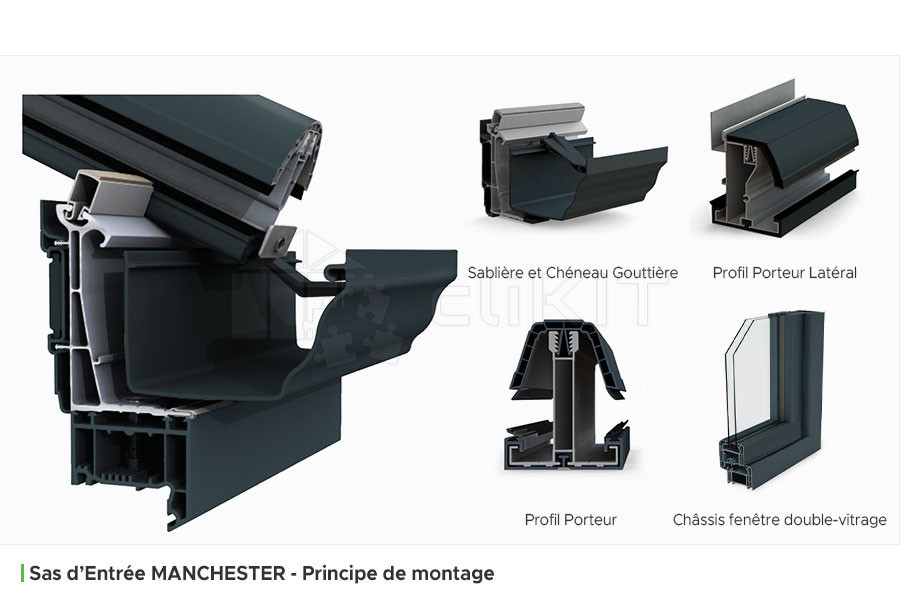

Assembly Principle Photo
My online quote

Custom-designed profiles

  • Double-chamber PVC-U cover for improved thermal performance and reduced risk of condensation
  • Variable clip position for perfect glazing adjustment
  • Lugs on the cover for reinforced and secure hold
  • Aluminium load-bearing profile ensuring greater strength
  • Discreet 10mm gasket that adapts to the roof tolerance
  • Multiple chamber concealed under gaskets for secondary drainage
  • Wide cover for greater stability
  • PVC-U capping for improved aesthetics
Numbered diagram of the Entry Porch Kit Load-Bearing Frame

Customise your project as you wish

CliKIT gives you the possibility to carry out your project 100% custom-made, adapting to your needs and wishes. Standard configurations have no additional costs. If you would like a personalised configuration, we invite you to include a plan with your quote request. You can also send it to us by email at contact@clikit.fr.

Standard configurations

Aluminium and PVC: the perfect combination

Waterproofing, energy efficiency, safety, style and elegance: our frames have all the assets to withstand external aggressions (wind, snow, pollution, sea spray, etc.).

Your entry porch is fitted with DECEUNINCK multi-chamber 70mm reinforced PVC frames, mounted on an aluminium frame, offering exceptional thermal and acoustic insulation quality, easy maintenance, impact resistance and anti-condensation properties.

The PVC frames are assembled, then screwed by yourself onto an aluminium frame to rigidify the whole structure.

Your choice of opening can include French casement openers, sliding openers, hopper transoms, as well as French casement or sliding opening windows.

Photo of the Entry Porch Window Frames

3 door models to choose from

3 window models to choose from

My online quote

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more impact-resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing properties of the polycarbonate raw material and its resistance to high temperatures.

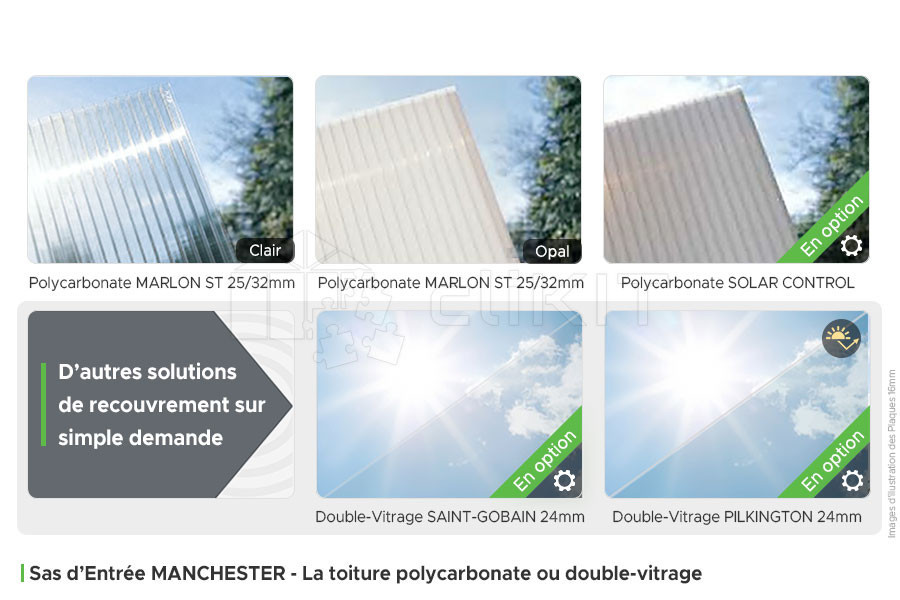

Photo of the Polycarbonate Panel Models

The COMFORT Pack: 25 and 32mm Anti-UV Polycarbonate

MARLON ST 25 and 32mm roofing panels are UV-treated and guaranteed anti-yellowing. This polycarbonate is highly impact-resistant and provides thermal insulation of 1.25 W/m²K or 1.4 W/m²K. It is available in Clear, Opal or SolarControl (opaque).

These panels provide natural lighting with minimal heat loss for a better overall energy balance.

 MARLON ST Polycarbonate
Clear Tint
MARLON ST Polycarbonate
Opal Tint
MARLON ST Polycarbonate
Solar Control
BRETT MARTIN brand logo Photo of MARLON ST Clear Polycarbonate Photo of MARLON ST Opal Polycarbonate Photo of MARLON ST SolarControl Polycarbonate
Panel Tint Clear Tint Opal Tint Opal Anti-Heat Tint
Thickness 25mm 32mm 25mm 32mm 25mm 32mm
Weight per m² 3.1kg 3.6kg 3.1kg 3.6kg 3.1kg 3.6kg
Light transmission 62% 64% 28% 33% 7% 4%
U insulation value 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K
Retained energy (1-g) 38% 45% 57% 65% 86% 92%

The LUX Pack: 24mm insulating double glazing

This option allows you to replace the polycarbonate with an Argon gas-reinforced PLANITHERM 24mm double-glazing roof. For maximum brightness and optimal insulation, treat yourself to the LUX Pack.

Depending on the orientation of your roof, heat-control glazing is recommended to maximise the control of solar heat gain in summer.

 Double Glazing SAINT-GOBAIN
PLANITHERM 24mm
Double Glazing PILKINGTON
ACTIV 24mm
Saint-Gobain and Pilkington brand logos Photo of Saint-Gobain Double Glazing Pilkington Double Glazing Photo
Standard glazing Heat-control glazing
Thickness 24mm - 4/16/4 24mm - 4/16/4
Light transmission 80% 74%
U insulation value 1.1 W/m² K 1.0 W/m² K
Retained energy (1-g) 37% 49%

Low-emissivity double glazing for enhanced insulation

The Saint-Gobain PLANITHERM ULTRA N 28mm (4-20-4) double glazing is a low-emissivity glass.

Thanks to a chemical treatment, this glazing has the ability to repel the majority of heat towards the warmest point.

Argon gas filling provides much lower thermal inertia than the air used in standard glazing.

Thanks to this gas, your glazing will heat up or cool down much more slowly than standard double glazing.

Presentation of the Saint-Gobain brand

The advantages of Saint-Gobain double glazing

Saint-Gobain PLANITHERM ULTRA N double glazing triples the thermal insulation performance compared to standard double glazing. In addition, it provides:

  • A reduction in heating costs.
  • An improvement in comfort:
    • no cold zone near glazed surfaces
    • maximum use of space
    • reduced risk of condensation on the interior glass
  • High light transmission and solar gain
  • Great architectural freedom (neutral appearance)
  • Environmental protection through reduction of CO2 emissions
Diagram showing the insulation performance of Saint-Gobain double glazing

Resources to assist you

Our technical team remains available and at your disposal throughout the entire assembly phase of your entry porch. You will notice the simplicity of the installation system quite quickly. Your CliKIT entry porch will arrive as a kit containing the roof structure, roofing elements, frame and glazing components, base elements, accessories, as well as the installation guide.

Link to an online quote

To successfully complete the assembly of your entry porch, you will need the following tools:

  • Tape measure
  • Clamp
  • Ø 4.5mm metal drill bit
  • Wrench with 10 and 13mm sockets
  • 13 and 17mm flat spanner
  • Screwdriver
  • Cutter
  • Drill
  • Screwdriver drill
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, please feel free to view all our documents available to you:

Installation Guide PictogramInstallation Guide>
Assembly Video PictogramAssembly Video>
Photo Book PictogramPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you every step of the way.

A dedicated technical advisor is assigned to you to refine your project together and best meet your needs before and after your order, as well as throughout the entire assembly phase.

For any enquiry, please do not hesitate to contact our team who will be happy to assist you:

  • Monday to Friday from 8:30 am to 12:30 pm and from 1:30 pm to 6:00 pm via our switchboard at +33 (0) 3 66 72 15 14
  • At any time by email at contact@clikit.fr

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor (male)

Jérôme Menu Technical Advisor

Photo of the Technical Advisor (female)

Fiona Rossignol Technical Advisor

My online quote
Manufacturing Lead Time Pictogram

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known upon production start, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Free Delivery Pictogram

Free delivery

Our kit entry porches are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranties Pictogram

Warranties

10-year warranty on the structure and joinery, 5 years for double glazing, 2 years for accessories.

The 70mm multi-chamber PVC profiles are reinforced and comply with European Standard NE12608.

The insulating double glazing complies with standards NE1279 and NE12600.
