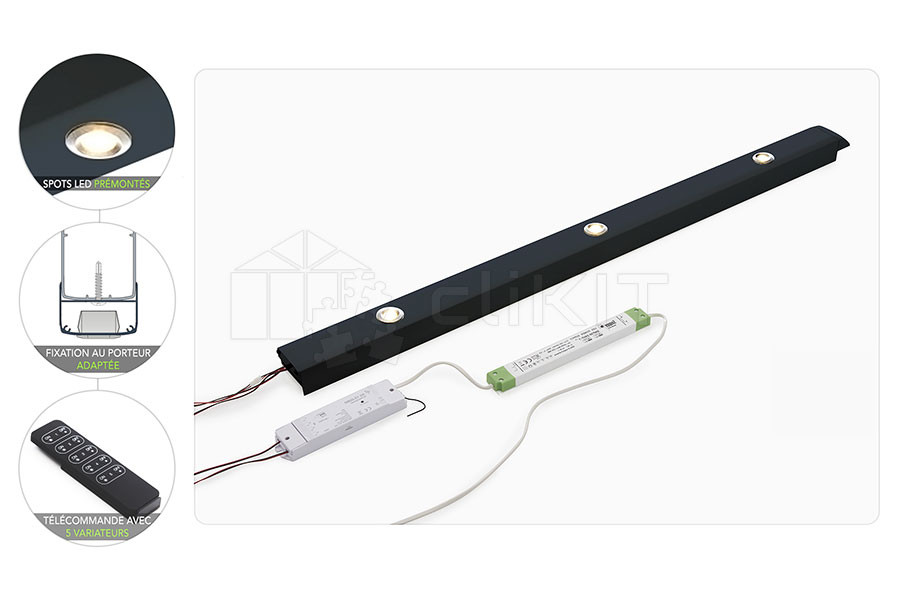

The CLIMALED Lighting Profile Kit and Pre-assembled LED Spots offers the ideal solution for lighting our pergola models. Ready-to-install, the clean design of this pergola lighting is specially designed for easy installation with perfect integration into the load-bearing profiles of your patio roof.

Thanks to its 5-channel soft-touch remote control, you can with a simple press vary the brightness intensity by combining different light levels: one side lit up for reading and another dimmed for relaxing — anything goes!

• Aluminium lighting profile lacquered in the colour of your pergola (White RAL 9010, Anthracite Grey RAL 7016)
• Maximum 3 LED spots per profile, matte aluminium finish
• Straight finishing profile for CLIMALUX, CLIMALUX SOFTLINE and CLIMALUX TRADITION aluminium pergolas
• 230/24 V transformer: type and quantity depending on the number of spots/lighting profiles
• 5-channel remote control with light intensity dimmer
• Dimmer and receiver for the remote control: one per transformer
• Screws and mounting accessories

For a simple and quick installation, the CLIMALED Lighting Profile Kit is pre-wired and you have the option of concealing the receiver and transformer in the load-bearing profile or directly in the lighting profile. The position of the spots and the kit dimensions are automatically calculated based on the depth of your pergola if you opt for the pre-drilling option. The kits can also be ordered and installed at a later stage! To do so, simply provide us with the exact depth of your pergola.

The arrangement of the LED spots can come in several versions depending on your pergola model, your dimensions and your preferences. Here are a few configuration examples:

• Aluminium lighting profile with a height of 43mm and width of 63mm, visible height of 28mm
• Load-bearing profile of your pergola onto which the kit is screwed
• 3 W LED spots, with an intensity of 700 mA per spot, external diameter of 35mm
