Configure your Mixed Side Panel for Pergola

  • Made in Belgium
  • Width: up to 4500mm
  • Height: up to 3060mm
  • Panel: aluminum & polycarbonate
  • Closing: fixed panel
  • Polycarbonate: clear, opal
  • Weather protection
  • Cuttable profiles
*Required step
Your configuration

Factory direct price (incl. tax)

614.00
Instead of 722.35

Final price (tax incl.)
614.00

Summary

My online quote Delivery time pictogramLead time: 3 to 4 weeks* Premium color options: 8 to 10 weeks
  • Delivery pictogram Free
    delivery*
  • Manufacturing pictogram Made-to-
    Measure
  • Warranty pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*

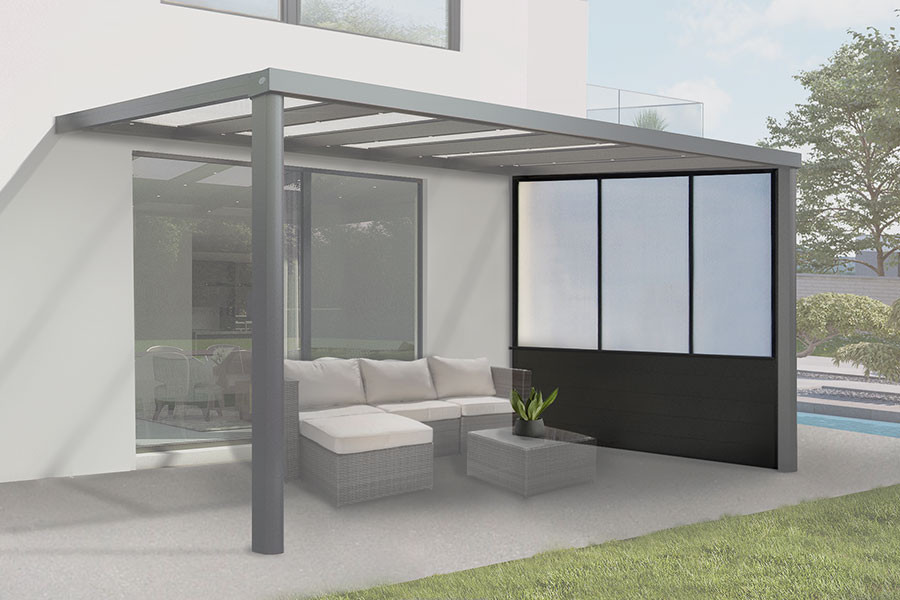

Mixed Side Panel Kit for Pergola

Finally enjoy your outdoor space!

The Mixed Side Panel Kit for Aluminum Pergola offers the ideal solution to shelter yourself from the sun, wind, rain, or even to delimit a private space.

This pergola panel system consists of a solid 800mm base in powder-coated aluminum and an upper section in 10mm polycarbonate.

The aluminum profiles can be cut to adapt to depths of up to 4m.

Diagram of the Mixed Side Panel for Pergola
Title bullet pictoPowder-coated aluminum
Standard Color Brilliant White CliKIT Anthracite Grey Color 7016 Textured Multiple Non-Standard Colors +20% Surcharge
Brilliant White CliKIT Anthracite Grey 7016 Textured Non-Standard (surcharge on quote)
Color Selection (Flat rate €275 incl. VAT)
Black Color 9005 Textured Black 9005 Textured Pure White Color 9010 Textured Pure White 9010 Textured Cream Color 9001 Gloss Cream 9001 Gloss
Alu Grey Color 9007 Textured Alu Grey 9007 Textured Alu White Color 9006 Textured Alu White 9006 Textured Metal Grey Color 9009 Textured Metal Grey 9009 Textured
Quartz Grey Color 7039 Textured Quartz Grey 7039 Textured Sepia Brown Color 8014 Textured Sepia Brown 8014 Textured Red Color 3004 Gloss Red 3004 Gloss
Title bullet picto10mm Polycarbonate Panels
Diagram of the 10mm Clear Polycarbonate Diagram of the 10mm Opal Polycarbonate
Clear Tint Opal Tint
See our customers' photos>

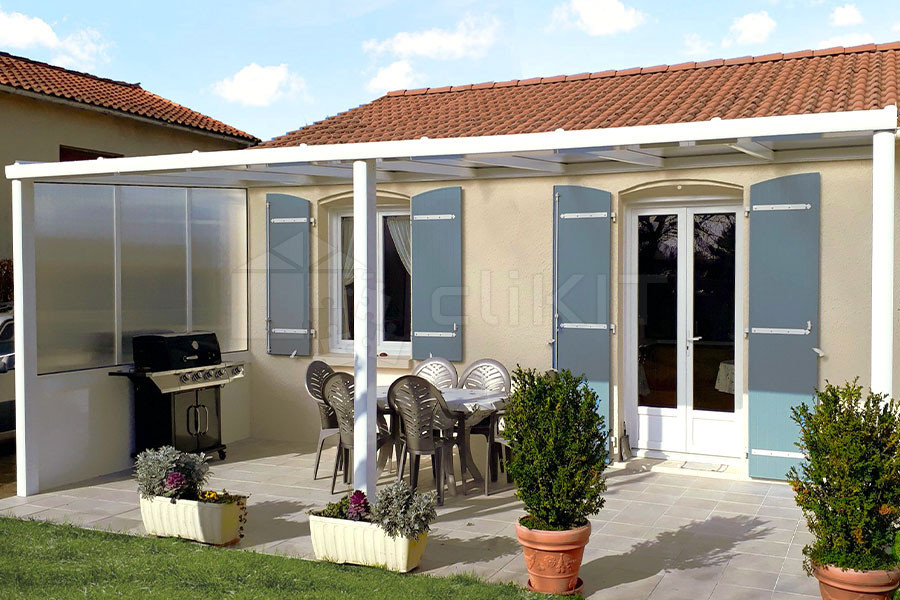

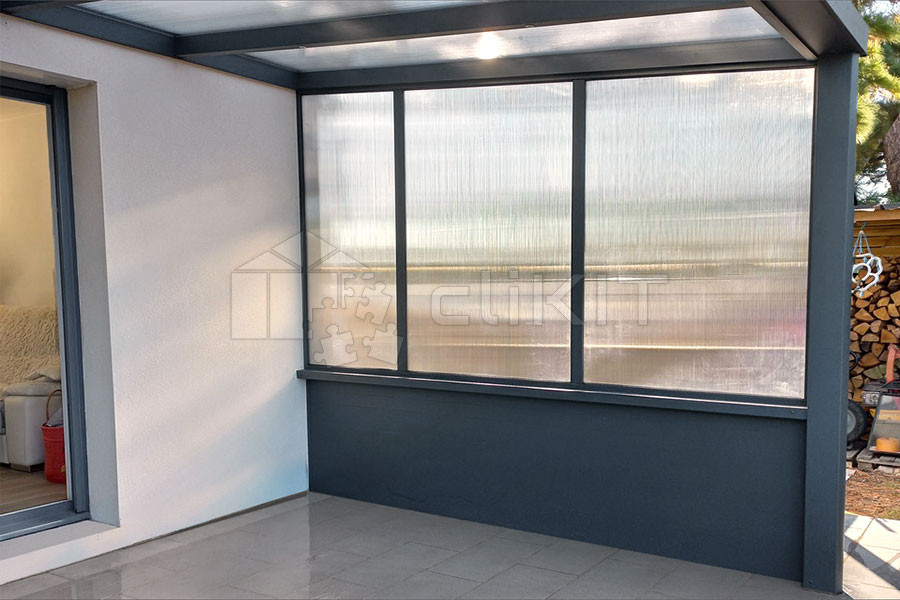

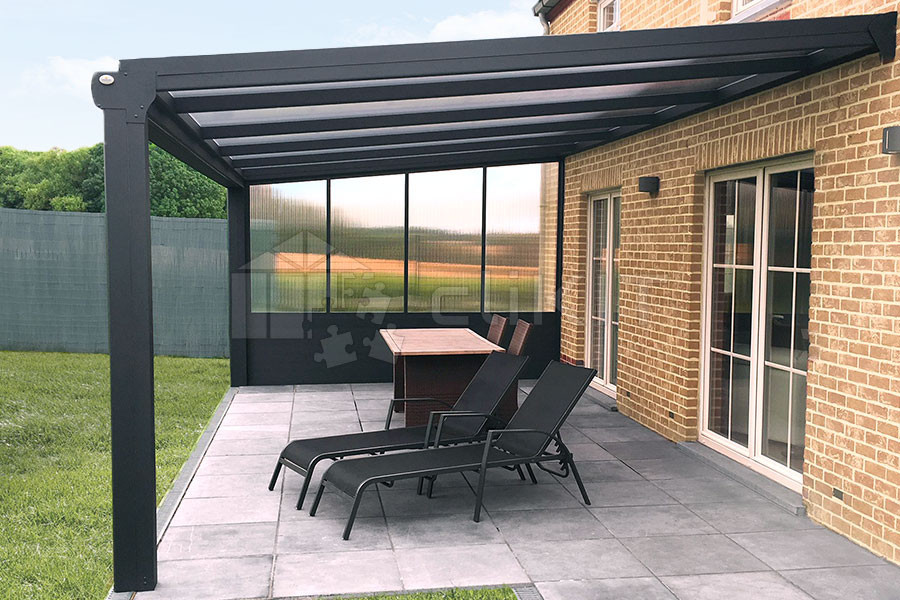

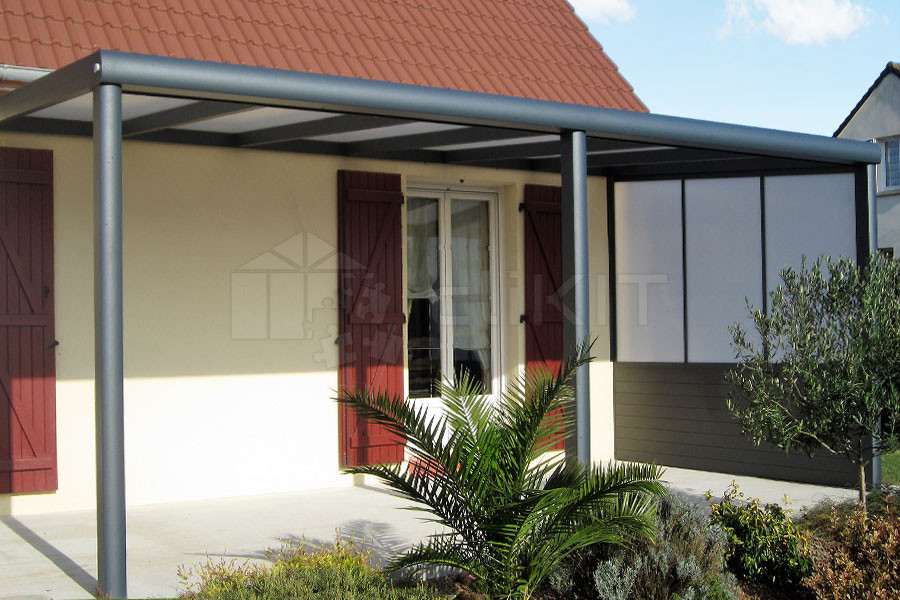

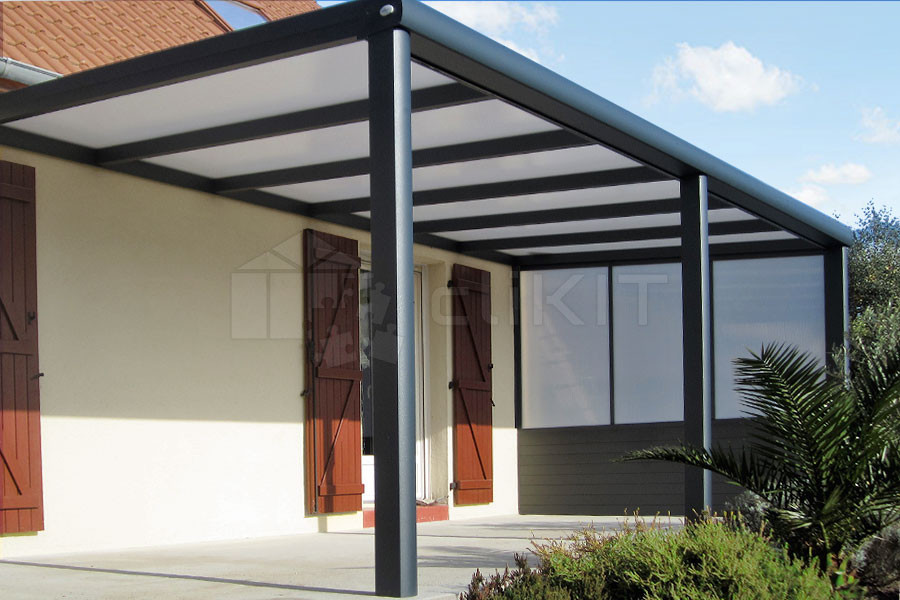

Photo no. 1 of the Mixed Side Panel for Pergola Photo no. 1 of the Mixed Side Panel for Pergola Photo no. 2 of the Mixed Side Panel for Pergola Photo no. 3 of the Mixed Side Panel for Pergola Photo no. 4 of the Mixed Side Panel for Pergola
Image of the Assembly Principle of the Solid Side Panel

A Powder-Coated Aluminum Structure

  • Powder-coated aluminum structure with QUALICOAT LABEL certification
  • Solid base composed of powder-coated aluminum infill slats
  • 10mm polycarbonate panel available in Opal or Clear tint
  • Side frame for polycarbonate panels
  • Clip-on finishing profile
  • U-shaped closing profiles
Numbered diagram of the Solid Side Panel Profiles

Custom-designed profiles

  • Picto no. 1Powder-coated aluminum infill slats
  • Picto no. 2U-shaped closing profiles
  • Picto no. 3Clip-on finishing profile
  • Picto no. 410mm thick polycarbonate panel
  • Picto no. 5Side frame for polycarbonate panel

All these parts allow for the efficient and cost-effective closing of the right or left gable ends of your pergola or conservatory while perfectly integrating into the overall design.

My online quote

A polycarbonate matching the tint of your roofing

The Polyclear polycarbonate panels with a thickness of 10mm offer the ideal solution to enclose a space on one or more sides of your pergola. The clear tint is preferred for greater brightness and better transparency, while the opal tint is preferred for its ability to filter light to reduce the sensation of glare.

They also offer a key advantage for fire safety thanks to the self-extinguishing characteristic of the polycarbonate raw material and its resistance to high temperatures.

4P Polycarbonate
10mm Clear
4P Polycarbonate
10mm Opal
Polyclear brand logo Diagram of the 10mm Clear Polycarbonate Diagram of the 10mm Opal Polycarbonate
Panel Width (mm) 1050/1200 1050/1200
Panel Tint Clear Tint Opal Tint
Weight per m² 1.75 kg 1.75 kg
Light transmission 68% 61%
U insulation value 2.0 W/m² K 2.5 W/m² K
Energy retained (1-g) 35% 39%
Sound insulation 17 dB 17 dB
Image of the Clear Polycarbonate
Image of the Opal Polycarbonate

Panels and accessories for all seasons!

Do you want to shelter yourself from the sun, wind, rain, or delimit a private space? No problem, we offer a wide range specially designed to meet all your expectations: Screen Awnings, Sliding Glass Curtains, Roof Awnings, Shade Sails, Side Panels... and much more!

Title bullet pictoBe sure to take a look at our essentials to upgrade your pergola!

Link to the Glass Curtains range Glass Curtains Link to the Awnings and Shade Sails range Awnings & Sails Links to the Side Panels range Side Panels

Resources to assist you

Our technical team remains available and at your disposal throughout the entire installation phase of your side panel. You will quickly notice the simplicity of the system's installation. It is possible to complete the assembly in just a few hours. Your CliKIT Mixed Side Panel will arrive as a kit containing the aluminum structure, closing profiles, polycarbonate panels, and accessories.

Contact Details and Online Quote Request

To successfully complete the assembly of your mixed side panel, you will need the following tools:

Tape measure - Saw or Angle grinder - Cutter - Drill - Screwdriver - Spirit level - Sawhorse or Trestles - Rubber mallet.

For more information on installation, feel free to view our document made available to you:

Installation Guide for the Lateral Trapezoidal Panel for Pergola to download Installation Guide>
Installation Video of the Mixed Side Panel to watch Assembly Video>

More than just a customer service

You can count on the support of our experts and building enthusiasts to guide you throughout every step of your project.

A dedicated technical advisor is assigned to you to refine your project together and best address your requests before and after your order, as well as throughout the entire assembly phase.

For any inquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time picto

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known at the time of production launch, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

MadePicto representing manufacturing in Germanyin Belgium

Free delivery picto

Free delivery

Our mixed side panels in kit form are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranties picto

Warranties

Our pergola panels come with a 10-year warranty and comply with the strictest European standards. The aluminum profiles are powder-coated and carry the QUALICOAT LABEL.
