Configure your Lateral Trapezoid Panel for Pergola

  • Made in Belgium
  • Width: up to 5000mm
  • Height: adjustable on site
  • Panel: aluminium & polycarbonate
  • Closure: fixed panel
  • Polycarbonate: clear, opal
  • Weather protection
  • Cuttable profiles
*Required step
Your configuration

Factory direct price (incl. tax)

373.72
Instead of 439.67

Final price (tax incl.)
373.72

Summary

My online quote Delivery time pictoLead time: 3 to 4 weeks* Premium colors: 8 to 10 weeks
  • Delivery picto Delivery
    free*
  • Manufacturing picto Custom-
    Made
  • Warranty picto Warranty
    10 years*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
Lateral Trapezoid Panel for Pergola

Finally enjoy your outdoor space!

The Lateral Trapezoid Panel for Pergola consists of powder-coated aluminium profiles, a polycarbonate infill panel, and a support beam. The aluminium profiles and the polycarbonate panel can be cut on site to perfectly match the angle of your pergola or winter garden.

This system also allows you to complement a lateral pergola enclosure to shelter you from the sun, wind, rain, or even to define a private space.

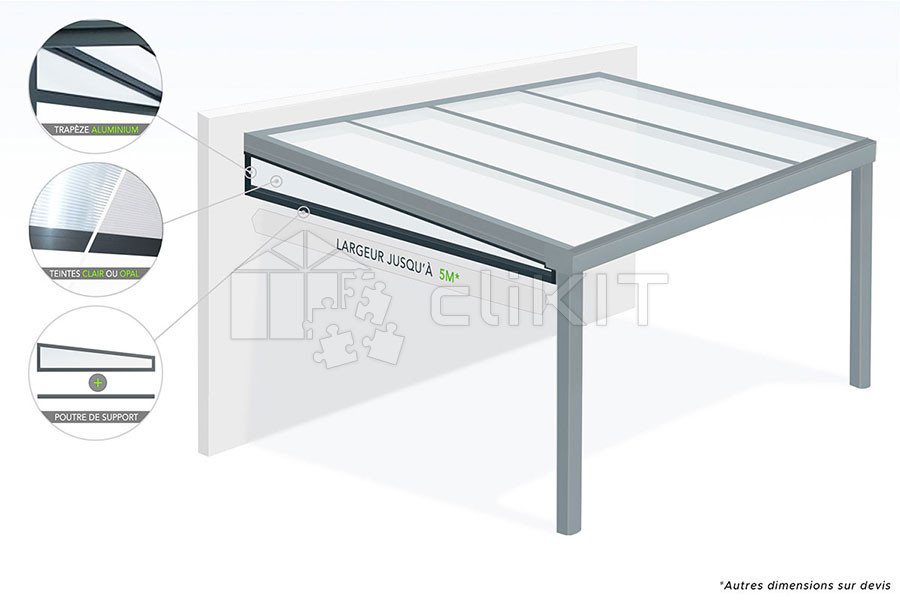

Diagram of the Lateral Trapezoid Panel for Pergola

Powder-coated aluminium

Picto of Standard Color CliKIT Brilliant White CliKIT Brilliant White
Picto of Standard Color Anthracite Grey 7016 Textured Anthracite Grey 7016 Textured
Picto of the Non-Standard Color Non-Standard (surcharge on quote)

Color Selection (Flat rate €275 incl. VAT)

Picto of Black 9005 Textured Color Black 9005 Textured
Picto of Standard Color Pure White 9010 Textured Pure White 9010 Textured
Picto of Cream 9001 Gloss Color Cream 9001 Gloss
Picto of Alu Grey 9007 Textured Color Alu Grey 9007 Textured
Picto of Alu White 9006 Textured Color Alu White 9006 Textured
Picto of Metal Grey 9009 Textured Color Metal Grey 9009 Textured
Picto of Quartz Grey 7039 Textured Color Quartz Grey 7039 Textured
Picto of Sepia Brown 8014 Textured Color Sepia Brown 8014 Textured
Picto of Purple Red 3004 Textured Color Purple Red 3004 Textured

10mm Polycarbonate Panels

Diagram of the Clear Tint Clear Tint
Diagram of the Opal Tint Opal Tint

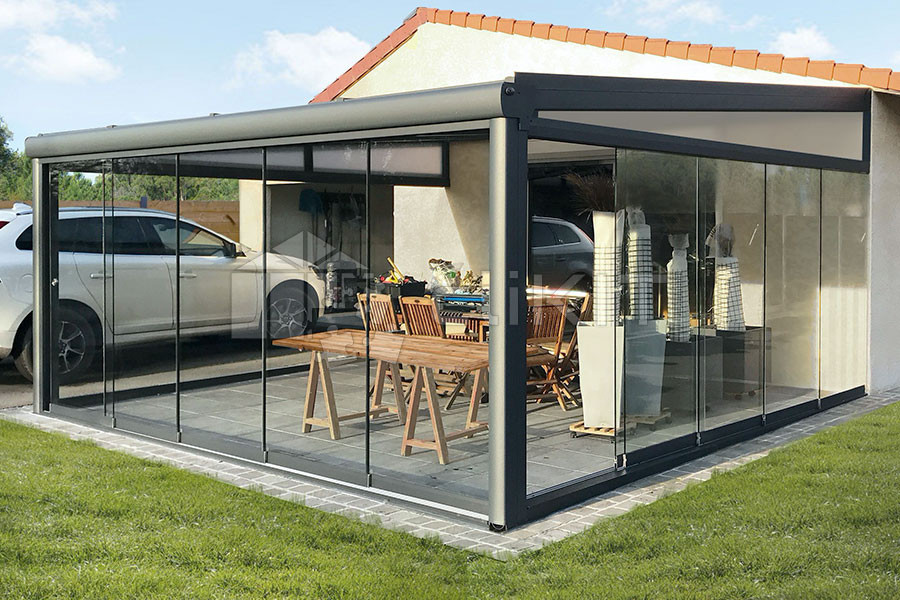

A few installation examples — anything is possible!

Depending on your layout, you have the option of achieving several configurations. CliKIT even allows you to combine the installation of this kit with our available options, such as fitting our Glass Curtain for maximum brightness and transparency. And to protect yourself from the sun or define a private space, we offer our Full Side Panel. If you want to regulate light as you please, our Vertical Screen Blind is made for you!

My online quote

A trapezoid panel to match the color of your roof

  • 10mm thick polycarbonate in Opal or Clear tint
  • On-site cuttable powder-coated aluminium profiles
  • Powder-coated aluminium support beam 50 x 100mm

The aluminium trapezoid kit consists of powder-coated aluminium profiles, a polycarbonate infill panel, and a support beam. The aluminium profiles and the polycarbonate panel can be cut on site to perfectly match the angle of your glass curtain.

Diagram of the 3 or 5-Track Rails

Polycarbonate — more resistant than glass

Polyclear polycarbonate panels with a thickness of 10mm offer the ideal solution for enclosing a space on one or more sides of your pergola. The clear tint is preferred for greater brightness and better transparency, while the opal tint is preferred for its ability to filter light and reduce glare.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate base material and its resistance to high temperatures. View our photos>

 4-Wall Polycarbonate
10mm Clear
4-Wall Polycarbonate
10mm Opal
Polyclear brand logo Diagram of the 10mm Clear Polycarbonate Diagram of the 10mm Opal Polycarbonate
Panel Width (mm) 1050/1200 1050/1200
Panel Tint Clear Tint Opal Tint
Weight per m² 1.75 kg 1.75 kg
Light transmission 68% 61%
U insulation value 2.0 W/m² K 2.5 W/m² K
Retained energy (1-g) 35% 49%
Sound insulation 17 dB 17 dB

Panels and accessories for all seasons!

Would you like to shelter from the sun, wind, rain, or define a private space? No problem — we offer a wide range specially designed to meet all your needs: Sliding Glass Curtains, Lateral Blinds, Roof Blinds, Shade Sails, Aluminium Side Panels, Polycarbonate Side Panels... and much more!

Remember to take a look at our must-haves to upgrade your pergola!

Resources to assist you

Our technical team remains available and at your disposal throughout the entire assembly phase of your lateral trapezoid panel. You will quickly notice how easy the system is to install. The assembly can be completed in just a few hours. Your CliKIT Lateral Trapezoid Panel will arrive as a kit containing the aluminium structure, the closing profiles, the polycarbonate panels, and the support beam.

Link to an online quote

To successfully complete the assembly of your glass curtain, you will need the following tools:

  • Tape measure
  • Saw or Angle Grinder
  • Screwdriver
  • Drill
  • Cutter
  • Spirit level
  • Easel or trestles
  • Rubber mallet

For more information on installation, feel free to browse all the documents available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Assembly VideoAssembly Video>
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you through every step of your project.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, please do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager (female)

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor (male)

Jérôme Menu Technical Advisor

Photo of the Technical Advisor (female)

Fiona Rossignol Technical Advisor

My online quote
Picto of Manufacturing Lead Time

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of Free Delivery

Free delivery

Our glass curtain kits are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Picto of Warranties

Warranties

All our trapezoid panels are guaranteed for 10 years and meet the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL.
