Configure your Lateral Sliding Glass Wall for Pergola

  • Made in Germany
  • Width: up to 10000mm
  • Height: up to 2650mm
  • Wall: sliding glazing
  • Opening: right, left, center
  • Glass: 10mm tempered glass
  • Weather protection
  • Made to your measurements
*Required step
Your configuration

Factory direct price (incl. tax)

1,384.86
Instead of 1,629.25

Final price (tax incl.)
1,384.86

Summary

My online quote Delivery time pictoLead time: 8 to 10 weeks*
  • Delivery picto Free
    delivery*
  • Manufacturing picto Custom-
    made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
Sliding Glass Side Wall for Pergola

Finally enjoy your outdoor space!

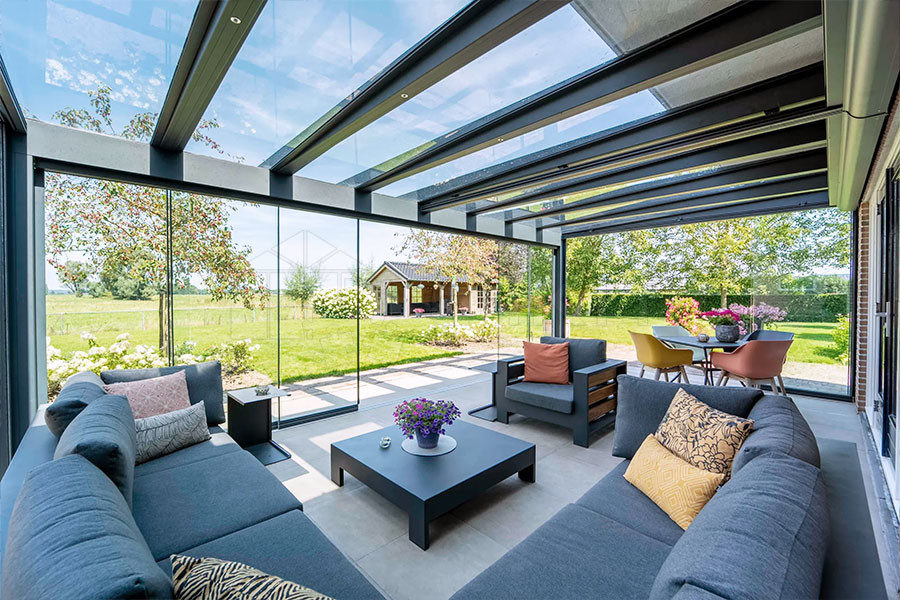

Sliding Glass Walls, also known as Glass Curtains, are a custom solution for your enclosure projects. They allow you to enjoy your pergola all year round!

This is a system of 10mm thick tempered glass panels, sliding and without vertical profiles. This pergola wall panel adapts to any type of pergola, terrace, balcony and loggia, offering you perfect protection against wind, rain and dust.

Combining elegance and simplicity, it does not alter the appearance of the facade and integrates with any architectural style, whether in private homes, condominiums, commercial premises, etc.

Warning PictoGiven current standards regarding residential insulation, this product is not suitable for the creation of heated rooms.

Diagram of the Lateral Glass Wall for Pergola

Powder-coated aluminum

Picto of Standard Color Structured Pure White 9010 Structured Pure White 9010
Picto of Standard Color Structured Anthracite Grey 7016 Structured Anthracite Grey 7016
Picto of Standard Color Structured Black 9005 Structured Black 9005
Picto of Standard Color Structured Aluminum Grey 9007 Structured Aluminum Grey 9007

4 models to choose from

Picto of the Profileless model Profileless
Picto of the Sealing Profiles model Sealing Profiles
Picto of the Reinforced Sealing Profiles model Reinforced Sealing Profiles
Picto of the Reinforced Decorative Sealing Profiles model Reinforced Decorative Sealing Profiles
See our customers' photos>

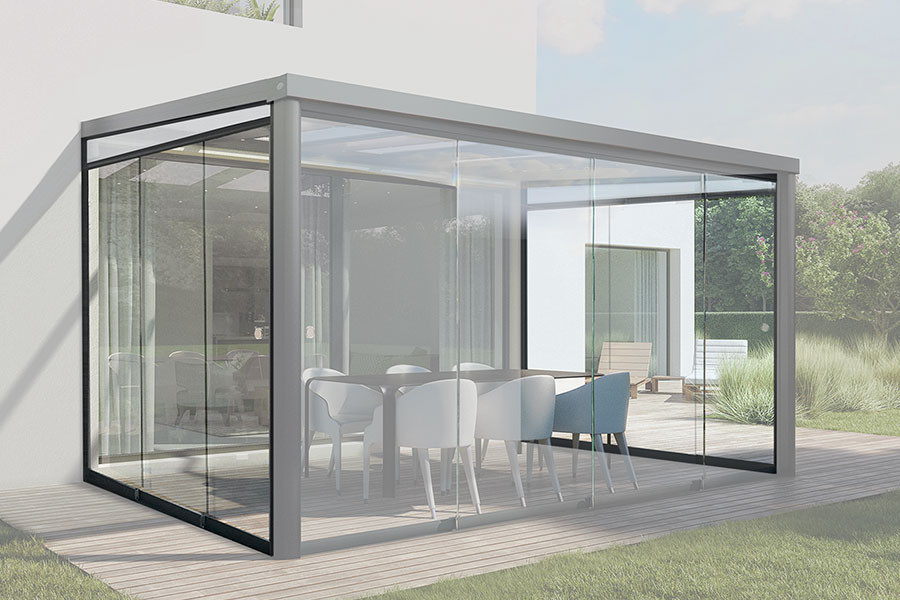

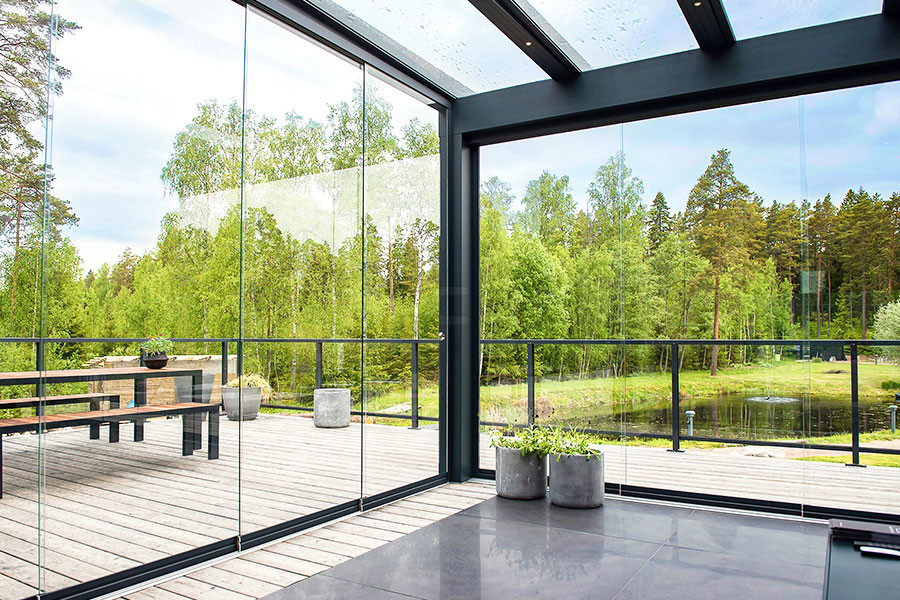

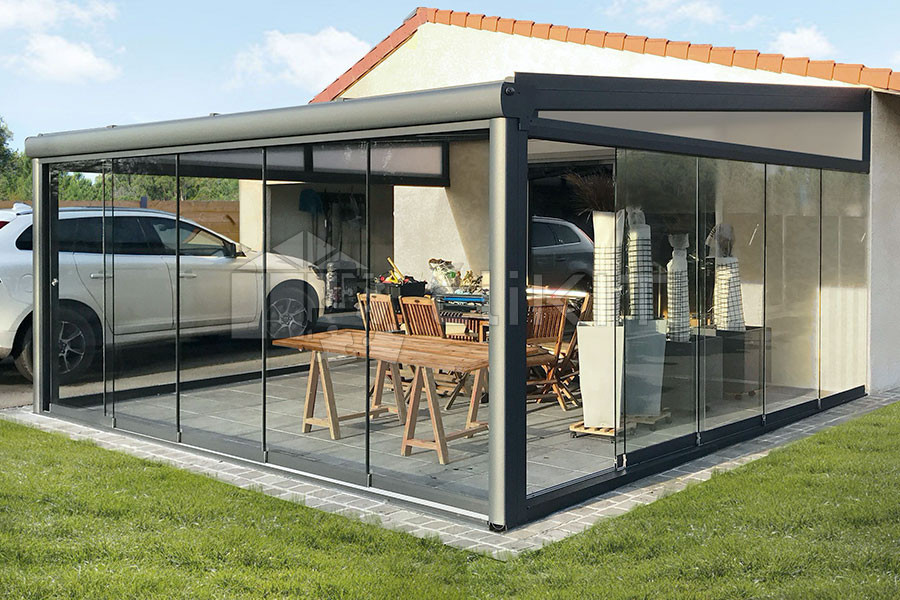

A few installation examples — anything is possible!

Depending on your installation, you have the option to choose the number of glass panels, their opening direction, and even opt for installation on a low wall!

My online quote

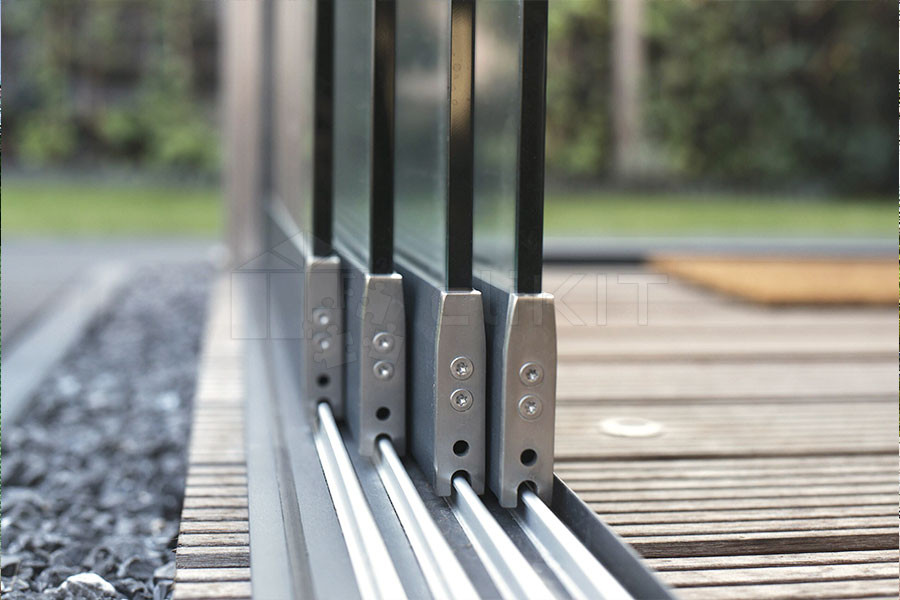

A choice of rails suited to your needs

Define your preferred access type by choosing from the 3 rail models we offer:

Custom-designed profiles

  • Upper rail with a width of 70/110mm and 60mm in height
  • Tempered glass with a thickness of 10mm (density of 25kg/m²)
  • Glass panel drive carriages
  • AL23 Raised Rail ensuring better waterproofing
  • AL22 Flat Rail characterized by its ease of access
  • AL24 Mixed Rail offering the perfect compromise

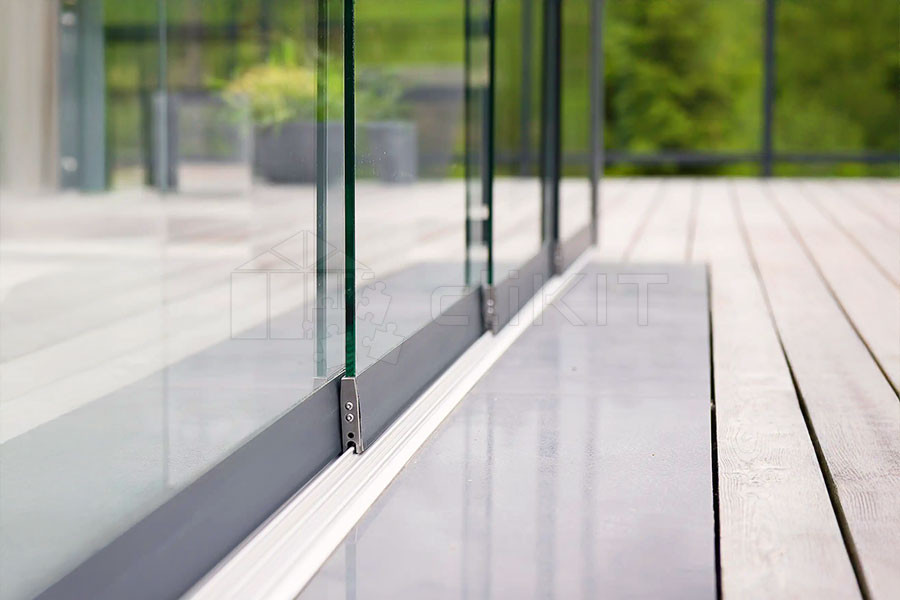

The AL23 Raised Rail has a slightly elevated profile that ensures better air and water tightness.

The AL22 Flat Rail has been specially designed to allow optimal ease of access at ground level, but it is not watertight in the event of heavy rain.

The AL24 Mixed Rail offers the perfect compromise between the AL22 Rail and the AL23 Rail.

Diagram of the 3 or 5 Track Rails

A trapezoid panel matching your roof color

  • 10mm thick polycarbonate in Opal or Clear tint
  • Powder-coated aluminum profiles, cuttable on site
  • Powder-coated aluminum support beam 50 x 100mm

The aluminum trapezoid kit consists of powder-coated aluminum profiles, a polycarbonate infill panel, and a support beam. The aluminum profiles and the polycarbonate panel can be cut on site to perfectly match the angle of your glass curtain.

Diagram of the 3 or 5 Track Rails

Polycarbonate more resistant than glass

Polyclear polycarbonate panels with a thickness of 10mm offer the ideal solution for enclosing one or more sides of your pergola. The clear tint is preferred for greater brightness and better transparency, while the opal tint is preferred for its ability to filter light and reduce the sensation of glare.

They also offer a key advantage for fire safety thanks to the self-extinguishing characteristic of polycarbonate's raw material and its resistance to high temperatures. See our photos>

 4P Polycarbonate
10mm Clear
4P Polycarbonate
10mm Opal
Polyclear brand logo Diagram of the 10mm Clear Polycarbonate Diagram of the 10mm Opal Polycarbonate
Panel Width (mm) 1050/1200 1050/1200
Panel Tint Clear tint Opal tint
Weight per m² 1.75 kg 1.75 kg
Light transmission 68% 61%
U insulation value 2.0 W/m² K 2.5 W/m² K
Energy retained (1-g) 35% 49%
Sound insulation 17 dB 17 dB

Walls and accessories for all seasons!

Would you like to shelter from the sun, wind, rain, or create a private space? No problem, we offer a wide range specially designed to meet all your needs: Side Blinds, Roof Blinds, Shade Sails, Aluminum Side Walls, Polycarbonate Side Walls... and much more!

Be sure to take a look at our essential accessories to upgrade your pergola!

Support resources to assist you

Our technical team remains available and at your disposal throughout the entire assembly phase of your glass curtain. You will notice the simplicity of the system's installation quite quickly. It is possible to complete the assembly in just a few hours. Your CliKIT Glass Curtain will arrive as a kit containing the aluminum structure, the guiding elements, the glass panels already fitted with guide wheels, the accessories and the installation guide.

Link to an online quote

To successfully complete the assembly of your glass curtain, you will need the following tools:

  • Tape measure
  • Drill
  • Torx-bit screwdriver
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • BTR Allen Key Set
  • Cutter
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
    It is important not to use a suction cup to move the glass.

For more information on installation, feel free to view all our documents available to you:

Installation Guide PictoInstallation Guide>
Assembly Video PictoAssembly Video>
Photo Book PictoPhoto Book>

More than just a customer service

You can count on the support of our experts and building enthusiasts to assist you throughout every step of your project.

A dedicated technical advisor is assigned to you to refine your project together and best address your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The definitive lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of Free Delivery

Free delivery

Our kit glass curtains are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Guarantees Picto

Guarantees

All our glass curtains are guaranteed for 10 years and comply with the strictest European standards. The aluminum profiles are powder-coated and carry the QUALICOAT LABEL.
