Configure your Sliding Glass Panels for Bioclimatic Pergola

  • Made in Germany
  • Width: up to 10000mm
  • Height: up to 2650mm
  • Panel: sliding glazing
  • Opening: right, left, centre
  • Glass: 10mm tempered glass
  • Protection against bad weather
  • Made to your measurements
*Required step
Your configuration

Factory direct price (incl. tax)

1,384.86
Instead of 1,629.25

Final price (tax incl.)
1,384.86

Summary

My online quote Delivery time pictoLead time: 8 to 10 weeks*
  • Delivery picto Delivery
    free*
  • Manufacturing picto Custom-
    Made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
Sliding Glass Panels for Bioclimatic Pergola

Finally enjoy your outdoor space!

The Sliding Glass Panels for Bioclimatic Pergola, also known as Glass Curtains, are a custom-made solution for your enclosure projects. Sliding Glass Wall Panels allow you to enjoy your pergola all year round!

It is a system of 10mm thick tempered glass panels, sliding and without vertical profiles. This pergola wall panel adapts to all types of pergolas, terraces, balconies and loggias, offering you perfect protection against wind, rain and dust.

Combining elegance and simplicity, it does not alter the appearance of the façade and integrates with any type of architecture, whether in a private residence, co-ownership, commercial property, etc.

Warning PictoGiven current standards for building insulation, this product is not suitable for creating heated rooms.

Diagram of Glass Wall Panels for Bioclimatic Pergola Bioclimatic

Powder-coated aluminium

Picto of the Standard Colour Traffic White 9016 Smooth Smooth Traffic White 9016
Picto of the Standard Colour Textured Anthracite Grey 7016 Textured Anthracite Grey 7016
Picto of the Standard Colour Matt Black 9005 Matt Black 9005
Picto of the Standard Colour Aluminium Grey 9007 Aluminium Grey 9007

4 models to choose from

Picto of the Without Profiles model Without Profiles
Picto of the Sealing Profiles model Sealing Profiles
Picto of the Reinforced Sealing Profiles model Reinforced Sealing Profiles
Picto of the Reinforced Sealing Deco Profiles model Reinforced Sealing Deco Profiles

Adapted lower rails

Picto of the AL23 Raised Rail 3 Tracks AL23 Raised
3 Tracks
Picto of the AL22 Flat Rail 3 Tracks AL22 Flat
3 Tracks
Picto of the AL24 Mixed Rail 3 Tracks AL24 Mixed Rail
3 Tracks
Picto of the AL23 Raised Rail 5 Tracks AL23 Raised
5 Tracks
Picto of the AL22 Flat Rail 5 Tracks AL22 Flat
5 Tracks
Picto of the AL24 Mixed Rail 5 Tracks AL24 Mixed Rail
5 Tracks
See our customers' photos>

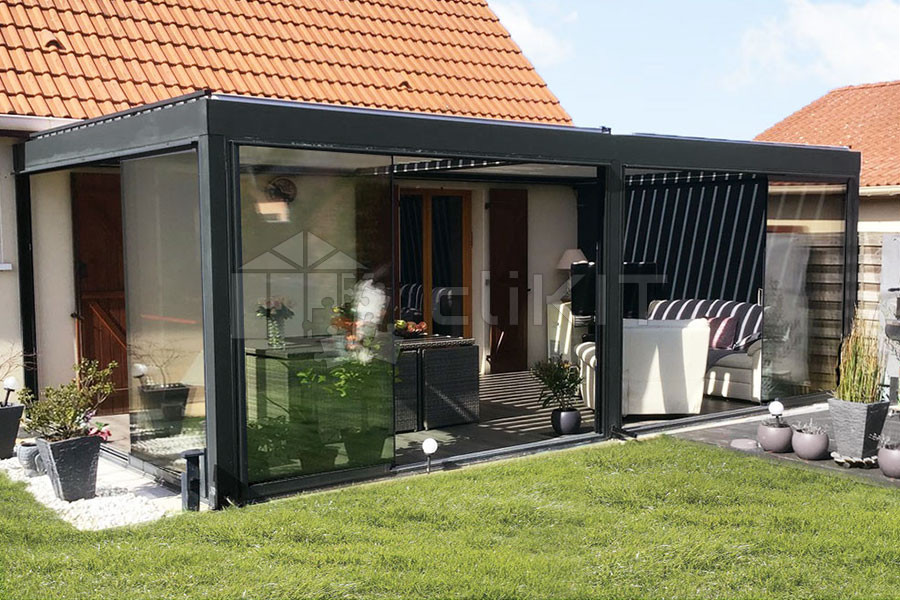

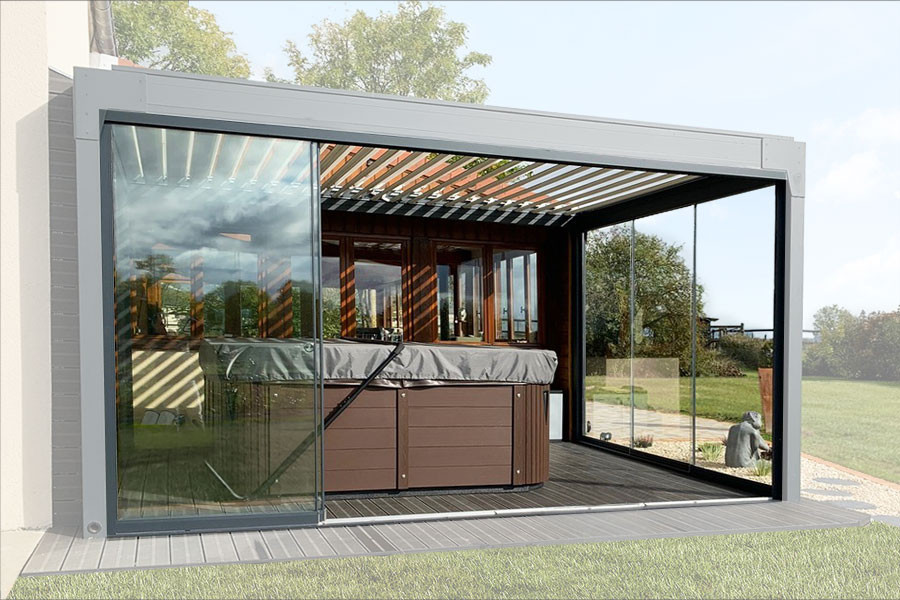

A few installation examples — anything is possible!

Depending on your layout, you can choose the number of glass panels, their opening direction, and even opt for installation on a low wall!

My online quote

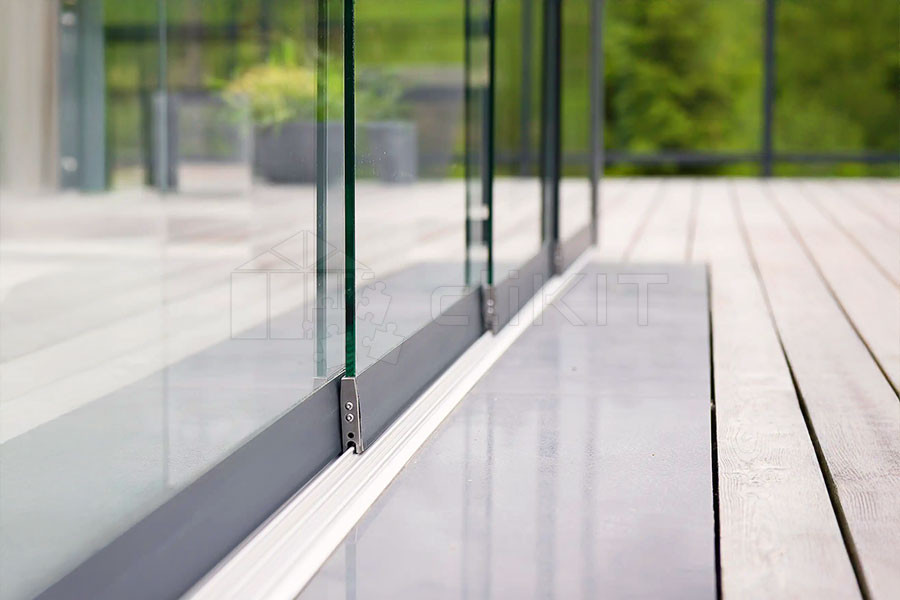

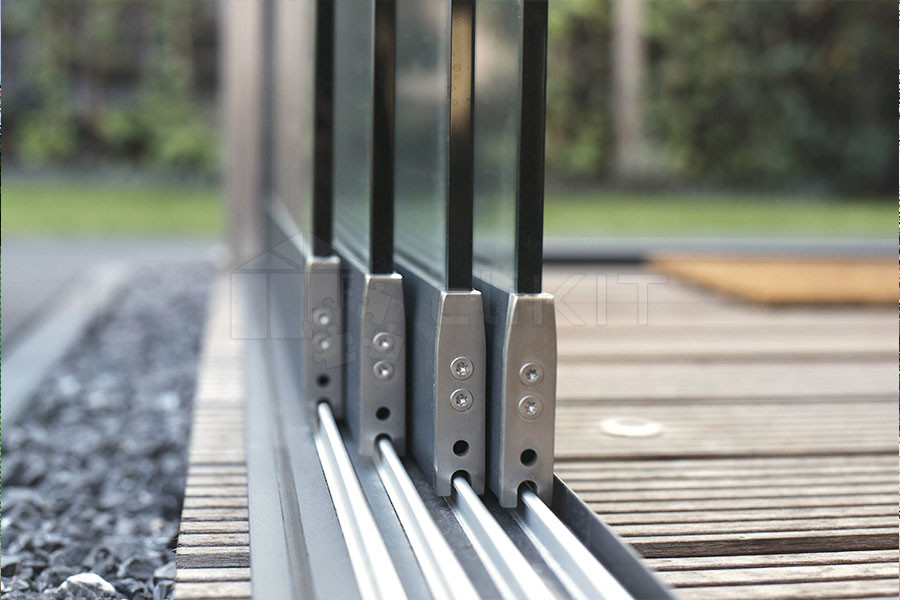

A choice of rails suited to your needs

Define your preferred access type by choosing from the 3 rail models we offer:

Custom-designed profiles

  • Upper rail with a width of 70/110mm and 60mm high
  • Tempered glass with a thickness of 10mm (density of 25kg/m²)
  • Glass panel drive carriages
  • Raised Rail AL23 ensuring better watertightness
  • Flat Rail AL22 characterised by its ease of access
  • Mixed Rail AL24 offering the perfect compromise

The Raised Rail AL23 has a slightly elevated profile that ensures better air and water tightness.

The Flat Rail AL22 has been specially designed to allow optimal ease of access at ground level, but it is not watertight in the event of heavy rain.

The Mixed Rail AL24 offers the perfect compromise between the AL22 Rail and the AL23 Rail.

Diagram of 3 or 5 Track Rails

Wall panels and accessories for all seasons!

Do you want to shelter from the sun, wind, rain or define a private space? No problem, we offer a wide range specially designed to meet all your expectations: Side Blinds, Roof Blinds, Shade Sails, Aluminium Side Panels, Polycarbonate Side Panels... and much more!

Don't forget to take a look at our essentials to upgrade your pergola!

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your bioclimatic pergola. You will quickly notice how easy the system is to install. Assembly can be completed in just a few hours. Your CliKIT Glass Curtain will arrive as a kit containing the aluminium structure, the guide elements, the glass panels already fitted with guide wheels, the accessories and the installation guide.

Link to an online quote

To successfully complete the assembly of your bioclimatic pergola, you will need the tools listed below:

  • Tape measure
  • Drill
  • Torx bit screwdriver
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • BTR Key Set
  • Cutter
  • Silicone dispenser
  • Spirit level
  • Easel or trestles
    It is important not to use a suction cup to move the glass.

For more information on installation, feel free to view all the documents available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Assembly VideoAssembly Video>
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you throughout your project.

A dedicated technical advisor is assigned to you to refine your project together and respond as effectively as possible to your requests before and after your order, as well as throughout the entire installation phase.

For any enquiry, do not hesitate to contact our team who will be happy to respond:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the BE Manager

Nicolas Font BE Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known at the start of production, and may vary depending on the season and factory holiday periods. If you have any deadlines, it is important to let us know in advance.

Picto of Free Delivery

Free delivery

Our kit glass curtains are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Picto of the Guarantees

Guarantees

All our glass curtains are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are powder-coated and benefit from the QUALICOAT LABEL.
