Configure your KHEOPS Square Roof Lantern

  • Made in England
  • Width: up to 3000mm
  • Depth: up to 3000mm
  • Capping: PVC
  • Roof: 24mm double glazing
  • Glass planitherm, neutral, blue, a-h
  • Optimal insulation and brightness
  • With thermal break
*Required step
Your configuration

Factory direct price (incl. tax)

1,754.08
Instead of 2,063.62
Final price (tax incl.)
1,754.08

Summary

My online quote Delivery Lead Time PictoDelivered within 10 to 12 weeks*
  • Delivery Picto Delivery
    free*
  • Manufacturing Picto Custom-
    Made
  • Warranty Picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
KHEOPS Roof Lantern 4-Pitch Version
Top view of the KHEOPS Roof Lantern Version S

Let the light in!

Would you like to create a bright space in your home or office? The KHEOPS Roof Lantern is the ideal solution to maximize natural daylight while offering an open, panoramic view.

Thanks to its innovative system that requires fewer profiles than a traditional roof lantern, you enjoy an unobstructed view of the sky. Moreover, its elegant, clean-lined design integrates perfectly with any type of construction.

Fitted with highly insulating double glazing, the KHEOPS Roof Lantern guarantees excellent thermal performance by keeping you cool in summer while retaining warmth in winter. This way, you make real savings on your energy bills!

Diagram of the KHEOPS Roof Lantern

The finishes: exterior/interior

Color White Exterior/Interior White/White
Exterior/Interior
Color Grey/White Exterior/Interior Grey/White
Exterior/Interior
Grey/Grey Exterior/Interior Grey
Exterior/Interior

The 24mm double glazing roof

Neutral Anti-heat glass icon Neutral Anti-heat
Activ Neutral 1.1
Blue Anti-heat glass icon Blue Anti-heat
Activ Blue 1.1
Blue Sunshade Anti-heat glass icon Blue Anti-heat
Sunshade Blue 0.9

2 models depending on your dimensions

Model S icon Version S
up to 2m
Model L icon Version L
from 2m

Thermal break insulation

The combination of aluminum and PVC ensures significantly better thermal insulation thanks to its profiles and PVC capping. These further limit the transmission of external temperature, which is absorbed by the insulating properties of the PVC upper clips.

The thermal rail profiles are fully sheathed, and the polymer material and its insulating chamber form a heat barrier known as a thermal break.

Thanks to the properties of PVC, thermal performance is optimized and the level of condensation is greatly reduced.

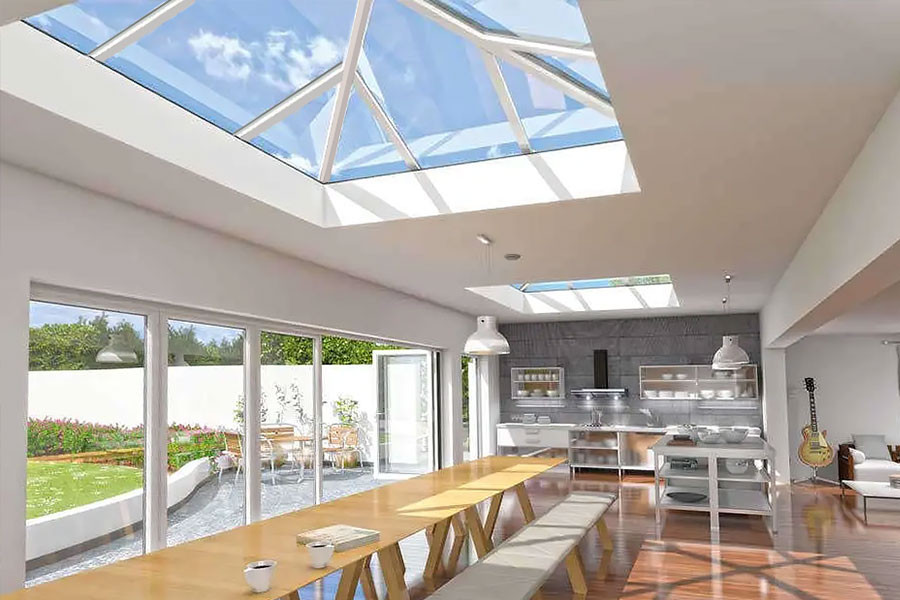

Interior view of the KHEOPS Roof Lantern Version S
My online quote

Custom-designed profiles

  • Thermal break thanks to the bead profile and its insulating chamber
  • Reinforced aluminum rafter with thermal break
  • Reinforced junction profile for a minimum number of rafters
  • 20° pitch to capture optimal light
  • Glazing stop profiles and rafter end cap
  • Wall plate and internal profiles with thermal break
  • Insulating PVC rafter capping profile
  • Locking system for better glazing retention
  • Pre-fitted interior cover profile
Numbered diagram of the KHEOPS Roof Lantern profiles
Photo of the rafter and glazing locking profiles Rafter and glazing locking profiles
Photo of the rafter end cap Rafter end cap
Photo of the fully sheathed thermal break wall plate Fully sheathed thermal break wall plate
Photo of the insulating PVC rafter capping profile Rafter capping profile
in insulating PVC
Close-up of the KHEOPS Roof Lantern Version L

Les + Produit

  • Robust structure with interior and exterior thermal break
  • Double glazing reinforced with Argon gas forming an effective thermal barrier
  • Installation in 1 to 2 days — faster than a traditional roof lantern
  • Elegant design and clean lines that integrate perfectly with any type of home
  • Thermal protection and optimal brightness contributing to improved energy performance
  • Available custom-made in PVC or Aluminum version for all budgets

A simple-to-install protection system

Its sleek, elegant design, suitable for any architectural style, provides better visibility, increased brightness, and also saves time during installation!

With its unique RidgeLOCK clip-on profile system, installing your own roof lantern has never been easier.

Thanks to its 20° pitch, every bit of light is drawn into your living space. A true light well, you benefit from a significant source of natural light that allows you to meaningfully reduce your energy costs throughout the year.

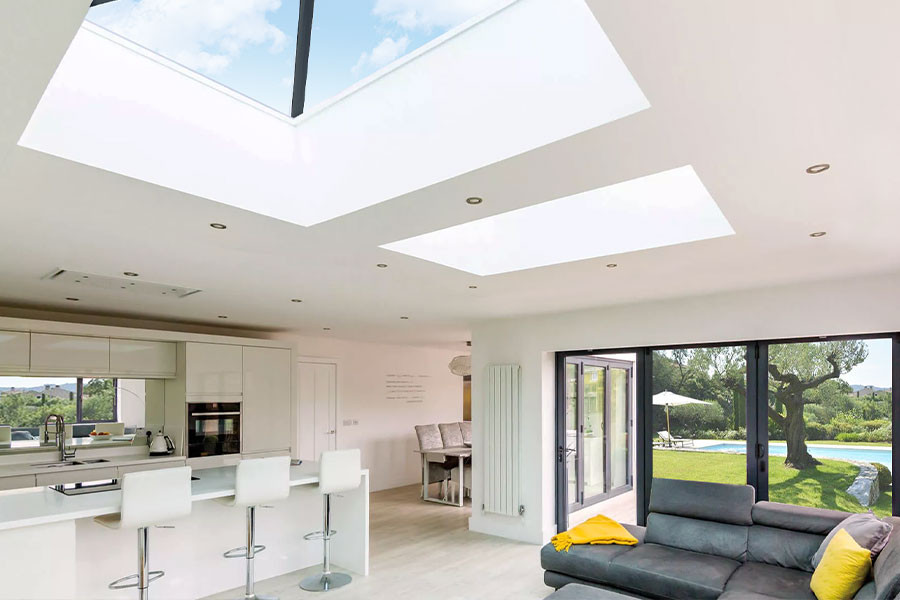

Interior view of the KHEOPS Roof Lantern Version L

Double glazing 3x more insulating than ordinary glass

The 24mm Double Glazing of the KHEOPS Roof Lantern is selected for its outstanding insulation qualities on the glass market. It consists of two 4mm thick glass panes separated by a 16mm air gap reinforced with Argon gas. Recognized for its insulating qualities, Argon gas provides significantly lower thermal inertia than the air used in standard glazing. Thanks to this process, your glazing heats up or cools down much more slowly than conventional double glazing.

Comparison of our double glazing selection range

Empty imageNeutral Anti-heat
Activ Neutral 1.1		Blue Anti-heat
Activ Blue 1.1		Blue Anti-heat
Sunshade Blue 0.9
Diagram of the 24mm Neutral Anti-Heat Double Glazing Diagram of the 24mm Blue Anti-Heat Double Glazing Diagram of the 24mm Blue Sunshade Anti-Heat Double Glazing
Thickness (mm) 24mm 24mm 24mm
Weight per m² 20 kg/m² 20 kg/m² 20 kg/m²
Light transmission 45% 44% 52%
U insulation value 1.1 W/m² K 1.1 W/m² K 0.9 W/m² K
Energy retained 78% 67% 83%
Self-cleaning coating Yes Yes Yes
10-year warranty Validation bullet icon Validation bullet icon Validation bullet icon

Other double glazing models available on request

If you cannot find what you are looking for among our double glazing selection, we can offer other glass models available on request, including our range of laminated double glazing.

Laminated glazing consists of two glass panes separated by a polyvinyl butyral (PVB) interlayer, which gives it a highly safe character compared to ordinary glass.

Indeed, in the event of breakage, this prevents glass shards from being projected outward as they are held in place by the PVB film, thus avoiding the risk of injury. View the comparison table> Colors of the MERMET Satiné 5500 Fabric ×

Diagram of the laminated double glazing of the KHEOPS Roof Lantern
My online quote

Resources to assist you

Our technical team remains available and attentive throughout the entire installation phase of your roof lantern. You will quickly notice how simple the installation system is. The installation can be completed in just a few hours. Your CliKIT Roof Lantern will arrive as a kit containing the roof structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the installation of your pergola, you will need the following tools:

  • Mallet with white plastic head
  • Screwdriver
  • Drill
  • Posidrive bit
  • 4.5mm/10mm metal drill bit
  • 10mm/13mm socket wrench
  • Spirit level
  • Glue gun
  • Protractor
  • Sheet metal pliers
  • Plumb line
  • Scaffolding or work platform
  • Cutter
  • Mason's prop

For more information on installation, feel free to browse all the documents available to you:

Installation Guide iconInstallation Guide>
Installation Video iconInstallation Video>

More than just a customer service

You can count on the support of our experts and building enthusiasts to guide you through every step of the process.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire installation phase.

For any enquiry, please do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time icon

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to inform us in advance.

Belgian flag icon

Made in England

Free delivery icon

Free delivery

Our roof lantern kits are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Warranties icon

Warranties

Our roof lantern kits are guaranteed for 10 years, including the roof structure and glazing.
