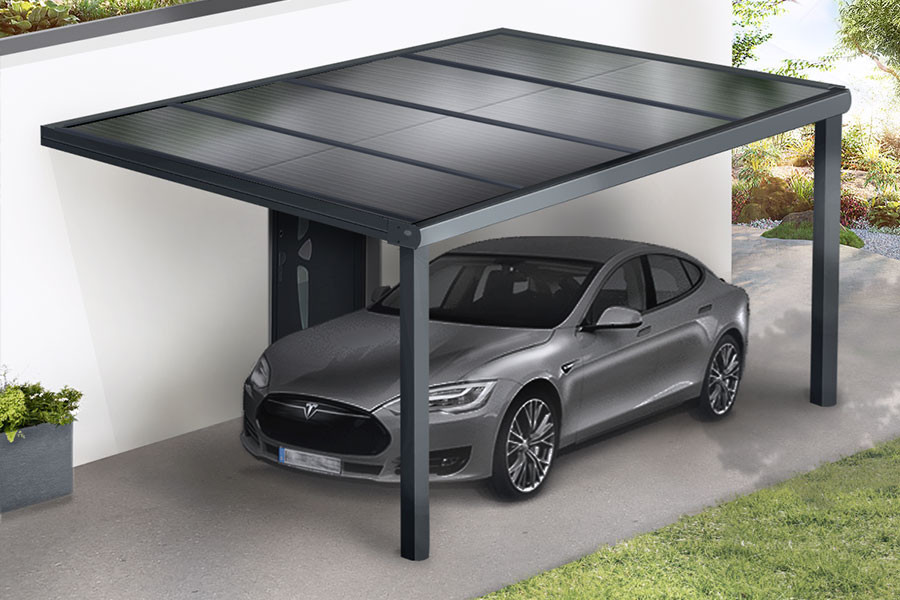

Photo no. 1 of the SOFTLINE Solar Carport
They talk about usChannel logo See> Discover> Watch the video>
Product Description Pictogram Product
description Installation Guide Pictogram Installation
guide Customer Testimonials Pictogram Customer
testimonials Delivery Terms Pictogram Delivery
terms

Configure your SOFTLINE Solar Carport

  • Made in Belgium
  • Width: up to 10554mm
  • Depth: up to 3522mm
  • Gutter rail: rounded
  • Solar panel: bifacial 430Wp
  • Posts: 110 x 141mm
  • Expandable and customizable carport
  • Integrated photovoltaic panels
*Required step
Your configuration

Factory direct price (incl. tax)

3,713.78
Instead of 4,369.15
Final price (tax incl.)
3,713.78

Summary

My online quote Delivery time PictogramLead time: 6 to 8 weeks* Premium color: 8 to 10 weeks
  • Delivery Pictogram Free
    delivery*
  • Manufacturing Pictogram Standard
    Product
  • Warranty Pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
SOFTLINE Solar Carport Rounded Gutter Channel Version

* Installation principle for CLIMALUX Products

Protect and charge your vehicle!

Opt for our SOFTLINE Solar Carport: a perfect marriage of elegance and efficiency, our carport goes far beyond a simple shelter for your vehicle (car, van, motorhome, motorcycle, scooter, etc.).

Thanks to its roof equipped with integrated solar panels, the solar carport transforms every ray of sunlight into a clean and renewable energy source. Not only do you protect your vehicle from the elements, but you also contribute to preserving the environment by reducing your carbon footprint.

Imagine being able to charge your electric vehicle with solar energy, while saving on your electricity bill. Our SOFTLINE Solar Carport offers an ecological and economical solution, combining style and durability for a greener future!

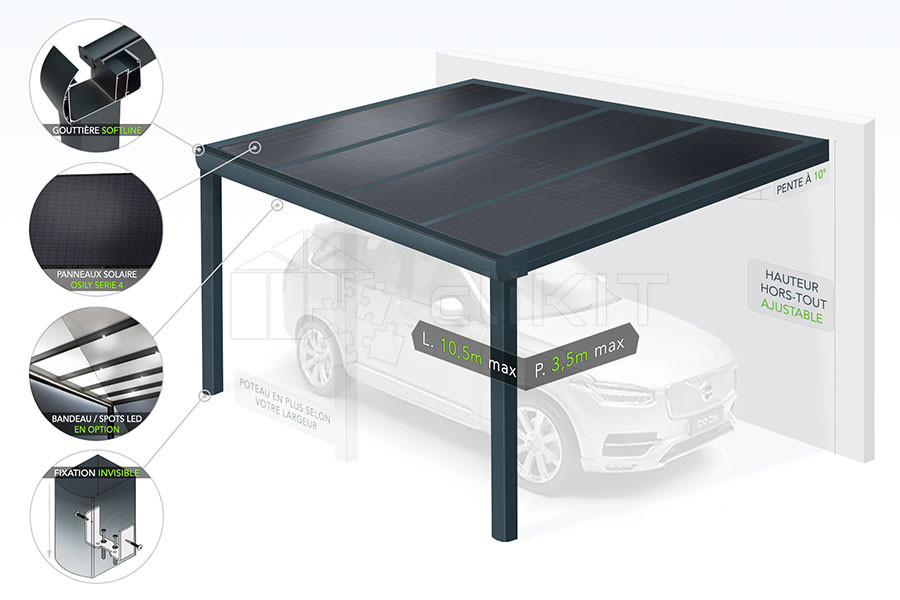

Diagram of the SOFTLINE Solar Carport

Thermally lacquered aluminum

Pictogram of the Standard CliKIT Gloss White Color CliKIT Gloss White
Pictogram of the Standard Structured Anthracite Grey 7016 Color Structured Anthracite Grey 7016
Pictogram of the Non-Standard Color Non-Standard (premium on quote)

Color Selection (Package €275 incl. VAT)

Pictogram of the Structured Black 9005 Color Structured Black 9005
Pictogram of the Standard Structured Pure White 9010 Color Structured Pure White 9010
Picto of the Cream 9001 Gloss Color Cream 9001 Gloss
Pictogram of the Structured Alu Grey 9007 Color Structured Alu Grey 9007
Pictogram of the Structured Alu White 9006 Color Structured Alu White 9006
Pictogram of the Structured Metal Grey 9009 Color Structured Metal Grey 9009
Pictogram of the Structured Quartz Grey 7039 Color Structured Quartz Grey 7039
Pictogram of the Structured Sepia Brown 8014 Color Structured Sepia Brown 8014
Pictogram of the Structured Purple Red 3004 Color Structured Purple Red 3004

Invisible fixings

Pictogram of the Post 110 x 141mm Post 110 x 141mm
Pictogram of the Integrated Post Downpipe Integrated post downpipe
Pictogram of the invisible pad-eye bracket fixing Invisible fixing with pad-eye bracket

A reinforced aluminum structure

  • Thermally lacquered aluminum structure with the QUALICOAT LABEL, cut to your measurements on request
  • PX aluminum support posts 110 x 141mm with a length of 2500mm, cuttable on request, fixed with supplied pad-eye brackets (Maximum width between posts: 3.5m)
  • Rainwater drainage with an 80mm diameter integrated into one of the posts of your choice
    • 212mm
  • GX gutter profile with its SOFTLINE GLX ornamental profile in thermally lacquered aluminum
  • CL16 clips to screw onto solar panels with lacquered capping
  • Roof pitch at an angle of 10°
  • Stainless steel Torx screws included, lacquered to match the color of your carport

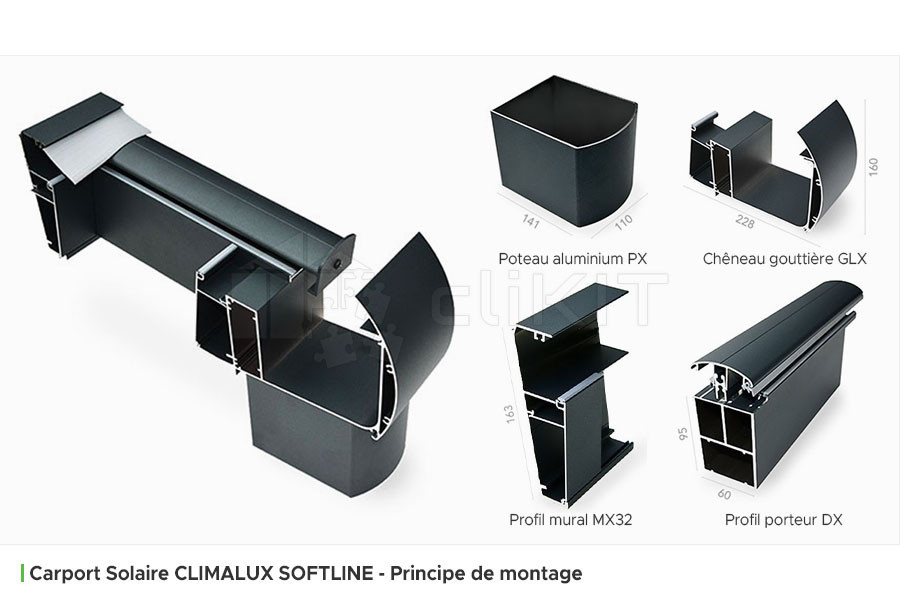

Photo of the Assembly Principle of the CLIMALUX Solar Model
Photo of the PX Aluminum Post PX Aluminum Post
Photo of the GLX Gutter Channel GLX Gutter Channel
Photo of the MX32 Wall Profile MX32 Wall Profile
Photo of the DX Bearer Profile DX Bearer Profile
My online quote

Custom-designed profiles

  • Post 110 x 141mm with integrated and invisible downpipe
  • Strainer for rainwater drainage
  • Gutter channel with its Softline GLX ornamental profile
  • MX32 wall profile with a height of 163mm
  • DX bearer profile with a height and width of 95 x 60mm
  • Aluminum clamping clips with their sealing gasket to receive the solar panels
  • LED light strip integrated into the gutter channel (optional)
  • Power supply for the LED light strip (optional)
Numbered diagram of the Assembly Principle of the SOFTLINE Solar Model

Customize your project as you wish

CliKIT gives you the possibility to carry out your 100% custom project by adapting to your needs and desires.

Configuration examples

Diagram no. 1 example of the standard configuration of the CLIMALUX Solar Carport Diagram no. 2 example of the standard configuration of the CLIMALUX Solar Carport Diagram no. 3 example of the standard configuration of the CLIMALUX Solar Carport Diagram no. 4 example of the standard configuration of the CLIMALUX Solar Carport
Legend diagram of support wallsFixed support wallLegend diagram of support walls of your choiceSupport walls of your choice (depending on your installation)

A self-consumption solar kit

Self-consumption ensures complementary green energy production to reduce your electricity bill.

Reduce the impact of supplier price increases with complete autonomy: our kits do not require the intervention of an installer and do not require you to connect to the main grid.

Depending on the size of your project and your installation, you will be able to power some of your appliances, charge your electric vehicle, power your pool, your spa, all directly.

Its simple installation allows you to benefit from a turnkey project to assemble independently at a lower cost. If you already have your system, our team can look into the possibility of integrating them into the CLIMALUX Carport.

Photo of the installed OSILY Mono ALL BLACK Bifacial Solar Panels

The solar panels

The OSILY Mono ALL BLACK Bifacial Panels combine high energy production performance through advanced monocrystalline cell interconnection technologies and reduced shading points to deliver an individual power output of 430Wp. The OSILY brand guarantees these panels for 25 years. Their linear efficiency at 30 years is 87.4%, placing them above current industry standards. Learn more>

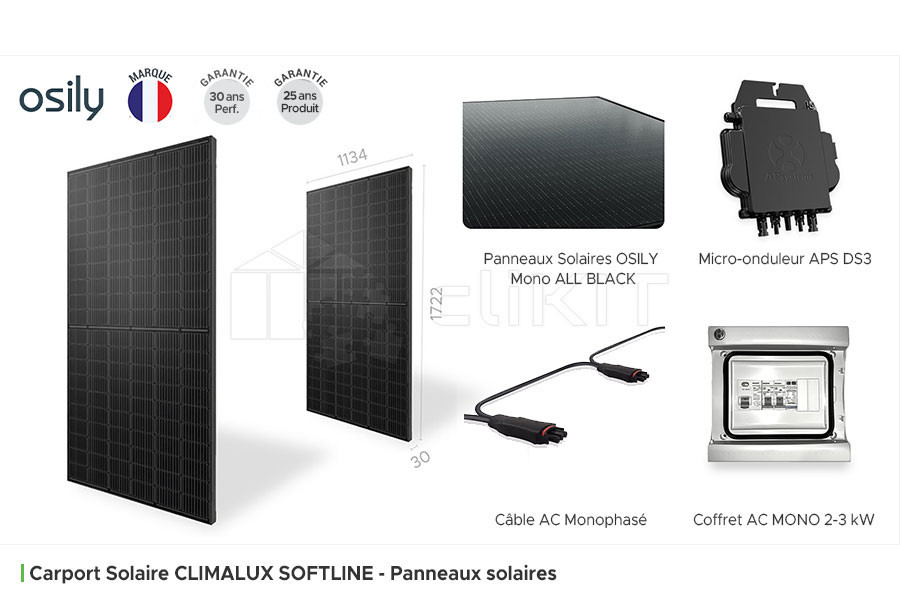

Photo of an OSILY Mono ALL BLACK Bifacial Panel OSILY Mono ALL BLACK Bifacial Panel
Photo of the APS DS3 Micro-inverter APS DS3 Micro-inverter
Photo of the Single-phase AC Cable Single-phase AC Cable
Photo of the AC MONO 2 to 5 kW enclosure AC MONO 2 to 5 kW enclosure

Management

The APsystems DS3 Micro-inverters offer an efficiency of 97% and allow independent management of panels, scalability of your installation while maintaining maximum safety through advanced voltage peak management.

The whole system is managed by an AC protection enclosure suitable for connection to your electrical panel. With a simple installation, it handles your safety and ensures optimal performance.

 Depth of 1 PanelDepth of 2 Panels
Introduction image of the table
Diagram of the 16mm Opal Anti-heat Polycarbonate
Diagram of the 32mm Opal Anti-heat Polycarbonate
  Number of Panels No. of Inverters Maximum power Number of Panels No. of Inverters Maximum power
Width of 2392mm 2 1 860Wp 4 2 1720Wp
Width of 3558mm 3 2 1290Wp 6 3 2580Wp
Width of 4724mm 4 2 1720Wp 8 4 3440Wp
Width of 5890mm 5 3 2150Wp 10 5 4300Wp
Width of 7056mm 6 3 2580Wp Custom structure available
on a quote basis, click here>
Width of 8222mm 7 4 3010Wp
Width of 9388mm 8 4 3440Wp
Width of 10554mm 9 5 3870Wp

The optional Inverter Support

Our Inverter Support is specially designed to optimize the installation and integration of your APS DS3 Micro-inverters under your solar carport. This technical and aesthetic solution allows for a perfectly controlled installation of your equipment while preserving the elegance of your carport.

Thanks to its intelligent design, the Inverter Support ensures ideal positioning of inverters in the immediate vicinity of the solar panels, while respecting the necessary safety distances.

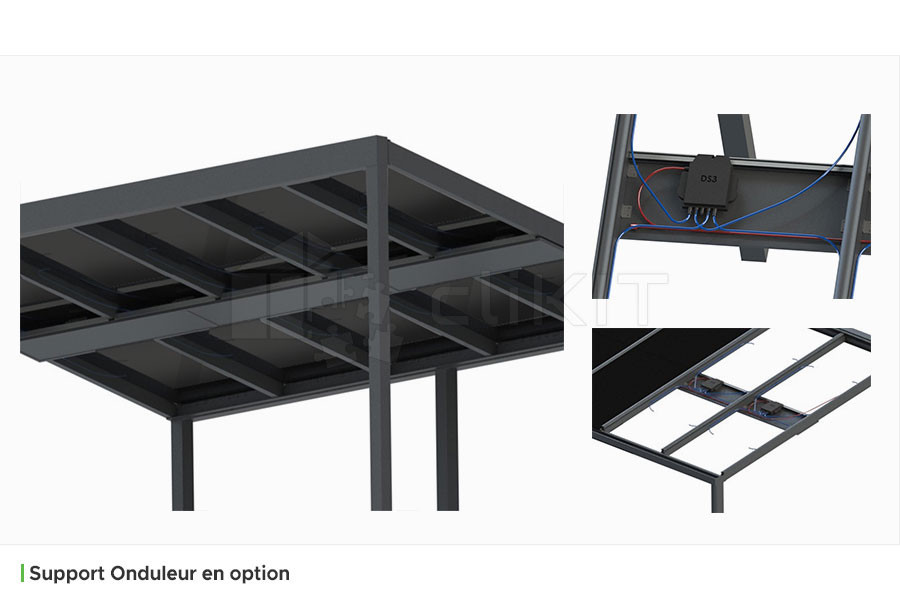

Bottom view of the interior of the Inverter Support
Top view of the Inverter Support
Close-up view of the Inverter Support

Monitor your consumption in real time!

The APsystems ECU-R Gateway plays a key role in your solar installation. This smart device can supervise your photovoltaic panels and allows you to monitor in real time the production of each module thanks to ZigBee wireless technology with a range in open field of up to 50m. Learn more>

Thanks to the intuitive EMA Manager mobile app, you can keep a close eye on your installation wherever you are. Simple and practical, it allows you to monitor the performance of your solar panels in real time from your smartphone or tablet via a comprehensive monitoring interface.

Available on iOS and Android, you can optimize your green energy production and fully enjoy the benefits of your solar carport every day. Learn more>

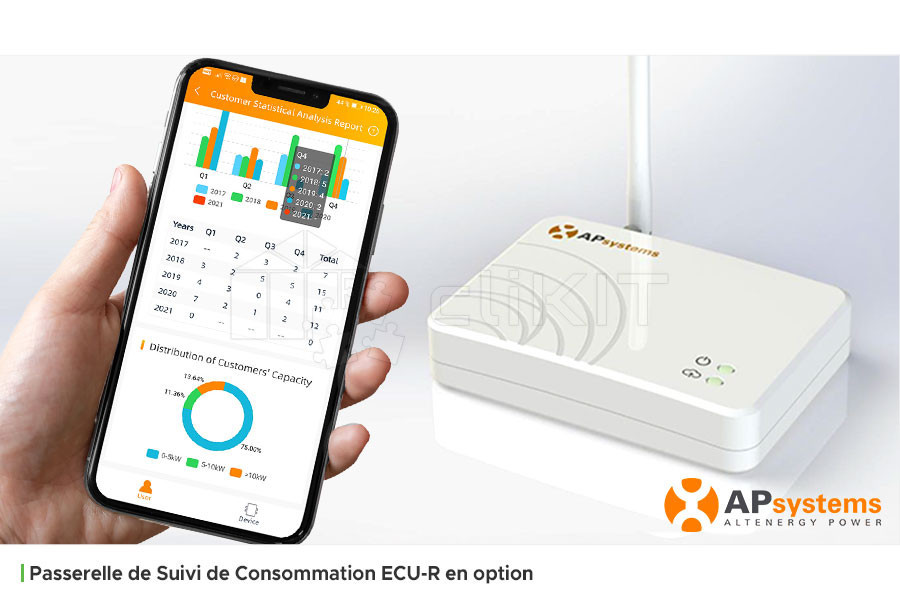

Photo of the ECU-R Gateway
My online quote

Day and night!

An LED light strip can be integrated directly under the gutter channel. This LED lighting diffuses an indirect and pleasant light that will allow you to see your vehicle at any time of day!

With the LED Spot Kit, you have the possibility to customize the area you wish to illuminate under your carport — one side lit and the other dimmed, anything is possible!

A presence detector is also available on simple request; it automatically activates your LED lighting as soon as you park your vehicle. No more worries about manual lighting. Simplify your routine and ensure optimal visibility upon your arrival!

Photo of the LED Light Strip and LED Spot Kit for Carport

An expandable and customizable carport throughout the seasons!

CliKIT develops the concept of an Expandable Carport to adapt as closely as possible to your wishes or your current budget. Rest assured that in the near or distant future, your carport will always be evolving!

Would you like to shelter your vehicle from the sun, wind, rain or enclose a space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Remember to take a look at our essentials to upgrade your carport!

Photo of the Glass Curtains for Carport Glass Curtains
Photo of the Blinds and Sails for Carport Blinds & Sails
Photo of the Side Panels for Carport Side Panels

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will quickly notice how simple the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT carport will arrive as a kit containing the aluminum roof structure, solar panels, accessories, and the installation instructions.

Link to an online quote

To successfully assemble your carport, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bits Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all the documents available to you:

Pictogram of the Installation ManualStructure
Manual>
Pictogram of the Installation ManualInverter Support
Manual>
Pictogram of the Installation ManualSolar Panel
Wiring Guide>
Pictogram of the Assembly VideoVideo of the
Structure>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you through every step of your project.

A dedicated technical advisor will work with you to refine your project and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any information, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Manager

Olivier Regnier Sales Manager

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager (female)

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor (male)

Jérôme Menu Technical Advisor

Photo of the Technical Advisor (female)

Fiona Rossignol Technical Advisor (female)

My online quote
Pictogram of Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known when production begins, and may vary depending on the season and factory holiday periods. If you have any deadlines, it is important to inform us in advance.

Pictogram of the Belgian flag

Made in Belgium

Pictogram of Free Delivery

Free delivery

Our solar carport kits are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Pictogram of Warranties

Warranties

Our solar carports are guaranteed for 10 years and comply with the strictest European standards. The aluminum profiles are thermally lacquered and benefit from the QUALICOAT LABEL. The solar panels are guaranteed for 30 years for the product and 25 years for the power output. The APsystems ECU-R Gateway is guaranteed for 3 years, and the APsystems DS3 Micro-inverters are guaranteed for 2 years.

Snow load: unless otherwise specified by you, load calculations are made with a snow load according to current standards. Please inform us of altitudes above 800 meters.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the bearers does not exceed 1/300th of the standard width of our solar panels
