Configure your HORIZON Solar Carport

  • Made in Belgium
  • Width: up to 10554mm
  • Depth: up to 3540mm
  • Gutter channel: straight
  • Solar panel: bifacial 430Wp
  • Posts: 150 x 177mm
  • Expandable and customizable carport
  • Integrated photovoltaic panels
*Required step
Your configuration

Factory direct price (incl. tax)

4,180.20
Instead of 4,917.88
Final price (tax incl.)
4,180.20

Summary

My online quote Delivery lead time PictogramLead time: 6 to 8 weeks* Colors with surcharge: 8 to 10 weeks
  • Delivery Pictogram Delivery
    included*
  • Manufacturing Pictogram Standard
    Product
  • Warranty Pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
HORIZON Solar Carport Version XL

* Assembly principle for HORIZON Products

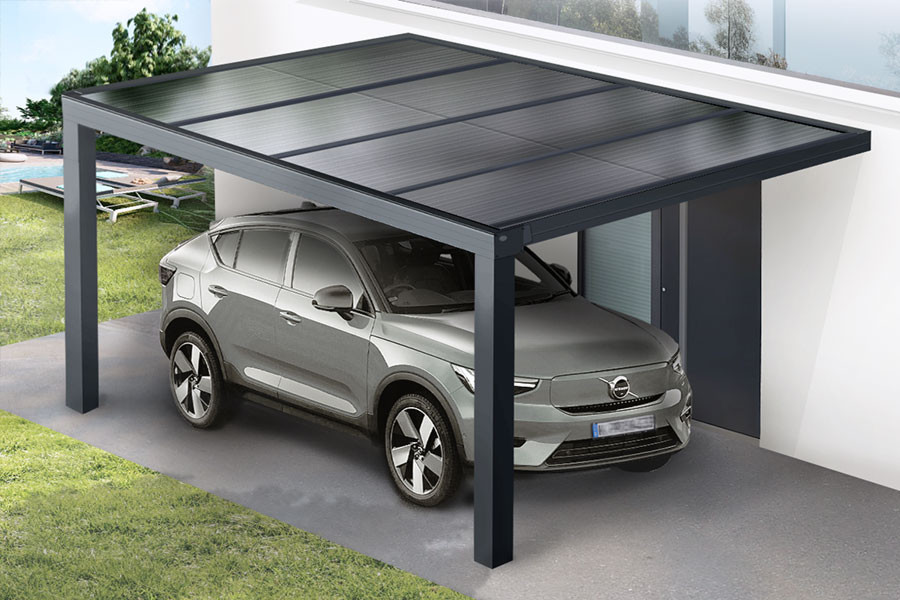

Protect and charge your vehicle!

Opt for the HORIZON Solar Carport and revolutionise your lifestyle by using solar energy to meet your energy needs, while providing a stylish shelter for your vehicle (car, van, motorhome, motorbike, scooter, etc.).

Thanks to its roof fitted with photovoltaic solar panels, our carport efficiently captures sunlight to provide a clean and renewable energy source.

In addition to protecting your vehicles from bad weather, solar carport gives you the option to charge your electric vehicles, thus contributing to environmental preservation and reducing your electricity bill.

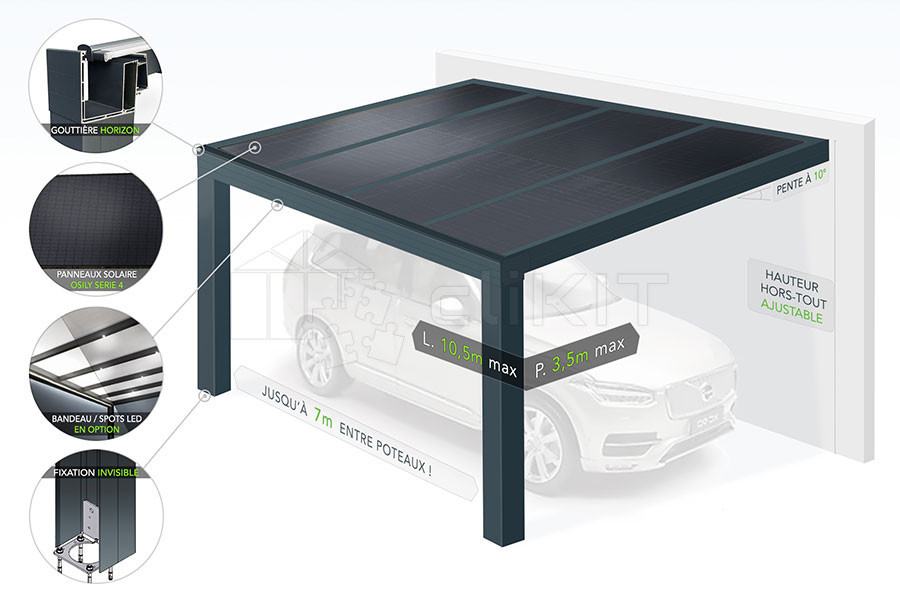

Diagram of the HORIZON Aluminium Carport

Powder-coated aluminium

Pictogram of the Standard CliKIT Gloss White colour CliKIT Gloss White
Pictogram of the Standard Structured Anthracite Grey 7016 colour Structured Anthracite Grey 7016
Pictogram of the Non-Standard colour Non-Standard (surcharge on quote)

Colour Selection (Package €275 incl. VAT)

Pictogram of the Structured Black 9005 colour Structured Black 9005
Pictogram of the Standard Structured Pure White 9010 colour Structured Pure White 9010
Pictogram of the Cream 9001 Gloss colour Gloss Cream 9001
Pictogram of the Structured Grey Alu 9007 colour Structured Grey Alu 9007
Pictogram of the Structured White Alu 9006 colour Structured White Alu 9006
Pictogram of the Structured Grey Metal 9009 colour Structured Grey Metal 9009
Pictogram of the Structured Quartz Grey 7039 colour Structured Quartz Grey 7039
Pictogram of the Structured Sepia Brown 8014 colour Structured Sepia Brown 8014
Pictogram of the Structured Purple Red 3004 colour Structured Purple Red 3004

16mm polycarbonate roofing

Diagram of the Light Tint Light Tint
Diagram of the Opal Tint Opal shade
Diagram of the Anti-heat Opal Tint Anti-heat Opal

Concealed fixings

Pictogram of the 150 x 177mm Post 150 x 177mm Post
Pictogram of the Integrated downpipe in the post Integrated downpipe in the post
Pictogram of the Concealed fixing with floor socket Concealed fixing with floor socket

A reinforced aluminium structure

  • Powder-coated aluminium structure with the QUALICOAT LABEL, cut to your measurements on request
  • PXLX aluminium support posts with PCLXLX clip, 2500mm length re-cuttable on request, fixed with supplied floor sockets (maximum width between posts: 5m)
  • Rainwater drainage with an 80mm diameter integrated into one of the posts of your choice
  • GXLX powder-coated aluminium gutter profile with a height of 115mm and a depth of 212mm
  • CL16 clips to screw onto solar panels with a lacquered cover
  • Roof pitch at a 10° angle
  • Stainless steel Torx screws included, powder-coated to match your carport colour

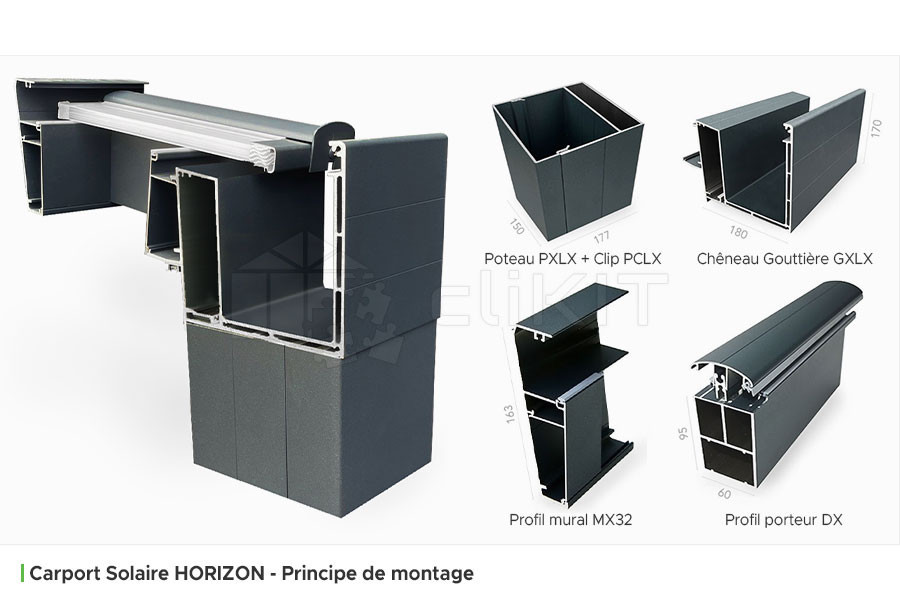

Photo of the HORIZON Model Assembly Principle
Photo of the PXLX Post Post PXLX and Clip PCLXLX
Photo of the GXLX Gutter Fascia GXLX Gutter Fascia
Photo of the MX32 Wall Profile MX32 Wall Profile
Photo of the DX Load-Bearing Profile DX Load-Bearing Profile
My online quote

Custom-made profiles

  • 150 x 177mm post with integrated and concealed water downpipe
  • Strainer for rainwater drainage
  • GXLX gutter fascia with a height of 170mm
  • Gutter reinforcement V1243 (Optional)
  • MX32 wall profile with a height of 163mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminum clamping clips with sealing gasket to receive solar panels
  • LED lighting strip integrated into the gutter (Optional)
  • Power supply for the LED lighting strip (Optional)
Numbered diagram of the HORIZON Model Assembly Principle

Personalise your project as you wish

CliKIT gives you the possibility to realise your 100% custom-made project by adapting to your needs and desires.

Configuration examples

Diagram no. 1 example of the standard configuration of the HORIZON Solar Carport Diagram no. 2 example of the standard configuration of the HORIZON Solar Carport Diagram no. 3 example of the standard configuration of the HORIZON Solar Carport Diagram no. 4 example of the standard configuration of the HORIZON Solar Carport
Legend diagram of the support wallsFixed support wallLegend diagram of the optional support wallsSupport walls of your choice (depending on your installation)

A self-consumption solar kit

Self-consumption ensures complementary green energy production to reduce your electricity bill.

Reduce the impact of supplier price increases independently: our kits do not require the involvement of an installer and do not oblige you to connect to the main grid.

Depending on the size of your project and your location, you will be able to power some of your household appliances, charge your electric car, power your swimming pool or spa, all directly.

Its simple installation allows you to benefit from a turnkey project to assemble independently at a lower cost. If you already own your system, our team can explore the possibility of integrating it into the HORIZON Carport.

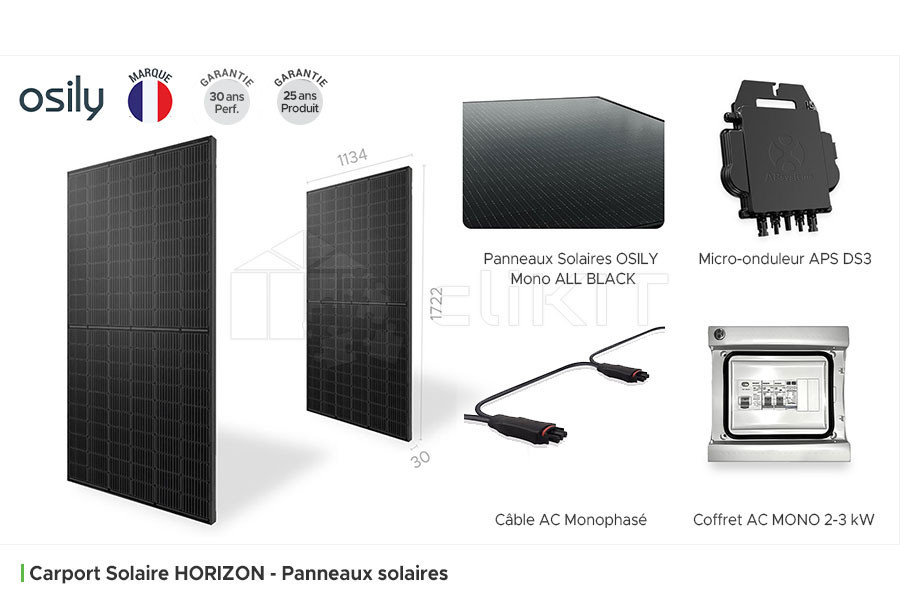

Photo of the OSILY Mono ALL BLACK Bifacial Solar Panels installed

The solar panels

The OSILY Mono ALL BLACK Bifacial Panels combine high energy production performance thanks to advanced monocrystalline cell interconnection technologies and reduced shading points to deliver an individual output of 430Wp. The OSILY brand guarantees these panels for 25 years. Their linear efficiency at 30 years is 87.4%, placing them above current industry standards. Find out more>

Photo of an OSILY Mono ALL BLACK Bifacial Panel OSILY Mono ALL BLACK Bifacial Panel
Photo of the APS DS3 Micro-inverter APS DS3 Micro-inverter
Photo of the Single-phase AC Cable Single-phase AC cable
Photo of the Single-phase AC enclosure 2 to 5 kW Single-phase AC enclosure 2 to 5 kW

Management

The APsystems DS3 Micro-inverters offer 97% efficiency and enable independent management of the panels, scalability of your installation while maintaining maximum safety through advanced voltage peak management.

The whole system is managed by an AC protection enclosure suitable for connecting to your electrical panel. With a simple installation, it manages your safety and ensures optimal performance.

 Depth of 1 PanelDepth of 2 Panels
Introduction image for the table
Diagram of the 16mm Opal Anti-heat Polycarbonate
Diagram of the 32mm Opal Anti-heat Polycarbonate
  No. of Panels No. of Inverters Maximum power No. of Panels No. of Inverters Maximum power
Width of 2392mm 2 1 860Wp 4 2 1720Wp
Width of 3558mm 3 2 1290Wp 6 3 2580Wp
Width of 4724mm 4 2 1720Wp 8 4 3440Wp
Width of 5890mm 5 3 2150Wp 10 5 4300Wp
Width of 7056mm 6 3 2580Wp Custom-made structure available
on quote, click here>
Width of 8222mm 7 4 3010Wp
Width of 9388mm 8 4 3440Wp
Width of 10554mm 9 5 3870Wp

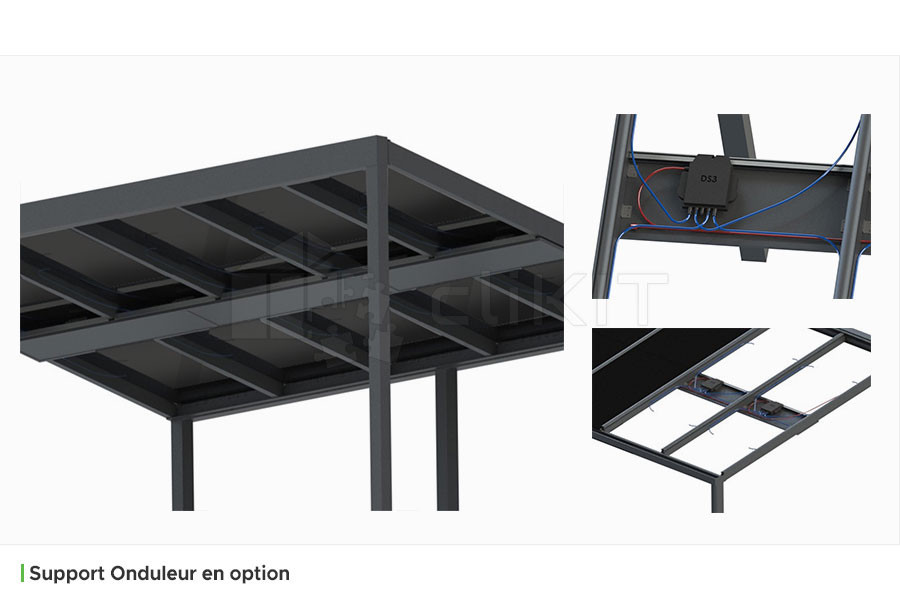

The Inverter Support as an option

Our Inverter Support is specially designed to optimise the installation and integration of your APS DS3 Micro-inverters under your solar carport. This technical and aesthetic solution enables a perfectly controlled installation of your equipment while preserving the elegance of your carport.

Thanks to its intelligent design, the Inverter Support ensures ideal positioning of the inverters in the immediate proximity of the solar panels, while respecting the necessary safety distances.

Underside view of the interior of the Inverter Support
Top view of the Inverter Support
Close-up view of the Inverter Support

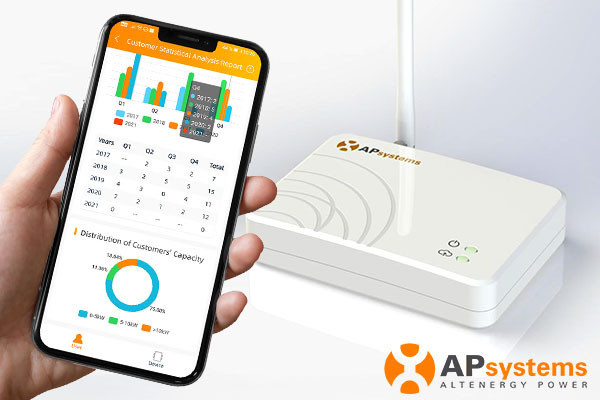

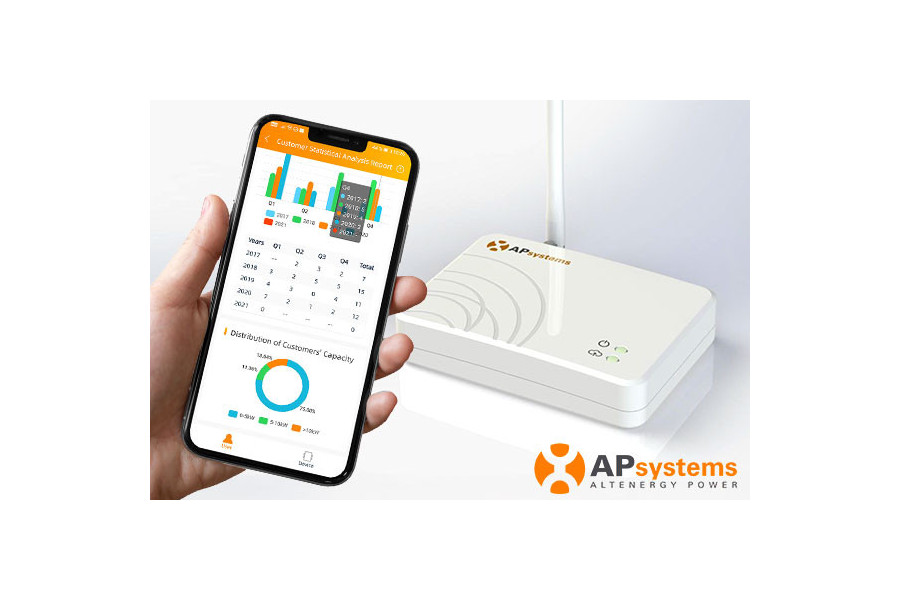

Monitor your consumption in real time!

The APsystems ECU-R Gateway plays a key role in your solar installation. This intelligent device can supervise your photovoltaic panels and allows you to monitor the real-time output of each module thanks to ZigBee wireless technology with a free-field range of up to 50m. Find out more>

Thanks to the intuitive EMA Manager mobile app, you can keep a close eye on your installation wherever you are. Simple and practical, it allows you to monitor your solar panels' performance in real time from your smartphone or tablet via a comprehensive monitoring interface.

Available on iOS and Android, you can optimise your green energy production and fully enjoy the benefits of your solar carport on a daily basis. Find out more>

Photo of the ECU-R Gateway
My online quote

Day and night!

An LED light strip can be integrated directly under the gutter fascia. This LED lighting diffuses an indirect and pleasant light that will allow you to see your vehicle at any time of day!

With the LED Spot Kit, you have the option to personalise the area you wish to illuminate under your carport — one side lit and the other dimmed, anything is possible!

A presence detector is also available on request; it automatically activates your LED lighting as soon as you park your vehicle. No more worries about manual lighting. Simplify your routine and ensure optimal visibility upon your arrival!

Photo of the LED Light Strip and LED Spot Kit for Carport

An adaptable and customizable carport for every season!

CliKIT develops the concept of an Adaptable Carport to suit your wishes or your budget at any given time. Rest assured that in the near or distant future, your carport will always be evolving!

Do you want to shelter your vehicle from the sun, wind, rain, or enclose a space? No problem, we offer a wide range specially designed to meet all your expectations: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Don't forget to take a look at our essential accessories to upgrade your carport!

Photo of Glass Curtains for Carport Glass Curtains
Photo of Blinds and Sails for Carport Blinds & Sails
Photo of Side Panels for Carport Side Panels

Support resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will quickly notice how simple the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT carport will arrive as a kit containing the aluminium roof structure, the solar panels, the accessories, and the installation manual.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Ø 8mm concrete drill bit
  • Metal drill bit Ø 4 and 8mm
  • Ø 80mm hole saw
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Easel or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents available to you:

Pictogram of the Installation ManualStructure
Manual>
Pictogram of the Installation ManualInverter Support
Manual>
Pictogram of the Installation ManualSolar Panel
Wiring Guide>
Assembly video pictogramStructure
Video>

More than just a customer service

You can count on the support of our experts and building enthusiasts to guide you throughout your entire process.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Engineer Manager

Nicolas Font Design Engineer Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor (female)

Fiona Rossignol Technical Advisor (female)

My online quote
Pictogram of the manufacturing lead time

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to inform us in advance.

Pictogram of the Belgian flag

Made in Belgium

Pictogram of Free delivery

Free delivery

Our solar carport kits are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Warranty pictogram

Guarantees

Our solar carports are guaranteed for 10 years and meet the strictest European standards. The aluminium profiles are powder-coated and carry the QUALICOAT LABEL. The solar panels are guaranteed for 30 years for the product and 25 years for output. The APsystems ECU-R Gateway is guaranteed for 3 years, and the APsystems DS3 Micro-inverters are guaranteed for 2 years.

Snow load: unless otherwise specified by you, load calculations are carried out with a snow load in accordance with current standards. Please notify us of altitudes above 800 metres.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing members does not exceed 1/300th for the standard width of our solar panels

Pictogram of quality label guarantees
