CLIMALUX Self-Supporting Solar Carport

Besoin d'un conseil ?
03 66 72 15 14
  • -15%
Photo n°1 of the CLIMALUX Freestanding Solar Carport
They talk about usChannel logo See> Discover> Watch the video>
Product Description Pictogram Product
description Installation Guide Pictogram Installation
guide Customer Reviews Pictogram Customer
reviews Delivery Terms Pictogram Delivery
terms

Configure your CLIMALUX Self-Supporting Solar Carport

  • Made in Belgium
  • Width: up to 10554mm
  • Depth: up to 3639mm
  • Gutter channel: straight
  • Solar panel: bifacial 430Wp
  • Posts: 110 x 141mm, 110 x 110mm
  • Expandable and customizable carport
  • Integrated photovoltaic panels
*Required step
Your configuration

Factory direct price (incl. tax)

4,691.18
Instead of 5,519.04
Final price (tax incl.)
4,691.18

Summary

My online quote Delivery lead time pictogramLead time: 6 to 8 weeks* Premium colours: 8 to 10 weeks
  • Delivery pictogram Free
    delivery*
  • Manufacturing pictogram Custom
    Made
  • Warranty pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
CLIMALUX Self-Supporting Solar Carport Island Version

* Installation principle of CLIMALUX Products

Protect and charge your vehicle!

With the CLIMALUX Self-Supporting Solar Carport, transform your vehicle shelter (car, van, motorhome, motorbike, scooter, etc.) into a renewable, sustainable and autonomous energy source, while protecting it from the elements such as rain, hail or snow.

Equipped with integrated solar panels, it converts every ray of sunlight into clean energy, allowing you to reduce your carbon footprint while saving on your electricity bill.

The main advantage of this solar carport model lies in its self-supporting design, offering an installation without requiring additional support structures, and also promoting optimal air circulation.

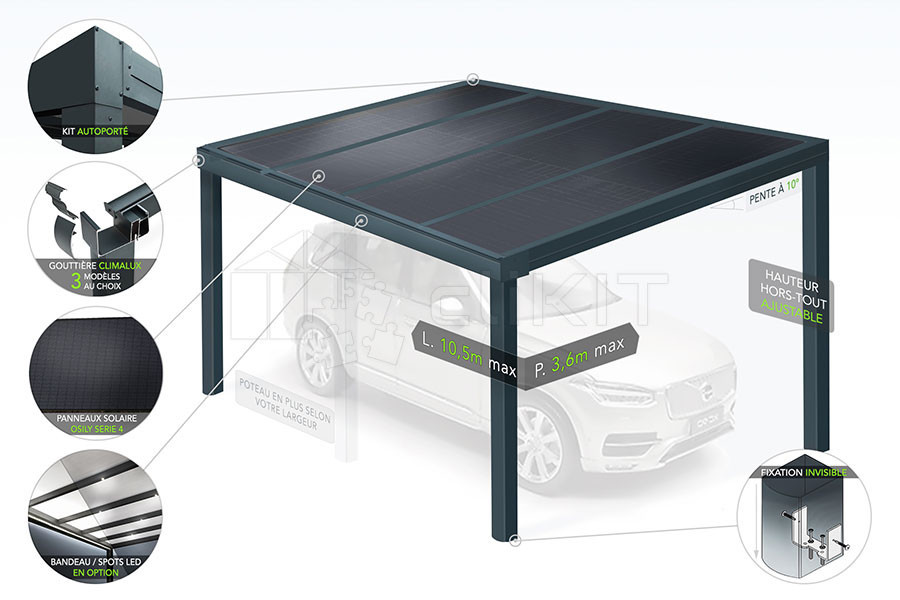

CLIMALUX Self-Supporting Solar Carport Diagram

Powder-coated aluminium

Standard CliKIT Gloss White Colour Pictogram CliKIT Gloss White
Standard Anthracite Grey 7016 Textured Colour Pictogram Anthracite Grey 7016 Textured
Non-Standard Colour Pictogram Non-Standard (surcharge on quote)

Colour Selection (Flat rate €275 incl. VAT)

Black 9005 Textured Colour Pictogram Black 9005 Textured
Standard Pure White 9010 Textured Colour Pictogram Pure White 9010 Textured
Cream 9001 Gloss Colour Pictogram Cream 9001 Gloss
Alu Grey 9007 Textured Colour Pictogram Alu Grey 9007 Textured
Alu White 9006 Textured Colour Pictogram Alu White 9006 Textured
Metal Grey 9009 Textured Colour Pictogram Metal Grey 9009 Textured
Quartz Grey 7039 Textured Colour Pictogram Quartz Grey 7039 Textured
Sepia Brown 8014 Textured Colour Pictogram Sepia Brown 8014 Textured
Purple Red 3004 Textured Colour Pictogram Purple Red 3004 Textured

Invisible fixings

Post 110 x 141mm Pictogram Post 110 x 141mm
Integrated post downpipe pictogram Integrated downpipe in post
Invisible pad eye fixing pictogram Invisible pad eye fixing

A reinforced aluminium structure

  • Powder-coated aluminium structure with QUALICOAT LABEL certification, cut to your measurements on request
  • PX aluminium support posts 110 x 141mm with a length of 2500mm, cuttable on request, fixed with supplied pad eyes (maximum width between posts: 3.5m)
  • Rainwater drainage with a diameter of 80mm integrated into one post of your choice
  • GX aluminium powder-coated gutter profile alone or, with a choice of SOFTLINE GLX / TRADITION GR decorative profiles
  • CL16 clips to screw onto the solar panels with a lacquered cover
  • Roof slope at an angle of 10°
  • Torx stainless steel screws included, lacquered to match your carport colour
  • Self-Supporting Kit: comprising the GDX self-supporting load-bearing beam, the GDSX clean profile under the load-bearing beam, as well as the PGDX posts

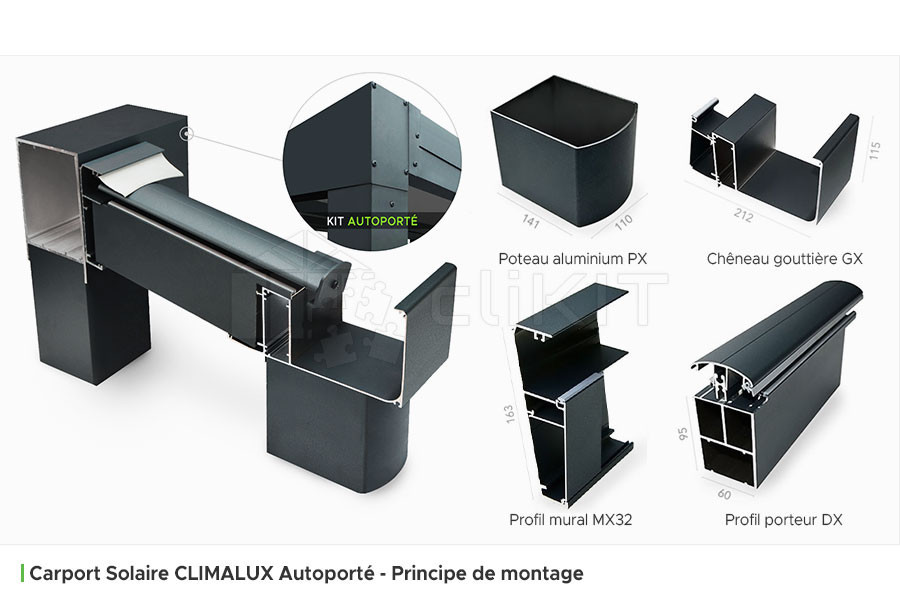

CLIMALUX Model Assembly Principle Photo
PX Aluminium Post Photo PX Aluminium Post
GX Gutter Channel Photo GX Gutter Channel
MX32 Support Profile Photo MX32 Support Profile
DX Load-Bearing Profile Photo DX Load-Bearing Profile
Self-Supporting Kit Photo Self-Supporting Kit
My online quote

Custom-designed profiles

  • Post 110 x 141mm with integrated and invisible downpipe
  • Strainer for rainwater drainage
  • GX gutter channel alone or, with a choice of decorative profiles
  • MX32 wall profile with a height of 163mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminium clamping clips and sealing gasket for 16mm panel
  • LED light strip integrated into the gutter channel (Optional)
  • Power Supply for the LED Light Strip (Optional)
  • GDX self-supporting load-bearing beam with a height and width of 190 x 117mm
  • GDSX clean profile under the load-bearing beam
  • Sharp-edge post PGDX 110 x 110mm
Numbered diagram of the Assembly Principle of the CLIMALUX Solar Self-Supporting Model

A self-consumption solar kit

Self-consumption ensures complementary green energy production to help reduce your electricity bill.

Reduce the impact of supplier price increases independently: our kits do not require the intervention of an installer and do not oblige you to connect to the main grid.

Depending on the size of your project and your location, you will be able to power some of your household appliances, charge your electric vehicle, power your swimming pool, your spa, all directly.

Its simple installation allows you to benefit from a turnkey project to assemble independently at a lower cost. If you already have your own system, our team can study the possibility of integrating it into the CLIMALUX Carport.

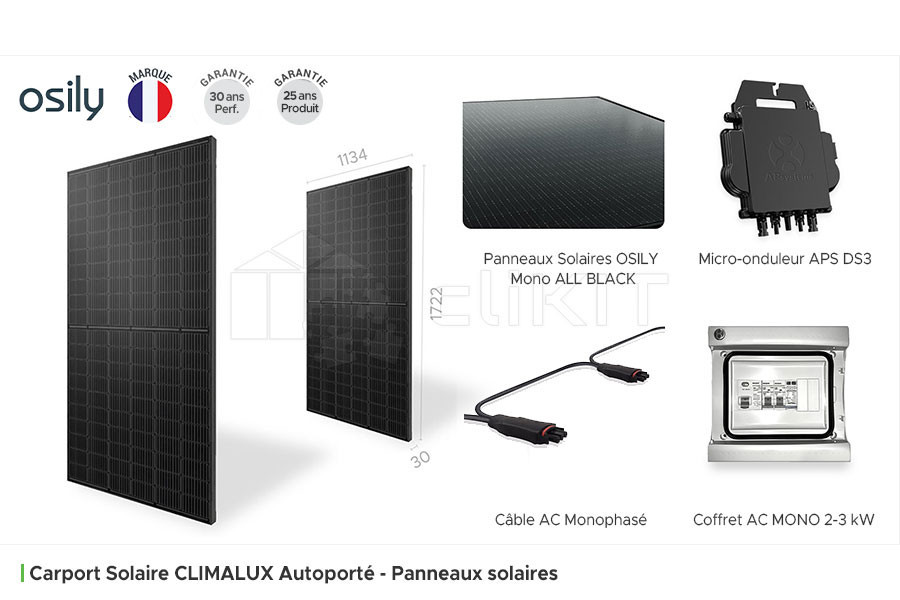

Photo of installed OSILY Mono ALL BLACK Bifacial Solar Panels

The solar panels

The OSILY Mono ALL BLACK Bifacial Panels combine high energy production performance thanks to advanced monocrystalline cell interconnection technologies and reduced shading points to deliver an individual output of 430Wp. The OSILY brand guarantees these panels for 25 years. Their linear efficiency at 30 years is 87.4%, placing them above current industry standards. Learn more>

Photo of an OSILY Mono ALL BLACK Bifacial Panel OSILY Mono ALL BLACK Bifacial Panel
APS DS3 Micro-inverter Photo APS DS3 Micro-inverter
Single-Phase AC Cable Photo Single-Phase AC Cable
AC MONO 2 to 5 kW Enclosure Photo AC MONO 2 to 5 kW Enclosure

Management

APsystems DS3 Micro-inverters offer 97% efficiency and enable independent management of panels, scalability of your installation while maintaining maximum safety through advanced voltage peak management.

The whole system is managed by an AC protection enclosure suitable for connecting to your electrical panel. With a simple installation, it manages your safety and ensures optimal performance.

 Depth of 1 PanelDepth of 2 Panels
Table introduction image
Diagram of the 16mm Opal Anti-heat Polycarbonate
Diagram of the 32mm Opal Anti-heat Polycarbonate
  Number of Panels Number of Inverters Maximum power Number of Panels Number of Inverters Maximum power
Width of 2392mm 2 1 860Wp 4 2 1720Wp
Width of 3558mm 3 2 1290Wp 6 3 258Wp
Width of 4724mm 4 2 1720Wp 8 4 3440Wp
Width of 5890mm 5 3 2150Wp 10 5 4300Wp
Width of 7056mm 6 3 2580Wp Custom-made structure available
on quote, click here>
Width of 8222mm 7 4 3010Wp
Width of 9388mm 8 4 3440Wp
Width of 10554mm 9 5 3870Wp

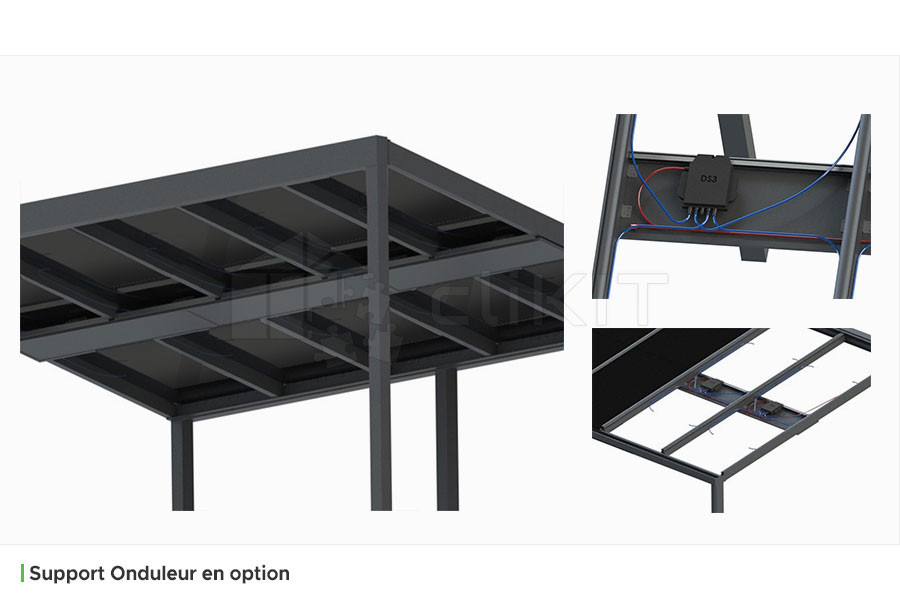

The optional Inverter Support

Our Inverter Support is specially designed to optimise the installation and integration of your APS DS3 Micro-inverters under your solar carport. This technical and aesthetic solution enables a perfectly controlled installation of your equipment while preserving the elegance of your carport.

Thanks to its intelligent design, the Inverter Support ensures ideal positioning of inverters in immediate proximity to the solar panels, while respecting the necessary safety distances.

Underside view of the interior of the Inverter Support
Top view of the Inverter Support
Close-up view of the Inverter Support

Monitor your consumption in real time!

The APsystems ECU-R Gateway plays a key role in your solar installation. This smart hub can supervise your photovoltaic panels and allows you to monitor the production of each module in real time thanks to ZigBee wireless technology with a range of up to 50m in open field. Learn more>

Thanks to the intuitive EMA Manager mobile app, you can keep a close eye on your installation wherever you are. Simple and practical, it allows you to monitor your solar panel performance live from your smartphone or tablet via a comprehensive monitoring interface.

Available on iOS and Android, you can optimise your green energy production and fully enjoy the benefits of your solar carport on a daily basis. Learn more>

ECU-R Gateway Photo
My online quote

Day and night!

An LED light strip can be integrated directly under the gutter channel. This LED lighting diffuses a soft, indirect light that will allow you to see your vehicle at any time of day!

With the LED Spot Kit, you can customise the area you wish to illuminate under your carport — one side lit and the other dimmed, anything goes!

A presence detector is also available on request; it automatically activates your LED lighting as soon as you park your vehicle. No more worries about manual lighting. Simplify your routine and ensure optimal visibility upon arrival!

LED Light Strip and LED Spot Kit for Carport Photo

An adaptable and customisable carport for every season!

CliKIT develops the concept of an Adaptable Carport to suit your wishes or current budget as closely as possible. Rest assured that in the near or distant future, your carport remains in a constant state of evolution!

Do you want to shelter your vehicle from the sun, wind, rain or enclose a space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Don't forget to check out our essentials to upgrade your carport!

Glass Curtains for Carport Photo Glass Curtains
Blinds and Awnings for Carport Photo Blinds & Awnings
Side Panels for Carport Photo Side Panels

Support resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will quickly notice how simple the installation system is. Assembly can be completed in just a few hours. Your CliKIT carport will arrive as a kit containing the aluminium roof structure, solar panels, accessories, and the installation manual.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bits Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to browse all the documents available to you:

Installation Manual PictogramStructure
Manual>
Installation Manual PictogramSelf-Supporting Kit
Manual>
Installation Manual PictogramSolar Panel
Wiring Guide>
Installation Manual PictogramInverter Support
Manual>
Assembly Video PictogramStructure
Video>

More than just a customer service

You can count on the support of our construction experts and enthusiasts to guide you through every step of the process.

A dedicated technical advisor will work with you to refine your project and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
at your service!

Sales Director Photo

Olivier Regnier Sales Director

Technical Manager Photo

Cédric Cavaillé Technical Manager

Logistics Manager Photo

Vanessa Debias Logistics Manager

Engineering Manager Photo

Nicolas Font Engineering Manager

Technical Advisor Photo

Jérôme Menu Technical Advisor

Technical Advisor Photo

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time pictogram

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please consult our page on Delivery Terms>

*The final lead time is only known at the start of production, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Belgian flag pictogram

Made in Belgium

Free delivery pictogram

Free delivery

Our solar carport kits are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Warranty Pictogram

Warranties

Our solar carports are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are powder-coated and hold the QUALICOAT LABEL certification. The solar panels are guaranteed 30 years for the product and 25 years for power output. The APsystems ECU-R Gateway is guaranteed for 3 years, and the APsystems DS3 Micro-inverters are guaranteed for 2 years.

Snow load: unless otherwise indicated by you, load calculations are carried out with a snow load in accordance with current standards. Please notify us of altitudes above 800 metres.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/300th of the standard width of our solar panels
