MANCHESTER V1 Conservatory

Besoin d'un conseil ?

  • -10%
They talk about us onChannel logo View Discover Watch the video
Product description picto Product
description
Customer
projects
Installation guide picto Installation
guide
Customer reviews picto Customer
reviews
Delivery terms picto Delivery
terms

Configure your MANCHESTER V1 Conservatory

  • Made in England
  • Version: on Low Wall
  • Dimensions: custom-made
  • Structure: PVC, aluminum
  • Roof polycarbonate, double glazing
  • Door: sliding, single, double
  • Optimal insulation and brightness
  • With thermal break
*Required step
Your configuration

Factory direct price (incl. tax)

7,394.60
Instead of 8,216.22

Final price (tax incl.)
7,394.60

Summary

My online quote Delivery time pictogramLead time: 10 to 12 weeks*
  • Delivery pictogram Free
    delivery*
  • Manufacturing pictogram Custom-
    Made
  • Warranty pictogram 10-year*
    Warranty
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
MANCHESTER V1 Conservatory Low Wall Version

Outdoor living at the heart of your home

The MANCHESTER V1 Conservatory Low Wall Version features a lean-to roof with a variable pitch of 5 to 25°. The side trapezoidal panels are fitted with 28mm double glazing, providing excellent light intake. A premium conservatory designed with quality materials, the MANCHESTER model adapts to all house styles while offering additional living space at an unbeatable price!

Square or rectangular in base, the window frames, assembled and screwed onto an aluminum frame, are made of reinforced multi-chamber 70mm PVC. The roof structure is aluminum with PVC capping.

Thanks to its unique assembly concept, the installation of your conservatory is simplified. Each component is numbered and identified on a personalized assembly plan. For your comfort, you have the choice between a 25/32mm polycarbonate roof or 24mm double glazing.

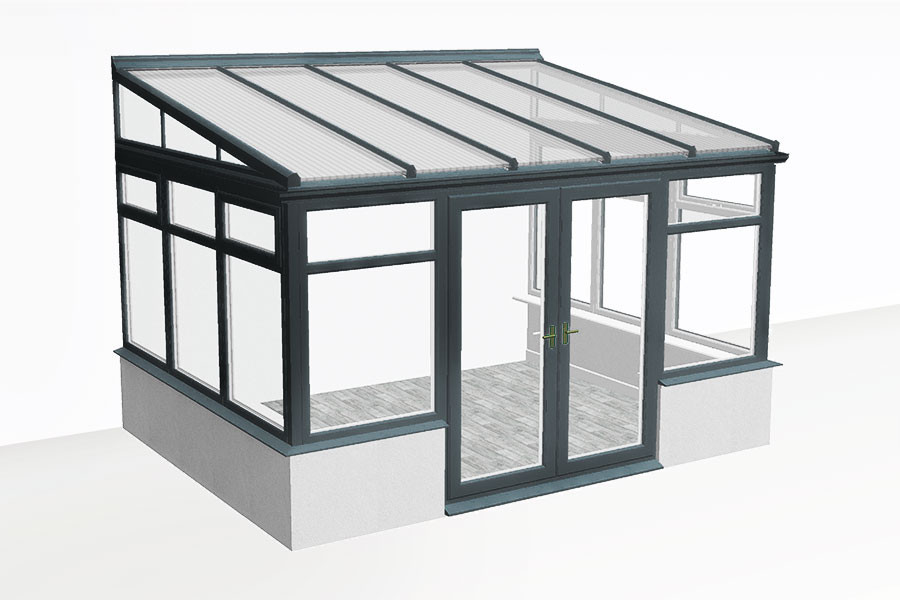

Diagram of the MANCHESTER V1 Conservatory on Low Wall

Aluminum structure & PVC-U capping

White Color Pictogram White
Pictogram of the Mixed Color Anthracite Grey / White Anthracite Grey ext.
White int.
Pictogram of the Mixed Color Golden Oak / White Golden Oak ext.
White int.
Golden Oak Color Pictogram Golden Oak
Pictogram of the Mixed Color Mahogany / White Mahogany ext.
White int.
Mahogany Color Pictogram Mahogany

Polycarbonate or glass roof

Photo of the Clear Tint Polycarbonate Polycarbonate
Clear
Photo of the Opal Tint Polycarbonate Polycarbonate
Opal
Photo of the PLANITHERM double glazing Double glazing
PLANITHERM
Photo of the PILKINGTON double glazing Double glazing
PILKINGTON

3 types of opening available

Diagram of the sliding frame Sliding frame
Diagram of the double French door Double French door
Diagram of the single French door Single French door

3 window models to choose from

Diagram of the opening window frame Opening window frame
Diagram of the sliding window frame Sliding frame
Diagram of the optional transom window Optional transom window
See our customers' photos>

A unique roofing concept

The MANCHESTER kit conservatory model features a reinforced aluminum roof structure with PVC-U caps.

The multi-chamber caps act as an additional insulating layer and increase the overall performance of the roof. The aluminum wall plate ensures the support of your roof and the PVC rainwater downpipe is both aesthetic and discreet.

The combination of aluminum and PVC provides significantly better thermal insulation thanks to the PVC capping. The latter further limits the transmission of the outside temperature absorbed by the aluminum structure. This forms a thermal barrier known as a thermal break.

Thanks to the properties of PVC, thermal performance is optimized and the level of condensation is greatly reduced.

Photo of the Assembly Principle
My online quote

Custom-designed profiles

  • Dual-chamber PVC-U cap for improved thermal performance and reduced condensation risk
  • Variable clip position for perfect glazing adjustment
  • Lugs on the cap for reinforced and secure hold
  • Aluminum bearer guaranteeing greater resistance
  • Discreet 10mm seal that adapts to the roof tolerance
  • Multiple concealed chamber under the seals for secondary drainage
  • Wide capping for greater stability
  • PVC-U capping for improved aesthetics
Numbered diagram of the Kit Conservatory Bearer

Customize your project as you wish

CliKIT gives you the possibility to carry out your 100% custom-made project, adapting to your needs and desires. Standard configurations are included at no extra cost. If you wish for a personalized configuration, we invite you to attach a plan to your quote request. You can also send it to us by email at contact@clikit.fr.

Standard configurations

Aluminum and PVC: the perfect mix

Watertightness, energy efficiency, safety, style and elegance: our frames have all the assets to withstand external elements (wind, snow, pollution, sea spray, etc.).

Your conservatory is fitted with DECEUNINCK multi-chamber 70mm reinforced PVC frames, mounted on an aluminum structure, offering exceptional thermal and acoustic insulation, easy maintenance, impact resistance and anti-condensation properties.

The PVC frames are assembled and then screwed by you onto an aluminum structure to rigidify the whole assembly.

Your choice of opening can include French casement doors or sliding doors, tilt-and-turn transom openers, as well as French casement or sliding windows.

Photo of the Conservatory window frames

3 door models to choose from

3 window models to choose from

My online quote

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing properties of the polycarbonate raw material and its resistance to high temperatures.

Photo of the Polycarbonate Panel models

The COMFORT Pack: 25 and 32mm Anti-UV Polycarbonate

The 25 and 32mm MARLON ST roofing panels are UV-treated and guaranteed anti-yellowing. This polycarbonate is highly impact-resistant and provides thermal insulation of 1.25 W/m²K or 1.4 W/m²K. It is available in Clear, Opal or SolarControl (opaque).

These panels provide natural light with minimal heat loss for a better overall energy balance.

 MARLON ST Polycarbonate
Clear Tint
MARLON ST Polycarbonate
Opal Tint
MARLON ST Polycarbonate
Solar Control
BRETT MARTIN brand logo Photo of the MARLON ST Clear Polycarbonate Photo of the MARLON ST Opal Polycarbonate Photo of the MARLON ST SolarControl Polycarbonate
Panel Tint Clear Tint Opal Tint Anti-Heat Opal Tint
Thickness 25mm 32mm 25mm 32mm 25mm 32mm
Weight per m² 3.1kg 3.6kg 3.1kg 3.6kg 3.1kg 3.6kg
Light transmission 62% 64% 28% 33% 7% 4%
U insulation value 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K
Energy retained (1-g) 38% 45% 57% 65% 86% 92%

The LUX Pack: 24mm insulating double glazing

This option replaces the polycarbonate with an Argon gas-reinforced PLANITHERM 24mm double-glazing roof. For maximum light and optimal insulation, treat yourself to the LUX Pack.

Depending on the orientation of your roof, an anti-heat glazing is recommended in order to control solar heat gain as much as possible in summer.

 Double Glazing SAINT-GOBAIN
PLANITHERM 24mm
Double Glazing PILKINGTON
ACTIV 24mm
Saint-Gobain and Pilkington brand logos Photo of the Saint-Gobain double glazing Photo of the Pilkington double glazing
Standard glazing Anti-heat glazing
Thickness 24mm - 4/16/4 24mm - 4/16/4
Light transmission 80% 74%
U insulation value 1.1 W/m² K 1.0 W/m² K
Energy retained (1-g) 37% 49%

Low-emissivity double glazing for enhanced insulation

The 28mm Saint-Gobain PLANITHERM ULTRA N double glazing (4-20-4) is a low-emissivity glass.

Thanks to a chemical treatment, this glazing has the ability to reflect the majority of heat back towards the warmest point.

Argon gas filling provides significantly lower thermal inertia than that of air used in standard glazing.

Thanks to this gas, your glazing will heat up or cool down much more slowly than standard double glazing.

Presentation of the Saint-Gobain brand

The advantages of Saint-Gobain double glazing

The Saint-Gobain PLANITHERM ULTRA N double glazing triples the thermal insulation performance compared to standard double glazing. In addition, it allows:

  • A reduction in heating costs.
  • An improvement in comfort:
    • no cold zone near glazed surfaces
    • maximum use of space
    • reduced risk of condensation on the inner glass
  • High light transmission and solar heat gain
  • Great architectural freedom (neutral appearance)
  • Environmental protection through the reduction of CO2 emissions
Diagram showing the insulation performance of the Saint-Gobain double glazing

Support resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your conservatory. You will quickly notice how simple the installation system is. Your CliKIT conservatory will arrive as a kit containing the roof structure, roofing elements, frame, glazing and base components, accessories, as well as the installation guide.

Link to an online quote

To successfully complete the assembly of your conservatory, you will need the following tools:

  • Tape measure
  • Clamp
  • Ø 4.5mm metal drill bit
  • 10mm and 13mm socket wrench
  • 13mm and 17mm open-end wrench
  • Screwdriver
  • Cutter
  • Drill
  • Power screwdriver
  • Silicone gun
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents available to you:

Installation Guide PictogramInstallation Guide>
Assembly Video PictogramAssembly Video>
Photo Book PictogramPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to accompany you throughout every step of your project.

A dedicated technical advisor is assigned to you to refine your project together and best meet your needs before and after your order, as well as throughout the entire assembly phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

  • Monday to Friday from 8:30 am to 12:30 pm and from 1:30 pm to 6:00 pm via our switchboard at +33 (0) 3 66 72 15 14
  • At any time by email at contact@clikit.fr

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Manager

Olivier Regnier Sales Manager

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Structural Engineer Manager

Nicolas Font Structural Engineer Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time pictogram

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the point of production and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to inform us in advance.

Free Delivery Pictogram

Free delivery

Our kit conservatories are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranty Pictogram

Warranties

10-year warranty on the structure and joinery, 5 years for double glazing, 2 years for accessories.

The 70mm multi-chamber PVC profiles are reinforced and compliant with European Standard NE12608.

The insulating double glazing complies with standards NE1279 and NE12600.
