CLIMAX Aluminium Veranda Roof

Besoin d'un conseil ?
03 66 72 15 14
  • -15%
Installation examples of the CLIMAX Aluminium Veranda Roofing
On parle de nous surChannel logo View Discover Watch the video
Product description pictogram Product
description Installation guide pictogram Installation
guide Customer reviews pictogram Customer
reviews Delivery terms pictogram Delivery
terms

Configure your CLIMAX Aluminium Veranda Roof

  • Made in Belgium
  • Width: unlimited & custom-made
  • Depth: up to 6000mm
  • Gutter channel: rounded
  • Roofing: polycarbonate
  • Optional: post 110 x 181mm
  • Expandable and customisable roofing
  • Thermal break
*Required step
Your configuration

Factory direct price (incl. tax)

3,330.95
Instead of 3,918.77
Final price (tax incl.)
3,330.95

Summary

My online quote Delivery time pictogramLead time: 6 to 8 weeks* Colors with surcharge: 8 to 10 weeks
  • Delivery pictogram Free
    delivery*
  • Manufacturing pictogram Custom
    Made
  • Warranty pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
CLIMAX Aluminium Veranda Roof Thermal Break Series
Photograph of a Climax Veranda Roof

Finally enjoy your outdoor space!

The CLIMAX Veranda Roof offers the ideal solution for extending your home as a veranda, conservatory or for patio development..

The CLIMAX veranda roof features a custom-profile system designed to fit a wide range of load-bearing structures (low wall, window frame, timber frame, aluminium posts...).

The CLIMAX aluminium roof respects your budget and excels in its simplicity, professionalism and aesthetics.

Thermal break insulation

The combination of aluminium and PVC provides much better thermal insulation thanks to its co-extruded PVC lower profiles. These further limit the transmission of outside temperature absorbed by the aluminium upper clips.

Thanks to the properties of PVC, thermal performance is optimised and the level of condensation is greatly reduced. This insulation process forms a thermal barrier known as a thermal break.

Photograph of the PERGOLUX Roof Covering Kit for Timber Load-Bearing Structure

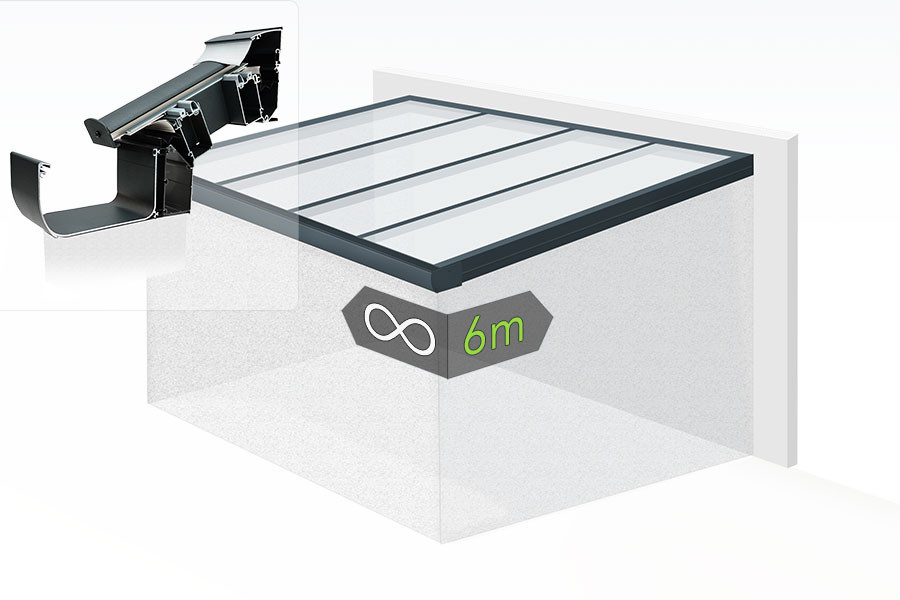

Diagram of the Climax Veranda Roof
Title bullet pictogramPowder-coated aluminium
Standard CliKIT Gloss White colour Anthracite Grey 7016 Textured colour Multiple Non-Standard Colours +20% Surcharge
CliKIT Gloss White Anthracite Grey 7016 Textured Non-Standard (added value on quote)
Colour Selection (Package €275 incl. VAT)
Black 9005 Textured colour Black 9005 Textured Pure White 9010 Textured colour Pure White 9010 Textured Cream 9001 Gloss colour Cream 9001 Gloss
Alu Grey 9007 Textured colour Alu Grey 9007 Textured Alu White 9006 Structured Color Alu White 9006 Textured Metal Grey 9009 Textured colour Metal Grey 9009 Textured
Quartz Grey 7039 Textured colour Quartz Grey 7039 Textured Sepia Brown 8014 Textured colour Sepia Brown 8014 Textured Red 3004 Gloss colour Red 3004 Gloss
Title bullet pictogram32mm Polycarbonate Roofing
Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Anti-heat Opal Polycarbonate
Clear Tint Opal Tint Anti-heat Opal

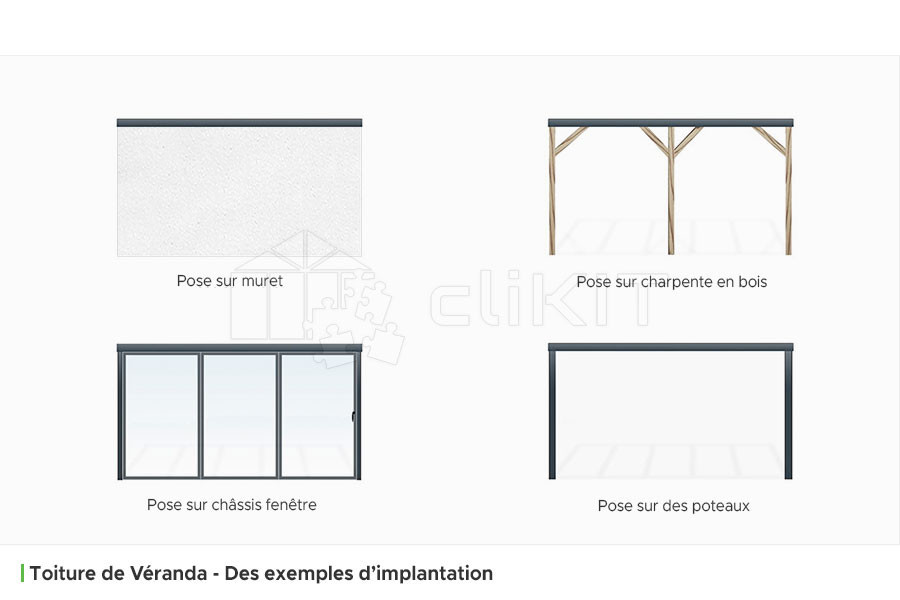

Some examples of layouts, anything is possible!

Example diagram no. 1 of the Climax Veranda Roof installation layout

Installation on low wall

Example diagram no. 2 of the Climax Veranda Roof installation layout

Installation on timber frame

Example diagram no. 3 of the Climax Veranda Roof installation layout

Installation on window frame

Example diagram no. 4 of the Climax Veranda Roof installation layout

Installation on posts
View our model>

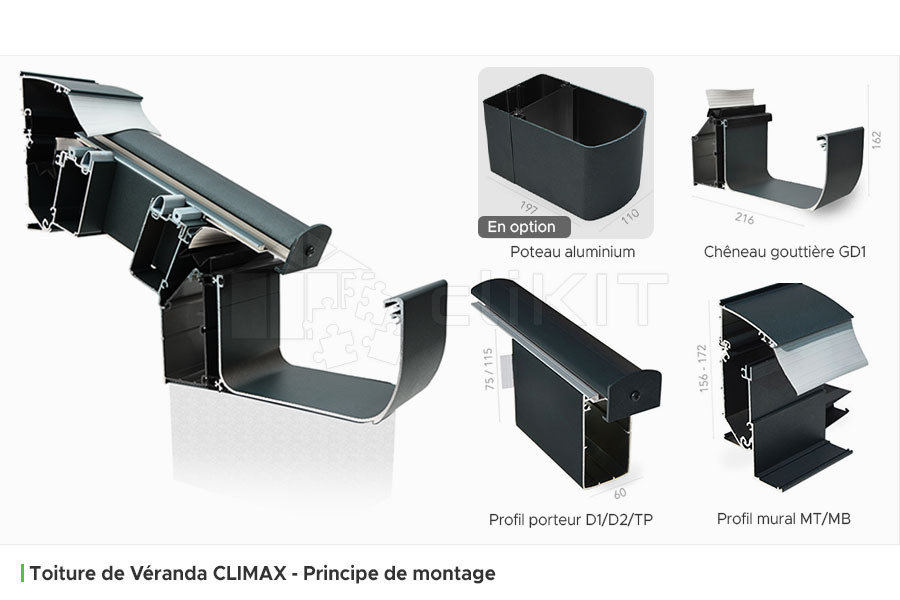

Image of the Assembly Principle of the Climax Veranda Roof

A reinforced aluminium structure

  • Powder-coated aluminium structure benefiting from the QUALICOAT LABEL, cut to your measurements on request
  • Integrated rainwater drainage with a diameter of 80mm and choice of position
  • GD1 aluminium powder-coated gutter profile with a height of 102mm and a depth of 235mm
  • CL32 clamping clips for 32mm panels
  • Roof pitch: customisable between 5° and 45°
  • Stainless steel Torx screws included, lacquered to match the colour of your veranda roof
  • Installation on existing structure: low wall, timber frame, reinforced window frame, aluminium posts...
Image of the Gutter Channel of the Climax Veranda Roof

GD1 Gutter Channel

Image of the Load-Bearing Profile of the Climax Veranda Roof

Load-Bearing Profile D1-D2-D3

Image of the Wall Profile of the Climax Veranda Roof

Wall Profile MX/MB

Image of the Aluminium Post of the Climax Veranda Roof

Aluminium Post
(OPTIONAL)

My online quote

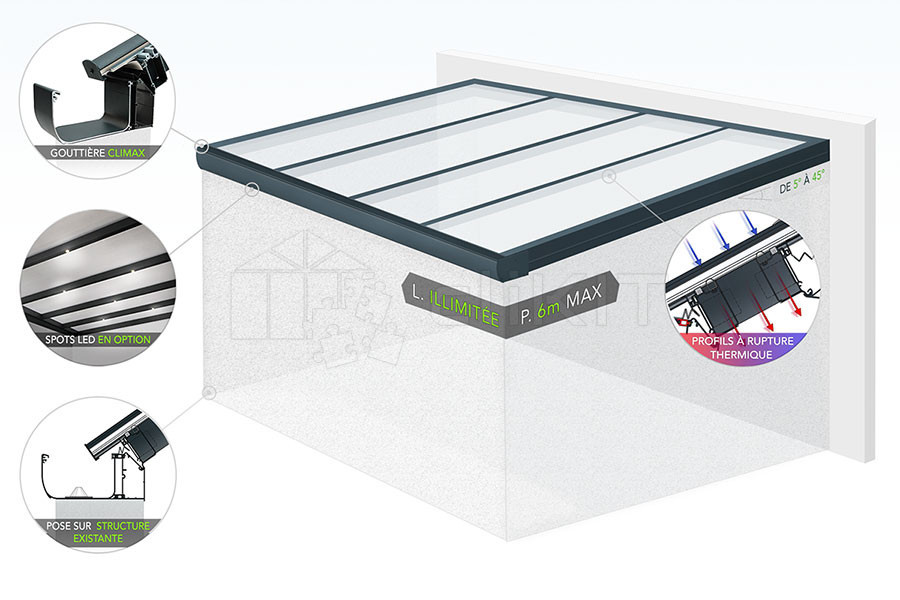

Numbered diagram of the Climalux Veranda Roof profiles

Custom-designed profiles

  • Pictogram no. 1Installation on custom existing structure (low wall, window frame, timber frame, aluminium posts, etc.)
  • Pictogram no. 2Integrated rainwater drainage with a diameter of 80mm and choice of position
  • Pictogram no. 3GD1 gutter channel with a height of 102mm
  • Pictogram no. 4Wall profile MT/MB with a height between 156 and 172mm
  • Pictogram no. 5D1-D2-D3 load-bearing profile with a height of 75 or 115mm and a width of 60mm
  • Pictogram no. 6Aluminium clamping clips with sealing gasket for 32mm panels

Customise your project as you wish

CliKIT gives you the possibility to create your 100% custom-made project by adapting to your needs and desires. Standard configurations have no additional cost.

Title bullet pictogramWith a standard configuration

Diagram no. 1 of the Standard Configuration of the Climxx Veranda Roof Diagram no. 2 of the Standard Configuration of the Climxx Veranda Roof Diagram no. 3 of the Standard Configuration of the Climxx Veranda Roof Diagram no. 4 of the Standard Configuration of the Climxx Veranda Roof

If you are in one of the custom configurations below, we invite you to attach a plan to your quote request. You can also send it to us by email at contact@clikit.fr

Title bullet pictogramWith a custom configuration

Diagram no. 1 of the Custom Configuration of the Climax Veranda Roof Diagram no. 2 of the Custom Configuration of the Climax Veranda Roof Diagram no. 3 of the Custom Configuration of the Climax Veranda Roof Diagram no. 4 of the Custom Configuration of the Climax Veranda Roof

Configuration Diagram Legend: Gutter support bracket — choice of positionChoice of gutter support Warning pictogramConfiguration Diagram Legend: Fixed support wallFixed support wallConfiguration Diagram Legend: Support wall — choice of positionChoice of support walls (depending on your layout)

Warning pictogramThe gutter must be installed on a suitable support. The system is compatible with: installation on a low wall, installation on a reinforced window frame, installation on a timber structure, installation on aluminium posts.

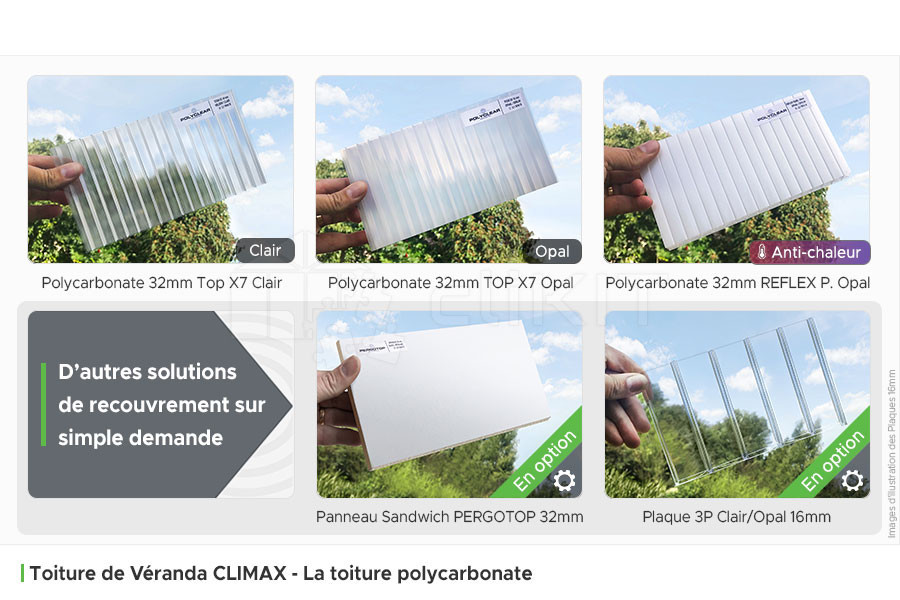

Diagram of the Polycarbonate panels of the Climax Veranda Roof

A polycarbonate roofing more resistant than glass

The Polyclear polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures.
View our photos>

Title bullet pictogramThe 32mm TOP X7 Polycarbonate - Clear / Opal

The insulating properties of the Structure X TOP 11 32mm multi-wall panels make them one of the most popular panels on the veranda and pergola market. The TOP X7 32mm Opal or Clear panel has a U-value of 1.2 W/m².K.

Title bullet pictogramThe 32mm REFLEX PEARL Polycarbonate - Anti-heat Opal

Thanks to its co-extruded reflective outer layer, the REFLEX PEARL panel reflects up to 82% of heat and offers a light transmission of 12%! In winter, you benefit from very good insulation, and in summer, the temperature under your pergola is pleasant thanks to its reflective properties.

TOP X7 Polycarbonate
32mm Clear		TOP X7 Polycarbonate
32mm Opal		REFLEX PEARL Polycarbonate
32mm Anti-heat Opal
Polyclear brand logo Diagram of the 32mm Clear Polycarbonate Diagram of the 32mm Opal Polycarbonate Diagram of the 32mm Anti-heat Opal Polycarbonate
Panel Width (mm) 980/1230 980/1230 980/1230
Panel Tint Clear Tint Opal Tint Anti-heat Opal Tint
Weight per m² 3.7 kg 3.7 kg 3.8 kg
Light transmission 57% 32% 12%
U insulation value 1.2 W/m² K 1.2 W/m² K 1.0 W/m² K
Energy retained (1-g) 39% 46% 68%
Sound insulation 21 dB 21 dB 23 dB
Image of the Clear Polycarbonate Image of the Opal Polycarbonate Image of the Anti-heat Opal Polycarbonate
Diagram of the Polycarbonate panels of the Climalux Pergola

Other covering solutions available on request

Title bullet pictogramThe PERGOTOP 32m Sandwich Panel

The PERGOTOP 32mm soundproofing sandwich panel is specially designed for optimal insulation thanks to its extruded polystyrene foam bonded between two pre-lacquered aluminium sheets. Its excellent insulation coefficient is complemented by high resistance to UV rays. View our photos>

Composed of a soft membrane on the exterior side and an anti-scratch coating or an identical membrane on its inner face, the PERGOTOP Soft Sandwich Panel effectively reduces contact noise such as rain or hail. Its Soft soundproofing layer absorbs acoustic energy optimally, available in 1 or 2 layer versions depending on your needs.

Title bullet pictogramThe 3P Clear or Opal 16mm Panel

With the 3P Clear or Opal 16mm Panel, enjoy the best transparency and optimal light transmission! Its multi-wall structure offers numerous advantages. It has very high impact resistance, up to 250 times stronger than glass! Equipped with an anti-UV layer, there is no discolouration or loss of clarity, and light diffusion is permanently guaranteed. Furthermore, its protective coating and the large size of its cells effectively limit condensation effects.

My online quote
Image of the Fascia and LED Spotlights as an option

Light up your evenings!

With the LED Spotlight Kit, you have the option to customise the area you wish to light under your veranda roof — one side lit for reading and another dimmed for relaxing, anything is possible!

With this LED Spotlight Kit, you can easily leave the light on all night under your carport or patio roof without worrying about the energy bill. This also provides a certain level of security. Learn more>

An expandable and customisable veranda roof through the seasons!

CliKIT develops the concept of an Expandable Veranda Roof to adapt as closely as possible to your desires or your current budget. Rest assured that in the near or distant future, your veranda roof will continue to evolve!

Do you want to shelter from the sun, wind, rain or define a private space? No problem, we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Walls, Roof Blinds, Shade Sails, Side Panels... and much more!

Title bullet pictogramRemember to take a look at our essentials to upgrade your veranda roof!

Link to the Glass Curtain Walls range Glass Curtain Walls Link to the Blinds and Shade Sails range Blinds & Canopies Link to the Side Panels range Side Panels

Resources to assist you

Our technical team remains available and attentive throughout the entire installation phase of your carport. You will quickly notice how simple the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT Carport will arrive as a kit containing the aluminium roof structure, roofing elements, accessories, and the installation guide.

Contact Details and Online Quote Request

To successfully complete the installation of your veranda roof, you will need the following tools:

Tape measure - Ø 8mm masonry drill bit - Ø 4 and 8mm metal drill bits - Ø 80mm hole saw - Utility knife - Drill - Screwdriver - Silicone gun - Spirit level - Sawhorse or trestles - Rubber mallet.

For more information on installation, feel free to view all our documents available to you:

Climax Veranda Roof installation guide to download Installation Guide>
Climax Pergola Photo Book to browse Photo Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you throughout the entire process.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire installation phase.

For any information, do not hesitate to contact our team who will be happy to answer you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time pictogram

Manufacturing lead time

For more information about manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to inform us in advance.

MadePictogram representing manufacturing in Belgiumin Belgium

Free delivery pictogram

Free delivery

Our kit veranda roofs are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Free delivery from €1,500 incl. VAT in metropolitan France, Belgium, Germany, Austria, Netherlands, Luxembourg
Flat-rate transport for Paris intra-muros: €192 incl. VAT
Flat-rate transport for high mountain regions with difficult access: €240 incl. VAT
Flat-rate transport for the Breton islands: on request
Flat-rate transport for Corsica: €690 incl. VAT
Flat-rate transport and customs documents for Switzerland: €483 excl. VAT**
Flat-rate transport for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues.
**customs duties and Swiss VAT remain the responsibility of the recipient.

Picto of the flags of the delivery countries

Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
Transport package for Paris intra-muros: €192 incl. VAT
Transport package for hard-to-reach high mountain regions: €240 incl. VAT
Transport package for the Breton islands: on request
Transport package for Corsica: €690 incl. VAT
Transport package and customs documents for Switzerland: €483 excl. VAT**
Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues.
**customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Warranties pictogram

Warranties

Our aluminium veranda roofing systems are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are powder-coated and bear the QUALICOAT LABEL.
Snow load: unless otherwise specified by you, load calculations are performed with a snow load in accordance with current standards. Please inform us of altitudes above 800 metres.
The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).
The deflection of the load-bearing profiles does not exceed 1/200th for a standard panel width of 980mm and a thickness of 16mm.

Pictogram representing European standards
