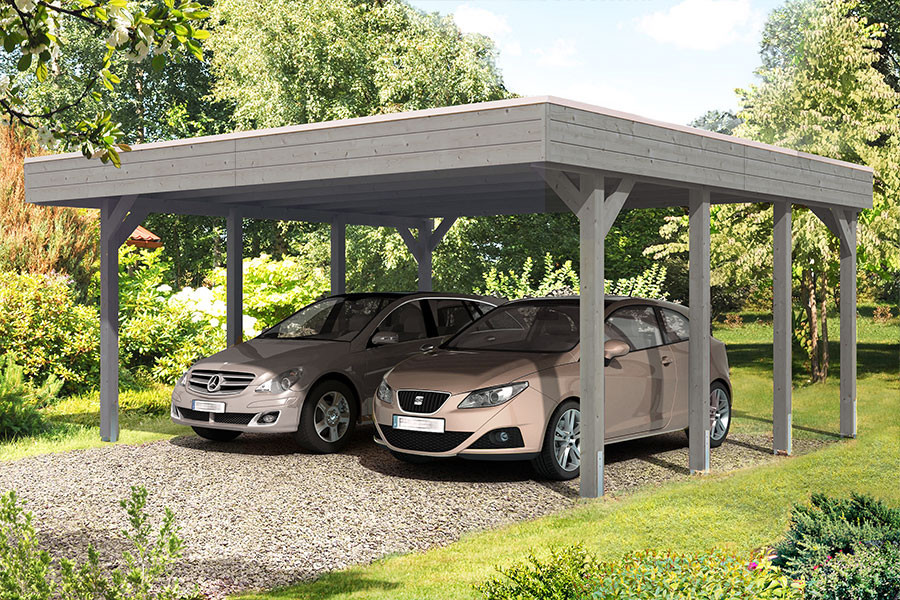

Photo n°1 of the FRIESLAND XL Self-Supporting Wood Carport
They talk about us onChannel Logo See> Discover> Watch the video>
Product Description Picto Product
Description Installation Guide Picto Installation
Guide Customer Reviews Picto Customer
Reviews Delivery Terms Picto Delivery
Terms

Configure your FRIESLAND XL Freestanding Wood Carport

  • Made in Germany
  • Width: up to 5570mm
  • Depth: up to 8600mm
  • Clearance height: up to 2120mm
  • Roof: aluminium, wood with EPDM
  • Posts: 115 x 115mm
  • Stained or non-stained finish
  • Autoclave treatment
*Required step
Your configuration

Factory direct price (incl. tax)

3,368.79
Instead of 3,963.28
Final price (tax incl.)
3,368.79

Summary

Contact us Delivery time pictoLead time: 4 to 6 weeks*
  • Delivery picto Free
    delivery*
  • Manufacturing picto Standard
    product
  • Warranty picto Warranty
    5 years*
  • Free Delivery* Free Delivery*
  • 2-year warranty Garantie
    5 years*
FRIESLAND XL Wood Carport Freestanding 2-Vehicle Version
Photo of the FRIESLAND XL Freestanding Wood Carport in Green Shade

Give your vehicles a cosy home!

Would you like to give your vehicles optimal protection while adding a touch of charm to your outdoor space? The FRIESLAND XL Freestanding Wood Carport designed for two vehicles is the perfect solution for you!

Made from Northern Pine, a quality wood known for its strength and durability, this wood carport offers a large capacity to park two cars side by side in complete safety, sheltered from the elements. With its elegant design, our wood carport for two vehicles adds aesthetic value to your property while providing reliable protection for your vehicles.

Thanks to the application of various treatments, the FRIESLAND XL Wood Carport can resist insect attacks, UV rays, rain, snow and extreme temperatures, without requiring much maintenance.

3D view of the FRIESLAND XL Freestanding Wood Carport

A robust solid treated wood structure

Non-stained autoclave finish

Made from solid Northern Pine naturally dried, the green hues of the FRIESLAND XL Freestanding Wood Carport in its non-stained version come from the effect of its autoclave treatment. The latter has the advantage of being both a powerful insecticide and fungicide.

This aqueous-phase impregnation treatment acts as a powerful protector against the attack of wood-boring insects and termites, and is also effective and durable against the development of mould and fungi in damp conditions.

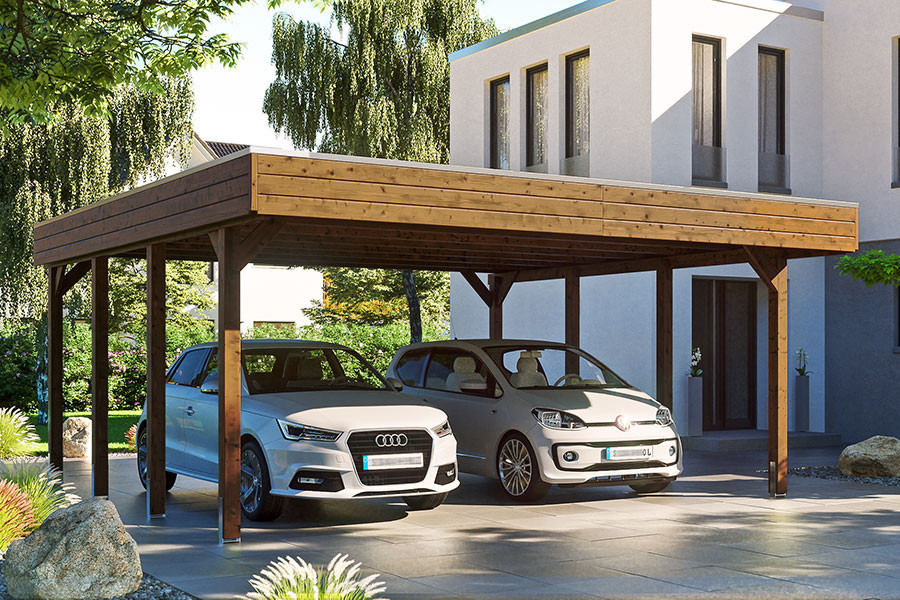

Photo of the FRIESLAND XL Freestanding Wood Carport in Walnut Shade

Autoclave-treated stained finish

In its stained version, the FRIESLAND XL Wood Carport has also undergone an autoclave treatment, followed by a stain and a premium paint. As a result, its structure benefits from effective and UV-resistant protection against any bluing of the wood without concealing the aesthetics of its natural grain.

This also greatly limits the expansion and contraction of the material under the effect of weather variations. All profiles undergo a stain bath twice to develop optimal protective qualities, followed by brushing to eliminate any excess.

To keep your carport looking as good as the first day, we recommend applying a new autoclave treatment and stain at the very end of summer and then every 4 or 5 years, in order to maintain the longevity of the wood of your car shelter.

3D view of the Autoclave-Treated Stained Finish in Green Non-stained finish: Green
3D view of the Autoclave-Treated Stained Finish in Walnut Stained finish: Walnut
3D view of the Autoclave-Treated Stained Finish in Slate Grey Stained finish: Slate Grey
3D view of the Aluminium Roof of the FRIESLAND Wood Carport

Two types of roofing to suit your needs

The flat roof of the FRIESLAND XL Freestanding Wood Carport is surrounded by a wooden fascia topped with an aluminium frame, with a gentle slope of 1.2°. It comes in two types of covering, each with their own characteristics and specifications depending on your needs.

The Aluminium Roof

The Aluminium Roof is made up of raw aluminium trapezoidal profiles. It offers excellent protection against bad weather (hail, snow) and potential impacts (falling tree branches). In intense heat, its solid surface shows great resistance to material deformation caused by high temperatures.

3D view of the EPDM Membrane Roof of the FRIESLAND Wood Carport

The Wood Roof with EPDM Membrane

Made up of 19mm-thick wooden boards covered with a waterproof rubber membrane, the Wood Roof with EPDM Membrane offers better acoustic insulation quality in the event of heavy rain.

The EPDM rubber has the advantage of being a highly resistant, durable and waterproof material, thanks to its elasticity. In addition to its sound-absorbing properties, this roof covering is capable of withstanding extreme temperatures during frost or heatwave periods.

EPDM membranes therefore carry no risk of roof oxidation, thanks to their perfect waterproofing and excellent UV protection. Easy to install, simply glue the pre-assembled roof delivered using the adhesive specially provided for this purpose.

A solid anchoring system

The anchoring system of the FRIESLAND XL Freestanding Wood Carport ensures a stable and solid fixing of the posts at your installation site. Its raised design is conceived to prevent any deterioration of the wood at its base due to rainwater runoff or ground moisture.

It consists of H-shaped anchoring profiles, made from flat galvanised steel with a length of 60cm.

They are secured by concrete anchoring in foundations prepared beforehand according to the configuration of your ground.

Thanks to this process, the FRIESLAND XL Wood Carport is capable of withstanding winds of up to 0.95 kN/m².

3D view of the ground anchoring profile fixed to a post

Comparison of the FRIESLAND XL Carport according to its dimensions

 5570 x 5550mm5570 x 7080mm5570 x 8600mm
Insertion space 3D view of the FRIESLAND XL Wood Carport 5570 x 5550mm 3D view of the FRIESLAND XL Wood Carport 5570 x 7080mm 3D view of the FRIESLAND XL Wood Carport 5570 x 8600mm
Number of posts 8 10 12
Post thickness 115 x 115mm 115 x 115mm 115 x 115mm
Ground surface area 30.91m² 39.44m² 47.90m²
Fitted volume 76.82m³ 97.41m³ 117.6m³
Ground width 5370mm 5370mm 5370mm
Ground depth 4690mm 6220mm 7740mm
Front clearance height 2120mm 2120mm 2120mm
Rear clearance height 2010mm 1980mm 1950mm
Clearance width 5140mm 5140mm 5140mm
Gable height 2540mm 2540mm 2540mm
Gutter height 2430mm 2400mm 2370mm
Snow load 1.25 kN/m2 1.25 kN/m2 1.25 kN/m2
Wind load 0.95 kN/m2 0.95 kN/m2 0.95 kN/m2
Roof type Flat roof Flat roof Flat roof
Roof pitch 1,2° 1,2° 1,2°
Gross weight 615kg 763kg 903kg
Guarantee 5 years 5 years 5 years
Documents FRIESLAND XL Wood Carport Brochure 5570 x 5550mm
View the brochure>		 FRIESLAND XL Wood Carport Brochure 5570 x 7080mm
View the brochure>		 FRIESLAND XL Wood Carport Brochure 5570 x 8600mm
View the brochure>
Information request

Support resources to assist you

Our technical team remains available and at your disposal throughout the entire assembly phase of your carport. You will quickly notice how straightforward the installation system is. It is possible to complete the assembly in just a few hours. Your CliKIT carport will arrive as a kit containing the wooden structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Wood drill bit Ø 3/4/8/9mm
  • 13mm wrench
  • BH11.5 saw
  • Shovel
  • Cutter
  • Drill
  • Screwdriver
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, do not hesitate to view all the documents made available to you:

Picto of the Installation GuideInstallation Guide>

More than just a customer service

You can count on the support of our experts and passionate building specialists to guide you throughout every step of your project.

A dedicated technical advisor is assigned to you to refine your project together and respond as effectively as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiries, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

Information request
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Picto of the German flag

Made in Germany

Picto of Free Delivery

Free delivery

Our kit carports are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in metropolitan France, Belgium, Germany, Austria, Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Shipping package for Paris intra-muros: €192 incl. VAT
  • Shipping package for hard-to-reach high mountain regions: €240 incl. VAT
  • Shipping package for the Breton islands: on request
  • Shipping package for Corsica: €690 incl. VAT
  • Shipping package and customs documents for Switzerland: €483 excl. VAT**
  • Shipping package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery countries flag pictogram
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documents package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Picto of the flags of the delivery countries
Picto of the Guarantees

Guarantees

Our wood carports come with a 5-year guarantee on the wood, construction and stability, provided that assembly and maintenance are carried out as indicated in the documents from our partner factory.

The maximum snow load for this wood carport is 1.25 kN/m², given that a snow load of 0.75 kN/m² is generally considered fully satisfactory. For installations located in high mountain areas, we nonetheless recommend that you contact your local authority for further information on this matter.
