EMSLAND Freestanding Wood Carport

Besoin d'un conseil ?
03 66 72 15 14
  • -15%

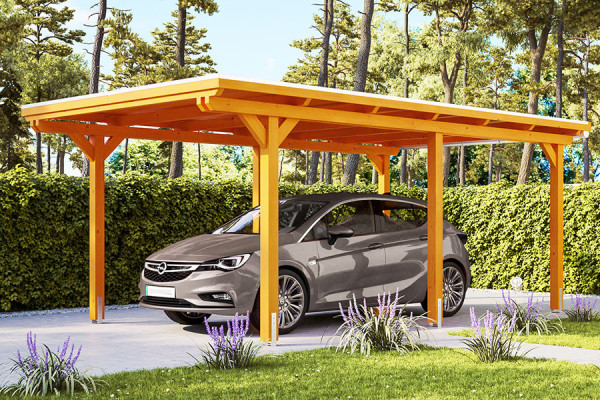

Photo n°1 of the EMSLAND Self-Supporting Wood Carport
They talk about us onChannel logo View> Discover> Watch the video>
Product Description icon Product
description Installation Guide icon Installation
guide Customer reviews icon Customer
reviews Delivery terms icon Delivery
terms

Configure your EMSLAND Freestanding Wood Carport

  • Made in Germany
  • Width: up to 4040mm
  • Depth: up to 8460mm
  • Clearance height: up to 2230mm
  • Roof: aluminium, wood with EPDM
  • Posts: 120 x 120mm
  • Stained or unstained finish
  • Autoclave treatment
*Required step
Your configuration

Factory direct price (incl. tax)

3,339.64
Instead of 3,928.99
Final price (tax incl.)
3,339.64

Summary

Contact us Delivery lead time iconLead time: 4 to 6 weeks*
  • Delivery icon Free
    delivery*
  • Manufacturing icon Standard
    Product
  • Warranty icon Warranty
    5 years*
  • 2-year warranty Garantie
    5 years*
EMSLAND Freestanding Wood Carport Version 1 Vehicle
Photo of the EMSLAND Freestanding Wood Carport in Light Oak Shade

Protect your vehicle from the elements!

Are you looking for a practical and attractive solution to protect your vehicle from the elements while adding a natural touch to your home? The EMSLAND Freestanding Wood Carport is the ideal solution!

The structure of this wood carport is built from glulam timber to form a solid and highly resistant assembly. Furthermore, wood is a natural and warm material that blends perfectly into an outdoor environment. By choosing a wood carport, you will add a touch of charm and elegance to your home.

The EMSLAND Wood Carport is available either in a natural, untreated version to give you the freedom to protect the structure as you wish, or in a version that has received an autoclave treatment to resist insect attack, UV rays, rain, snow, and extreme temperatures.

3D View of the EMSLAND Freestanding Wood Carport

A robust glulam timber structure

Untreated natural finish

If you opt for a natural and untreated EMSLAND Freestanding Wood Carport, you have the option to customize your carport as you see fit. You can, for example, apply a stain or a paint of your choice.

However, we strongly recommend carrying out an autoclave treatment beforehand. Indeed, this water-phase impregnation treatment acts as a powerful protector against the attack of wood-boring insects and termites, and is also effective and durable against the development of mould and fungi in damp conditions.

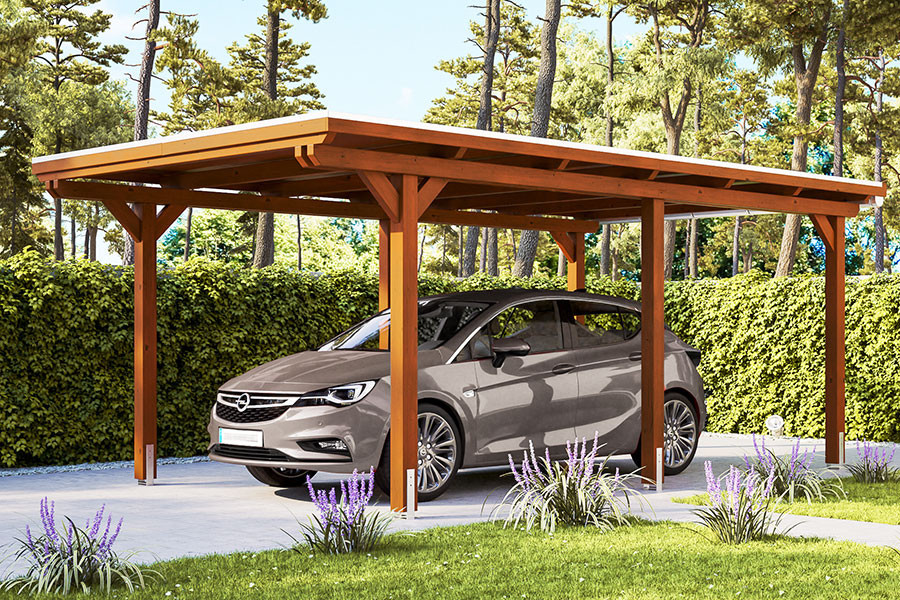

Photo of the EMSLAND Freestanding Wood Carport in Walnut Shade

Autoclave stained finish

In its stained version, the EMSLAND Wood Carport has also undergone an autoclave treatment, followed by a stain and a high-end paint coat. As a result, its structure benefits from effective, UV-resistant protection against any bluing of the wood without concealing the aesthetics of its natural grain.

This also greatly limits the expansion and contraction of the material under the effect of weather variations. All profiles undergo a stain bath twice to develop optimal protective qualities, followed by brushing to remove any excess.

To keep your carport looking as good as new, we recommend applying a new autoclave treatment and restaining at the very end of summer, then every 4 or 5 years, to maintain the longevity of the wood of your car shelter.

3D View of the Natural Wood Natural Wood

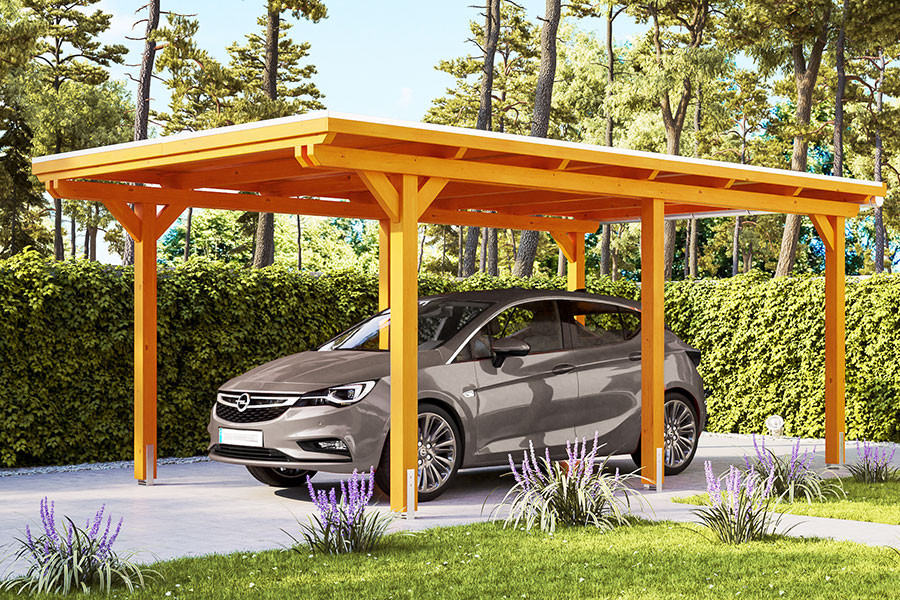

3D View of the Light Oak Shade Light Oak Shade

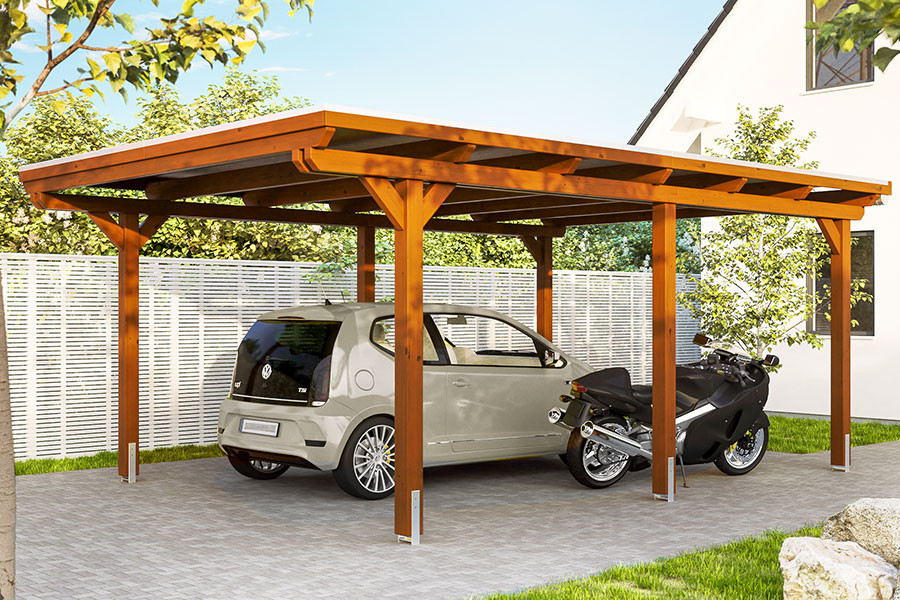

3D View of the Walnut Shade Walnut Shade

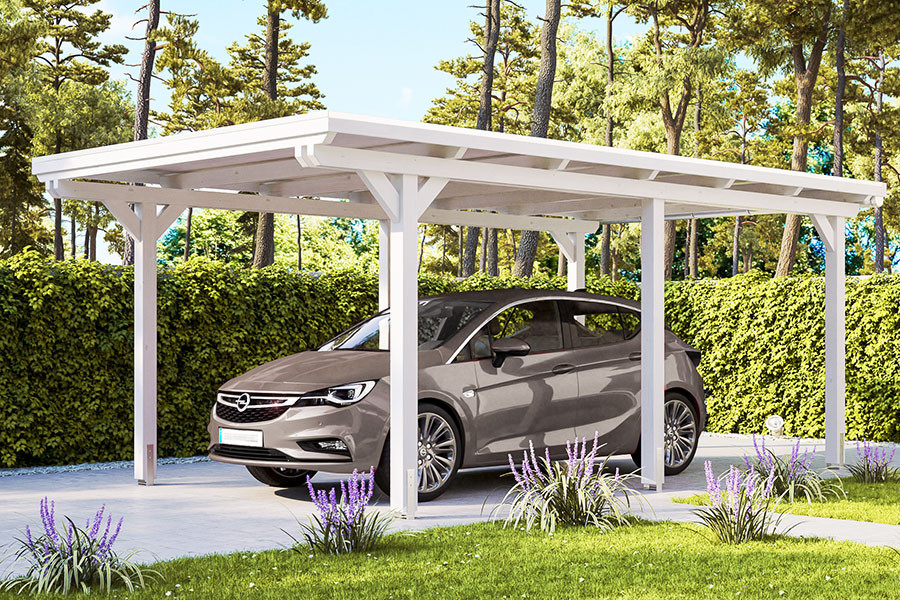

3D View of the White Shade White Shade

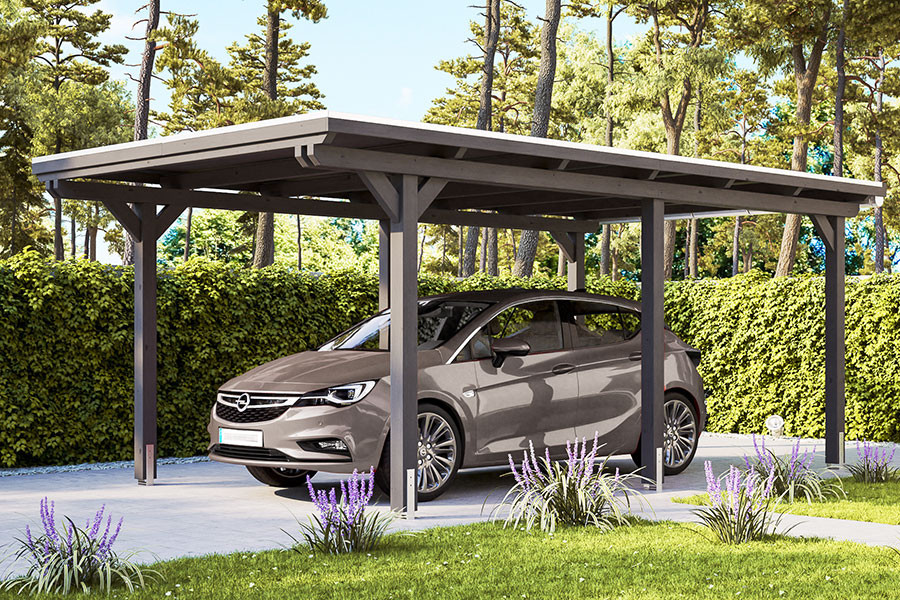

3D View of the Slate Grey Shade Slate Grey Shade
3D View of the Aluminium Roof of the EMSLAND Wood Carport

Two types of roofing to suit your needs

The flat roof of the EMSLAND Freestanding Wood Carport is framed by a wooden fascia topped with an aluminium frame, with a gentle slope of 1.2°. It comes in two types of covering, each with its own characteristics and specifications to suit your needs.

The Aluminium Roof

The Aluminium Roof is made up of lacquered aluminium trapezoidal profiles in anthracite grey on the outside and light grey on the inside. It provides excellent protection against bad weather (hail, snow) and potential impacts (falling tree branches). In extreme heat, its solid surface shows great resistance to material deformation caused by high temperatures.

3D View of the EPDM Membrane Roof of the EMSLAND Wood Carport

The Wood Roof with EPDM Membrane

Made up of 19mm thick wooden boards covered with a waterproof rubber membrane, the Wood Roof with EPDM Membrane offers superior acoustic insulation in heavy rain.

EPDM rubber has the advantage of being a highly resistant, durable, and waterproof material due to its elasticity. In addition to its sound-absorbing properties, this roofing covering can withstand extreme temperatures in periods of frost or heat waves.

EPDM membranes thus carry no risk of roof oxidation thanks to their perfect waterproofing and excellent UV protection. Easy to install, simply glue the pre-assembled roof using the adhesive specially provided for this purpose.

A solid anchoring system

The anchoring system of the EMSLAND Freestanding Wood Carport ensures a stable and solid fixing of the posts at your installation site. Its raised design is conceived to prevent any deterioration of the wood at its base caused by rainwater run-off or ground moisture.

It consists of H-shaped anchor profiles, made of flat galvanized steel with a length of 60cm.

They are secured by concrete anchoring in the foundations prepared in advance according to the configuration of your ground.

Thanks to this system, the EMSLAND Wood Carport is able to withstand winds of up to 0.95 kN/m².

3D View of the ground anchor profile fixed to a post

Comparison of the EMSLAND Carport according to its dimensions

 3540 x 6040mm3540 x 8460mm4040 x 6040mm4040 x 8460mm
Introduction area 3D View of the EMSLAND Wood Carport 3540 x 6040mm 3D View of the EMSLAND Wood Carport 3540 x 8460mm 3D View of the EMSLAND Wood Carport 4040 x 6040mm 3D View of the EMSLAND Wood Carport 4040 x 8460mm
No. of posts 6 8 6 8
Post thickness 120 x 120mm 120 x 120mm 120 x 120mm 120 x 120mm
Ground surface area 21.38m² 29.95m² 24.40m² 34.18m²
Usable volume 49.61m³ 68.73m³ 57.59m³ 79.81m³
Ground width 3150mm 3150mm 3650mm 3650mm
Ground depth 4960mm 7380mm 4960mm 7380mm
Front clearance height 2230mm 2230mm 2230mm 2230mm
Rear clearance height 2110mm 2060mm 2110mm 2060mm
Passage width 2910mm 2910mm 3410mm 3410mm
Gable height 2380mm 2380mm 2420mm 2420mm
Gutter height 2260mm 2210mm 2300mm 2250mm
Snow load 1.05 kN/m2 1.05 kN/m2 1.25 kN/m2 1.25 kN/m2
Wind load 0.95 kN/m2 0.95 kN/m2 0.95 kN/m2 0.95 kN/m2
Roof type Flat roof Flat roof Flat roof Flat roof
Roof pitch 1,2° 1,2° 1,2° 1,2°
Gross weight 408kg 547kg 421kg 614kg
Warranty 5 years 5 years 5 years 5 years
Documents Brochure EMSLAND Wood Carport 3540 x 6040mm
View the brochure>		 Brochure EMSLAND Wood Carport 3540 x 8460mm
View the brochure>		 Brochure EMSLAND Wood Carport 4040 x 6040mm
View the brochure>		 Brochure EMSLAND Wood Carport 4040 x 8460mm
View the brochure>
Information request

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will quickly notice how straightforward the installation system is. Assembly can be completed in just a few hours. Your CliKIT carport will arrive as a kit containing the wooden structure, the roofing elements, the accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Wood drill bit Ø 3/6/8/9mm
  • 13mm wrench
  • Saw BH11.5
  • Shovel
  • Cutter / box cutter
  • Drill
  • Cordless screwdriver
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all the documents available to you:

Installation Guide iconInstallation Guide>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you through every step of your project.

A dedicated technical advisor will work with you to refine your project and best meet your needs before and after your order, as well as throughout the entire installation process.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor (male)

Jérôme Menu Technical Advisor

Photo of the Technical Advisor (female)

Fiona Rossignol Technical Advisor

Information request
Manufacturing lead time icon

Manufacturing lead time

For more information on manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

German flag icon

Made in Germany

Free Delivery icon

Free delivery

Our kit carports are delivered by a specialist carrier equipped with a forklift truck for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in metropolitan France, Belgium, Germany, Austria, Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Shipping package for Paris intra-muros: €192 incl. VAT
  • Shipping package for hard-to-reach high mountain regions: €240 incl. VAT
  • Shipping package for the Breton islands: on request
  • Shipping package for Corsica: €690 incl. VAT
  • Shipping package and customs documents for Switzerland: €483 excl. VAT**
  • Shipping package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery countries flag pictogram
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documents package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Picto of the flags of the delivery countries
Warranties icon

Warranties

Our wood carports come with a 5-year warranty on the wood, the construction, and the structural stability, provided that assembly and maintenance are carried out as indicated in the documents from our partner factory.

The maximum snow load for this wood carport is between 1.05 and 1.25 kN/m², given that a snow load of 0.75 kN/m² is generally considered entirely satisfactory. For installations located in high mountain areas, we nonetheless recommend contacting your local authority for further information on this matter.
