Configure your EMSLAND XL Freestanding Wood Carport

  • Made in Germany
  • Width: up to 6130mm
  • Depth: up to 8460mm
  • Clearance height: up to 2230mm
  • Roof: aluminum, wood with EPDM
  • Posts: 120 x 120mm
  • Stained or unstained finish
  • Pressure treatment
*Required step
Your configuration

Factory direct price (incl. tax)

4,968.36
Instead of 5,845.13

Final price (tax incl.)
4,968.36

Summary

Contact us Delivery lead time iconLead time: 4 to 6 weeks*
  • Delivery icon Free
    delivery*
  • Manufacturing icon Standard
    Product
  • Warranty icon Warranty
    5 years*
  • 2-year warranty Garantie
    5 years*
Carport Bois EMSLAND XL Freestanding 2-Vehicle Version

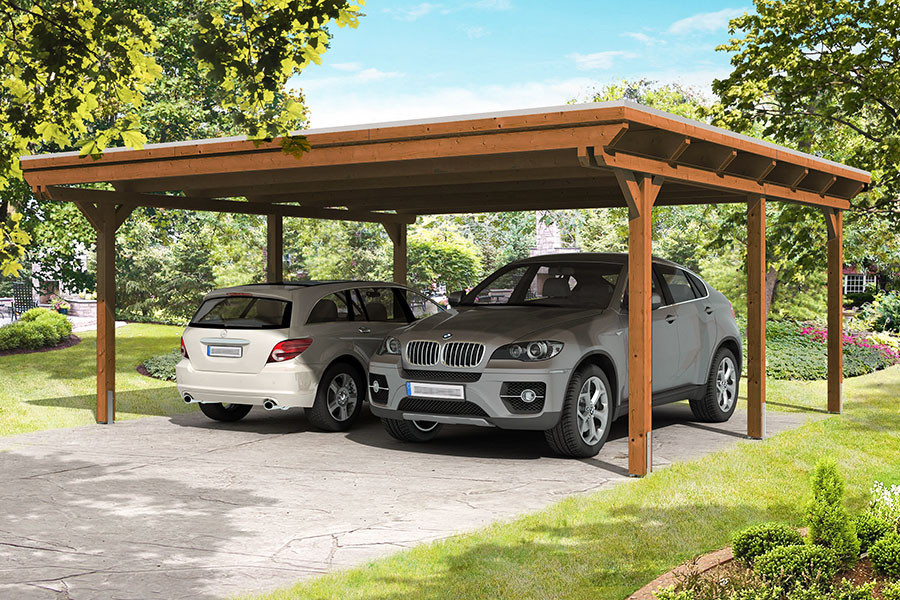

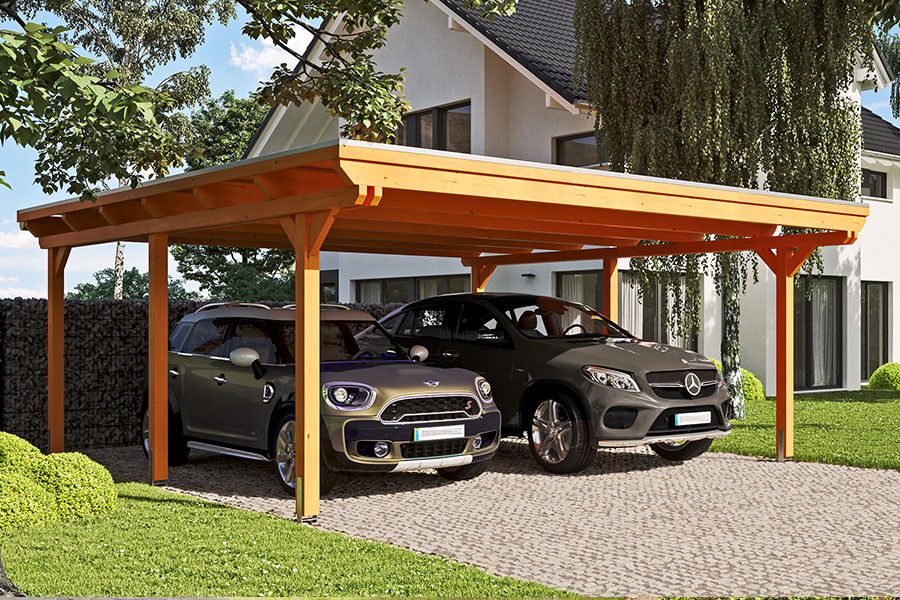

Photo of the EMSLAND XL Freestanding Wood Carport in Light Oak Finish

Protect your vehicles from the elements!

Do you want to give your vehicles optimal protection while adding a touch of charm to your outdoor space? The EMSLAND XL Freestanding Wood Carport designed for two vehicles is the perfect solution for you!

Made from highly resistant glulam timber, this wood carport offers ample capacity to park two cars side by side in complete safety, sheltered from the elements. With its elegant design, our wood carport for two vehicles adds aesthetic value to your property while providing reliable protection for your vehicles

The Carport Bois EMSLAND XL is available either in a natural, untreated version giving you the freedom to protect the structure as you wish, or in a version that has undergone pressure treatment to resist insect attack, UV rays, rain, snow, and extreme temperatures.

3D view of the EMSLAND XL Freestanding Wood Carport

A robust glulam timber structure

Natural untreated finish

If you choose a natural and untreated EMSLAND XL Freestanding Wood Carport, you have the option to customize your carport as you see fit. For example, you can apply the wood stain or paint color of your choice.

However, we strongly recommend carrying out pressure treatment beforehand. Indeed, this aqueous-phase impregnation treatment acts as a powerful protector against the attack of wood-boring insects and termites, and is also effective and long-lasting against the development of mold and fungi in damp conditions.

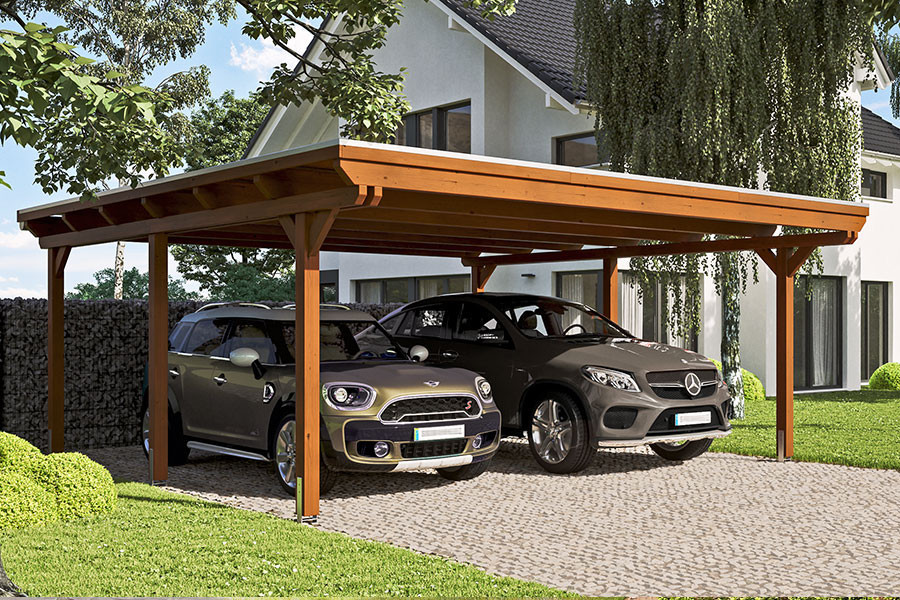

Photo of the EMSLAND XL Freestanding Wood Carport in Walnut Finish

Stained autoclave finish

In its stained version, the Carport Bois EMSLAND XL has also undergone pressure treatment, followed by a wood stain and a premium paint coat. As a result, its structure benefits from effective UV-resistant protection against any bluing of the wood without concealing the aesthetic of its natural grain.

This also greatly limits the expansion and contraction of the material under the effect of changing weather conditions. All profiles undergo two rounds of wood stain treatment to develop optimal protective qualities, followed by brushing to ensure the removal of any excess.

To keep your carport looking its best, we recommend applying a fresh pressure treatment and wood stain at the very end of summer, then every 4 or 5 years, to maintain the longevity of the wood of your car shelter.

3D view of the Aluminum Roof of the EMSLAND XL Wood Carport

Two types of roofing to suit your needs

The flat roof of the EMSLAND XL Freestanding Wood Carport is bordered by a wooden fascia topped with an aluminum frame, with a slight slope of 1.2°. It comes in two types of covering, each with its own characteristics and specifications to suit your needs.

The Aluminum Roof

The Aluminum Roof is made up of lacquered aluminum trapezoidal profiles in anthracite grey on the outside and light grey on the inside. It provides excellent protection against bad weather (hail, snow) and potential impacts (falling tree branches). In extreme heat, its solid surface shows great resistance to deformation caused by high temperatures.

3D view of the EPDM Membrane Roof of the EMSLAND XL Wood Carport

The Wood Roof with EPDM Membrane

Made up of 19mm thick wooden planks covered with a waterproof rubber membrane, the Wood Roof with EPDM Membrane offers superior acoustic insulation in heavy rain.

EPDM rubber has the advantage of being a highly resistant, durable, and waterproof material, thanks to its elasticity. In addition to its noise-absorbing properties, this roof covering is capable of withstanding extreme temperatures during freezing cold or heatwave conditions.

EPDM membranes carry no risk of roof oxidation thanks to their perfect waterproofing and excellent UV protection. Easy to install, simply glue the pre-assembled roof using the adhesive supplied specifically for this purpose.

A solid anchoring system

The anchoring system of the EMSLAND XL Freestanding Wood Carport ensures a stable and secure fixing of the posts at your installation site. Its raised design is intended to prevent any deterioration of the wood at its base due to rainwater run-off or ground moisture.

It consists of H-shaped anchor profiles, made from flat galvanized steel, 60cm in length.

They are secured using a concrete anchor set into foundations prepared in advance according to your ground configuration.

Thanks to this process, the Carport Bois EMSLAND XL is capable of withstanding winds of up to 0.95 kN/m².

3D view of the ground anchor profile fixed to a post

Comparison of the EMSLAND XL Carport by dimensions

 6130 x 6040mm6130 x 8460mm
Introduction space 3D view of the Carport Bois EMSLAND XL 6130 x 6040mm 3D view of the Carport Bois EMSLAND XL 6130 x 8460mm
Number of posts 6 8
Post thickness 120 x 120mm 120 x 120mm
Floor area 37.03m² 51.86m²
Usable volume 89.60m³ 124.20m³
Ground width 5740mm 5740mm
Ground depth 4960mm 7380mm
Front clearance height 2230mm 2230mm
Rear clearance height 2110mm 2060mm
Passage width 5500mm 5500mm
Gable height 2580mm 2480mm
Gutter height 2360mm 2310mm
Snow load 1.25 kN/m2 1.25 kN/m2
Wind load 0.95 kN/m2 0.95 kN/m2
Roof type Flat roof Flat roof
Roof pitch 1,2° 1,2°
Gross weight 766kg 1003kg
Warranty 5 years 5 years
Documents Carport Bois EMSLAND XL 6130 x 6040mm Brochure
View the brochure>
Carport Bois EMSLAND XL 6130 x 8460mm Brochure
View the brochure>
Information request

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will quickly notice how simple the installation system is. Assembly can be completed in just a few hours. Your CliKIT carport will arrive as a kit containing the wooden structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully complete the assembly of your carport, you will need the following tools:

  • Tape measure
  • Wood drill bit Ø 3/6/8/9mm
  • 13mm wrench
  • Saw BH11.5
  • Shovel
  • Utility knife
  • Drill
  • Power screwdriver
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, feel free to view all the documents available to you:

Installation Guide pictogramInstallation Guide>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you through every step of the process.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any inquiries, please do not hesitate to contact our team, who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

Information request
Manufacturing lead time pictogram

Manufacturing lead time

For more information regarding manufacturing and delivery times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Free delivery pictogram

Free delivery

Our kit carports are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranty pictogram

Warranties

Our wood carports come with a 5-year warranty on the wood, construction, and structural stability, provided that assembly and maintenance are carried out as indicated in the documentation from our partner factory.

The maximum snow load for this wood carport is 1.25 kN/m², with a snow load of 0.75 kN/m² generally considered fully satisfactory. For installations located in high mountain areas, we still recommend consulting your local municipality for more information on this subject.
