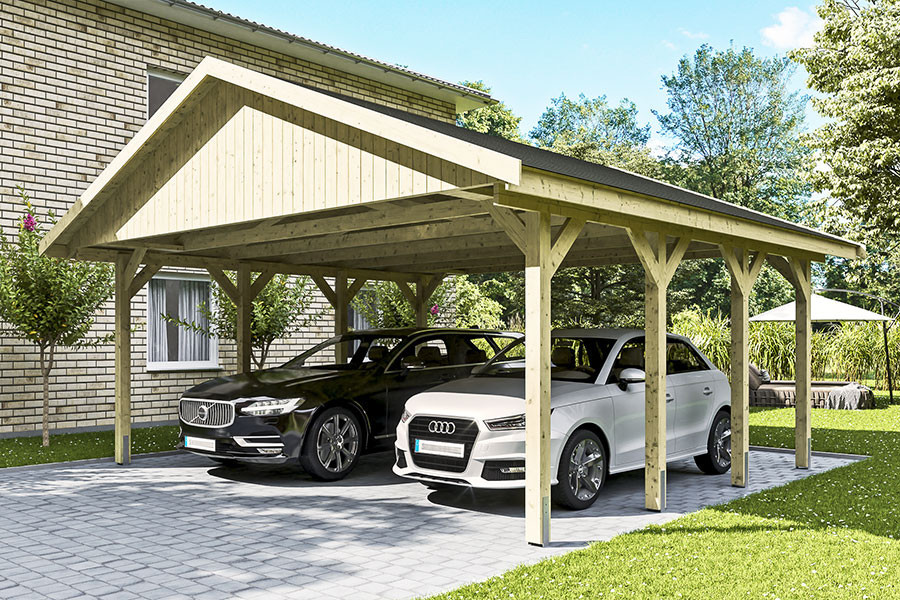

Photo no. 1 of the WALLGAU XL Freestanding Wood Carport
They talk about us onChannel logo View> Discover> Watch the video>
Product Description icon Product
description Installation Guide icon Installation
guide Customer reviews icon Customer
reviews Delivery terms icon Delivery
terms

Configure your WALLGAU XL Freestanding Wood Carport

  • Made in Germany
  • Width: up to 6200mm
  • Depth: up to 9000mm
  • Clearance height: up to 2150mm
  • Roof: asphalt shingles
  • Posts: 115 x 115mm
  • Stained or non-stained finish
  • Pressure treatment
*Required step
Your configuration

Factory direct price (incl. tax)

4,083.16
Instead of 4,803.72
Final price (tax incl.)
4,083.16

Summary

Contact us Delivery lead time iconLead time: 4 to 6 weeks*
  • Delivery icon Free
    delivery*
  • Manufacturing icon Standard
    Product
  • Warranty icon Warranty
    5 years*
  • 2-year warranty Garantie
    5 years*
Freestanding WALLGAU XL Wood Carport 2-Vehicle Version

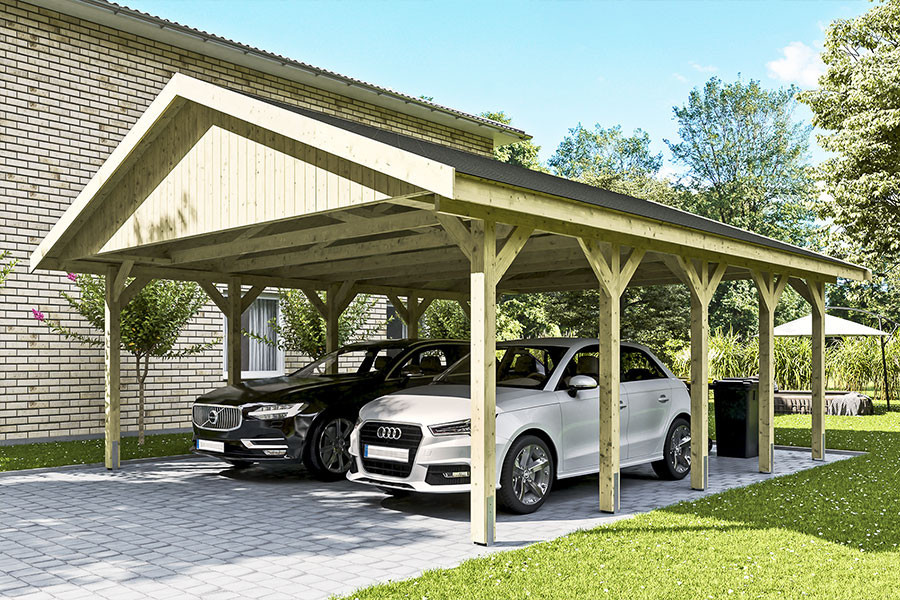

Photo of the WALLGAU XL Freestanding Wood Carport in Green Shade

Give your vehicles a cozy home!

Want to give your vehicles optimal protection while adding a touch of charm to your outdoor space? The Freestanding WALLGAU XL Wood Carport designed for two vehicles is the perfect solution for you!

Made from Northern Pine, a quality wood known for its strength and durability, this wood carport offers a large capacity for parking two cars side by side in complete safety, sheltered from the elements. With its elegant design, our wood carport for two vehicles adds aesthetic value to your property while providing reliable protection for your vehicles.

Thanks to the application of various treatments, the WALLGAU XL Wood Carport can resist insect attacks, UV rays, rain, snow, and extreme temperatures, without requiring much maintenance.

3D view of the Freestanding WALLGAU XL Wood Carport

A robust solid treated wood structure

Pressure-treated non-stained finish

Made from solid Northern Pine wood that has been naturally dried, the green shades of the Freestanding WALLGAU XL Wood Carport in its non-stained version come from the effect of its pressure treatment. The latter has the advantage of being both a powerful insecticide and fungicide.

This aqueous-phase impregnation treatment acts as a powerful protector against the attack of wood-boring insects and termites, and is also effective and long-lasting against the development of mold and fungi in humid conditions.

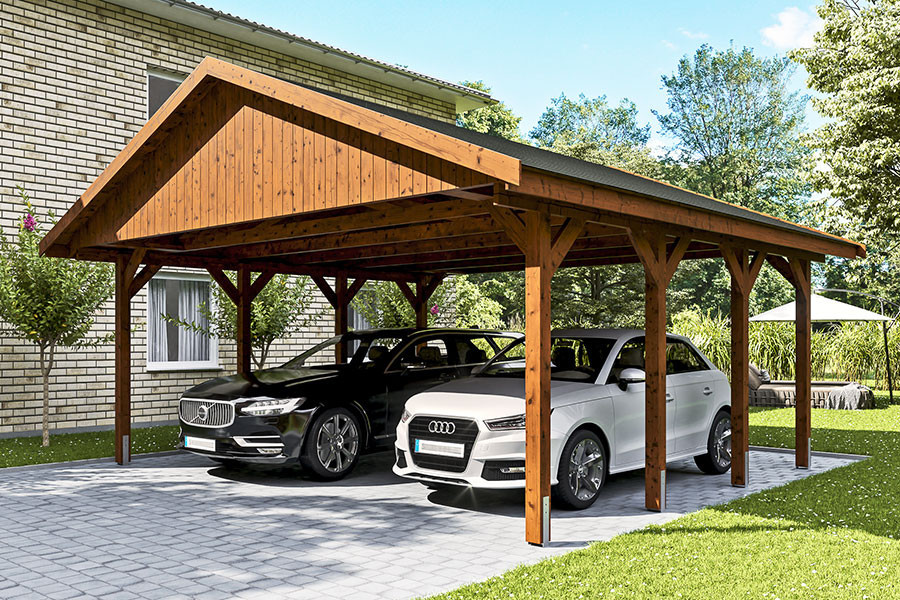

Photo of the WALLGAU XL Freestanding Wood Carport in Walnut Shade

Pressure-treated stained finish

In its stained version, the WALLGAU XL Wood Carport has also undergone a pressure treatment, followed by a stain and a high-end paint. As a result, its structure benefits from effective anti-UV protection against any bluing of the wood without concealing the aesthetic of its natural grain.

This also has the effect of greatly limiting the expansion and contraction of the material under the effect of climatic variations. All profiles undergo a stain bath twice, to develop optimal protective qualities, followed by brushing to eliminate any excess.

To keep your carport looking as good as new, we recommend applying a new pressure treatment and staining at the very end of summer and then every 4 or 5 years, in order to maintain the longevity of the wood of your car shelter.

3D view of the Green Pressure-Treated Stained Finish Non-stained finish: Green

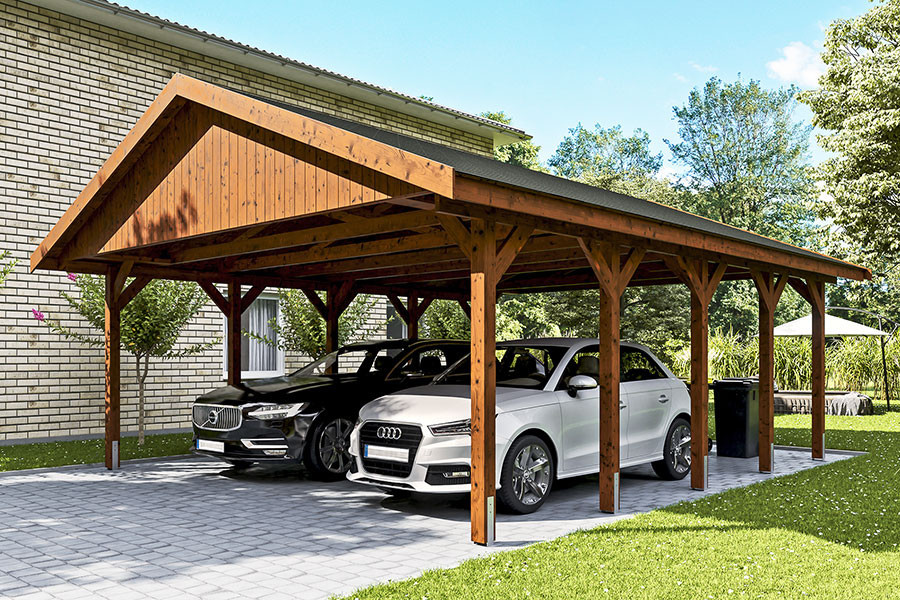

3D view of the Walnut Pressure-Treated Stained Finish Stained finish: Walnut

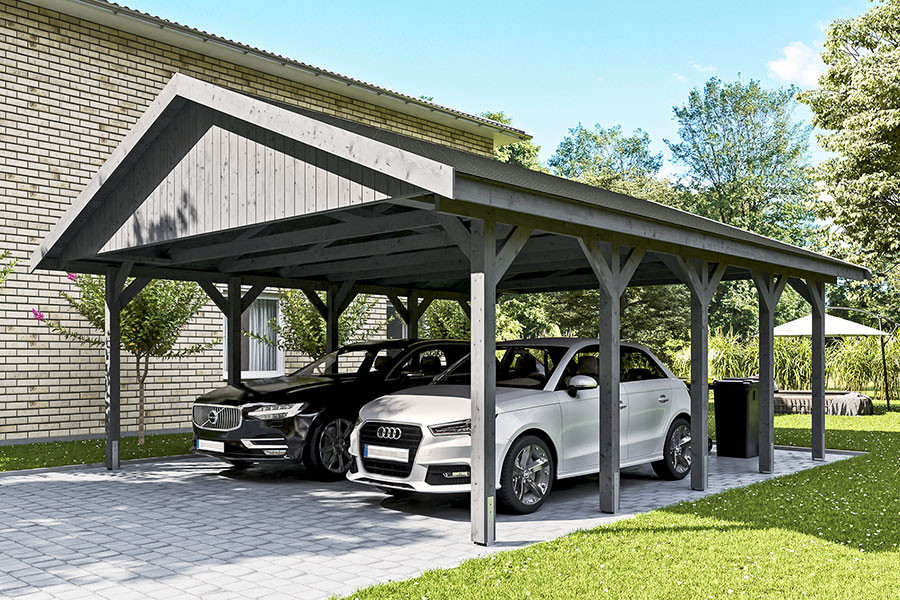

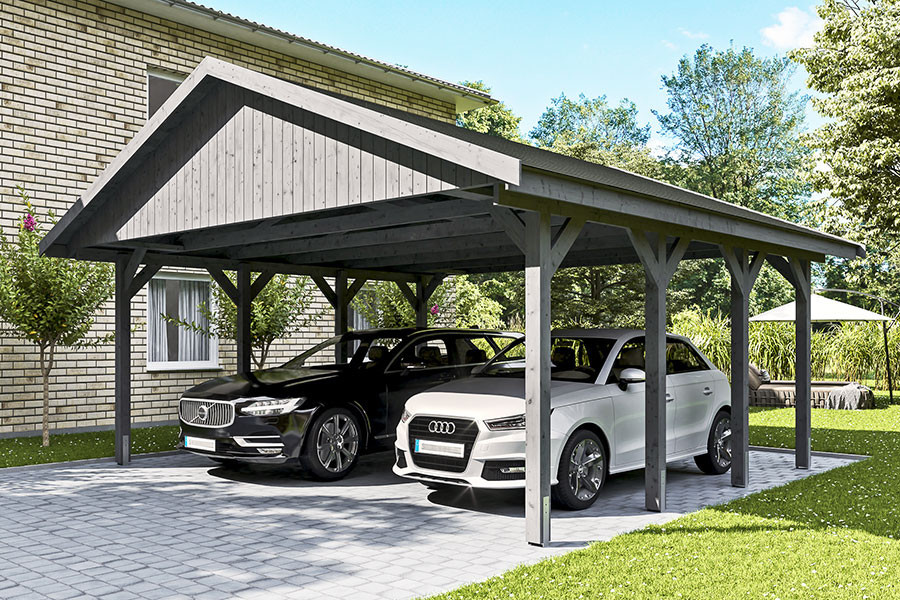

3D view of the Slate Grey Pressure-Treated Stained Finish Stained finish: Slate Grey
3D view of the Black Shingle Roof of the WALLGAU Wood Carport

An easy-to-install roof covering

The roof of the WALLGAU Wood Carport is made up of asphalt shingle panels nailed in an overlapping pattern onto 20mm-thick planks. These replace the battens and what is known as a close-boarded deck, screwed onto the roof rafters.

Unlike a traditional tile roof, the light weight of the shingles makes installation much simpler and above all less expensive, while maintaining a smooth and impeccable aesthetic appearance

The shingle roof also has the advantage of providing very good UV protection and resistance to bad weather such as rain, hail, and snow, while also absorbing a significant portion of the noise generated.

3D view of the Red Shingle Roof of the WALLGAU Wood Carport

In addition to its waterproofing qualities, this roof covering offers excellent fire resistance and its material is completely rot-proof.

The colored mineral granules applied to the upper surface of the shingle and the presence of fiberglass in its composition give it a certain rigidity while benefiting from balanced flexibility.

With proper maintenance, your shingle roof can easily retain all its properties for more than 20 years.

Two colors are available for this carport model: the Black Shingle Roof and the Red Shingle Roof, which you can choose to best match your home.

A solid anchoring system

The anchoring system of the Freestanding WALLGAU XL Wood Carport ensures a stable and solid fixing of the posts at your installation site. Its raised design is conceived to prevent any deterioration of the wood at its base caused by rainwater runoff or ground moisture.

It consists of H-shaped anchoring profiles, made from flat galvanized steel with a length of 60cm.

They are secured using concrete anchoring in foundations prepared beforehand according to the configuration of your ground.

Thanks to this process, the WALLGAU XL Wood Carport is able to withstand winds of up to 0.95 kN/m².

3D view of the ground anchoring profile fixed to a post

Comparison of the WALLGAU XL Carport according to its dimensions

 6200 x 5000mm6200 x 6000mm6200 x 7500mm6200 x 9000mm
Entry space 3D view of the WALLGAU XL Wood Carport 6200 x 5000mm 3D view of the WALLGAU XL Wood Carport 6200 x 6000mm 3D view of the WALLGAU XL Wood Carport 6200 x 7500mm 3D view of the WALLGAU XL Wood Carport 6200 x 9000mm
No. of posts 6 8 10 12
Post thickness 115 x 115mm 115 x 115mm 115 x 115mm 115 x 115mm
Floor area 31m² 37.20m² 46.50m² 55.80m²
Usable volume 89.75m³ 107.69m³ 134.62m³ 161.54m³
Ground width 5530mm 5530mm 5530mm 5530mm
Ground depth 3945mm 4690mm 6190mm 7690mm
Front clearance height 2150mm 2150mm 2150mm 2150mm
Rear clearance height 2150mm 2150mm 2150mm 2150mm
Passage width 5300mm 5300mm 5300mm 5300mm
Gable height 3540mm 3540mm 3540mm 3540mm
Gutter height 2250mm 2250mm 2250mm 2250mm
Snow load 1.30 kN/m² 1.30 kN/m² 1.30 kN/m² 1.30 kN/m²
Wind load 0.95 kN/m² 0.95 kN/m² 0.95 kN/m² 0.95 kN/m²
Roof type Dual-pitch roof Dual-pitch roof Dual-pitch roof Dual-pitch roof
Roof pitch 22° 22° 22° 22°
Gross weight 762kg 859kg 1004kg 1254kg
Warranty 5 years 5 years 5 years 5 years
Documents Brochure WALLGAU XL Wood Carport 6200 x 5000mm
View the brochure>		 Brochure WALLGAU XL Wood Carport 6200 x 6000mm
View the brochure>		 Brochure WALLGAU XL Wood Carport 6200 x 7500mm
View the brochure>		 Brochure WALLGAU XL Wood Carport 6200 x 9000mm
View the brochure>
Information request

Support resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will quickly notice how simple the installation system is. Assembly can be completed in just a few hours. Your CliKIT carport will arrive as a kit containing the wooden structure, roofing elements, accessories, and the installation guide.

Link to an online quote

To successfully assemble your carport, you will need the following tools:

  • Tape measure
  • Wood drill bit Ø 3/4/8/9mm
  • 13mm wrench
  • BH11.5 saw
  • Shovel
  • Cutter
  • Drill
  • Screwdriver
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet
  • Hammer

For more information on installation, feel free to view all the documents made available to you:

Pictogram of the Installation GuideInstallation Guide>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you every step of the way.

A dedicated technical advisor is assigned to you to refine your project together and respond as best as possible to your requests before and after your order, as well as throughout the entire assembly phase.

For any information, please do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

Information request
Pictogram of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only confirmed at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Pictogram of the German flag

Made in Germany

Pictogram of Free Delivery

Free delivery

Our kit carports are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in metropolitan France, Belgium, Germany, Austria, Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Shipping package for Paris intra-muros: €192 incl. VAT
  • Shipping package for hard-to-reach high mountain regions: €240 incl. VAT
  • Shipping package for the Breton islands: on request
  • Shipping package for Corsica: €690 incl. VAT
  • Shipping package and customs documents for Switzerland: €483 excl. VAT**
  • Shipping package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery countries flag pictogram
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documents package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Picto of the flags of the delivery countries
Pictogram of Warranties

Warranties

Our wood carports come with a 5-year warranty on the wood, construction, and stability, provided that assembly and maintenance are carried out as indicated in the documents from our partner factory.

The maximum snow load for this wood carport is 1.30 kN/m², given that a snow load of 0.75 kN/m² is generally considered entirely satisfactory. For installations located in high mountain areas, we nonetheless recommend consulting your local municipality for more information on the subject.

Pictogram of quality label warranties
