Configure your Glass Closure for Bioclimatic Pergola

  • Made in Germany
  • Width: up to 10000mm
  • Height: up to 2650mm
  • Panel: sliding glazing
  • Opening: right, left, centre
  • Glass: 10mm tempered glass
  • Weather protection
  • Made to your measurements
*Required step
Your configuration

Factory direct price (incl. tax)

1,384.86
Instead of 1,629.25

Final price (tax incl.)
1,384.86

Summary

My online quote Delivery time pictoLead time: 8 to 10 weeks*
  • Delivery picto Free
    delivery*
  • Manufacturing picto Custom-
    made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*

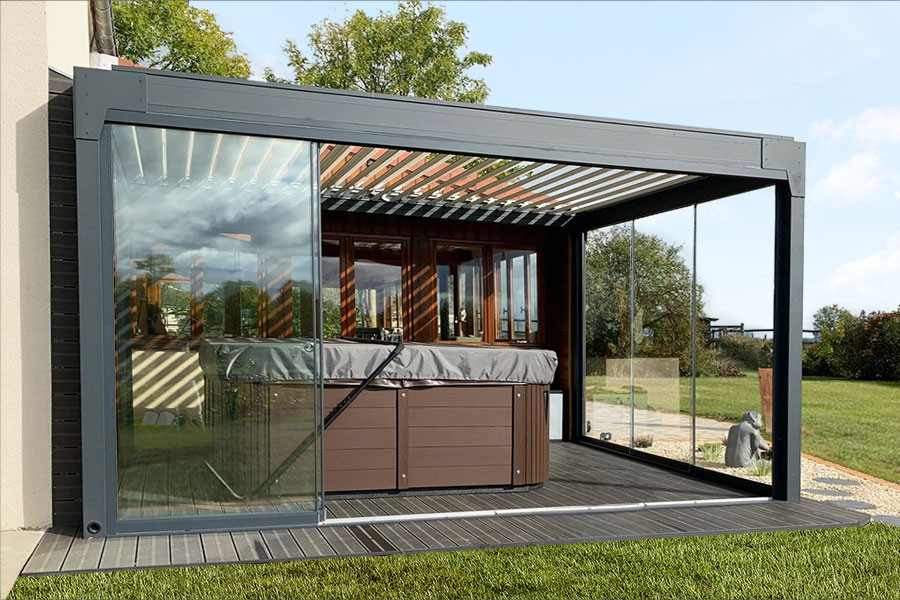

Glass Closure for Bioclimatic Pergola Sliding Glass Curtains
Image of the Glass Curtains for Bioclimatic Pergola

Enjoy your outdoor space all year round!

Do you want to enjoy your bioclimatic pergola all year round without worrying about bad weather, sheltered from wind, dust and even outside noise? Then look no further — the Glass Curtain is the ideal closing solution! It blends perfectly into your surroundings with no loss of light, while maintaining a clear and transparent view of your outdoor space.

These sliding glass panels are made from 10mm thick Securit tempered glass for optimum safety. No vertical uprights obstruct your panorama, giving you an unobstructed view, and the glass curtain closure is practically invisible.

Warning iconGiven current standards regarding home insulation, this product is not suitable for the creation of heated rooms.

Simple and modern integration

The different panels fit between a top rail and a floor rail in aluminium. Equipped with stainless steel or Teflon ball-bearing rollers, the whole system opens and closes very simply, just like the doors of a sliding wall wardrobe.

Without altering the exterior or interior appearance of your structure, the Glass Curtain integrates perfectly with all architectural styles; its modern and clean design adds real value to your property. This is why it is approved by all co-ownership associations and town halls.

Diagram of the Glass Curtain as a Facade for Bioclimatic Pergola
Title bullet iconPowder-coated aluminium
Pure White 9010 Structured Structured Anthracite Grey 7016
Pure White 9010 Structured Structured Anthracite Grey 7016
Structured Black 9005 Structured Aluminium Grey 9007
Structured Black 9005 Structured Aluminium Grey 9007
Title bullet iconAdapted bottom rails
Diagram of the AL23 3-Track Rail Diagram of the AL23 3-Track Rail Diagram of the AL23 3-Track Rail
AL23 Raised
3 Tracks
AL22 Flat
3 Tracks
AL24 Mixed
3 Tracks
Diagram of the AL22 5-Track Rail Diagram of the AL22 5-Track Rail Diagram of the AL22 5-Track Rail
View our customers' photos>

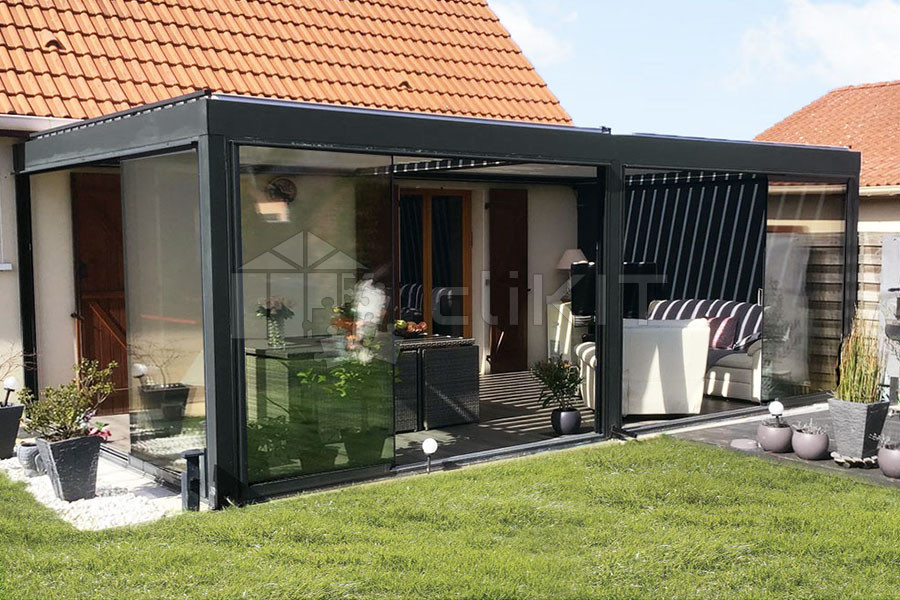

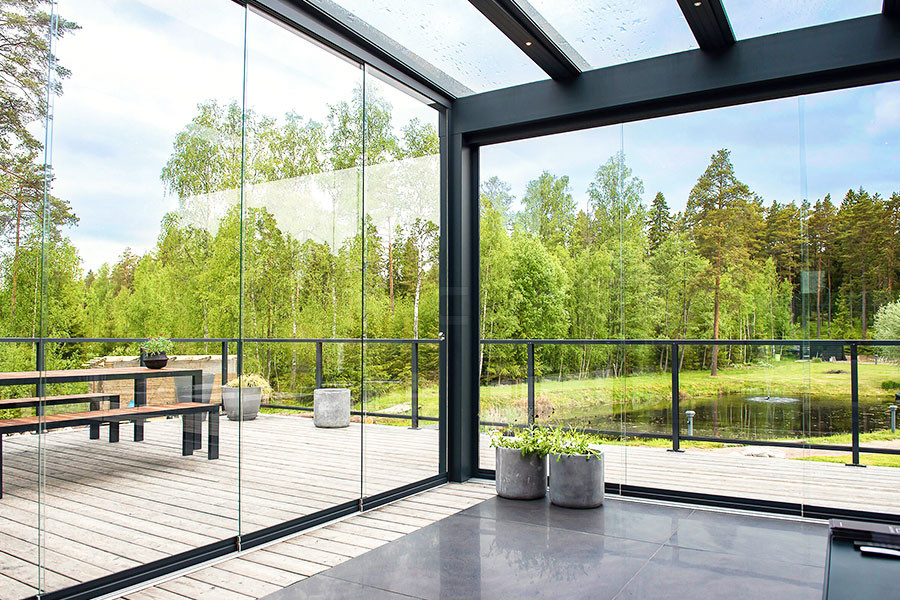

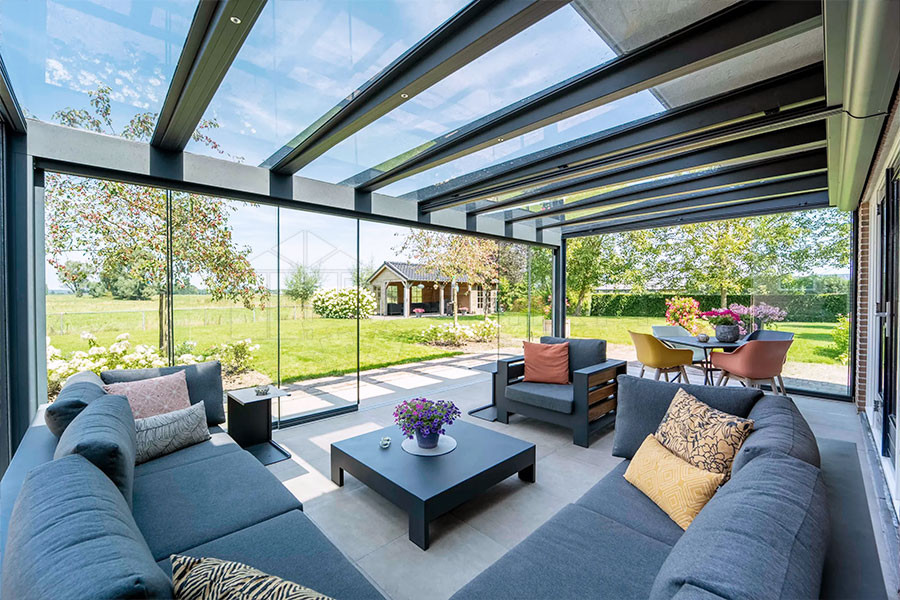

Photo no. 1 of Sliding Glass Curtains for Pergola Photo no. 1 of Sliding Glass Curtains for Pergola Photo no. 2 of Sliding Glass Curtains for Pergola Photo no. 3 of Sliding Glass Curtains for Pergola Photo no. 4 of Sliding Glass Curtains for Pergola

A few layout examples — anything is possible!

Depending on your layout, you can choose the number of glass panels, their opening direction, and even opt for installation on a low wall!

Example no. 1 of the Glass Curtain installation

Opening to the Right
5 Panels

Example no. 2 of the Glass Curtain installation

Opening to the Left
4 Panels

Example no. 3 of the Glass Curtain installation

Opening from the Centre
6 Panels

Example no. 4 of the Glass Curtain installation

Opening to the Left
3 Panels

My online quote

A choice of rails suited to your needs

Define your preferred access type by choosing from the 3 rail models we offer:

Image of the Raised Floor Rail AL23

Title bullet iconRaised Floor Rail AL23
with 3 or 5 Tracks

Image of the Flat Floor Rail AL22

Title bullet iconFlat Floor Rail AL22
with 3 or 5 Tracks

Image of the Mixed Floor Rail AL24

Title bullet iconMixed Floor Rail AL24
with 3 or 5 Tracks

Numbered diagram of the bottom rails
  • Picto no. 1Top rail 70/110mm wide and 60mm high
  • Picto no. 2Tempered glass 10mm thick (density of 25kg/m²)

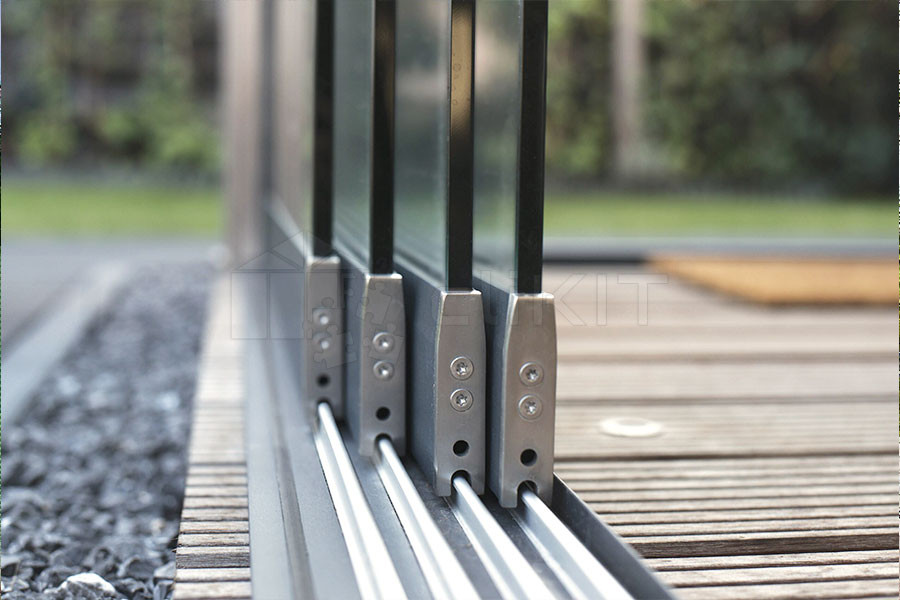

  • Picto no. 3Glass panel drive carriages
  • Picto no. 4Raised Rail AL23 ensuring better watertightness

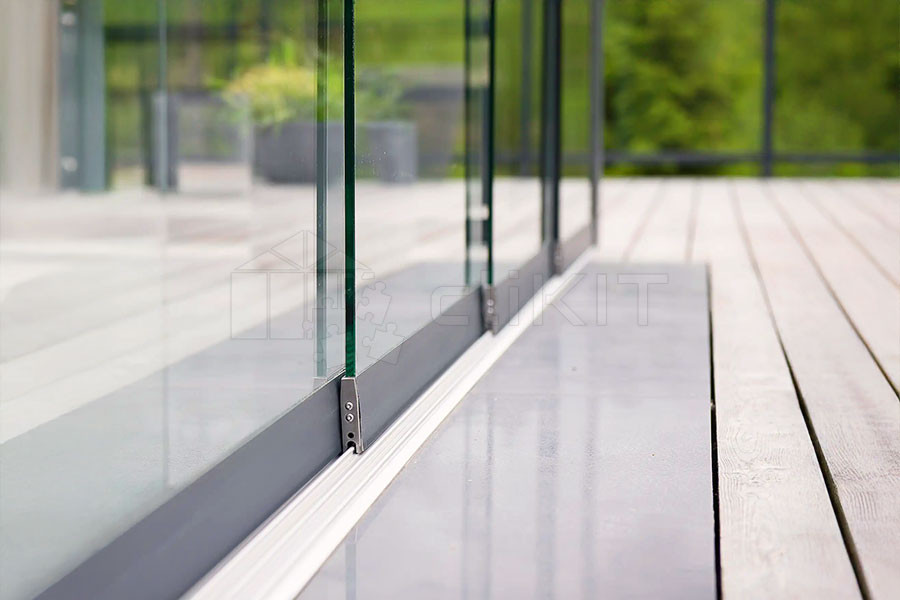

  • Picto no. 5Flat Rail AL22 characterized by its ease of access
  • Picto no. 6Mixed Rail AL24 offering the perfect compromise

The Raised Rail AL23 features a slightly elevated profile that ensures better air and water tightness.

The Flat Rail AL22 has been specially designed to allow optimal ease of access at floor level, but it is not watertight in the event of heavy rain.

The Mixed Rail AL24 offers the perfect compromise between the AL22 Rail and the AL23 Rail.

Image of the Upper Guide Rail

Upper guide rail

Image of the Vertical Lateral Profile

Vertical lateral profile

Image of the Glass Panel Drive Carriage

Glass panel drive carriage

Image of the Rail Rollers

Stainless steel housing and Teflon rollers

The exceptional strength of Securit 10mm Glass

Securit 10mm glass has impact resistance 2 to 5 times greater than ordinary glass. In the event of accidental breakage, it remains very safe as its fragments break into small, low-cutting pieces. This type of glass is notably used in urban furniture (balustrades, bus shelters).

Thanks to a special treatment process, Securit glass can withstand temperatures of up to 200°. During the final stage of its production, the glass is heated to high temperatures and then subjected to rapid cooling through various tempering processes, hence its name "tempered glass". It is this process that makes Securit glass significantly more resistant than ordinary glass.

Image of Securit 10mm Glass Panels

Side panels and accessories for all seasons!

Would you like to shelter from the sun, wind, rain or create a private space? No problem — we offer a wide range specially designed to meet all your needs: Side blinds, Roof blinds, Shade sails, Aluminium side panels, Polycarbonate side panels... and much more!

Title bullet iconRemember to take a look at our essential accessories to upgrade your pergola!

Link to the Blinds and Shade Sails range Blinds & Sails Links to the Lateral Panels range Lateral Panels

Support resources to assist you

Our technical team remains available and at your disposal throughout the entire installation phase of your glass curtain.

You will quickly notice how simple the installation system is. It is possible to complete the assembly in just a few hours.

Your CliKIT Glass Curtain will arrive as a kit containing the aluminium structure, the guide elements, the glass panels already fitted with guide wheels, the accessories and the installation guide.

To successfully complete the installation of your glass curtain, you will need the following tools:

Tape measure - Torx-bit drill/screwdriver - Ø 8mm masonry drill bit - Ø 4 and 8mm metal drill bits - Allen key set - Cutter - Silicone gun - Spirit level - Easel or trestles
It is important not to use a suction cup to move the glass.

For more information on installation, feel free to view all our documents available to you:

Glass Curtain installation guide to download Installation Guide>
Glass Curtain Photo Book to view Installation Video>
Glass Curtain video to watch Photo Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to guide you through every step of the process.

A dedicated technical advisor is assigned to you to refine your project together and best meet your needs before and after your order, as well as throughout the entire installation phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team is here for you!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Design Office Manager

Nicolas Font Design Office Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time icon

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known once production has started, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

MadeIcon representing manufacturing in Germanyin Germany

Free delivery icon

Free delivery

Our kit glass curtains are delivered by a specialist carrier equipped with a forklift for delivery as close as possible to your installation site.*

Warranties icon

Warranties

All our glass curtains come with a 10-year guarantee and comply with the strictest European standards. The aluminium profiles are powder-coated and hold the QUALICOAT LABEL.
