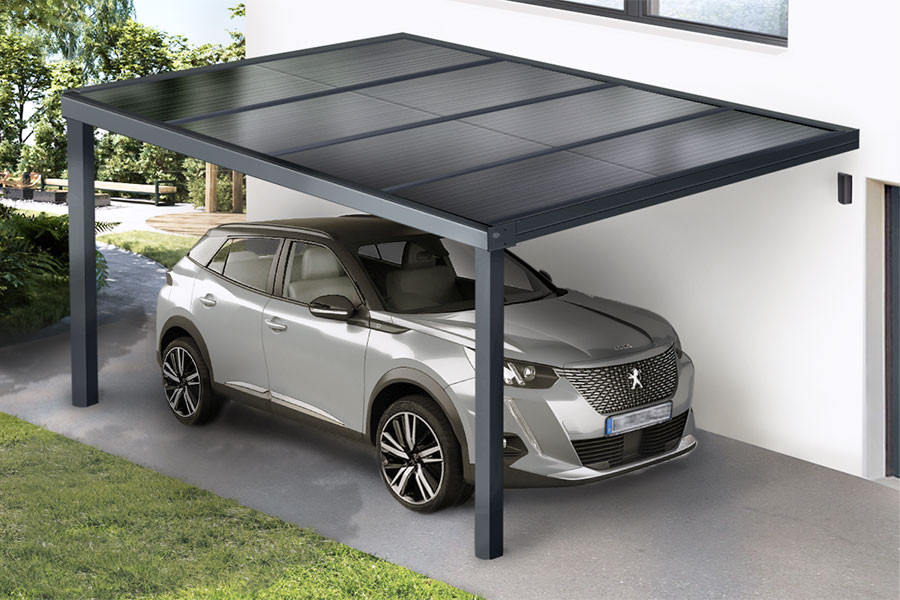

Photo no. 1 of the CLIMALUX Solar Carport
They talk about usChannel Logo See> Discover> Watch the video>
Product Description Picto Product
Description Installation Guide Picto Installation
Guide Customer Reviews Picto Customer
Reviews Delivery Terms Picto Delivery
Terms

Configure your CLIMALUX Solar Carport

  • Made in Belgium
  • Width: up to 10554mm
  • Depth: up to 3522mm
  • Gutter channel: straight
  • Solar panel: bifacial 430Wp
  • Posts: 110 x 141mm
  • Expandable and customizable carport
  • Integrated photovoltaic panels
*Required step
Your configuration

Factory direct price (incl. tax)

3,486.29
Instead of 4,101.52
Final price (tax incl.)
3,486.29

Summary

My online quote Delivery time PictogramLead time: 6 to 8 weeks* Premium color: 8 to 10 weeks
  • Delivery Pictogram Free
    delivery*
  • Manufacturing Pictogram Standard
    Product
  • Warranty Pictogram Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
CLIMALUX Solar Carport Straight Gutter Channel Version

* Installation principle of CLIMALUX Products

Protect and charge your vehicle!

Discover our innovative solution: the CLIMALUX Solar Carport. Combining aesthetics and functionality, our carport offers much more than a simple shelter for your vehicle (car, van, motorhome, motorbike, scooter, etc.).

Thanks to its integrated solar panels, it converts every ray of sunshine into clean energy, allowing you to reduce your carbon footprint while saving on your electricity bill.

In addition to providing effective weather protection for your car, our solar carport offers you a renewable, sustainable and autonomous energy source.

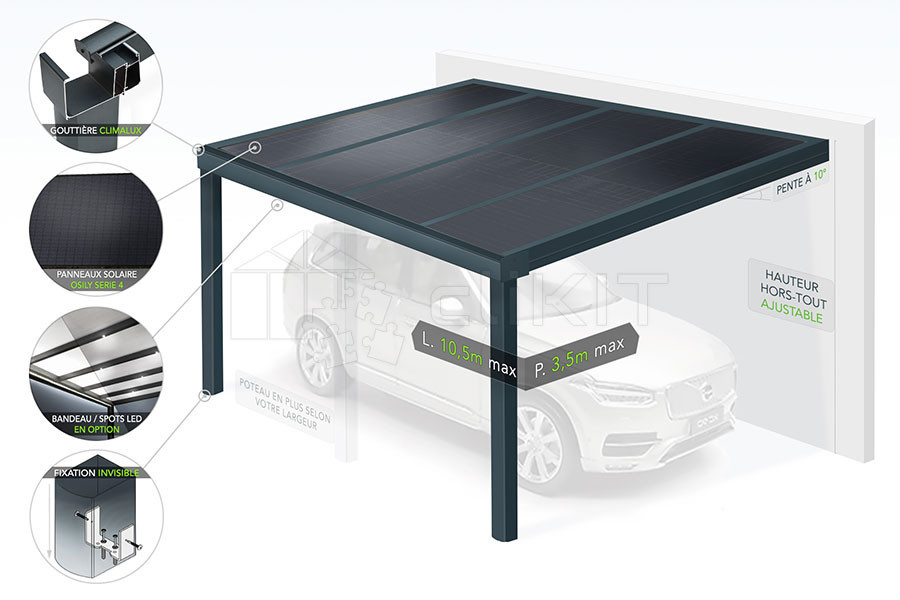

Diagram of the CLIMALUX Solar Carport

Powder-coated aluminium

Standard CliKIT Gloss White color pictogram CliKIT Gloss White
Structured Standard Anthracite Grey 7016 color pictogram Structured Anthracite Grey 7016
Non-Standard color pictogram Non-Standard (additional cost on quote)

Color Selection (Package €275 incl. VAT)

Structured Black 9005 color pictogram Structured Black 9005
Structured Standard Pure White 9010 color pictogram Structured Pure White 9010
Gloss Cream 9001 color pictogram Gloss Cream 9001
Structured Alu Grey 9007 color pictogram Structured Alu Grey 9007
Structured Alu White 9006 color pictogram Structured Alu White 9006
Structured Metal Grey 9009 color pictogram Structured Metal Grey 9009
Structured Quartz Grey 7039 color pictogram Structured Quartz Grey 7039
Structured Sepia Brown 8014 color pictogram Structured Sepia Brown 8014
Structured Purple Red 3004 color pictogram Structured Purple Red 3004

Invisible fixings

110 x 141mm Post pictogram 110 x 141mm Post
Integrated downpipe in the post pictogram Downpipe integrated into the post
Invisible fixing by pin hinge pictogram Invisible fixing by pin hinge

A reinforced aluminium structure

  • Powder-coated aluminium structure benefiting from the QUALICOAT LABEL, cut to your measurements on request
  • PX aluminium support posts of 110 x 141mm with a length of 2500mm, cuttable on request, fixed by supplied pin hinges (Maximum width between posts: 3.5m)
  • Rainwater drainage with an 80mm diameter integrated into one of the posts of your choice
  • GX aluminium powder-coated gutter profile with a height of 115mm and a depth of 212mm
  • CL16 clips to screw onto the solar panels with a lacquered cover
  • Roof slope at a 10° angle
  • Stainless steel Torx screws included, lacquered to match the color of your carport

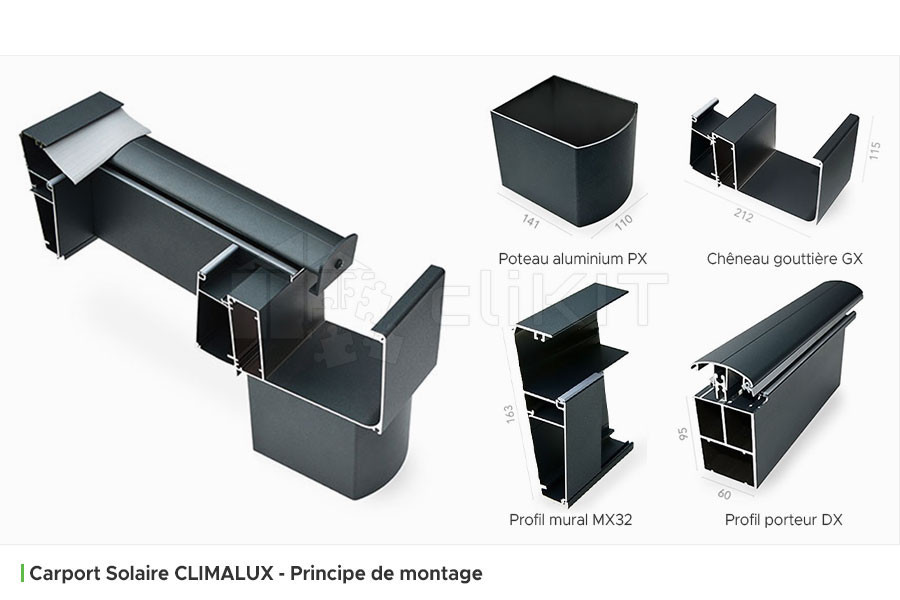

Photo of the Assembly Principle of the CLIMALUX Solar Model
Photo of the Aluminium Post PX Aluminium Post PX
Photo of the GX Gutter Channel GX Gutter Channel
Photo of the MX32 Wall Profile MX32 Wall Profile
Photo of the DX Load-Bearing Profile DX Load-Bearing Profile
My online quote

Custom-designed profiles

  • 110 x 141mm post with integrated and invisible water drainage
  • Strainer for rainwater drainage
  • GX gutter channel with a height of 115mm
  • MX32 wall profile with a height of 163mm
  • DX load-bearing profile with a height and width of 95 x 60mm
  • Aluminium clamping clips with sealing gasket to receive the solar panels
  • LED lighting strip integrated into the gutter channel (Optional)
  • Power supply for the LED lighting strip (Optional)
Numbered diagram of the Assembly Principle of the CLIMALUX Solar Model

Customize your project to your liking

CliKIT gives you the opportunity to create your 100% custom project, adapting to your needs and desires.

Configuration examples

Diagram no. 1 — example of the standard configuration of the CLIMALUX Solar Carport Diagram no. 2 — example of the standard configuration of the CLIMALUX Solar Carport Diagram no. 3 — example of the standard configuration of the CLIMALUX Solar Carport Diagram no. 4 — example of the standard configuration of the CLIMALUX Solar Carport
Legend diagram of support wallsFixed support wallLegend diagram of support walls of your choiceSupport walls of your choice (depending on your installation)

A self-consumption solar kit

Self-consumption ensures complementary green energy production to help reduce your electricity bill.

Reduce the impact of supplier price increases independently: our kits do not require the intervention of an installer and do not oblige you to connect to the main grid.

Depending on the size of your project and your location, you will be able to power some of your household appliances, charge your electric vehicle, run your pool, your spa — all directly.

Its simple installation allows you to benefit from a turnkey project to assemble independently at a lower cost. If you already have your own system, our team can explore the possibility of integrating it into the CLIMALUX Carport.

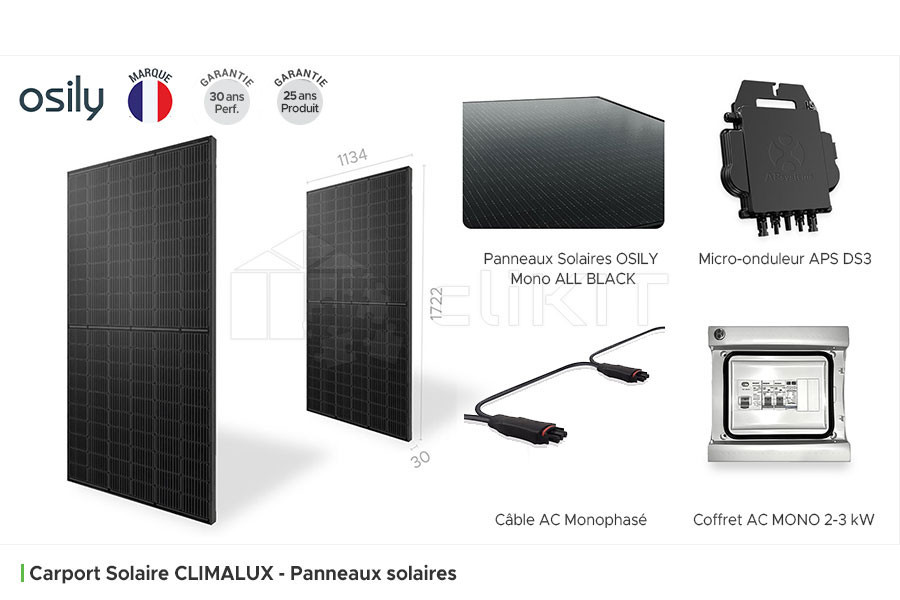

Photo of the OSILY Mono ALL BLACK Bifacial Solar Panels installed

Solar panels

The CLIMALUX Solar Carport is supplied with solar panels from the OSILY brand. These high-efficiency panels with a refined aesthetic thanks to the "FULL BLACK" design integrate into our structure discreetly for a perfect visual effect.

The OSILY Mono ALL BLACK Bifacial Panels combine high energy production performance thanks to advanced interconnection technologies of monocrystalline cells and reduced shading points to deliver an individual power output of 430Wp. The OSILY brand guarantees these panels for 25 years. Their linear efficiency at 30 years is 87.4%, placing them above current industry standards. Learn more>

Please note that it is mandatory to complete the necessary procedures with the Enedis organization for any solar panel installation. For more information, visit their page: I wish to produce my own energy.

Photo of an OSILY Mono ALL BLACK Bifacial Panel' OSILY Mono ALL BLACK Bifacial Panel
Photo of the APS DS3 Micro-Inverter APS DS3 Micro-Inverter
Photo of the Single-Phase AC Cable Single-Phase AC Cable
Photo of the AC MONO Box 2 to 5 kW AC MONO Box 2 to 5 kW

Management

The APsystems DS3 Micro-Inverters offer a maximum efficiency of 97% and enable independent management of panels, scalability of your installation while maintaining maximum safety through advanced voltage spike management.

The whole system is managed by an AC protection box suitable for connecting to your electrical panel. With a simple installation, it handles your safety and ensures optimal performance.

 Depth of 1 PanelDepth of 2 Panels
Introduction image of the panel
Diagram of 16mm Opal Anti-heat Polycarbonate
Diagram of 32mm Opal Anti-heat Polycarbonate
  No. of Panels No. of Inverters Maximum power No. of Panels No. of Inverters Maximum power
Width of 2392mm 2 1 860Wp 4 2 1720Wp
Width of 3558mm 3 2 1290Wp 6 3 2580Wp
Width of 4724mm 4 2 1720Wp 8 4 3440Wp
Width of 5890mm 5 3 2150Wp 10 5 4300Wp
Width of 7056mm 6 3 2580Wp Custom structure available
on quote, click here>
Width of 8222mm 7 4 3010Wp
Width of 9388mm 8 4 3440Wp
Width of 10554mm 9 5 3870Wp

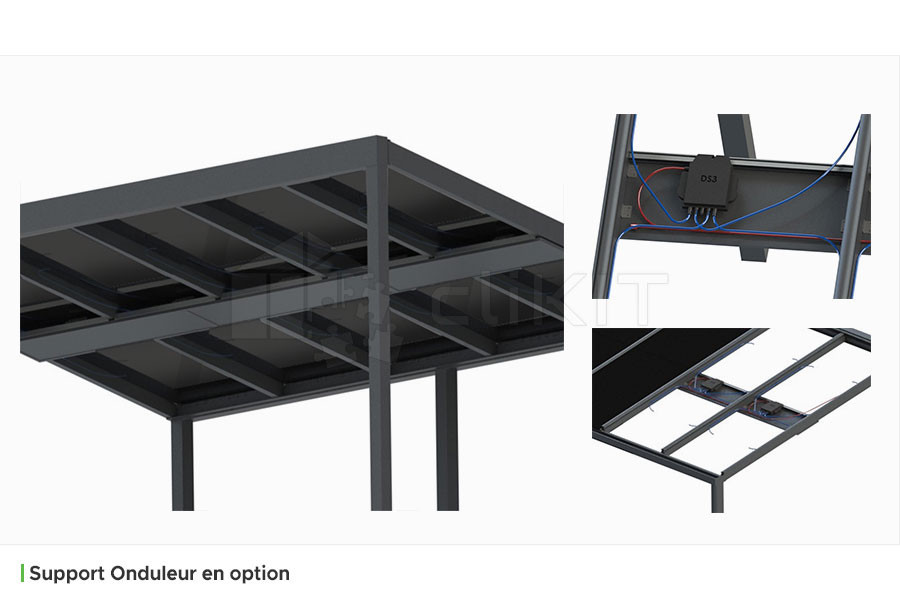

The optional Inverter Bracket

Our Inverter Bracket is specially designed to optimise the installation and integration of your APS DS3 Micro-Inverters under your solar carport. This technical and aesthetic solution enables perfectly controlled installation of your equipment while preserving the elegance of your carport.

Thanks to its intelligent design, the Inverter Bracket ensures ideal positioning of the inverters in close proximity to the solar panels, while respecting the necessary safety clearances.

Bottom interior view of the Inverter Bracket
Top view of the Inverter Bracket
Close-up view of the Inverter Bracket

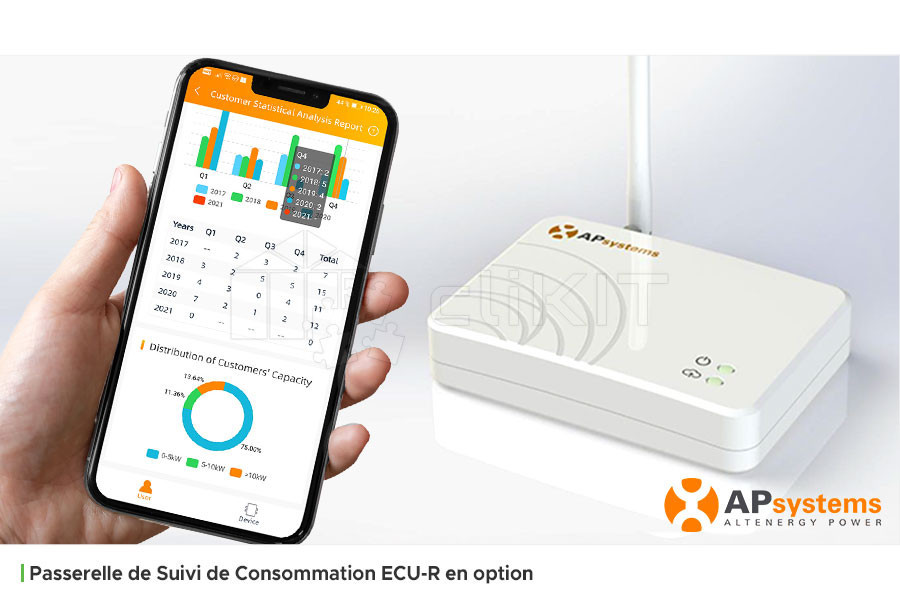

Monitor your consumption in real time!

The APsystems ECU-R Gateway plays a key role in your solar installation. This smart device can monitor your photovoltaic panels and allows you to track the real-time production of each module thanks to ZigBee wireless technology with a range of up to 50m in open field. Learn more>

Thanks to the intuitive EMA Manager mobile app, you keep a close eye on your installation wherever you are. Simple and practical, it allows you to monitor the real-time performance of your solar panels from your smartphone or tablet via a comprehensive monitoring interface.

Available on iOS and Android, you can optimise your green energy production and fully enjoy the benefits of your solar carport every day. Learn more>

Photo of the ECU-R Gateway
My online quote

Day and night!

An LED light strip can be integrated directly under the gutter channel. This LED lighting diffuses indirect and pleasant light, allowing you to see your vehicle at any time of day!

With the LED Spot Kit, you have the option to customize the area you wish to illuminate under your carport — one side lit and the other dimmed, anything is possible!

A motion detector is also available on request; it automatically activates your LED lighting as soon as you park your vehicle. No more manual lighting hassles. Simplify your routine and ensure optimal visibility from the moment you arrive!

Photo of the LED Light Strip and LED Spot Kit for Carport

An adaptable and customizable carport for every season!

CliKIT develops the concept of an Adaptable Carport to best match your wishes or your current budget. Rest assured that in the near or distant future, your carport remains in perpetual evolution!

Do you want to shelter your vehicle from the sun, wind, rain, or enclose a space? No problem — we offer a wide range specially designed to meet all your needs: Screen Blinds, Sliding Glass Curtains, Roof Blinds, Shade Sails, Side Panels... and much more!

Be sure to take a look at our must-have accessories to upgrade your carport!

Photo of the Glass Curtains for Carport Glass Curtains
Photo of the Awnings and Sails for Carport Awnings & Sails
Photo of the Side Panels for Carport Side Panels

Resources to assist you

Our technical team remains available and attentive throughout the entire assembly phase of your carport. You will quickly notice how simple the installation system is. The assembly can be completed in just a few hours. Your CliKIT carport will arrive as a kit containing the aluminum roof structure, solar panels, accessories, and the installation guide.

Link to an online quote

To successfully assemble your carport, you will need the following tools:

  • Tape measure
  • Concrete drill bit Ø 8mm
  • Metal drill bit Ø 4 and 8mm
  • Hole saw Ø 80mm
  • Box cutter
  • Drill
  • Screwdriver
  • Silicone dispenser
  • Spirit level
  • Easel or trestles
  • Rubber mallet

For more information on installation, feel free to view all our documents available to you:

Installation Guide pictogramStructure
Manual>
Installation Guide pictogramInverter Bracket
Manual>
Installation Guide pictogramSolar Panel Wiring
Guide>
Assembly Video pictogramStructure
Video>

More than just a customer service

You can count on the support of our experts and building enthusiasts to guide you throughout the entire process.

A dedicated technical advisor is assigned to you to refine your project together and best address your requests before and after your order, as well as throughout the entire assembly phase.

For any enquiry, do not hesitate to contact our team who will be happy to assist you:

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT
team at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Engineering Manager

Nicolas Font Engineering Manager

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Female Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Manufacturing lead time pictogram

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The definitive lead time is only known at the start of production, and may vary depending on the season and factory holiday periods. If you have specific deadlines, it is important to let us know in advance.

Belgian flag pictogram

Made in Belgium

Free delivery pictogram

Free delivery

Our solar carport kits are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for high mountain regions with difficult access: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport and customs documentation package for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions for forklift and articulated lorry. It is important to notify us of any potential access issues. **Swiss customs duties and VAT remain the responsibility of the recipient.

Delivery country flags icon
  • Free delivery from €1,500 incl. VAT in mainland France, Belgium, Germany, Austria, the Netherlands, Luxembourg
  • Delivery to other European countries: on request
  • Transport package for Paris intra-muros: €192 incl. VAT
  • Transport package for hard-to-reach high mountain regions: €240 incl. VAT
  • Transport package for the Breton islands: on request
  • Transport package for Corsica: €690 incl. VAT
  • Transport package and customs documents for Switzerland: €483 excl. VAT**
  • Transport package for Monaco: on request

*subject to access conditions by forklift and semi-trailer. It is important to notify us of any potential access issues. **customs duties and Swiss VAT remain the responsibility of the recipient.

Pictogram of delivery country flags
Warranty Pictogram

Warranties

Our solar carports are guaranteed for 10 years and comply with the strictest European standards. The aluminium profiles are powder-coated and benefit from the QUALICOAT LABEL. The solar panels are guaranteed for the product and 25 years for output. The APsystems ECU-R Gateway is guaranteed for 3 years.

Snow load: unless otherwise specified, load calculations are performed with a snow load in accordance with current standards. Please notify us of altitudes above 800 metres.

The span has been calculated with a snow load of 350 Newtons (± 35 kg/m²).

The deflection of the load-bearing profiles does not exceed 1/300th for the standard width of our solar panels
