Configure your MANCHESTER V3 Conservatory

  • Made in England
  • Version: with Full Base Wall
  • Dimensions: custom-made
  • Structure: PVC, aluminum
  • Roof polycarbonate, double glazing
  • Door: sliding, single, double
  • Optimal insulation and brightness
  • With thermal break
*Required step
Your configuration

Factory direct price (incl. tax)

8,344.36
Instead of 9,271.51

Final price (tax incl.)
8,344.36

Summary

My online quote Delivery time pictoLead time: 10 to 12 weeks*
  • Delivery picto Delivery
    free*
  • Manufacturing picto Custom-
    Made
  • Warranty picto Warranty
    10 years*
  • Free Delivery* Free Delivery*
  • Custom manufacturing Custom manufacturing
  • 2-year warranty Garantie
    10 years*
MANCHESTER V3 Conservatory Full Base Version

Outdoor living at the heart of your home

The MANCHESTER V3 Full Base Version Conservatory features a roof with a variable pitch from 5 to 25°, of the lean-to type. The lateral trapezoids are fitted with 28mm double glazing, providing excellent brightness. A premium conservatory designed with quality materials, the MANCHESTER model adapts to all house styles, offering additional living space at an unbeatable price!

Square or rectangular in base, the window frames, assembled and screwed onto an aluminum framework, are made of reinforced multi-chamber 70mm PVC. The roof structure is aluminum and the capping is PVC.

Thanks to its unique assembly concept, the installation of your conservatory is simplified. Each element is numbered and identified on a personalized assembly plan. For your convenience, you have the choice between a 25/32mm polycarbonate roof or 24mm double glazing.

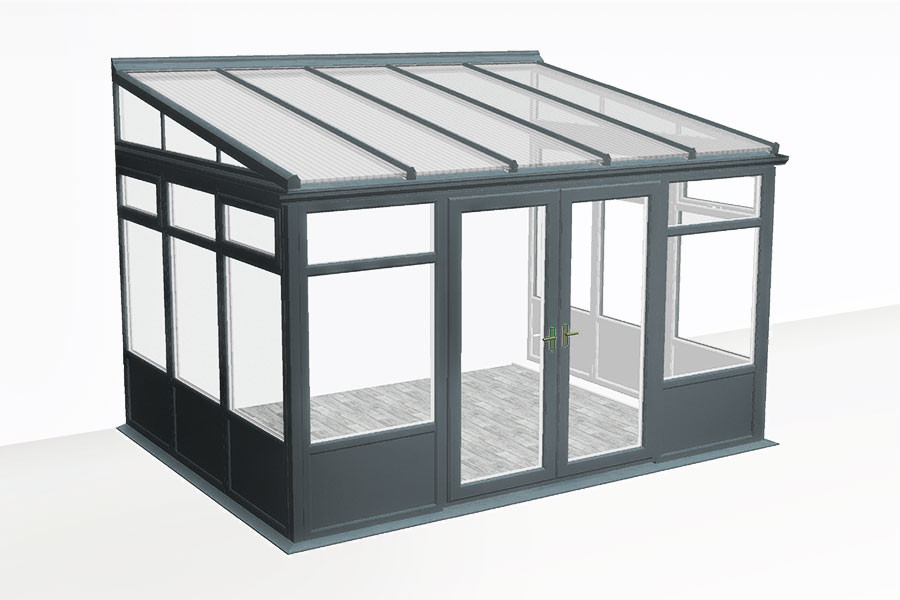

Diagram of the MANCHESTER V3 Conservatory Full Base Version

Aluminum structure & PVC-U capping

Picto of the White Color White
Picto of the Mixed Color Anthracite Grey / White Anthracite Grey ext.
White int.
Picto of the Mixed Color Golden Oak / White Golden Oak ext.
White int.
Picto of the Golden Oak Color Golden Oak
Picto of the Mixed Color Mahogany / White Mahogany ext.
White int.
Picto of the Mahogany Color Mahogany

Polycarbonate or glass roofing

Photo of the Clear Tint Polycarbonate Polycarbonate
Clear
Photo of the Opal Tint Polycarbonate Polycarbonate
Opal
Photo of the PLANITHERM double glazing Double glazing
PLANITHERM
Photo of the PILKINGTON double glazing Double glazing
PILKINGTON

3 types of opening available

Diagram of the sliding frame Sliding frame
Diagram of the Double French Door Double French Door
Diagram of the simple French door Simple French door

3 window models to choose from

Diagram of the opening window frame Opening window frame
Diagram of the sliding window frame Sliding frame
Diagram of the optional transom Optional transom
See our customers' photos>

A unique roofing concept

The MANCHESTER Kit Conservatory features a reinforced aluminum roof structure with PVC-U caps.

The multi-chamber caps act as an additional insulating layer and increase the overall roof performance. The aluminum wall plate ensures the support of your roof and the PVC rainwater downpipe is aesthetically pleasing and discreet.

The combination of aluminum and PVC ensures much better thermal insulation thanks to the PVC capping. The latter further limits the transmission of external temperature absorbed by the aluminum structure. This forms a heat barrier known as a thermal bridge break.

Thanks to the properties of PVC, thermal performance is optimized and the level of condensation is greatly reduced.

Photo of the Assembly Principle
My online quote

Custom-designed profiles

  • Double-chamber PVC-U cap for improved thermal performance and reduced condensation risk
  • Variable clip position for perfect glazing adjustment
  • Lugs on the cap for reinforced and secure hold
  • Aluminum load-bearing profile guaranteeing greater strength
  • Discreet 10mm seal that adapts to the roof tolerance
  • Multiple chamber concealed under the seals for secondary drainage
  • Wide capping for greater stability
  • PVC-U capping for improved aesthetics
Numbered diagram of the Kit Conservatory Load-bearing Profile

Customize your project as you wish

CliKIT gives you the possibility to carry out your project 100% custom-made, adapting to your needs and desires. Standard configurations carry no additional charges. If you wish for a personalized configuration, we invite you to include a plan in your quote request. You can also send it to us by email at contact@clikit.fr.

Standard configurations

Aluminum and PVC: the perfect mix

Watertightness, energy efficiency, safety, style and elegance: our frames have all the assets to withstand external elements (wind, snow, pollution, sea spray, etc.).

Your conservatory is fitted with DECEUNINCK reinforced multi-chamber 70mm PVC frames, mounted on an aluminum framework, offering exceptional thermal and acoustic insulation quality, easy maintenance, impact resistance and anti-condensation properties.

The PVC frames are assembled, then screwed by you onto an aluminum framework to rigidify the whole structure.

Your choice of opening can include French casement windows, sliding windows, transom vent windows, as well as French or sliding opening windows.

Photo of the Conservatory window frames

3 door models to choose from

3 window models to choose from

My online quote

A polycarbonate roof more resistant than glass

Polyclear" polycarbonate panels are ultra-strong: up to 250 times more resistant than glass.

They also offer a key advantage for fire safety thanks to the self-extinguishing property of the polycarbonate raw material and its resistance to high temperatures.

Photo of the Polycarbonate Panel models

The COMFORT Pack: 25 and 32mm Anti-UV Polycarbonate

MARLON ST 25 and 32mm roofing panels are UV-treated and guaranteed against yellowing. This polycarbonate is highly impact-resistant and provides thermal insulation of 1.25 W/m²K or 1.4 W/m²K. It is available in Clear, Opal or SolarControl (opaque).

These panels provide natural lighting with minimal heat loss for a better overall energy balance.

 Polycarbonate MARLON ST
Clear Tint
Polycarbonate MARLON ST
Opal Tint
Polycarbonate MARLON ST
Solar Control
Logo of the BRETT MARTIN brand Photo of the MARLON ST Clear Polycarbonate Photo of the MARLON ST Opal Polycarbonate Photo of the MARLON ST SolarControl Polycarbonate
Panel Tint Clear Tint Opal Tint Opal Heat-Control Tint
Thickness 25mm 32mm 25mm 32mm 25mm 32mm
Weight per m² 3.1kg 3.6kg 3.1kg 3.6kg 3.1kg 3.6kg
Light transmission 62% 64% 28% 33% 7% 4%
U insulation value 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K 1.4 W/m² K 1.25 W/m² K
Retained energy (1-g) 38% 45% 57% 65% 86% 92%

The LUX Pack: 24mm insulating double glazing

This option allows you to replace the polycarbonate with a PLANITHERM 24mm double-glazed roof reinforced with Argon gas. For maximum brightness and optimal insulation, treat yourself to the LUX Pack.

Depending on the orientation of your roof, heat-control glazing is recommended to maximize control of solar gain in summer.

 SAINT-GOBAIN Double Glazing
PLANITHERM 24mm
PILKINGTON Double Glazing
ACTIV 24mm
Logo of the Saint-Gobain and Pilkington brands Photo of the Saint-Gobain double glazing Photo of the Pilkington double glazing
Standard glazing Heat-control glazing
Thickness 24mm - 4/16/4 24mm - 4/16/4
Light transmission 80% 74%
U insulation value 1.1 W/m² K 1.0 W/m² K
Retained energy (1-g) 37% 49%

Low-emissivity double glazing for enhanced insulation

The Saint-Gobain PLANITHERM ULTRA N 28mm (4-20-4) double glazing is a low-emissivity glass.

Thanks to a chemical treatment, this glazing has the ability to reflect the majority of heat towards the warmest point.

Argon gas filling provides much lower thermal inertia than the air used in standard glazing.

Thanks to this gas, your glazing will heat up or cool down much more slowly than standard double glazing.

Presentation of the Saint-Gobain brand

The advantages of Saint-Gobain double glazing

The Saint-Gobain PLANITHERM ULTRA N double glazing triples the thermal insulation performance compared to standard double glazing. In addition, it allows:

  • A reduction in heating costs.
  • An improvement in comfort:
    • no cold zone near glazed surfaces
    • maximum use of space
    • reduced risk of condensation on the inner glass
  • High light transmission and solar gain
  • Great architectural freedom (neutral appearance)
  • Environmental protection through the reduction of CO2 emissions
Diagram showing the insulation performance of Saint-Gobain double glazing

Support materials to assist you

Our technical team remains available and at your disposal throughout the entire assembly phase of your conservatory. You will notice fairly quickly how simple the installation system is. Your CliKIT conservatory will arrive as a kit containing the roof structure, roofing elements, frames, glazing and base elements, accessories, as well as the installation guide.

Link to an online quote

To successfully assemble your conservatory, you will need the following tools:

  • Tape measure
  • Clamp
  • Ø 4.5mm metal drill bit
  • Wrench with 10 and 13mm sockets
  • 13 and 17mm open-end wrench
  • Screwdriver
  • Cutter
  • Drill
  • Screwdriver drill
  • Silicone gun
  • Spirit level
  • Sawhorse or trestles
  • Rubber mallet

For more information on installation, do not hesitate to view all our documents available to you:

Picto of the Installation GuideInstallation Guide>
Picto of the Assembly VideoAssembly Video>
Picto of the Photo BookPhoto Book>

More than just a customer service

You can count on the support of our building experts and enthusiasts to assist you throughout your project.

A dedicated technical advisor is assigned to you to refine your project together and best meet your needs before and after your order, as well as throughout the entire assembly phase.

For any information, do not hesitate to contact our team who will be happy to assist you:

  • Monday to Friday from 8:30 am to 12:30 pm and from 1:30 pm to 6:00 pm via our switchboard at +33 (0) 3 66 72 15 14
  • At any time by email at contact@clikit.fr

Whether your question is commercial or technical, you can receive all our advice by phone, SMS, video call (FaceTime, WhatsApp) or email.

The CliKIT team
at your service!

Photo of the Sales Director

Olivier Regnier Sales Director

Photo of the Technical Manager

Cédric Cavaillé Technical Manager

Photo of the Logistics Manager

Vanessa Debias Logistics Manager

Photo of the Head of Design Office

Nicolas Font Head of Design Office

Photo of the Technical Advisor

Jérôme Menu Technical Advisor

Photo of the Technical Advisor

Fiona Rossignol Technical Advisor

My online quote
Picto of the Manufacturing Lead Time

Manufacturing lead time

For more information regarding manufacturing and delivery lead times*, please visit our page on Delivery Terms>

*The final lead time is only known at the start of production, and may vary depending on seasons and factory holiday periods. If you have specific deadlines, it is important to inform us in advance.

Picto of Free Delivery

Free delivery

Our kit conservatories are delivered by a specialized carrier equipped with a forklift for delivery as close as possible to your installation site.*

Picto of Warranties

Warranties

10-year warranty on the structure and joinery, 5 years for double glazing, 2 years for accessories.

The multi-chamber 70mm PVC profiles are reinforced and comply with European Standard NE12608.

The insulating double glazing meets standards NE1279 and NE12600.
